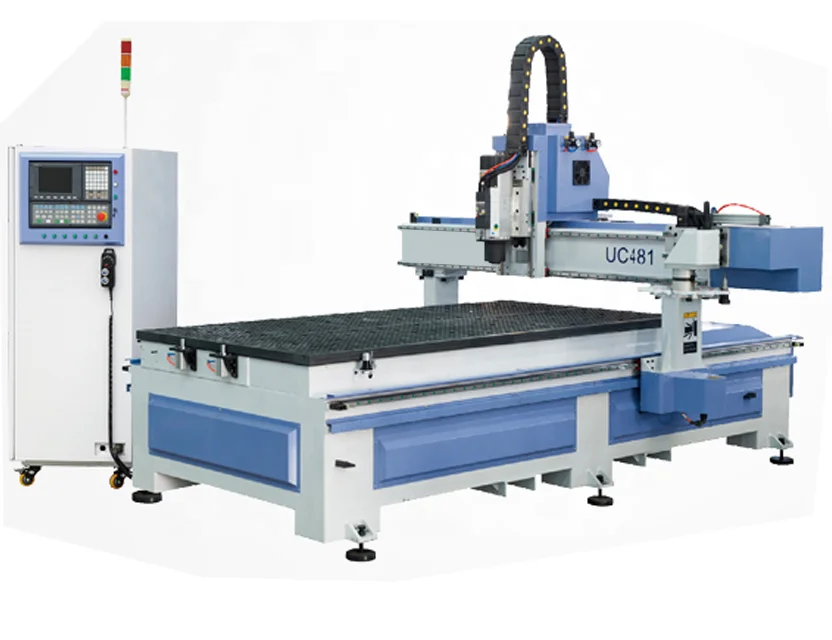

UC 481 Auto Woodworking With ATC 3D CNC Router Machine for Furniture Milling CNC Acrylic CNC Router

Product Overview

Description

UC-481 Auto Woodworking With ATC 3D CNC Router Machine for Funirture Milling CNC Acrylic CNC Router

Model	UC-481
Resolutions	0.025mm
X-Y-Z working area	1220*2440*200mm Steel Gantry	1300*2500*300mm Steel Gantry
X-Y movement	Rack and pinion, gear drive/Taiwan	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive/Germany	Ball screw drive/Germany
Guide	Linear Φ25 square/Taiwan X&Y axiz  Linear Φ20 square/Taiwan Z axis	Linear Φ25 square/Taiwan X&Y axiz  Linear Φ20 square/Taiwan Z axis
Max. speed	50,000mm/min	45,000mm/min
Max. cutting speed	30,000mm/min	25,000mm/min
Spindle	9.6kw(air cooling)/ES951 HSD Italy	9.6kw(air cooling)/ES951 HSD Italy
Spindle speed	24,000rpm	24,000rpm
Inverter power	11kw/Delta	11kw/Delta

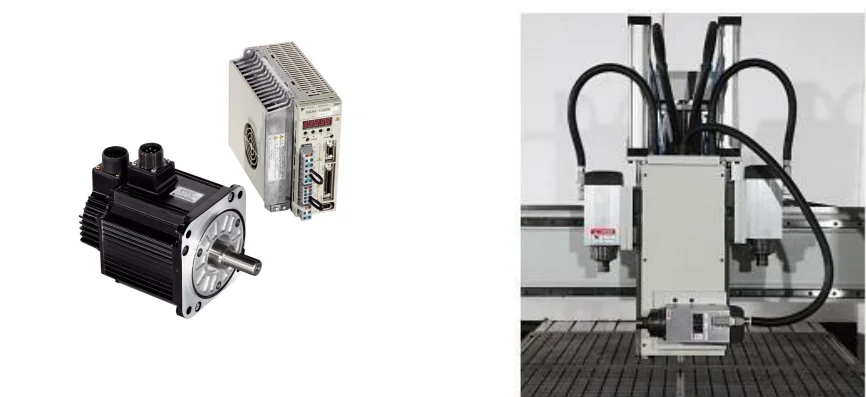

Drive motors	Servo/Japan YASKAWA  Reducers on X Y axis	Servo/Japan YASKAWA
Working voltage	AC380V/50-60Hz, 3-phase	AC380V/50-60Hz, 3-phase
Command code	G code	G code
Computer interface	USB 2.2	USB 2.2
Collet	ISO/ER32-12.7mm,6mm,3.175mm	ISO/ER32-12.7mm,6mm,3.175mm

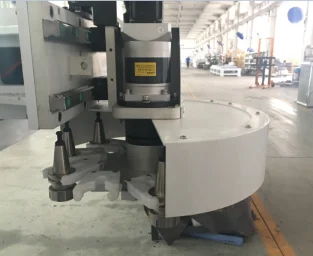

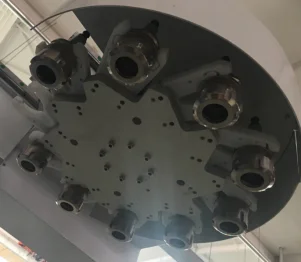

Tool changer	10pcs, Circular type	10pcs, Circular type
Software	UcanCAM	UcanCAM
Controls	Syntec/Taiwan	Syntec/Taiwan
Packing dimensions	2260*3250*1960mm,2500 kgs	2260*3250*1960mm,2500 kgs
Equipment included	A. Oil lubrication system  B. Vacuum system with 4kw Germany  Becker vacuum pump(140m³/h)	A. Oil lubrication system  B. Vacuum system with 4kw Germany  Becker vacuum pump(140m³/h)

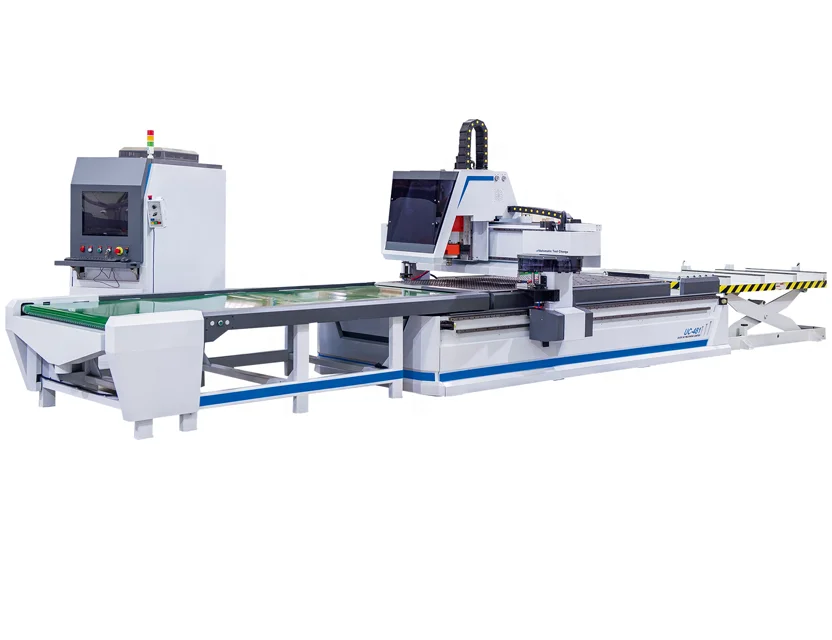

Equipment optional	A. 9v HSD boring head  B. Auto loading&unloading tables  C. Extra German Becker pump  D. Software quick workers for cabinets	A. 9v HSD boring head  B. Auto loading&unloading tables  C. Extra German Becker pump  D. Software quick workers for cabinets

Applicable Lndustries



  UC-481 series CNC router is a patent product of our company 200920027691.9.It is designed for the clients who need to change at most three cutters and also want to dril at the side.This kind of machine increase the efficiency and decrease the cost.

• Furniture Decoration Industry:A large area flat plate engraving,wood,panel furniture carving,wood art murals,wood cabinet doors carving.


• Wood Products Products Processing:Sewing machine table,electrical counter table,sports equipment.

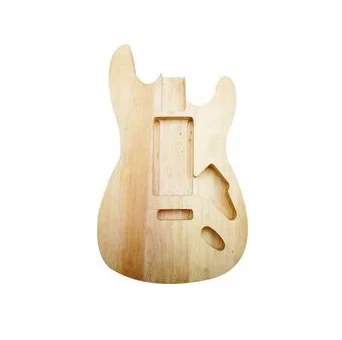

• Musical Instrument Industry:Instrument three-dimensional surface engraving,shape cutting.


• Artwork:Photo Frame,jewelry box.


• Electronic Industry:Circuit board,insulation material,LED display screen.


•

Features

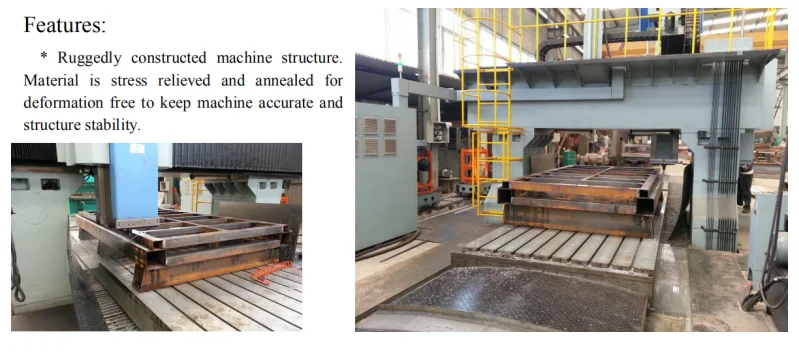

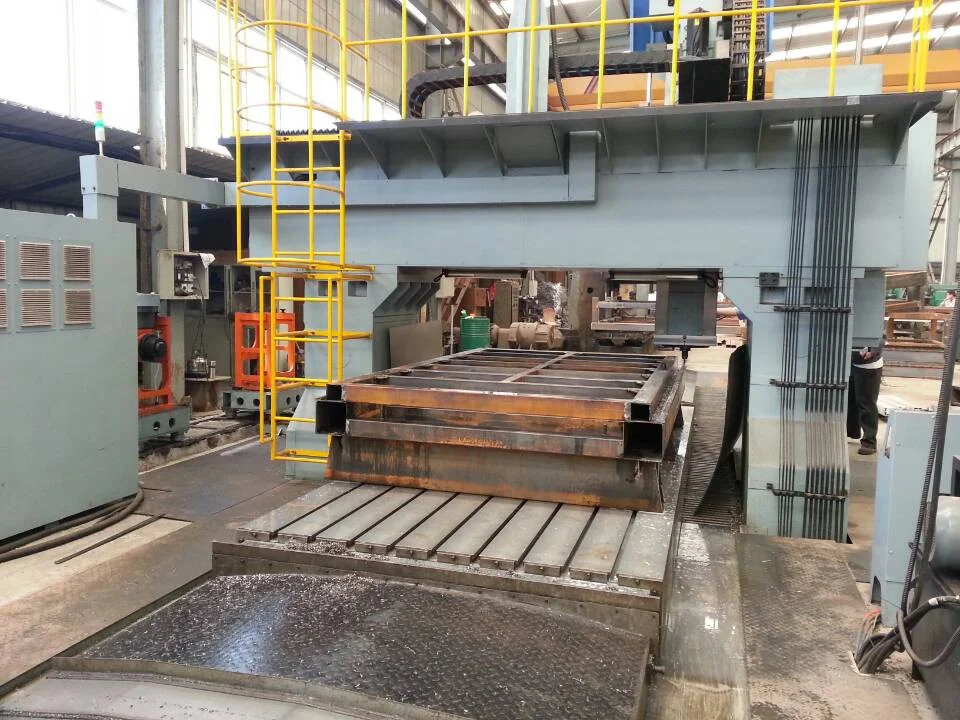

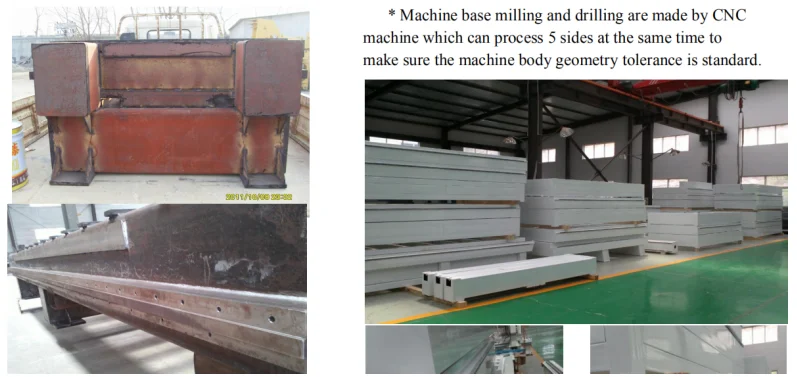

• Stable Structure:The body of the machine is welded with steel which makes it stronger.


• Excellent Parts:Emported Taiwan control system,High precision beareng which has low noise and long life,Imported Taiwan linear rails,Imported German ball screw.

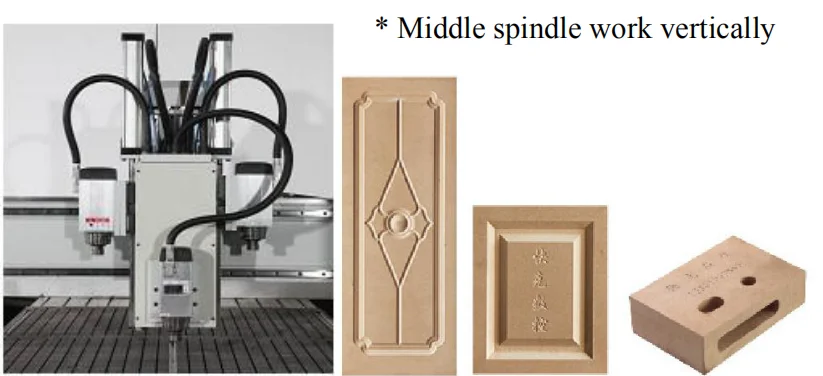

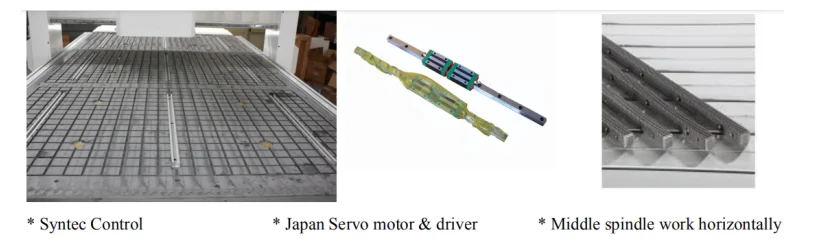

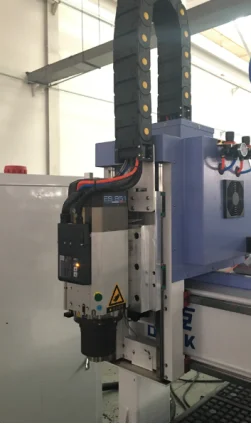

• Excellent Performance:It can save the time for changing less than 3 cutters.The middle spindle can work vertical and horizontal.When you need to work at side,the middle spindle can finish the work of milling as a horizontal spindle.


• Strong vacuum holding device that up to 230 cubic meter per hour.


• Compatible Software:Open style software interface,our software is compatible with Type3/Artcam/Castmate/Ucan and many other kinds of CAD/CAM software.It can change the working file into G code and guarantee that the design does not have the barrier.


• Perfect lubrication system makes maintenance much easier and makes the machine a long life.



Our Customers:



Our Big Family:













Warranty?

Mechanical parts one year,Electrical parts three months





Any aftersale support available?



      Yes we have, Engineers available to service machinery overseas



Payment:



TT 30% advanced payment,70% balance remitted before shipment.

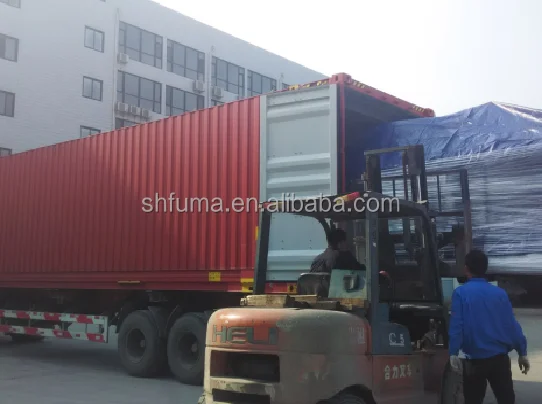

Packing detail:

Shrink film,plywood case packing will have extra cost.
