Wholesale basic 2 pins enec kw3 oz 8a 250v t85 5e4 micro switch
Features :
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC15, CQC,CB, SGS certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
Item | Wholesale basic 2 pins enec kw3 oz 8a 250v t85 5e4 micro switch | |
Model Number | DV-16-A01-KK2-200E | |
Rating | 16A 125/250VAC | |
Temperature Range | -40°C~+125°C | |
IP Code | IP40 | |

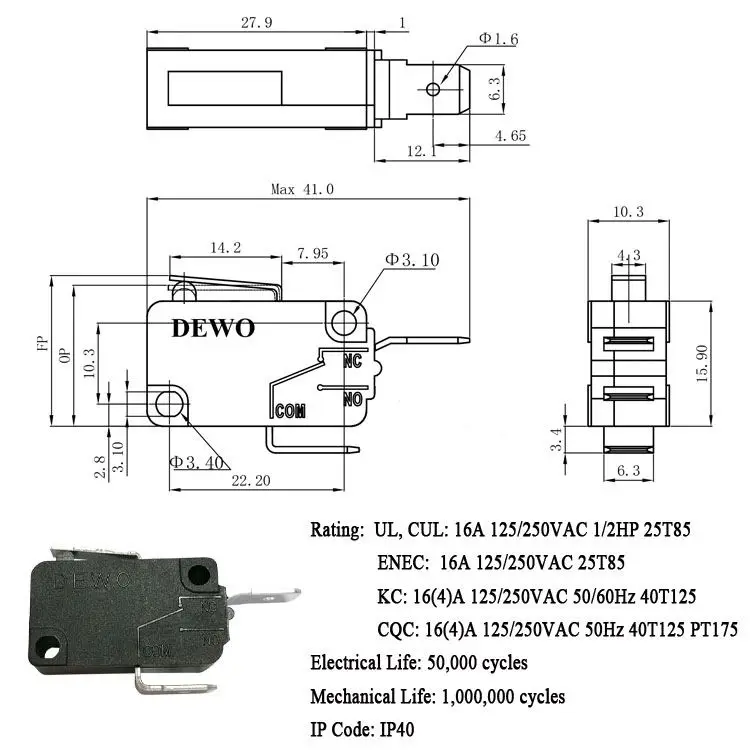

Dimension | 27.9*18.4*10.3mm | |
Material of Case & Knob | PBT | |
Material of Contacts | AgNi10 | |
Material of Terminal | Cu | |
Life | Electrical Service Life | 50,000Cycles |
Mechanical Service Life | 1,000,000Cycles | |
Approval | UL, CUL, ENEC, CQC,CB, KC | |


Q: Are you trading company or manufacturer ?
A: We are factory. Our factory located in Dongguan Guangdong China.
Welcome to visit our factory.
Q: How long is your delivery time?
A: Generally it take 2-7 work days if the goods are in stock.
Or it take 10-20 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer 10 to 20 pcs free samples(general product),
but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment. And we can accept PayPal for small amount.
New products from manufacturers at wholesale prices
