Product Overview
Description

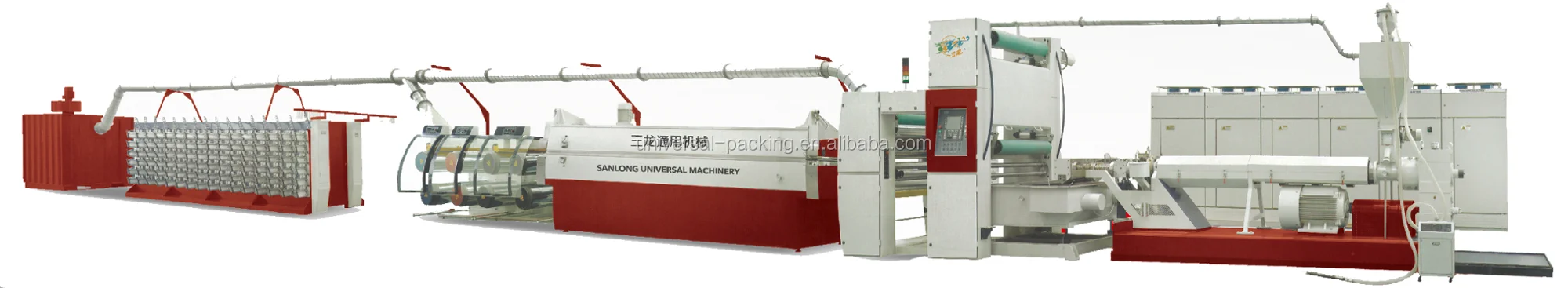

High speed flat film plastic tape extrusion machine
The plastic tape extrusion plant has the performance of high speed, high production, low energy consumption, and excellent good forming quality.
The structure of the machine line is compact with a pleasing appearance, smooth running, flexible and reliable control, excellent working performance, convenient and safe operation. It is equpped with highly automatic industrial controlling components and electric parts.
It can be applied in many aspects, especially in various flat yarn forming conversion of thermoplastics, such as PP, HDPE, LDPE, etc. It is mainly used for plastic woven bags, jumbo bags, FIBC, geotextile, artifical grass, base material of carpet.
| Item | SJ-PLZ-90X33-1000 | SJ-PLZ-100x33-1100 |
| Max.extrusion volume | 315kg/h | 390kg/h |
| Scew diameter | 90mm | 100mm |
| Ratio of L/D | 33:1 | 33:1 |
| Rotation speed of screw | 20-120r/min | 20-120r/min |
| Length of mold lip | 1000mm | 1100mm |
| Max.production speed | 280m/min | 280m/min |
| Flat yarn fibre scope | 60-200tex | 60-200tex |
| Drawing ratio | 4-10 | 4-10 |
| Number of winder | 160spindles | 184spindles |
| System installed capacity | 300kw | 350kw |
| System normal operational capacity(about) | 180kw | 210kw |
| Overall dimension(LxWxH) | 32700x3765x2600mm | 34800x3765x2650mm |
| Total weight(about) | 26T | 27T |
