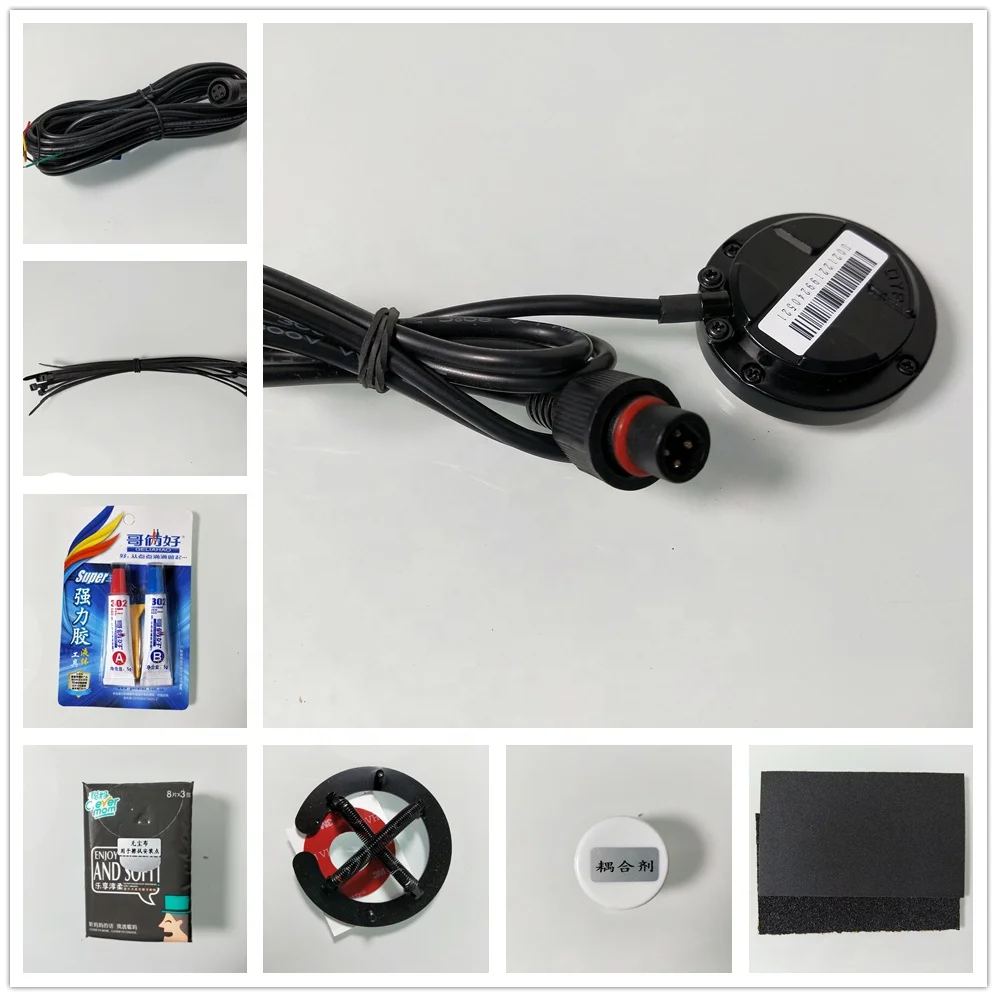

HYF Ultrasonic oil volume sensor Fuel detector
- Category: >>>
- Supplier: Shenzhen HYF Industrial Co. Ltd.
Share on (62144518351):
Product Overview
Description
Product Description
Specification
Parameter item | Specification | Unit | Remark |
Input voltage | DC12～48 | V | |
Average working current | ≤20 | mA | （1） |
Liquid surfaces range | 50～1000 | mm | （2） |
Measurement accuracy | ≤5.0 | mm | （2） |
Resolution | ≤1 | mm | |
Measurement angle | 2～4 | ° | （3） |
Detectable container thickness | 0.6～5.0 | mm | （4） |
Features
*Non-contact measurement, no need to change the shape of the container ,no need to polishe
the surface paint layer of the container;
* Metal shell, internal circuit embedmenttreatment, waterproof design,no pressure for outdoor environment;
* Built-in strong magnet, external waterproof adhesive, installation is simple and firm
* Wide voltage woring，DC12～48V supply power，suitable for all kinds of vehicles;
* Two output port is RS232 output port&RS485 output port，Compatible with various sensor signal acquisition equipment connection;
* High-frequency ultrasonic detection, high solid penetration, suitable for various materials such as metal, plastic containers
* High stability measurement output, built-in anti-interference data processing model, intelligent filtering, compensation
environment interference;
* High-precision measurement output, built-in high-precision calculation model, millimetre measurement resolution
1.3Applications & uses
* Vehicle fuel tank fuel level monitoring
* Liquid level measurement of liquid storage tank
* Container water level monitoring
* Measurement of canned liquid gas
the surface paint layer of the container;
* Metal shell, internal circuit embedmenttreatment, waterproof design,no pressure for outdoor environment;
* Built-in strong magnet, external waterproof adhesive, installation is simple and firm
* Wide voltage woring，DC12～48V supply power，suitable for all kinds of vehicles;
* Two output port is RS232 output port&RS485 output port，Compatible with various sensor signal acquisition equipment connection;
* High-frequency ultrasonic detection, high solid penetration, suitable for various materials such as metal, plastic containers
* High stability measurement output, built-in anti-interference data processing model, intelligent filtering, compensation
environment interference;
* High-precision measurement output, built-in high-precision calculation model, millimetre measurement resolution
1.3Applications & uses
* Vehicle fuel tank fuel level monitoring
* Liquid level measurement of liquid storage tank
* Container water level monitoring
* Measurement of canned liquid gas

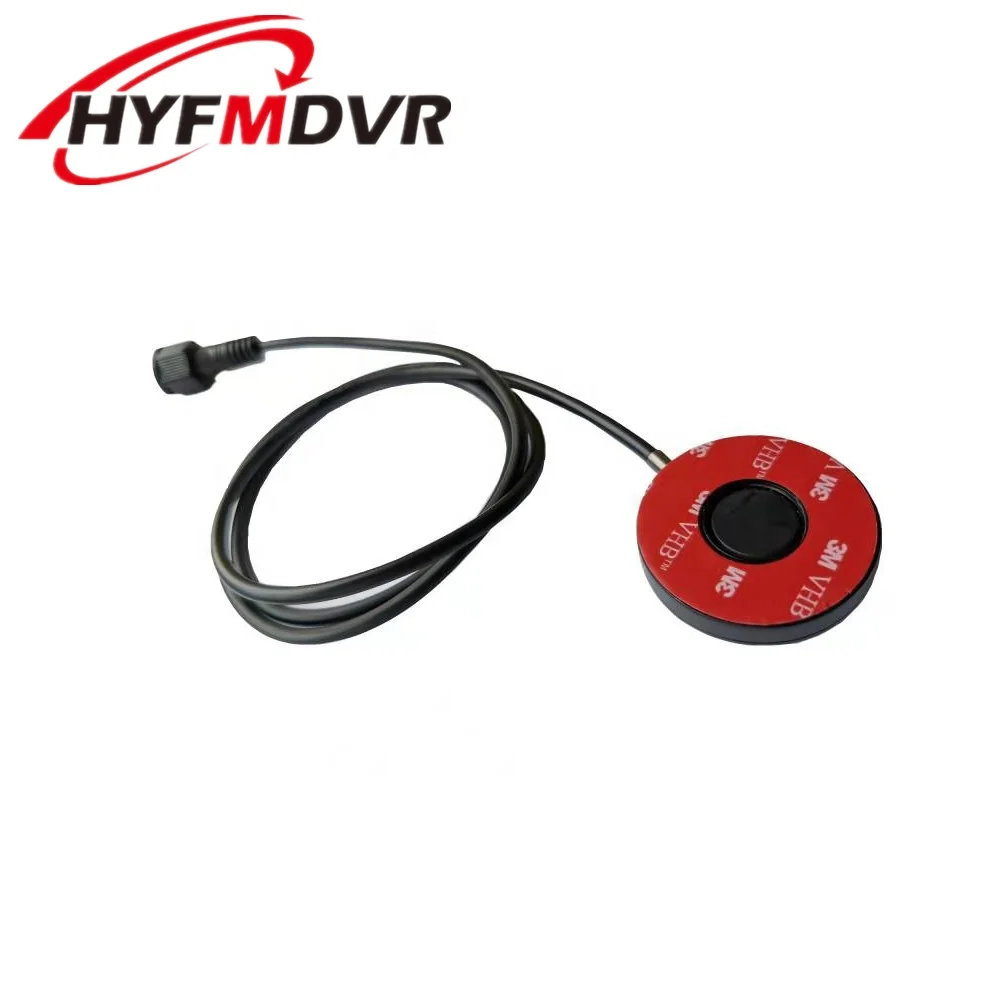

Figure 1 The front side of the sensor body
Figure 2 The back side of the sensor body
① Sensor body shell, alloy material, reliable
protection of the internal circuit, built-in strong magnet, provide installation support;
② Strong waterproof adhesive paper can stick the sensor firmly to the surface of the container, strengthen the signal coupling,
and fix it more firmly;
③ Ultrasonic transducers, referred to as transducers, core sensor devices, are used for the conversion of ultrasonic mechanical
energy and electrical signals
④ Sensor output connector, waterproof structure, for the sensor and signal lines for the rapid plug and pull connection;
⑤The fixed cap of sensor connector, used for fastening sensor output connector and signal wire connector;
⑥ The sensor transmission line plate is used to fix the sensor connection and buffer the bending damage of the signal wire;
⑦ The sensor is used to limit the position of the belt and strengthen the fastening of the bundle.

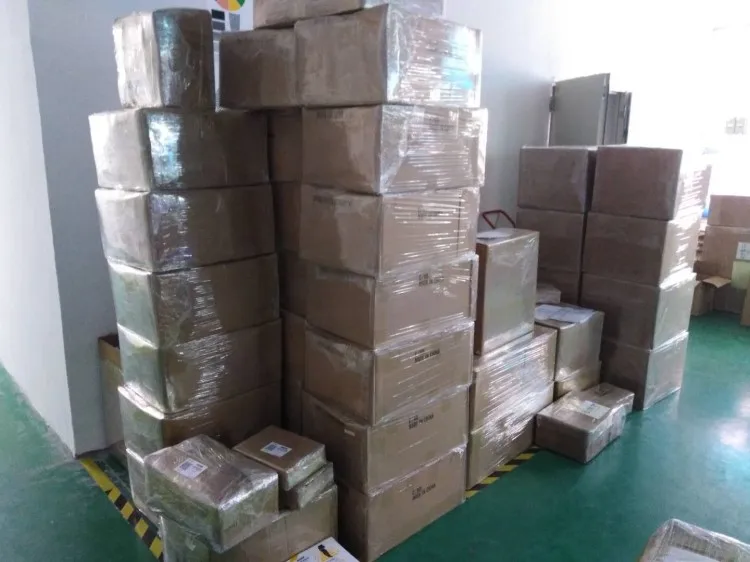

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
