The RCYD(C) series suspends self discharging permanent magnet separator

Share on:


Price:$2,100.00 - $2,600.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

The RCYD(C) series suspends self-discharging permanent magnet separator

Self-discharging electromagnetic belt separator RCDD series is designed for long term operating shift provided with self-discharge function and semi-sphere shaped magnetic field. Installed with continuous operating trump iron discharging conveyor which helps to throw the attracted magnetic material into the iron collection tray. It is suitable for removing the magnetic iron particles from the thicker bed of the material and material under bigger granularity such as ores, coals, hard cokes, limestone and etc.

                        Installation diagram

               Installation diagram(Tilt)

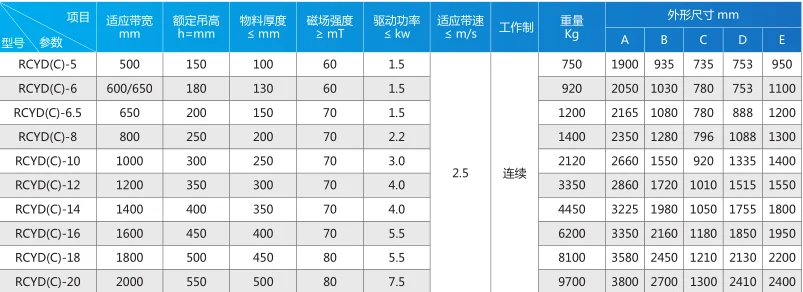

                                    Dimensions

                    Installation diagram(horizontal)

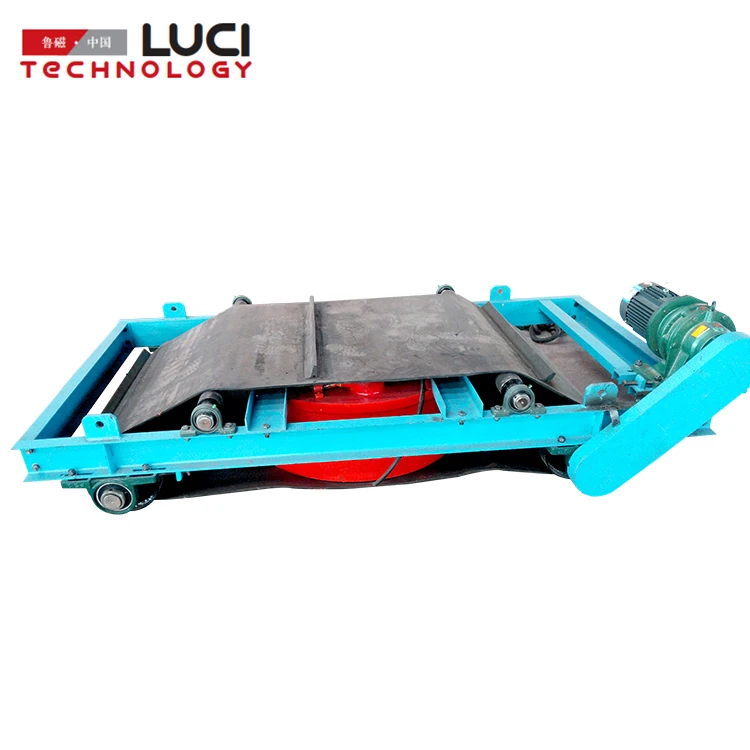

Detailed Image
Product Features

1. Suspended Permanent Magnetic Separator provide powerful deep reaching magnetic circuit design to penetrate heavy product burdens.
2. Strong magnetic field intensity, high gradient and strong attractive force.
3. The unique stainless steel plate-armored belt can protect the belt from damage by sharp ferromagnetism material.
4. Non-excitation and self-cleaning will bring us energy saving and convenience in operation.
5. The belt of Overband Magnet has self-adjustment function and the special sealed bearing block ensure the stable working of suspended overband magnetic separator in harsh environment.
6. Safe specification meets the international standard.

Packing & Delivery
Our company

        Shandong Luci Industrial Technology Co., LTD. was founded in the year 2010.We are the Chinese standard drafter of magnetic chuck, now we have developed into the large-scale and the strongest research and development ability in area of magnetic chuck in China. Our company has Four modern standard workshops, modern standard offices and all kinds of mechanical processing equipment 150 sets. We always insisted on the management concept of"Customer first,quality first,service first". Ample supply of the company can ensure the long term and excessive supply,and stable quality, reasonable price. We sincerely welcome you to visit our company and contact us for cooperation.

More info. please contact Luci of the personnel of the service,ask about details,provide your demand, professional engineers will make plan for you.

Warm tips

●Because of different factory custom specifications of products,product size and shape are different,so product appearance depends on goods.

●Because of different type and specification,market prices fluctuate frequently,so the actual price will be subject to the contract.
