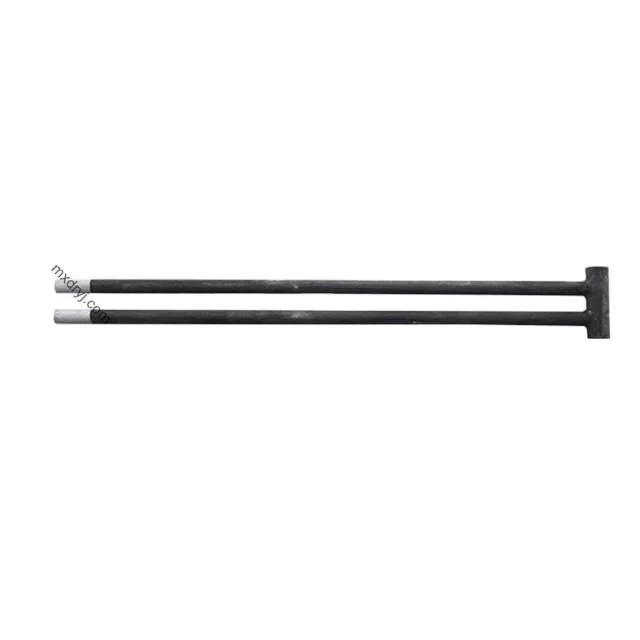

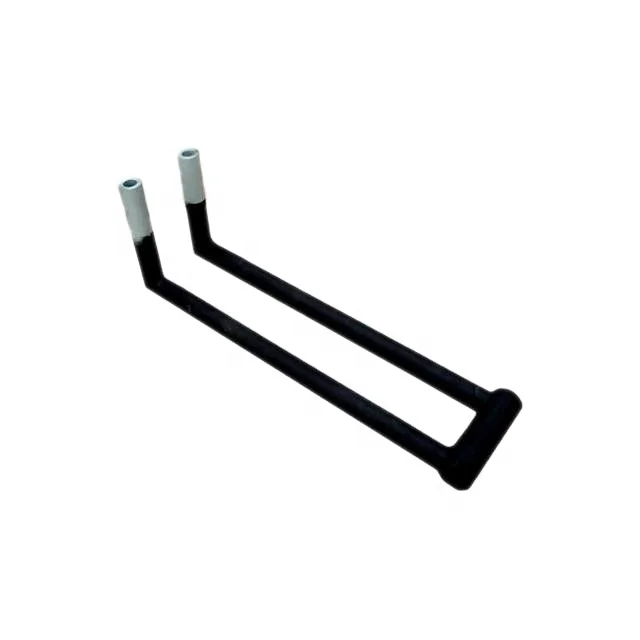

U Type 1500 Degree High Temperature Furnace Silicon Carbide sic heat elements

Product Overview

Description

U Type 1500 Degree High Temperature Furnace Silicon Carbide sic heat elements

       1800C Mosi2 heating element                              1550C silicon carbide heating element

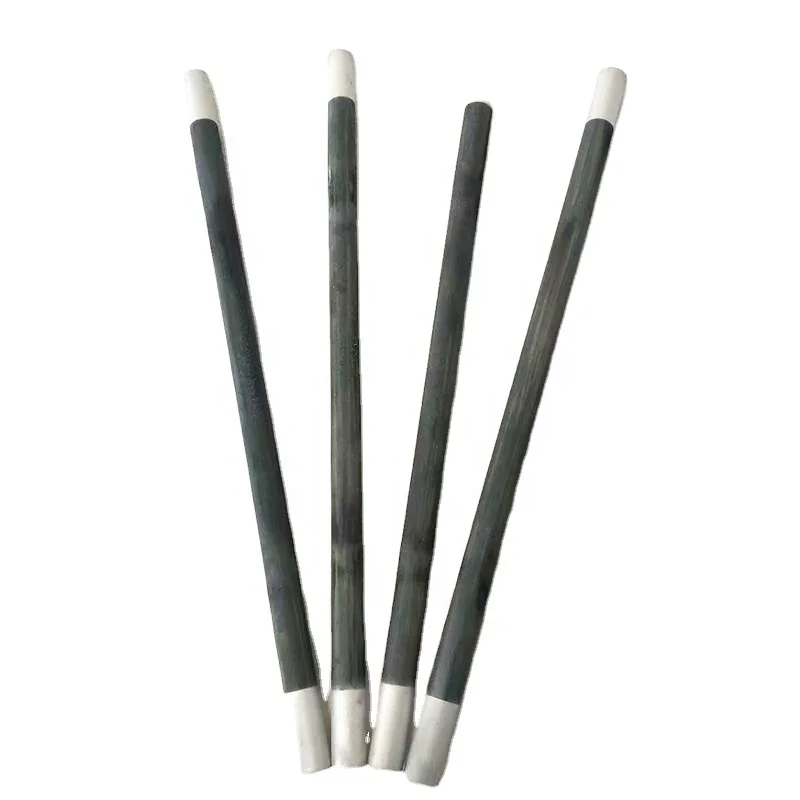

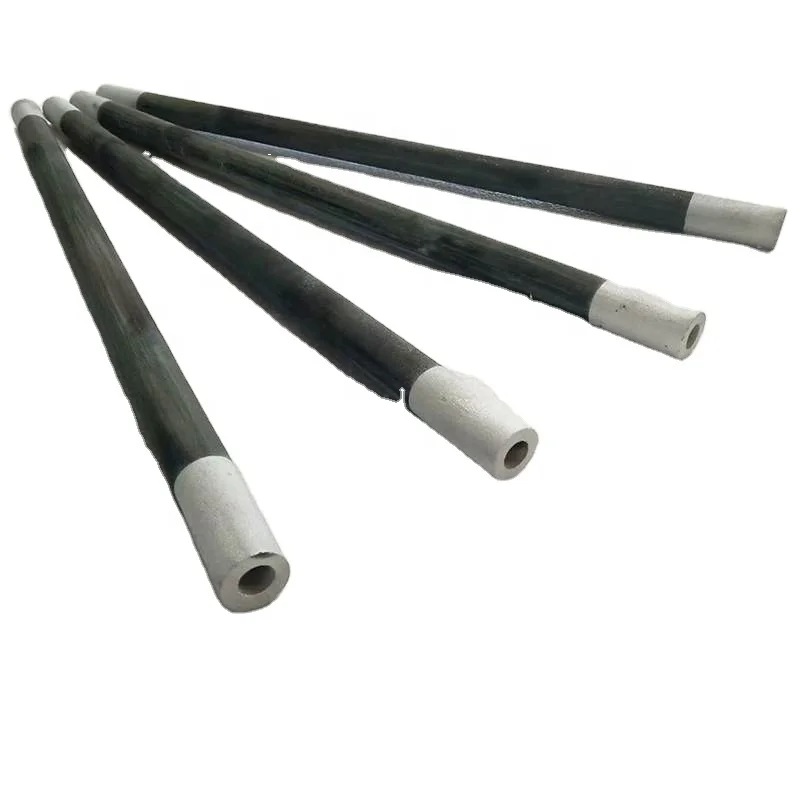

1.Iroduction for silicon carbide heating element

The SiC electrothermal element is a rod-shaped non-metallic thermoelectric element which is made of high quality green SiC as the main raw material through processing, high temperature silicification and recrystallization. Compared with metallic electric heating elements, this element has the characteristics of high operating temperature, oxidation resistance, corrosion resistance, long service life, small deformation, convenient installation and maintenance.

2.Feedback for gc type sic heating element



3.Marks for Silicon carbide heating element





When you enquiry, please tell us the following data

D1: Diameter of Hot Zone(mm)

D2: Diameter of Cold Zone(mm)

Le: Length of Hot Zone(mm)

Lu: Length of Cold Zone(mm)

A: Shank Spacing(mm)



4.Product Parameters

Sic heating element Physical properties
Density	2.6-2.8g/cm³
Hardness	>9MOH'S
Porosity Rate	<30%
Bending Strength	>300KG
Tensile Strength	>150kg/cm³
Radinacy	0.85

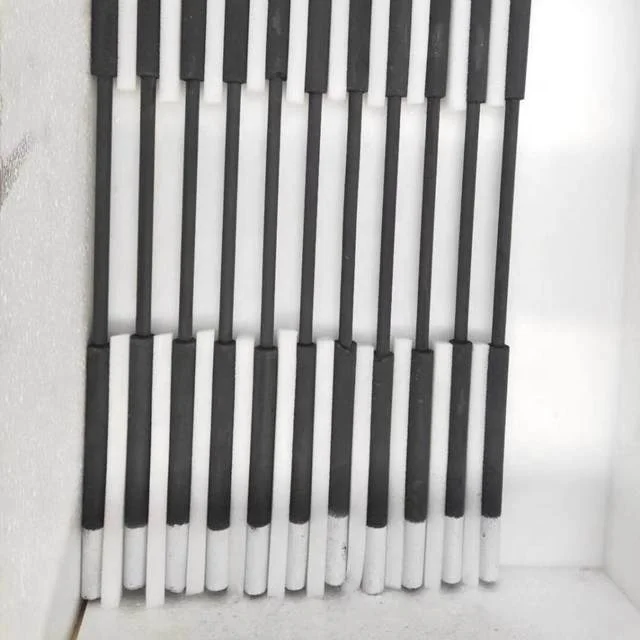

5.Details for silicon carbide heating element





6.Notice for using silicon carbide heating element

1. Heater should be protected against damp during storing or installing to ensure the performance of the heater.
2. In order to be sure of well-distributed lod of each and groups, heater should be divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other.
3. Heater is hard and brittle, please be careful when assembling and maintaining so as to avoid damage.
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new one should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.

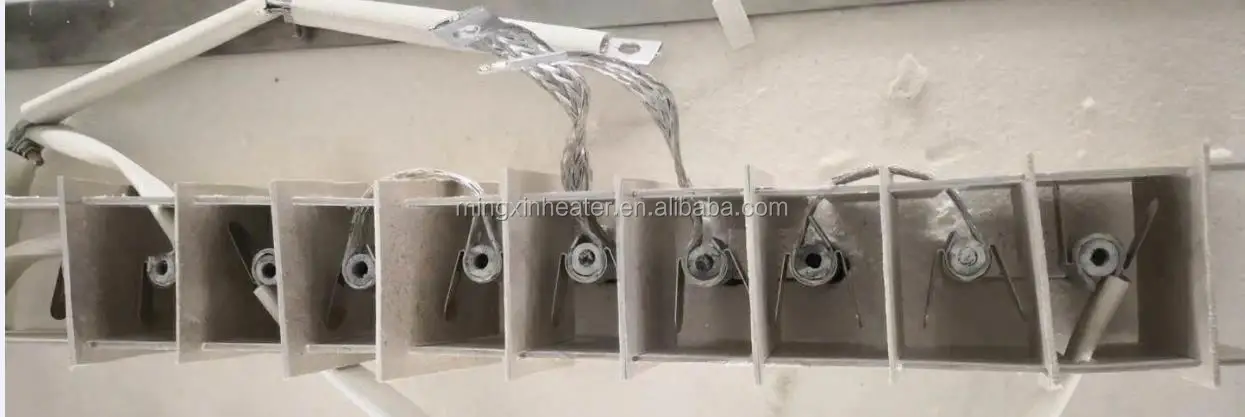

7.Accessories for using silicon carbide heating element

It consists 1 piece of clamp and 2 pieces of straps

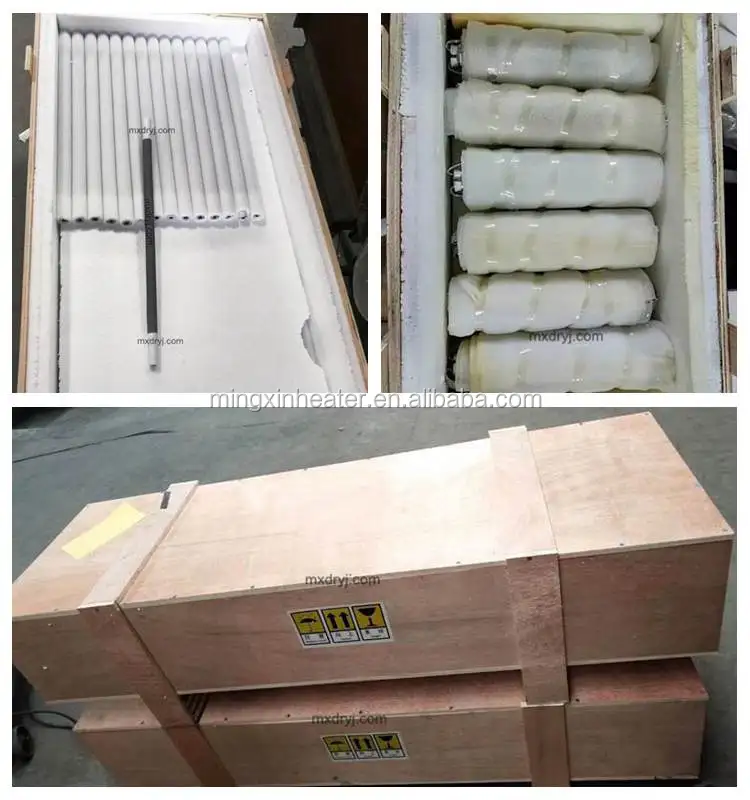

8.Package for silicon carbide heating element

Packaging Details: Packed with sponge and box case, and then put it into wooden case.

Port: Qingdao, Shandong

Lead Time: Shipped in 10 days after payment                          Transportation: Most by air.
