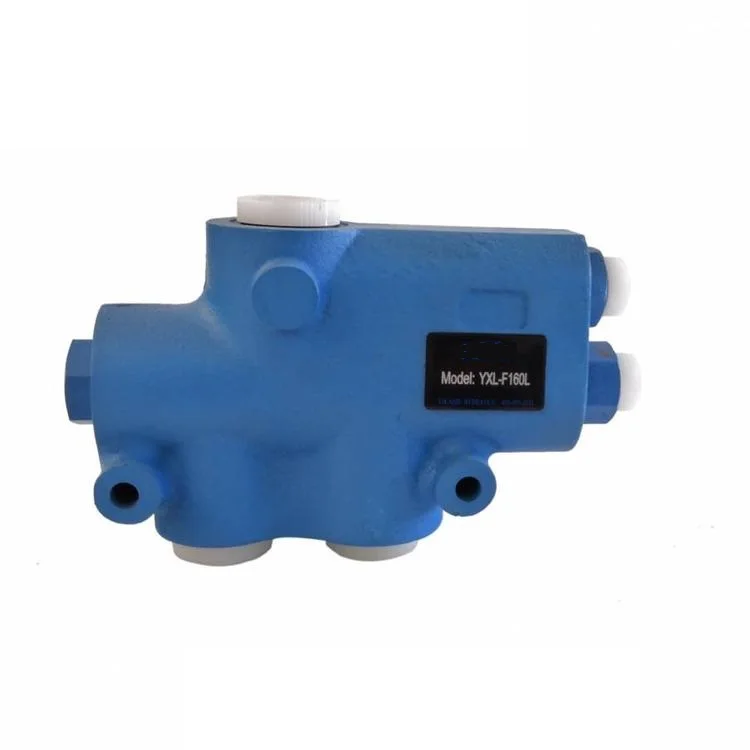

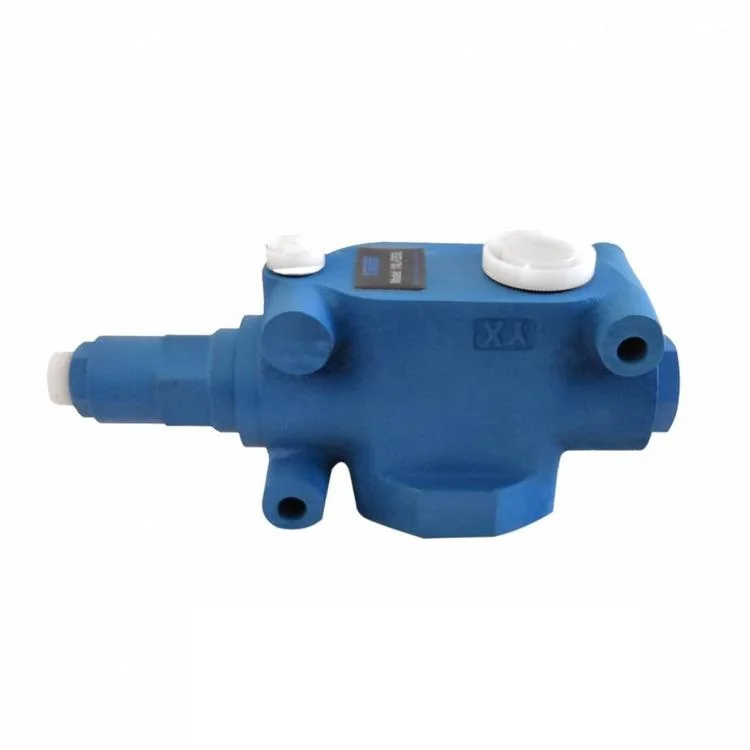

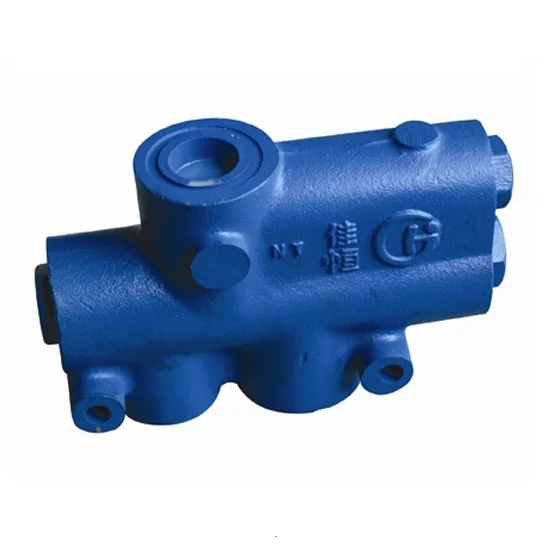

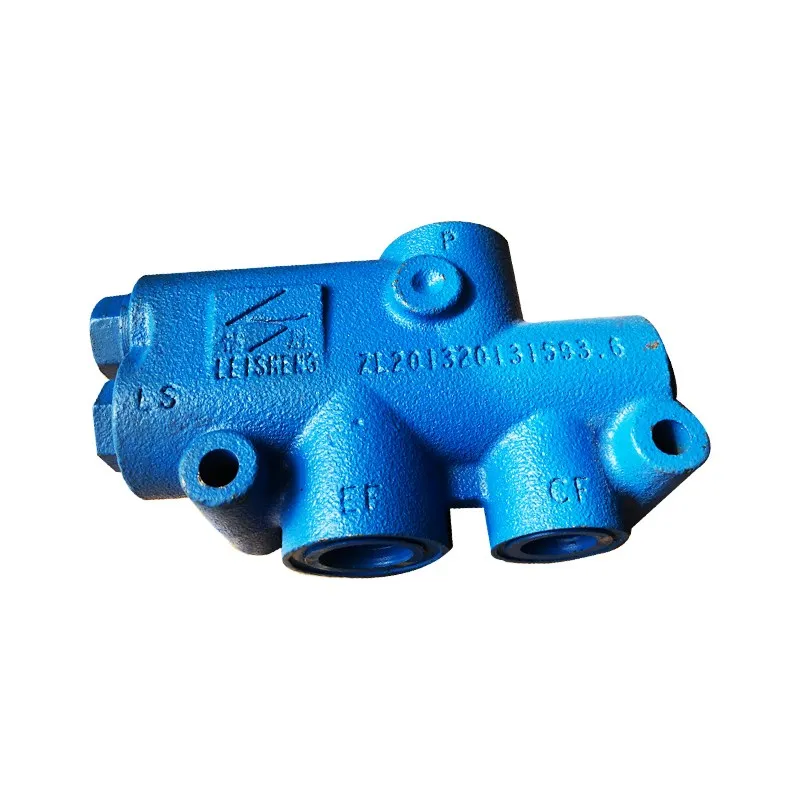

Hot sales DYXL,YXL of DYXL F40L,DYXL F80L,DYXL F160L,DYXL F250L,YXL F40L,YXL F80L,YXL F160L,YXL F250L hydraulic priority valve

Product Overview

Description

Hot sales DYXL,YXL of DYXL-F40L,DYXL-F80L,DYXL-F160L,DYXL-F250L,YXL-F40L,YXL-F80L,YXL-F160L,YXL-F250L hydraulic priority flow control valve

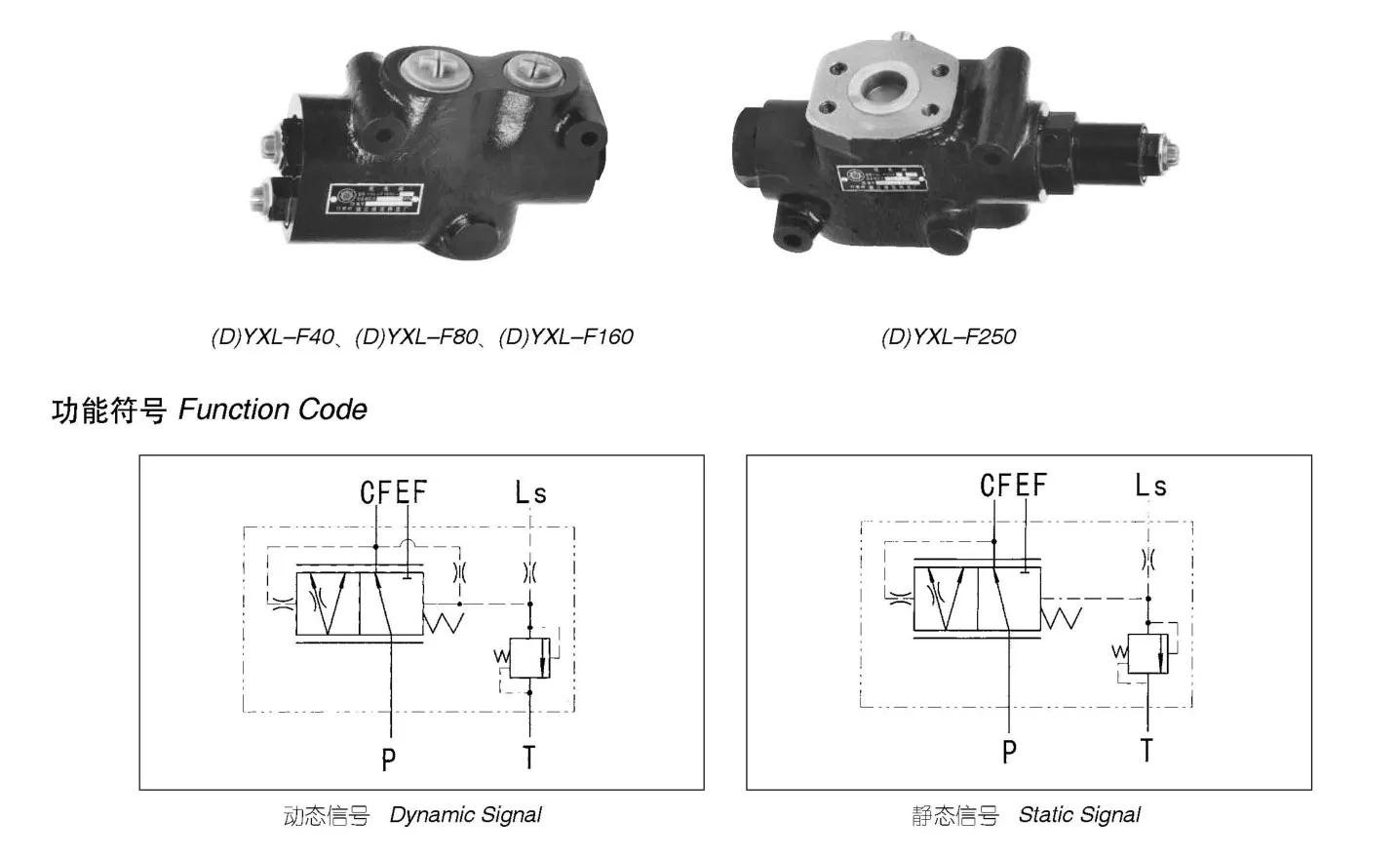

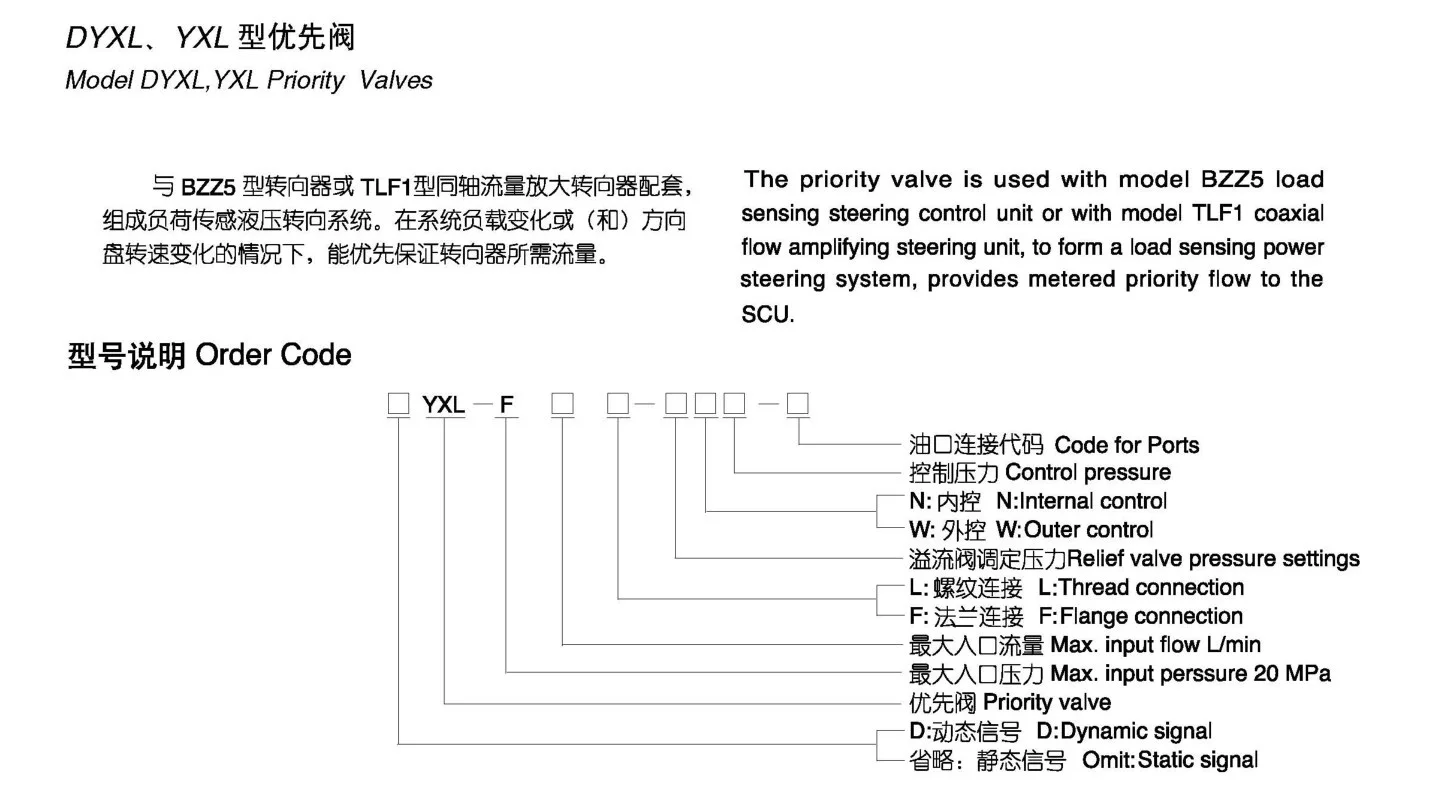

1. The priority valve is used with model BZZ5 load sensing steering control unit or with model TLF1

coaxial flow amplifying steering unit

2. To form a load sensing power steering system

3. Provides metered priority flow to the SCU

4. The steering is flexible and stable with good performance

5. When the system load is different or the steering wheel speed changes, the flow required for the operation of the steering gear can be given priority to replenish at the first time.

6. The load-sensing full hydraulic steering unit and priority valve steering system are both under high pressure and low flow working conditions. On the basis of their merging into the working system, an additional high pressure unloading part is also added, which is the priority unloading valve

7. Application: steering system for engineering vehicles and machinery

8. 1 year of warranty

9. Very competitive price

10. Short delivery time

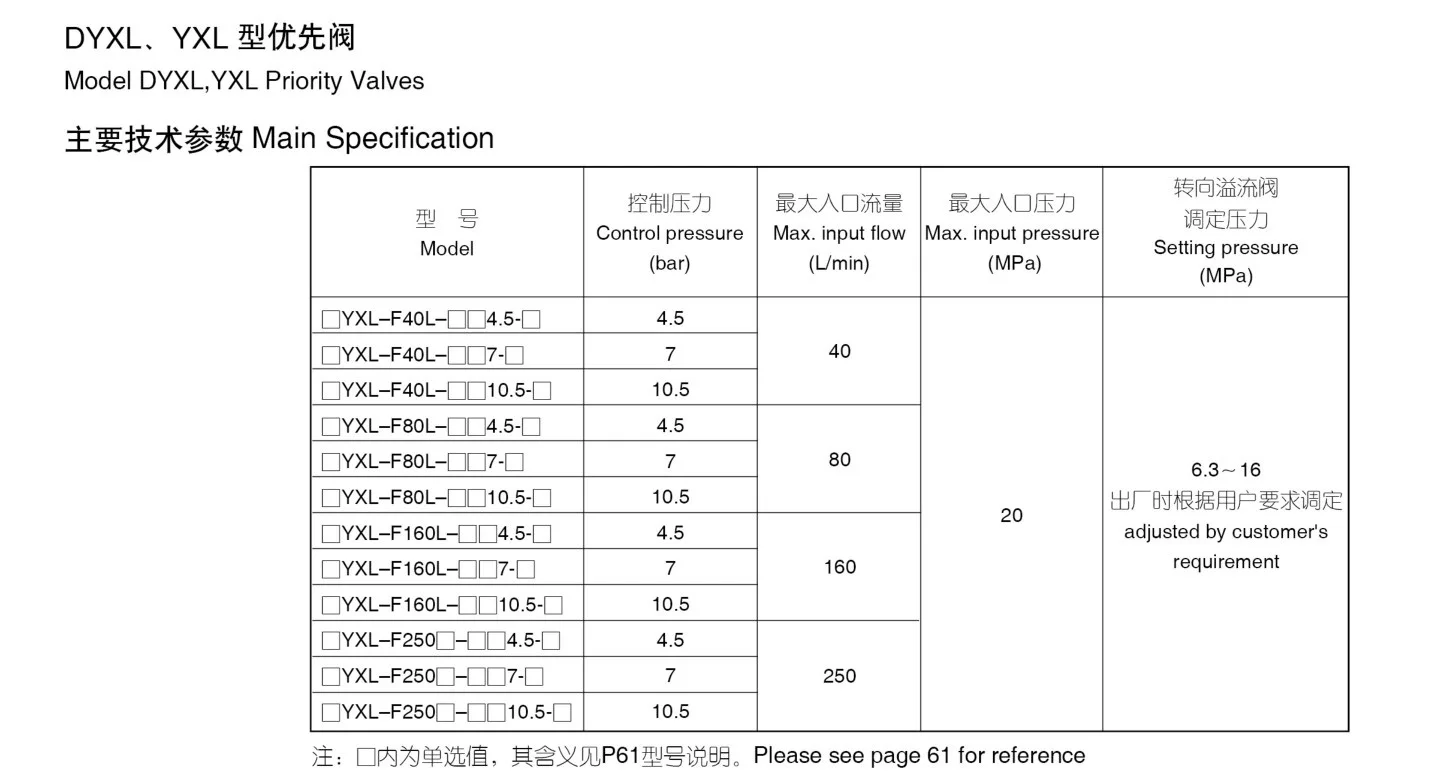

 Technical Specifications:



Model	Control pressure /MPa	Maximum inlet flow /(L/min)	Maximum inlet pressure /MPa	Steering safety valve set pressure /MPa
YXL-F80L-N4.5 YXL-F80L-W4.5	0.45	80	20	6.3~16 (Set at the factory according to user requirements)
YXL-F80L-N7 YXL-F80L-W7	0.7
YXL-F80L-N10.5 YXL-F80L-W10.5	1.05
YXL-F160L-N4.5 YXL-F160L-W4.5	0.45	160	20	6.3~16 (Set at the factory according to user requirements)
YXL-F160L-N7 YXL-F160L-W7	0.7
YXL-F160L-N10.5 YXL-F160L-W10.5	1.05
YXL-F250L-N4.5 YXL-F250F-W4.5	0.45	250	20	6.3~16 (Set at the factory according to user requirements)
YXL-F250L-N7 YXL-F250F-W7	0.7
YXL-F250L-N10.5 YXL-F250F-W10.5	1.05
