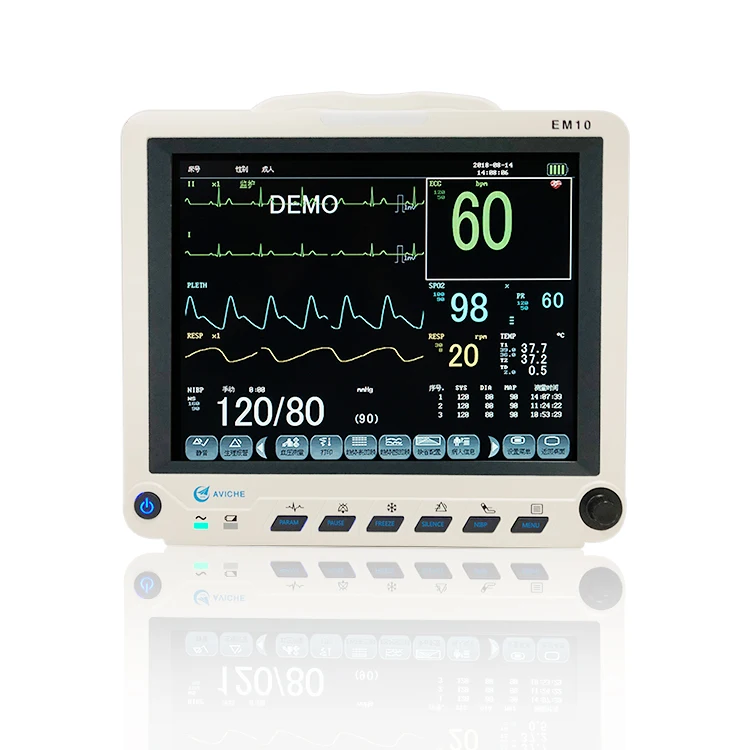

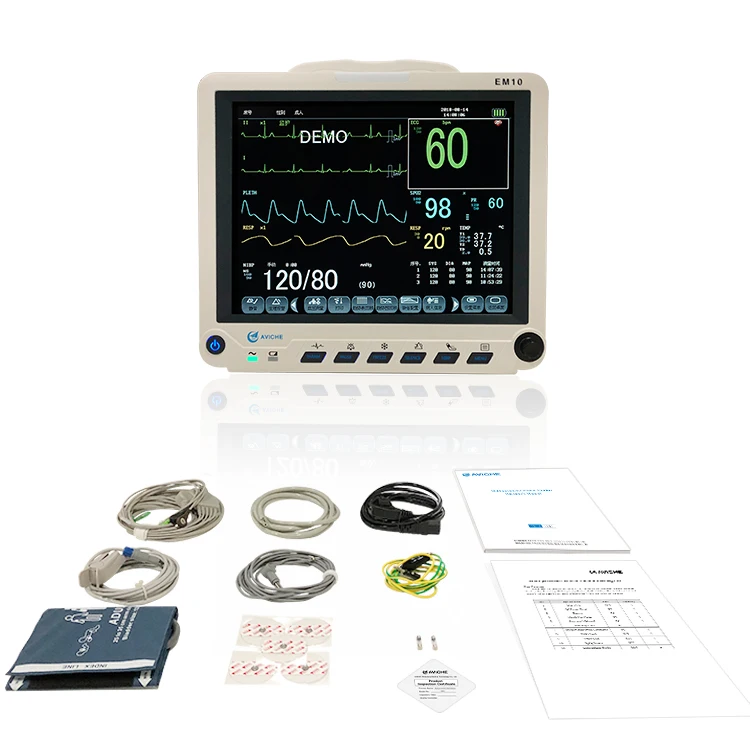

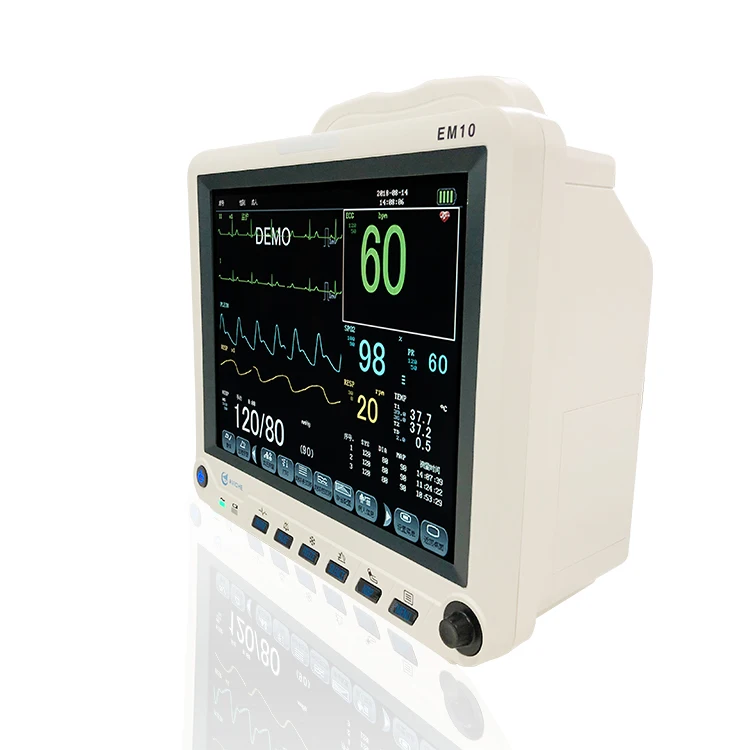

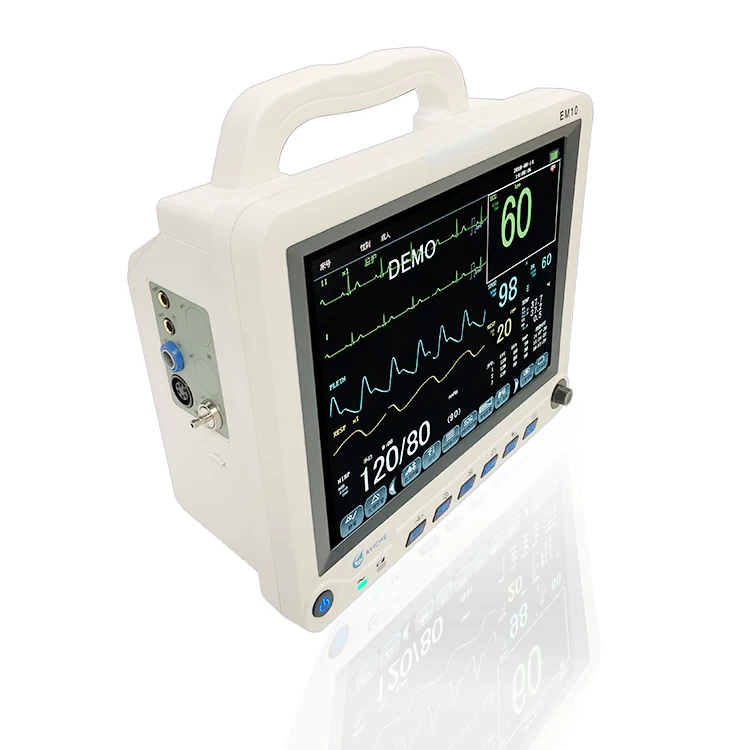

AVICHE Korea, многопараметрический монитор больничного пациента ICU

Product name

Multi-parameter Patient Monitor

Product model

EM10

Color

White + Black

Input

5-lead or 3-lead ECG cable AAMI line for connection

Lead Choice

I, II, III, aVR, aVL, aVF, V

Gain Choice

X1/4, X1/2, X1, X2, X4 , Auto

ECG Waveforms

7 channels

 Sweep Speed

6.25, 12.5, 25, 50 mm/sec

ECG Calibration

1mV

Heart Rate Range

15-300bpm

Accuracy

± 1bpm  or ±1%, whichever is greater

Monitoring mode

0.5 ~ 40Hz (+0.4dB, -3.0dB)

Operation mode

1 ~ 25Hz (+0.4dB, -3.0dB)

Diagnostic mode

0.05 ~ 100Hz (+0.4dB, -3.0dB)

Alarm Limit Range Setting

upper limit: 16 ~ 300bpm, lower limit: 15 ~ 299bpm

Measurement  Range

-0.8mV ~ +0.8 mV (diagnostic mode)

Accuracy

± 0.02 mV or ±5%,  whichever is greater (diagnostic mode)

Upper limit

-0.30mV ~ +0.80mV

Lower limit

-0.80mV ~ +0.30mV
