Double pitch conveyor chains transmission chains

Double Pitch Chain/Extended Pitch Conveyor Roller Chains

Double Pitch Transmission Chains

Double pitch roller chain, also referred as extended pitch conveyor roller chains, are built in accordance with ANSI B29.4.

Products with attachments are widely used in conveyor applications when loads are low and speeds are moderate.

Available variations include larger diameter rollers and hollow pin design.

These chains can also be supplied in stainless steel, nickel-plated or zinc-plated versions (oversized roller chain can be steel or engineering plastics).

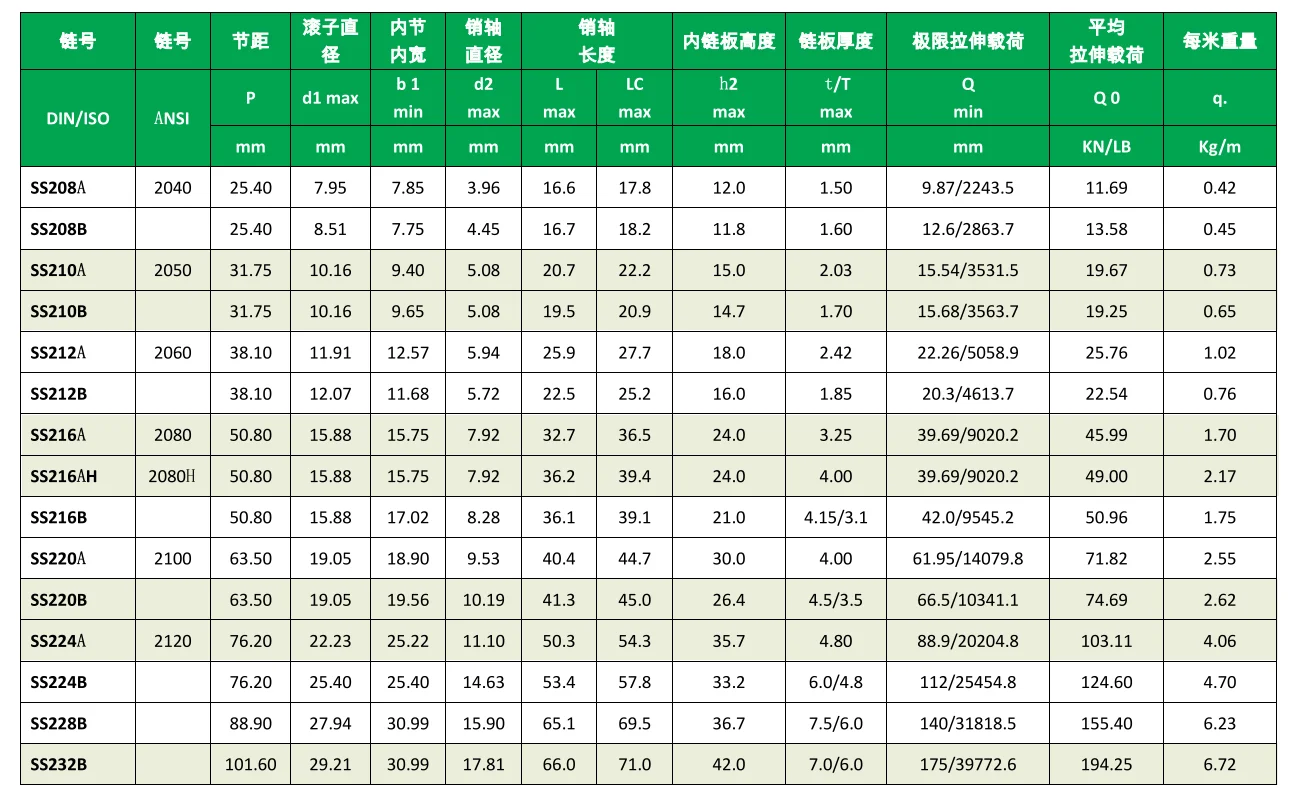

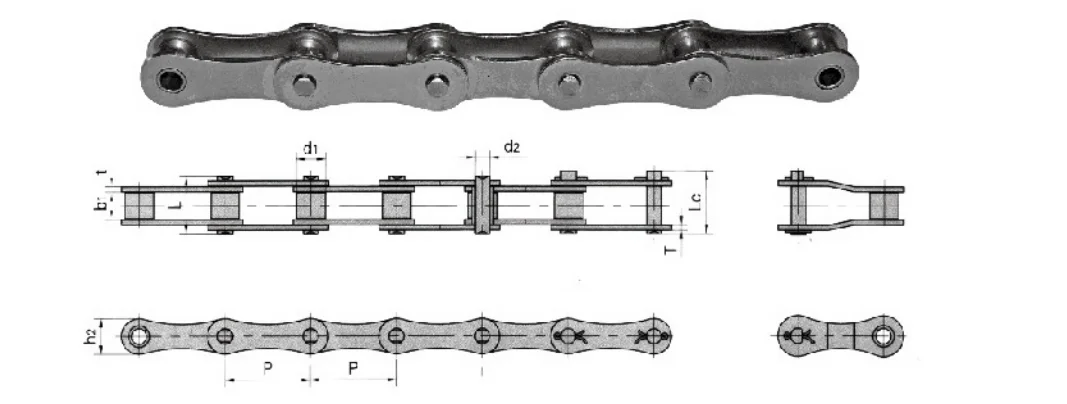

Main dimensions for your kind choice.

Roller is made of 300,400,600 stainless.
