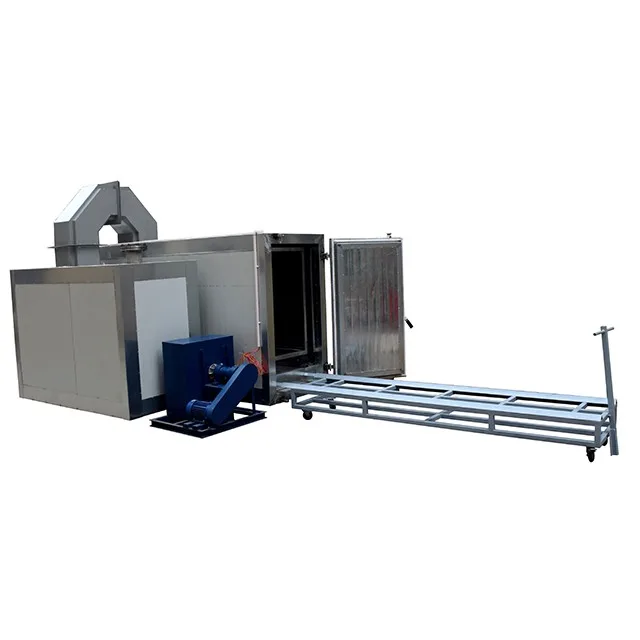

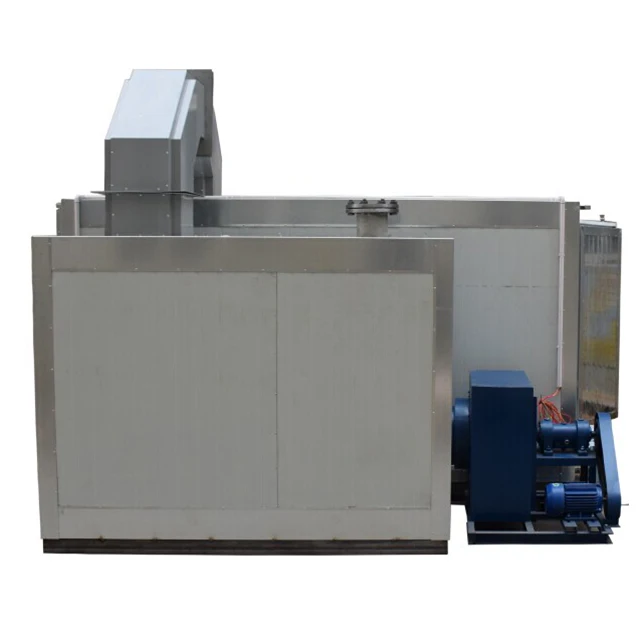

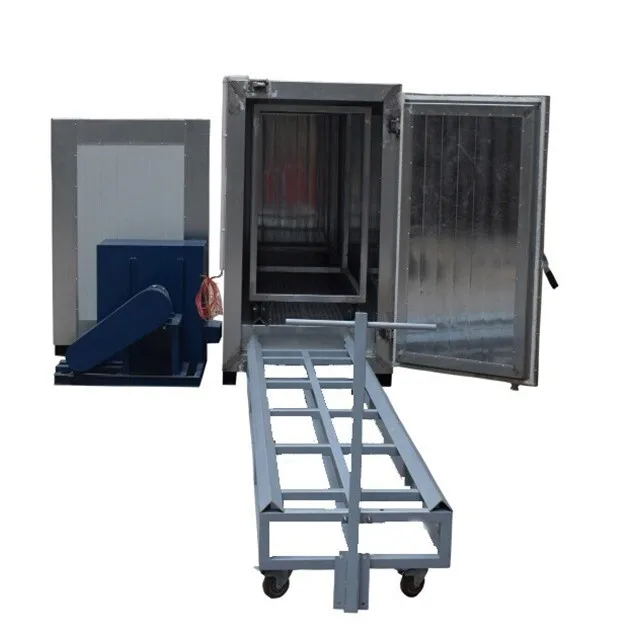

Gas Powder Coating Batch Oven is widely used in powder coating industry, the most reason people choose it is energy-saving comparing with electric oven, especially for large dimension, Gas Powder Coating Batch Oven will save more expense of energy consumption.
Specification for Gas Powder Coating Batch Oven
Model
COLO-0813(indirect fired heater)
Worksize dimensions
800 width x 1500 height x 3000 depth
Power supply
Gas
Voltage/Frequency
380V(50-60hz) /as required
Warm-up time
15-30 min. (180° C)
Temperature stability
< ± 3.0-6°C
Temperature max.
250° C
Burner
Italy brand Riello, 10,0000cal
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
1131-2565m3/h
Motor power
3kW
Warranty
12 months
Gas Powder Coating Batch Oven Main Features
1.Precise temperature control,furnace tolerance of+/-5 degrees celsius.Indirect heating system with a heat exchanger. 2.Hot air is transfered from the bottom up. 3.Heat exchangers used in seamless steel tubes 8*8 array,use the combustion liner 314S stainless steel seamless pipe thickness of3-4mm. 4.Closed-round clean efficient circulation system 5.Burner can be put in the side or top place,trolley can be designed as request 6.High quality Italy imported burner
Detailed Images
Machine Parts

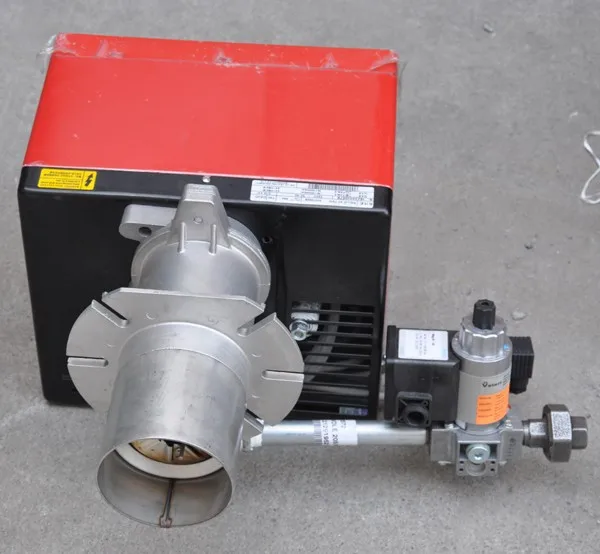

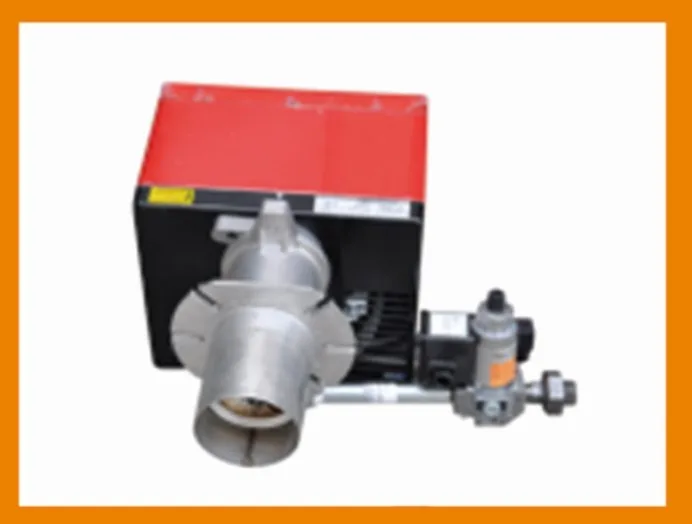

Name: Burner
Brand: Riello
Original: Italy
Burner can be put in the side or top place,trolley can be designed as request

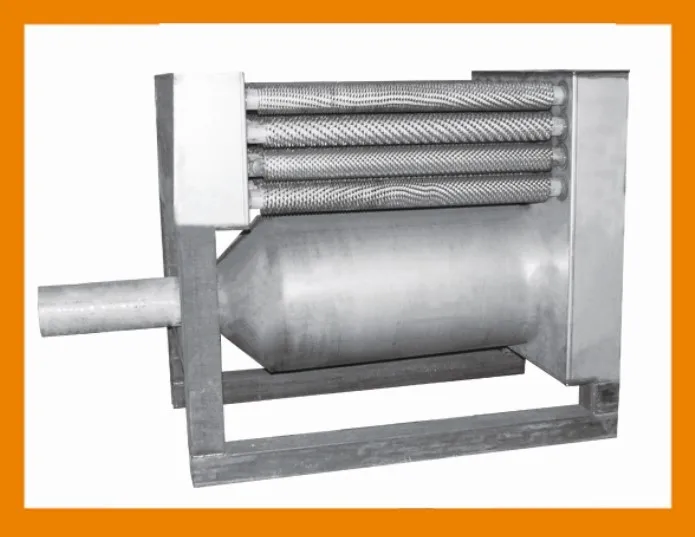

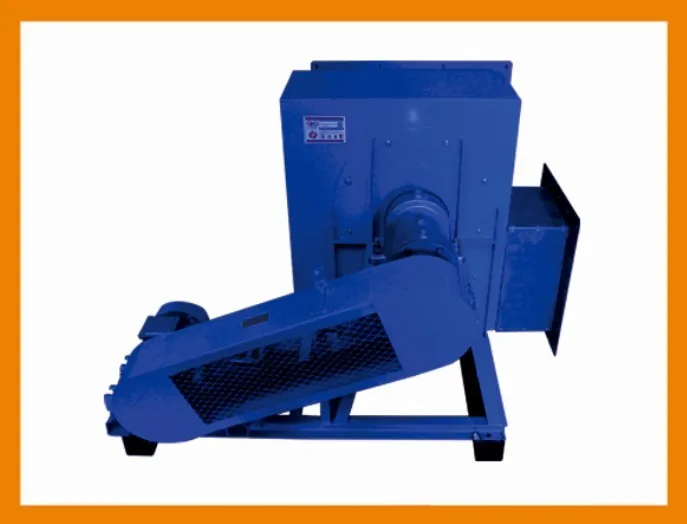

exchanger
Heat exchangers used in seamless steel tubes 8*8 array,use the combustion liner 316 stainless steel seamless pipe thickness of3-4mm.

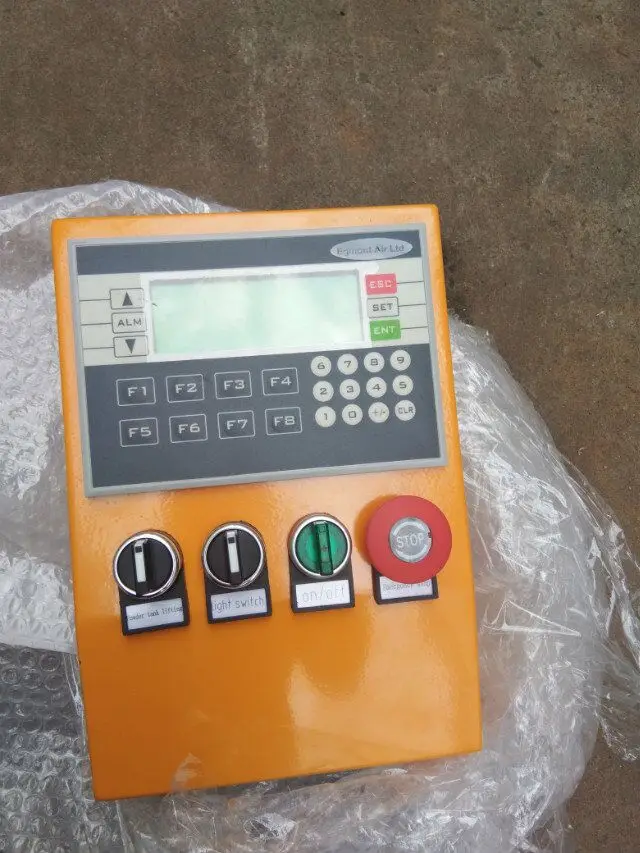

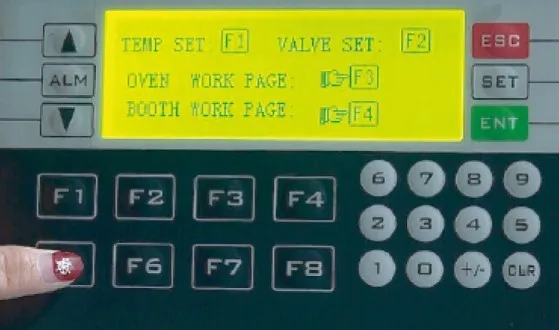

Oven controller
Name: Plc controller
Precise temperature control,furnace tolerance of+/-5 degrees celsius.Indirect heating system with a heat exchanger.
Fan motor of the oven
forced air circulation ovens operates an integrated heating system, it consists of heating and ventilation system, thanks to its use in the event of a fault, fan and heater can be easily removed and quickly replaced. Circulation in the furnace is designed to evenly distribute the hot air throughout the oven chamber. The air intakes are placed symmetrically on the entire surface of the walls of the furnace, the power lifting fan is individually adjusted.

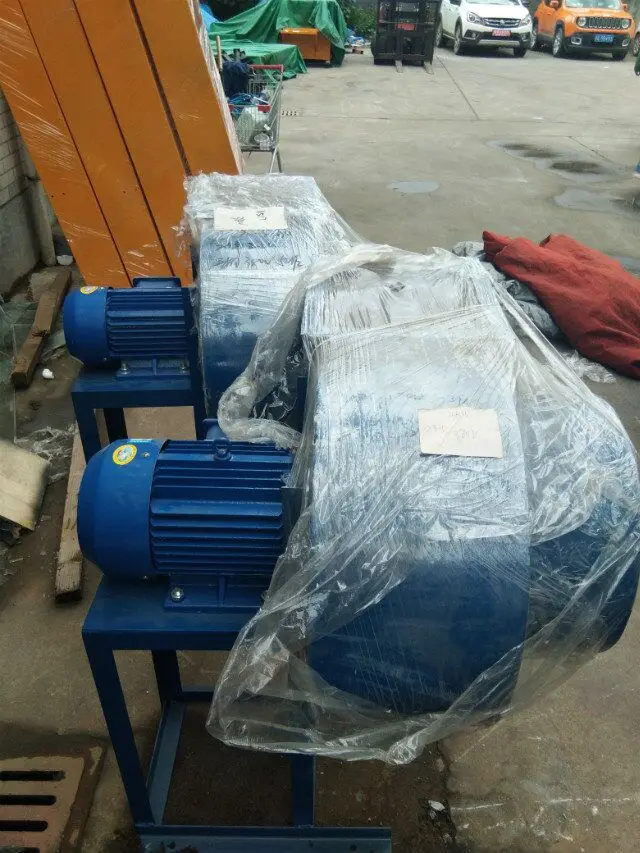

Packing & Delivery

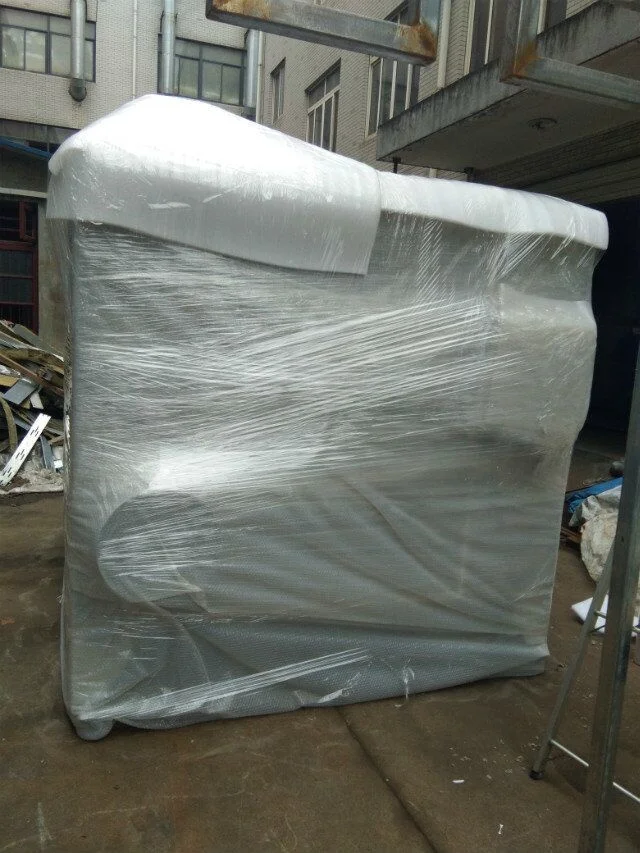

Packaging
Size
360 (L) * 150 (W) * 220 (H)
Weight
1.25 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
