Plastic Product Making Machine Rotational Molding Machine For Septic Tank

1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould

2.the mould is closed

3.the mould is rotated in the oven revolving on two axes.

4.plastic material melts,forming a coating layer on the mould internal surface.

5.the mould is removed from the oven and cooled off.

6.the mould is opened and the hollow item is extracted

1.Low cost
2.Rotomolding machinery invests less than other plastic molding machines such as injection molding machines
3.Suitable for simultaneous production of multiple types of products
4.The surface of the product is straight and uniform in thickness
5.Suitable for large hollow products

6.products are not subject to high stress,little scraps are generated

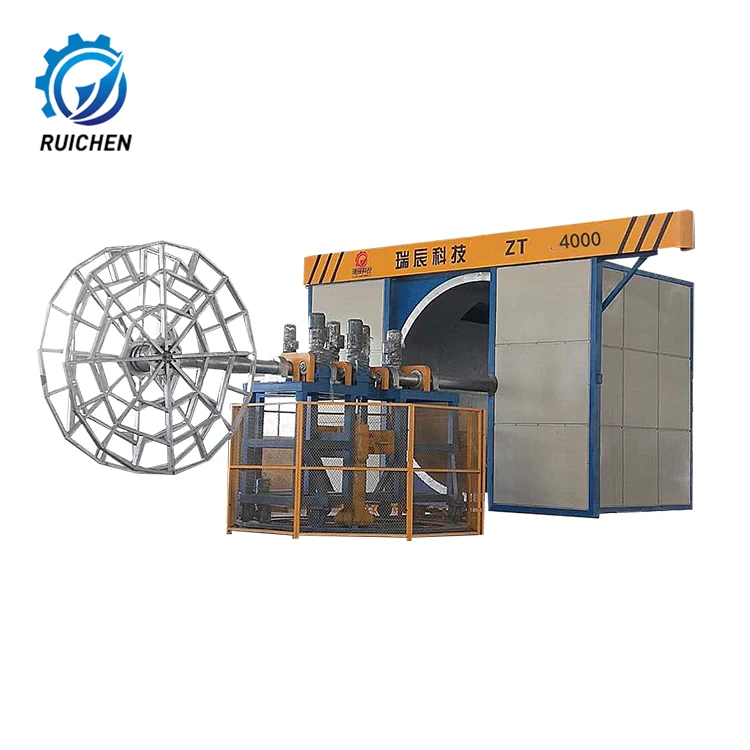

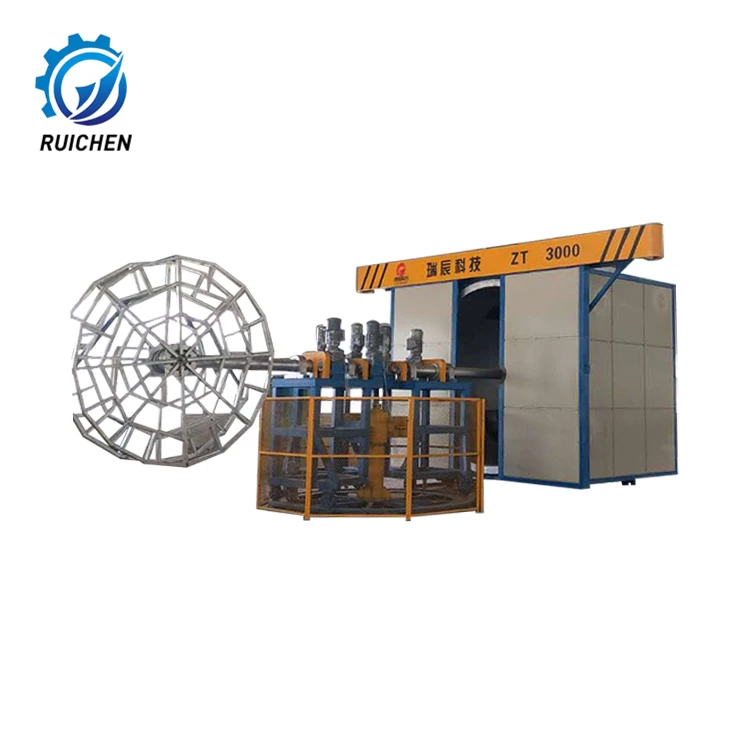

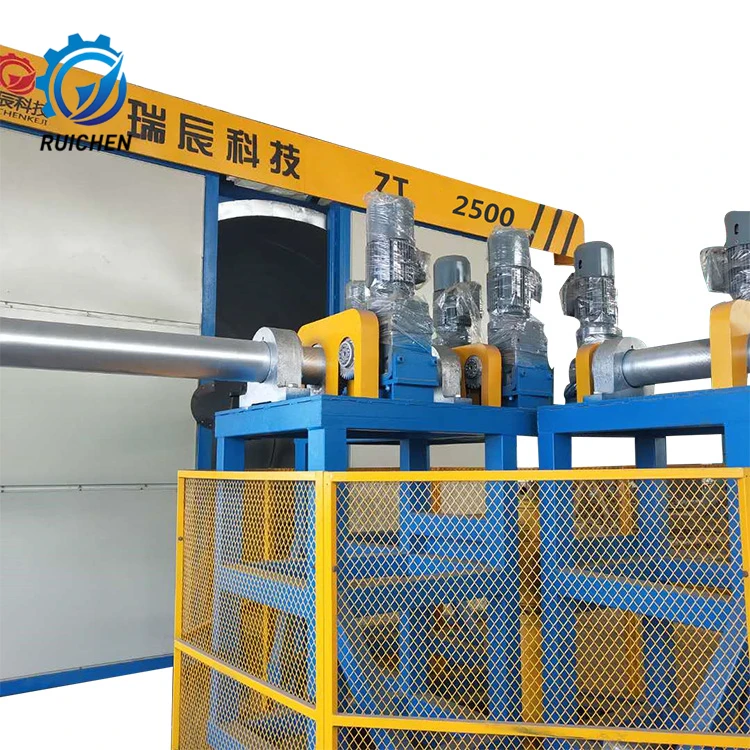

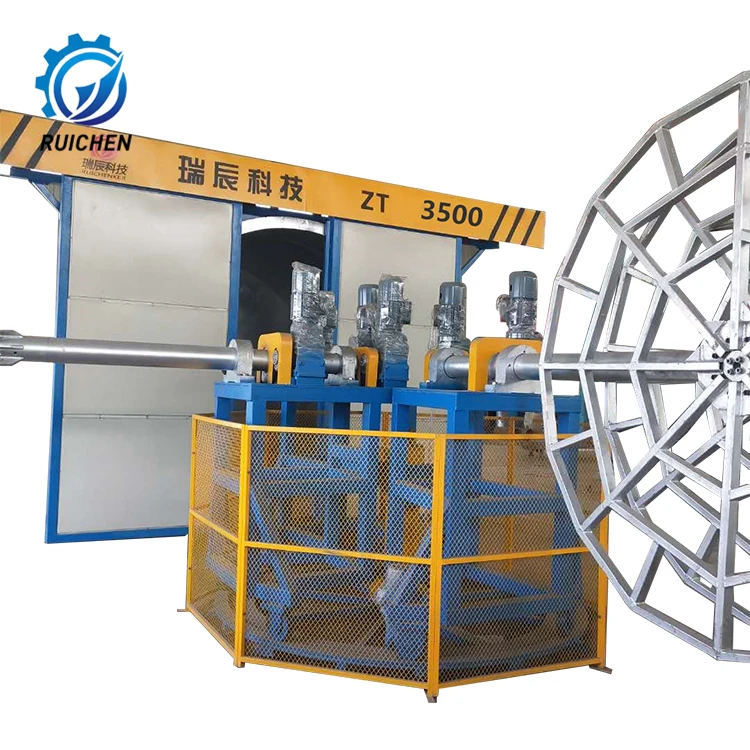

1.This equipment is a tower-type 3-arm 4-position rotary moulding machine. It uses the principle of thermoplastic rotary moulding to roll moulding hollow plastic products. It consists of a revolving center tower, a revolving arm, an automatic control system, a moving heating room and a cooling room.

2.There are three working arms, each arm has four working positions, each arm is 90 degrees each other, each group of arms and carts can be operated independently without affecting the work of other arms.

Model No

Floor size

Operating
platform

Biggest tank made

L(m)

W(m)

H(m)

RC-ZT-2000

10

8

3

×

1000L

RC-ZT-2500

15.5

9

3.7

√

2500L

RC-ZT-3000

17

10

4.2

√

4500L

RC-ZT-3500

20

12

4.8

√

7000L

RC-ZT-4000

21.5

13.5

5.2

√

10000L

RC-ZT-4200

22

14

5.5

√

12000L

RC-ZT-4500

23

14.5

6

√

14000L
