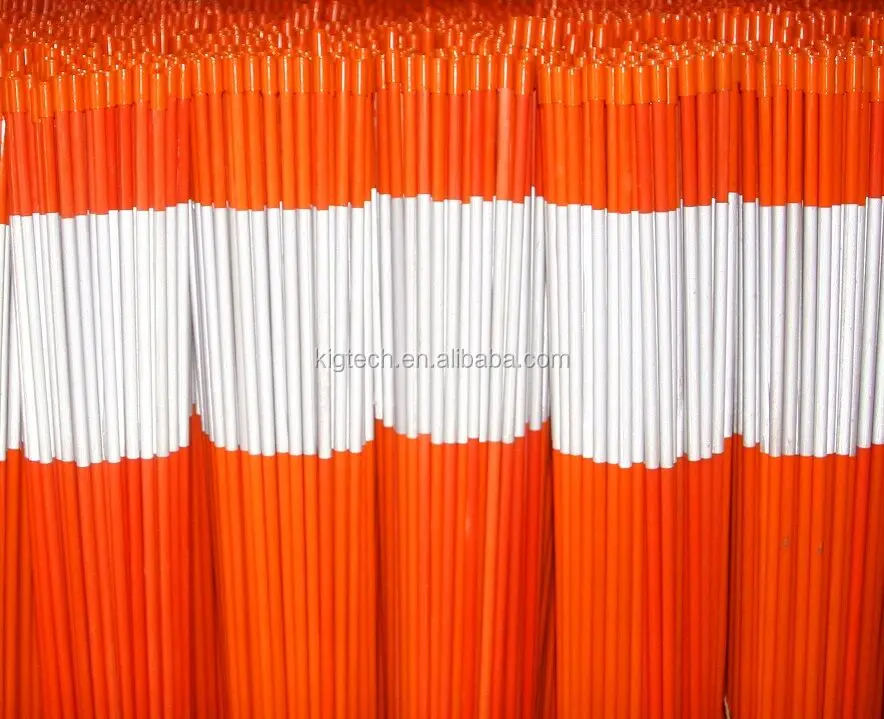

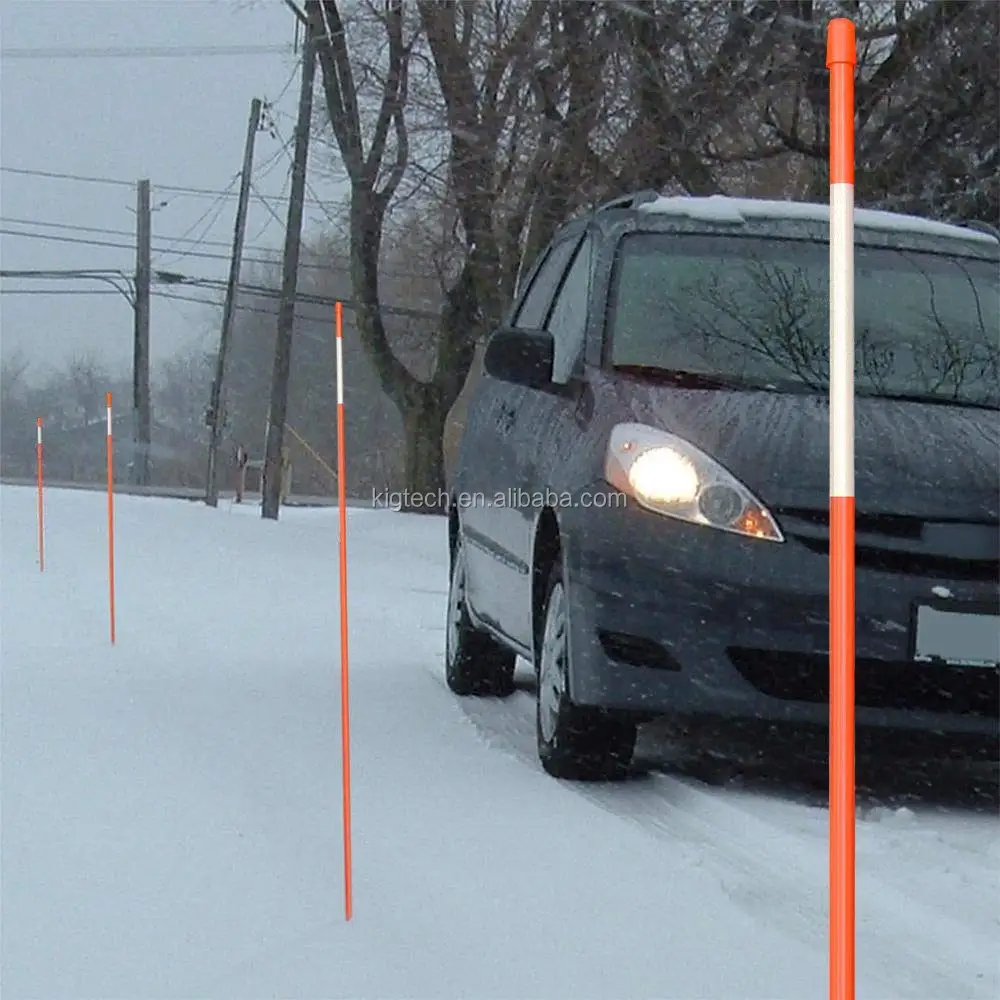

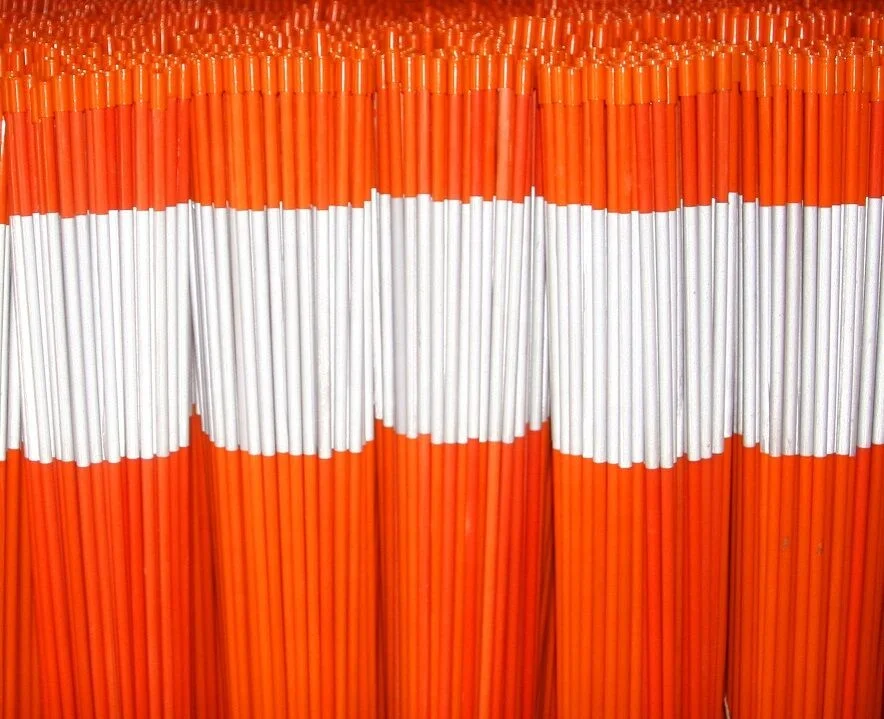

FRP Fiberglass Road Markers Flexible Traffic Delineator Posts

Product Overview

Description

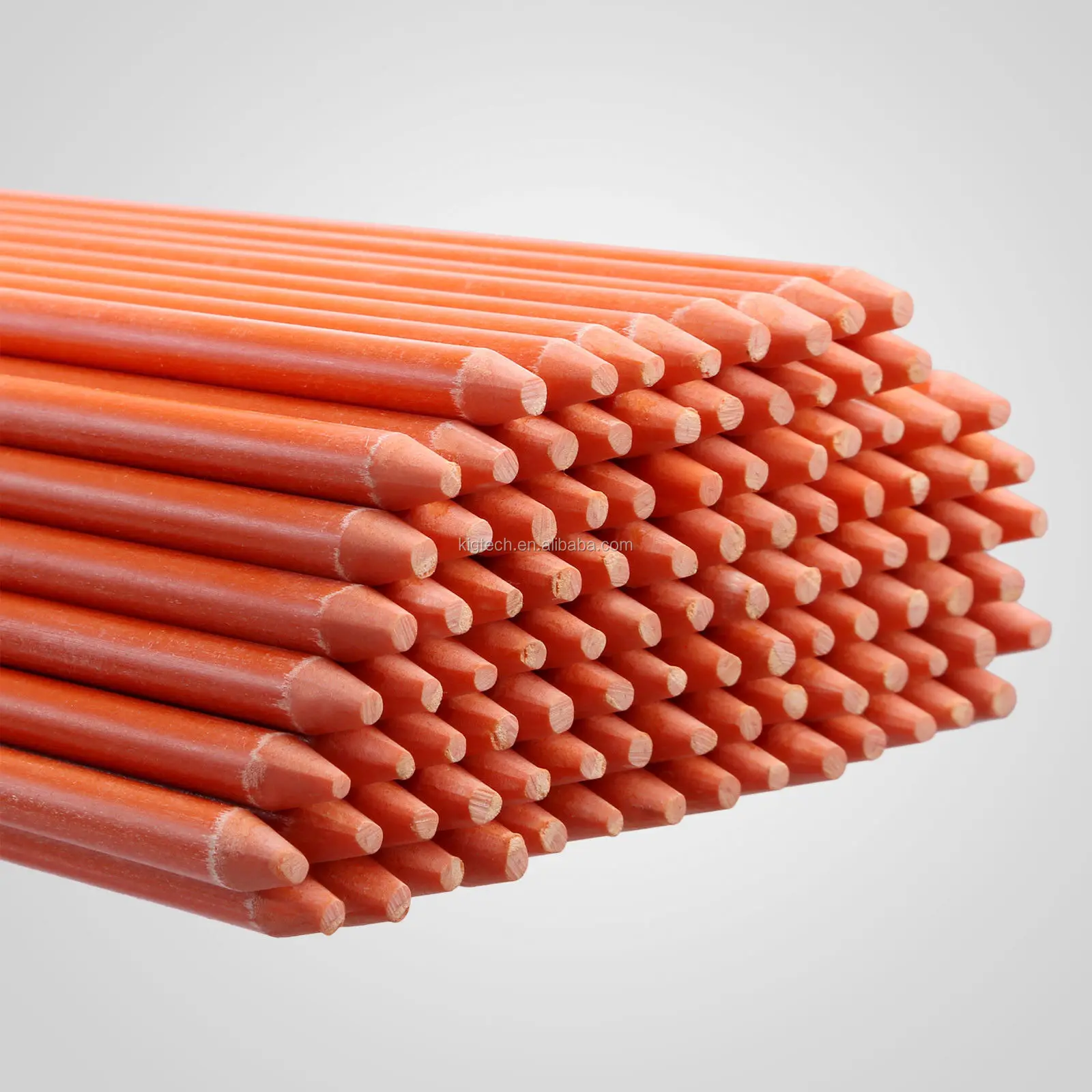

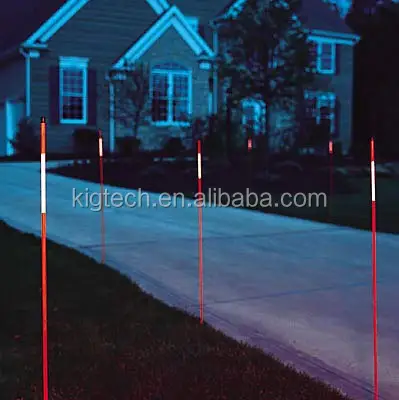

FRP Fiberglass Road Markers Flexible Traffic Delineator Posts



FRP Pultrusion information Pultrusion is a continuous process for the manufacture of products having a constant cross section, such as rod stock, structural shapes, beams, channels, pipe, tubing, fishing rods, and golf club shafts. Pultrusion produces profiles with extremely high fiber loading, thus pultruded products have high structural properties. Pultrusion is a manufacturing process for producing continuous lengths of FRP structural shapes. Raw materials include a liquid resin mixture (containing resin, fillers and specialized additives) and reinforcing fibers. The process involves pulling these raw materials (rather than pushing as is the case in extrusion) through a heated steel forming die using a continuous pulling device. The reinforcement materials are in continuous forms such as rolls of fiberglass mat or doffs of fiberglass roving. As the reinforcements are saturated with the resin mixture (“wet-out”) in the resin impregnator and pulled through the die, the gelation (or hardening) of the resin is initiated by the heat from the die and a rigid, cured profile is formed that corresponds to the shape of the die.

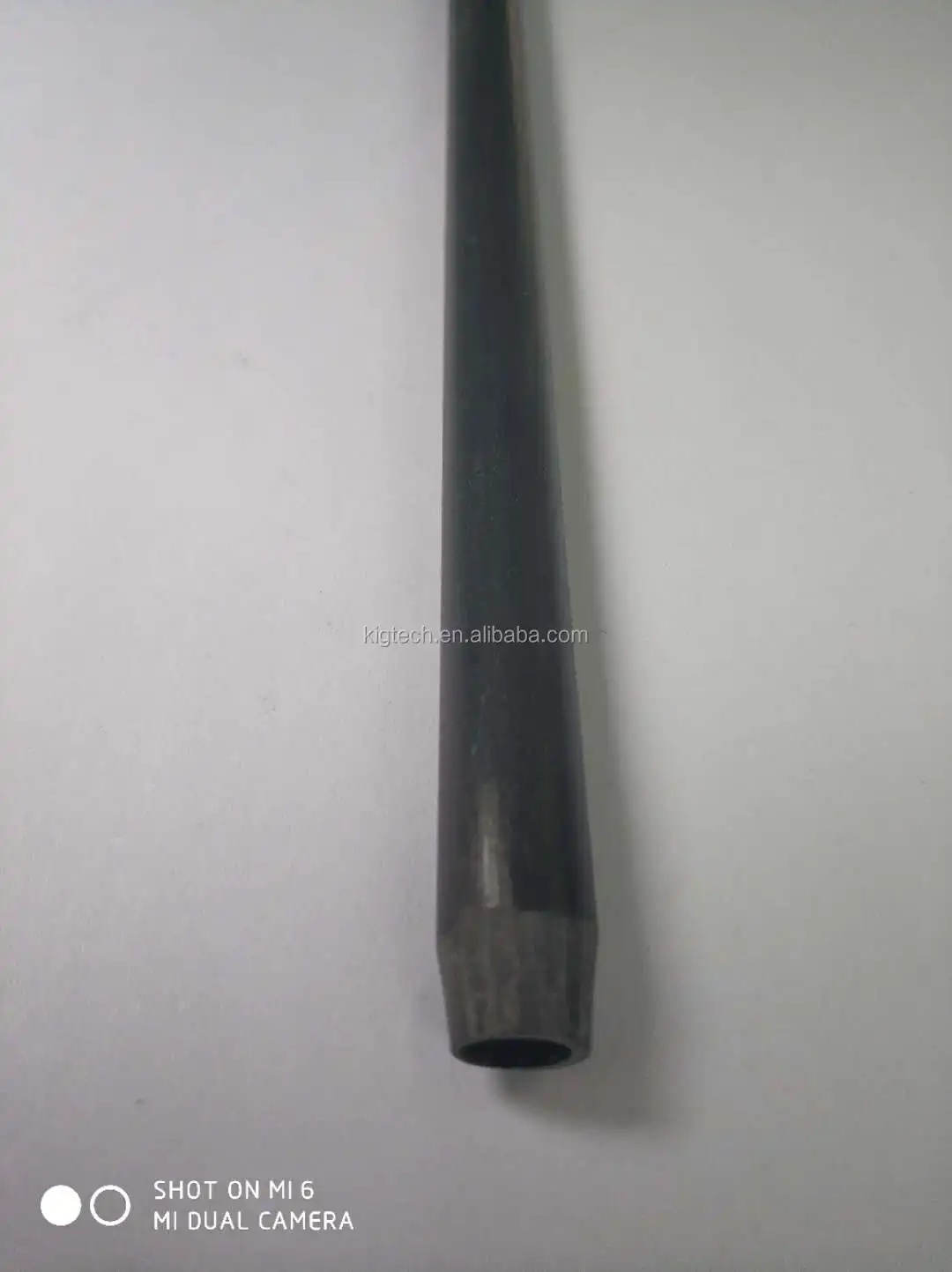

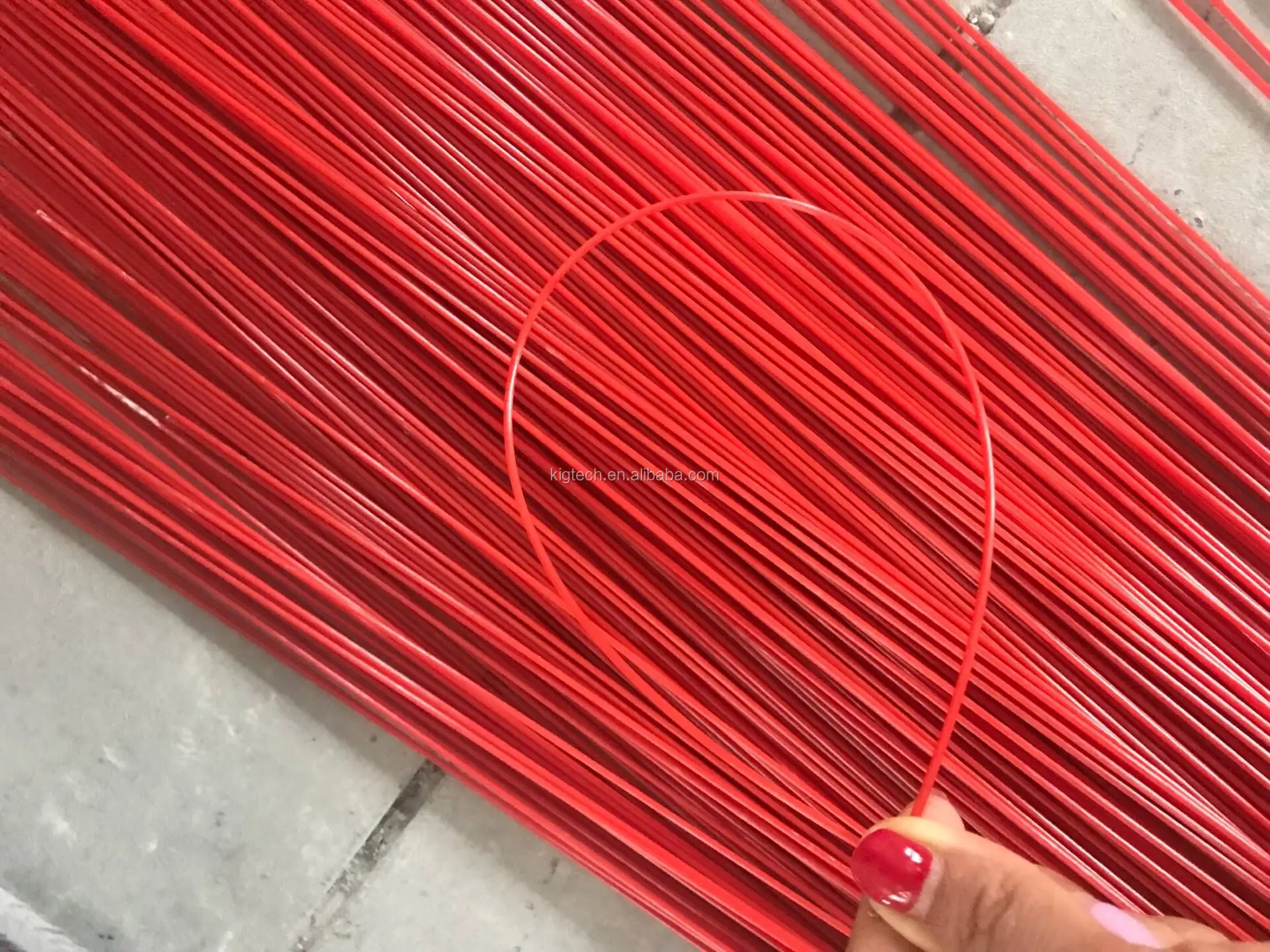

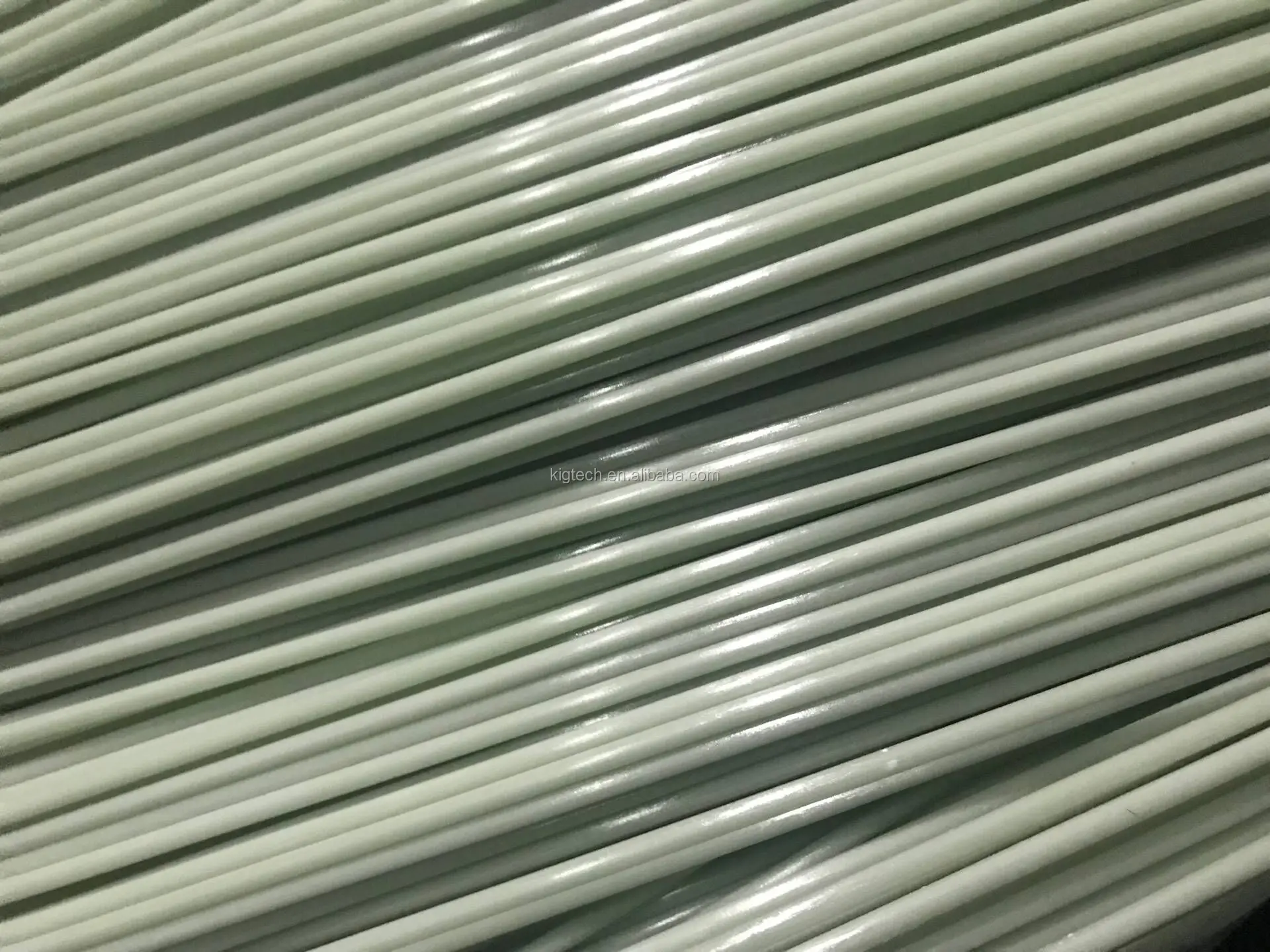

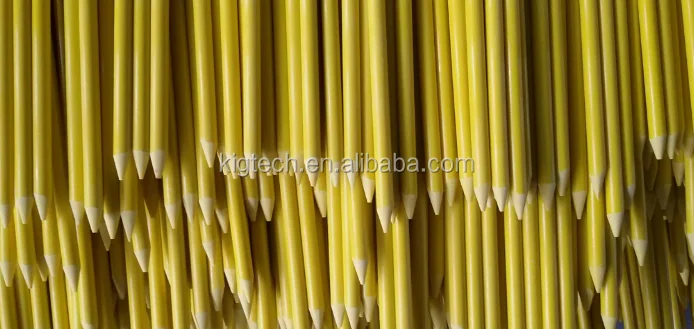

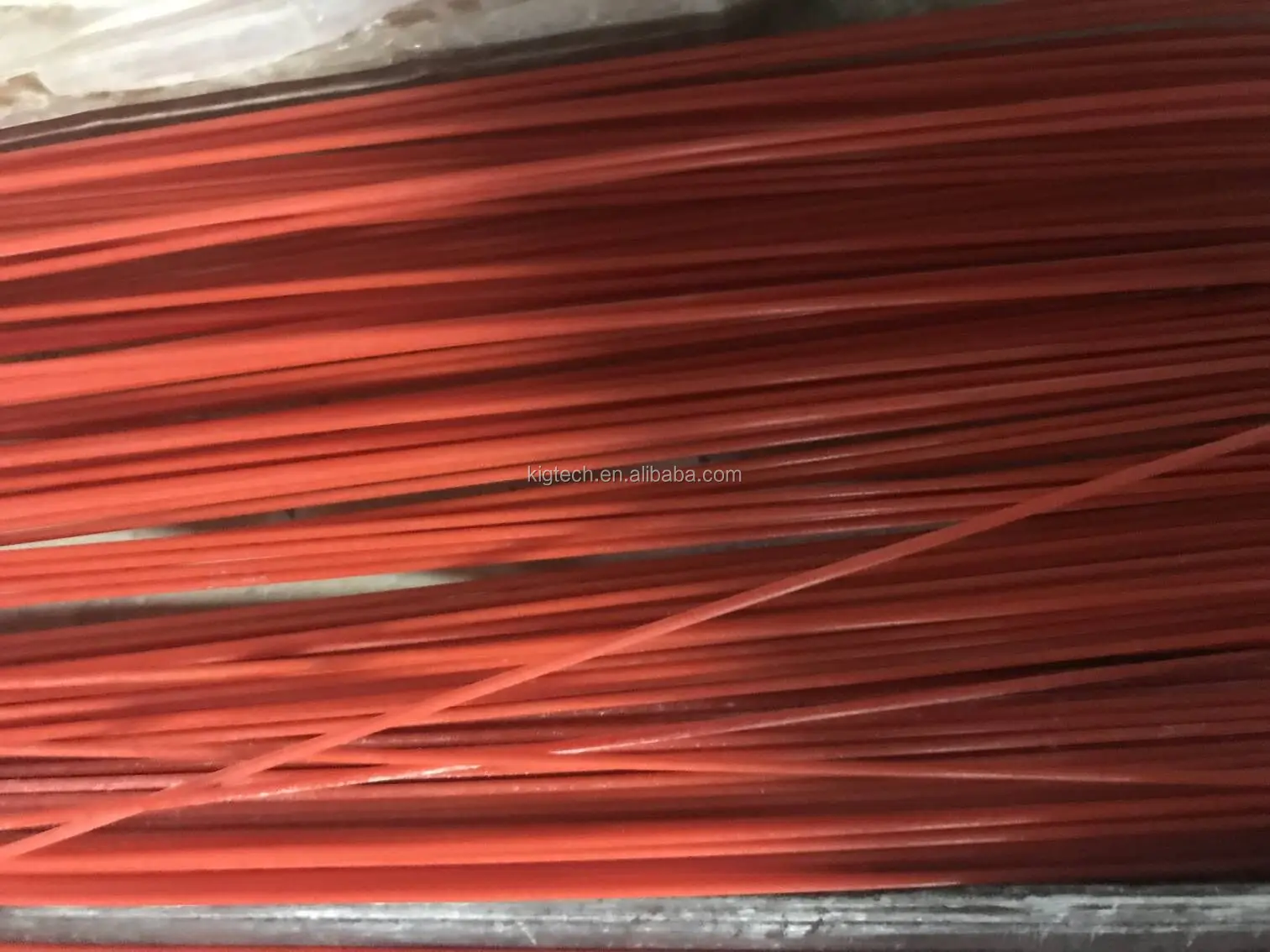

FRP round rod is made with glass fiber without roving as reinforcing material, unsaturated polyester resin, ethylene based resin, phenolic resin, such as matrix materials by high temperature heating continuous molding of uniform fiber enhanced plastic (FRP or GRP).



Advantage:

Good dimensional stability

Good high and low temperature resistant

Good Electric Performance

Good Corrosion Resistant

Good Surface Properties



Application:



FRP round rod is widely used in railway ,subway ,tramway ,Power electrical insulation ,cable tray channel,ladders,reinforce core for cable;rib structure for green house,drain channel, water transporting system ,tooling handles,sport apparatus, garden facilities ,structure for shelters,removable housed ,refrigerate vehicle shelf and so on .



Shape:









Any profile can be designed according to customers’ requirement.



No.	Description	Unit	Value
1	Density	G/cm3	1.8-2.0
2	Heating deformation temperature	℃	180  200  240
3	Impact Strength	Kj/m2	90
4	Bending strength( room Temperature)	N/mm2	390
5	Water Absorption	mg	20
6	Insulation Resistance		1.0*10
7	Dielectric Strength (90℃ Transformer Oil)	MV/m	10
8	Resistance Leakage Index (PTI)		600
9	Combustibility	Class	FV0
10	Temperature Index (TI)	℃	155   180  220



We provide profile rods, angle, square tube, channel, I-beam, T-beam and other products.

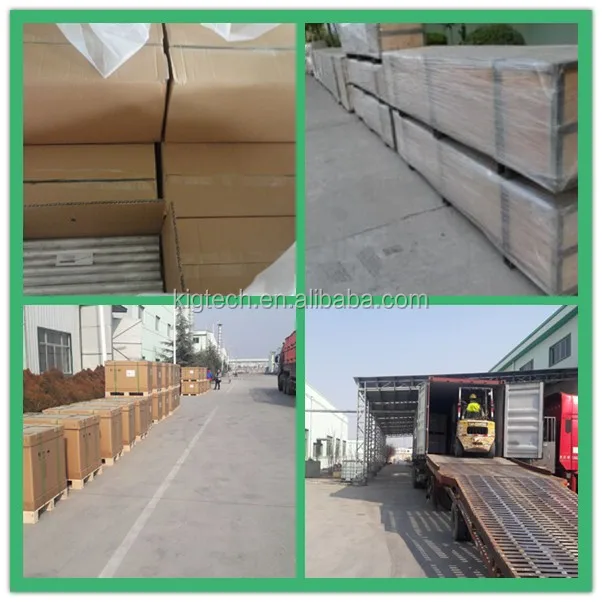

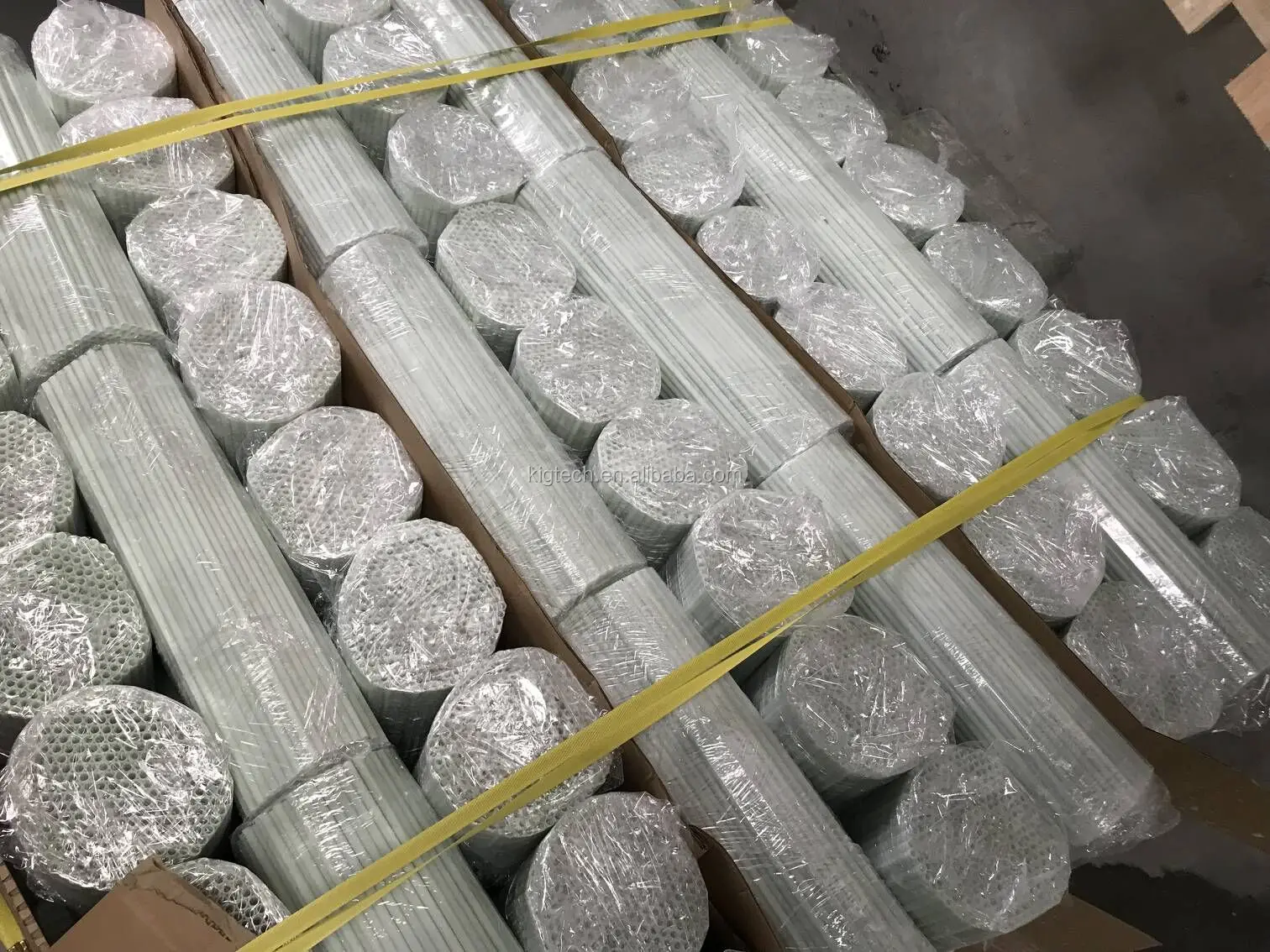

Packing and shipping:

1. Economic Packing desgin which will save your transportation cost.

2. Suitable packing material ( Non fumigaion ) and beautiful package workmanship which will well protect

the goods and avoid any trouble when you pick up the goods from the local customs.

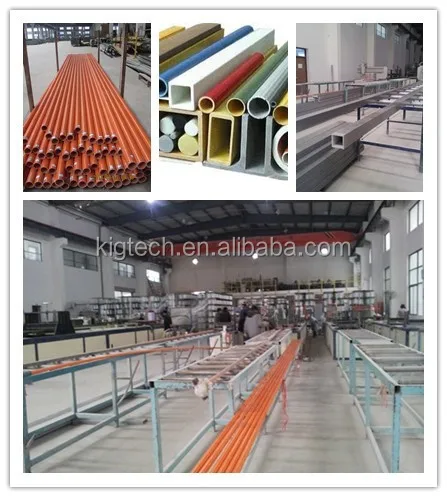

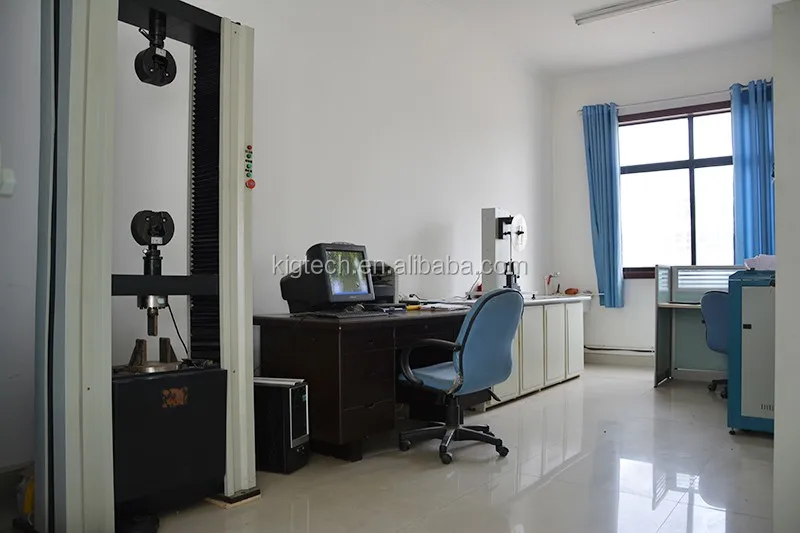

Our factory:



Our service:

 1.  Our sales representative are 24 hours online,to ensure reply you ASAP.

 2.  When the products are finished,they must be checked by our QC firstly.

 3.  We own several whole production lines,which can not only provide best quality and competitive price,but also reduce production period.

 4.  Urgent Orders can provide overtime production.

 5.  We can support OEM & ODM, and can be customized according to the detailed requirement, Like samples orsketches.
