A manual screw jack is consist of a hand wheel and a complete worm gear screw jack. The screw jack makes it possible to transform the rotary motion provided by a handwheel, into linear motion that allows push or pull vertical lifting and horizontal positioning. They can be used to lift, pull, move, or align any type of load with perfect synchronism, which is difficult to achieve with other types of actuators.They can be applied either with vertical mountings facingup or down, or with horizontal mountings.
All screw jacks can be moved manually via a handwheel. To do this, one input shaft shall be available on the screw jack for the connection of the handwheel. Manual screw jacks are available in load capacity 0.25 ton, 0.5 ton, 1 ton, 2 ton, 2.5 ton, 3 ton, 5 ton, 10 ton, 15 ton and 20 ton, heavy load larger than 20 ton capacity, manual operated screw jack is not recommended. They are ideal solutions for applications where electricity or power generators is inconvenient or dangerous, or in case of power failure, light weight, low duty cycle, low speed, low target cost, short stroke, and intermittent positioning applications. If must be not backdriving, a self locking machine screw jack with handwheel is the best choice. If high speed ball screw jack with handwheel, locking mechanisms need to be considered. If a brake motor is used, the brake shall be un-clamped firstly, so to allow for movement.
Cast Iron Handwheel Diameter 125mm, 160mm, 200mm, 250mm, 300mm and 400mm, larger diameter handwheel is available, please consult JACTON Industry. The recommended screw jack with 0.25 ton, 0.5 ton, 1 ton, 2 ton, 2.5 ton, 5 ton, 10 ton, 15 ton, 20 ton capacities are available in matching cast iron handwheel for hand-operation application.
Aluminum Handwheel with Folding Handle Diameter 125mm, 160mm and 200mm. The recommend screw jack 0.25 ton, 0.5 ton, 1 ton, 2 ton, 2.5 ton, 5 ton capacities are available in matching aluminum handwheel for hand-operation application.

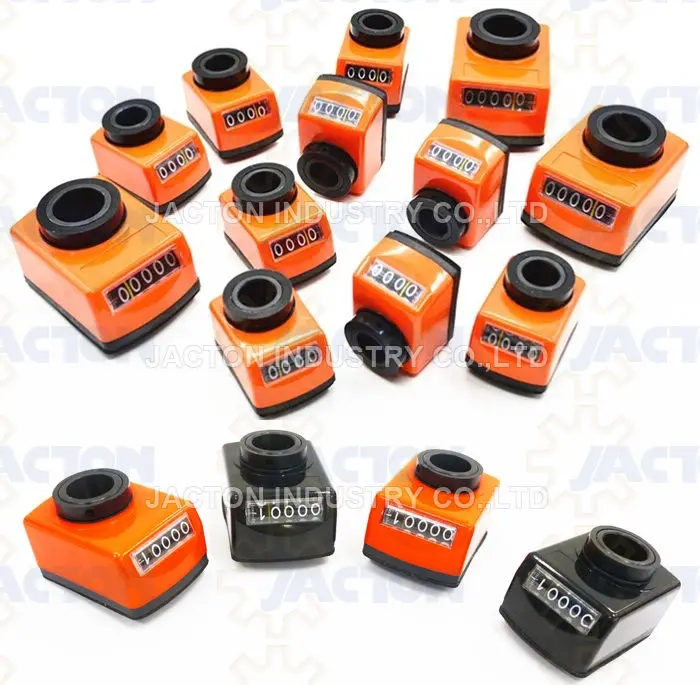

In order to precise position display of the travel length, the worm shaft adds a digital position indicator which measures the rotation and display a corresponding position in a counter window. There are three sizes position indicators: 04 series position indicator 4 numbers with 14mm hollow shaft, 09 series position indicator 5 numbers with 20mm hollow shaft, 10 series position indicator 5 numbers with 25mm or 30mm hollow shaft. Note: inapplicable motorized screw jacks.
Miniature Hand Wheel Manual Screw Jack with Clevis End, or Top Plate End

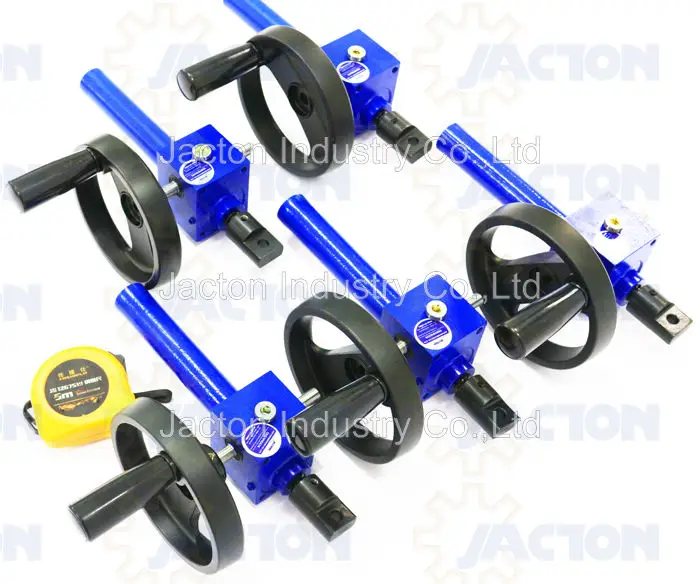

Mini compact acme screw jack 2.5 KN capacity, translating screw configuration, upright mount, gear ratios 1/5 (one rpm input travel length 0.8 mm), 14mm diameter lifting screw and 4mm screw leads(pitch) as standard, stroke 65mm, clevis end, or top plate, two input shafts, attached handwheels 125mm diameter.
Hand Operated Screw Jack 50 kN
Cubic manual screw jacks load capacity 50 kN, self locking trapezoidal screw diameter 40mm, pitch 7mm, upright mount, translating screw type, stroke 500mm, ratio 7:1 (one rpm input travel length 1mm), threads end attaches rod end bearing, double input shafts, attached protect pipe, and hand wheels diameter 300 mm.

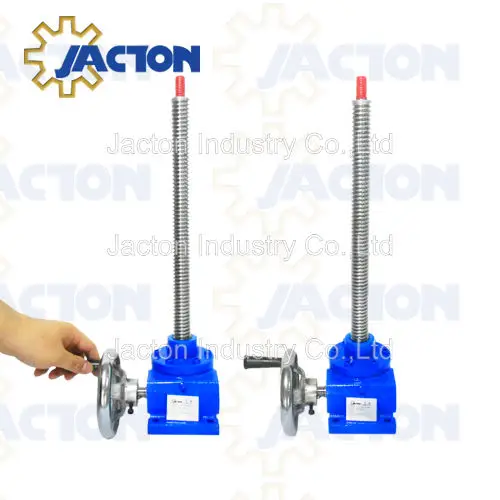

5 ton stainless steel hand crank screw jack for lifting tables. Stainless steel worm gear screw jack 5 ton capacity, translating screw configuration, inverted mount, gear ratios 1/12 (one rpm input travel length 0.59 mm), 40mm diameter lifting screw and 7mm screw leads(pitch) as standard, stroke 1200mm, clevis end fitting, right input shaft and left motor flange, attached handwheel 200mm dia., and electric motor with motor flange.
Manual Operated Worm Gear Jack Screw 5tonnes
Hand Worm Screw Lift Jacks 2.5 tonnes
Manual Screw Jack 5 ton

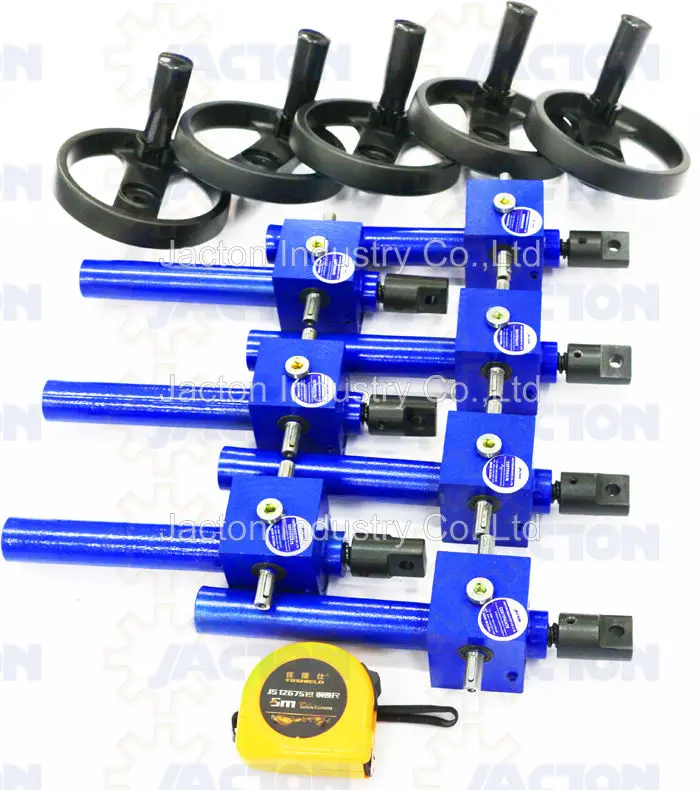

Crank screw jacks with 5 ton capacity, anti-rotation keyed screw configuration, upright mount, gear ratios 1/7 (one rpm input travel length 1 mm), 40mm diameter lifting screw and 7mm screw leads(pitch) as standard, stroke 350mm, thread end screwed into rod end(set screws fix), right shaft and left shaft, attached handwheels 300mm diameter, rod end bearings, protective pipe and digital counters.
2.5 ton hand operated screw jack lift for industrial vintage cast iron crank dining crank table base. Hand wheel screw jack with 2.5 ton capacity, upright installation, translating screw configuration, gear ratios 1/6 (one rpm input travel length 2 mm), 30mm diameter ACME screw and 12mm(2P) screw leads(pitch) as standard, stroke 300mm(12"), top plate(flange) end fittings, two input shafts, attached handwheel 200mm(8") or 300mm(12") diameter, couplings and drive shafts.
2.5ton Stainless Steel Manual Operate Screw Jack with Traveling Nut for Hand Crank Lift Systems. Stainless Steel Machine Screw Jack 2.5 ton capacity, rotating screw configuration, upright mount, gear ratios 1/6 (one rpm input travel length 1 mm), 30mm diameter lifting screw and 6mm screw leads(pitch) as standard, stroke 500mm, plain end fitting, two input shafts, attached handwheels 200mm dia., and copper travel nut.
10 ton hand wheel worm gear screw jack for screw jacks platform lift. Hand-operated machine screw jack (or linear actuator) type device 10 tons capacity, upright installation, translating screw configuration, gear ratios 1/8 (one rpm input travel length 1.5 mm), 58mm diameter machine screw and 12mm screw leads(pitch) as standard, stroke 500mm, top plate(flange) end fitting, two input shafts, attached handwheels 300mm(12") diameter.
5ton hand operated lifting screw jacks for mechanical hand crank lift table. Manual machine screw jack 5 tons capacity, translating screw configuration, upright mount, gear ratios 1/6 (one rpm input travel length 1.167 mm), 40mm diameter lifting screw and 7mm screw leads(pitch) as standard, stroke 150mm, clevis end fitting, two input shafts, attached handwheels 300mm(12") diameter, protect tube and bellows boots.
1 Ton Manual Worm Gear Screw Jack for Llifting
Manual screw jack (hand wheel screw jacks, hand crank screw jacks, hand operated screw jacks) is driven by a hand wheel or crank or handle. The best advantage is suitable for heavy load, low speed, low service frequency. Our manual screw jacks have different configuration form and assembly type,and the lifting height can highly customized according to users' demand, low cost and easy operation.
Our standard jacks use Trapezoidal screw and have self-locking function which is very safe for manually operated by hand. We have different models for your selection, our jtw series machine screw jack is the most cost-effective selection for this application. You can also use digital position indicators if you need more precise position display. It can measure the rotations of the input shaft and display the corresponding position in the digital counter window. The display value per input shaft revolution is variable and is achieved through a series of gear reductions configured to accommodate different worm gear screw jack ratios, screw pitch, and travel length.
