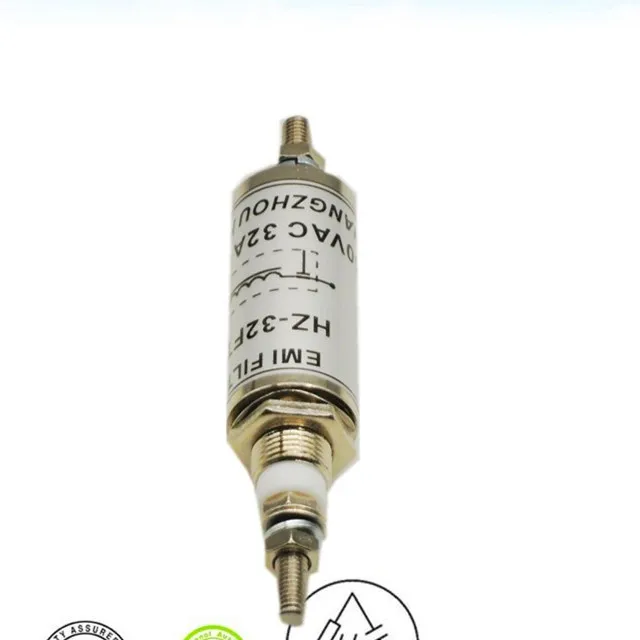

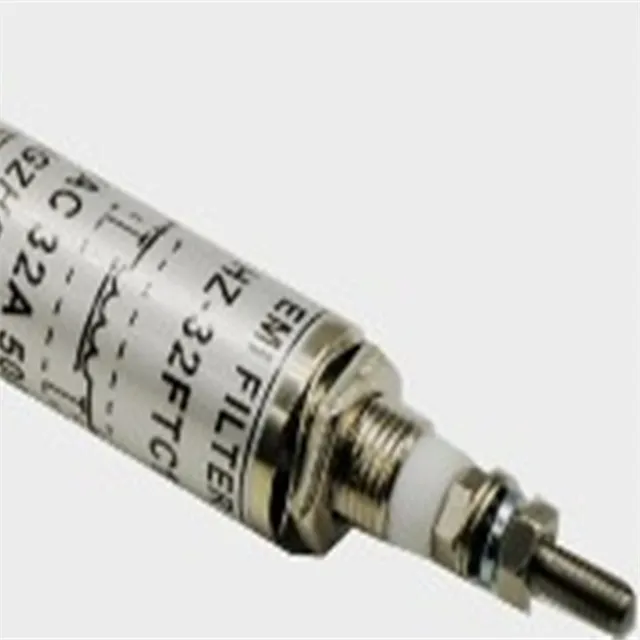

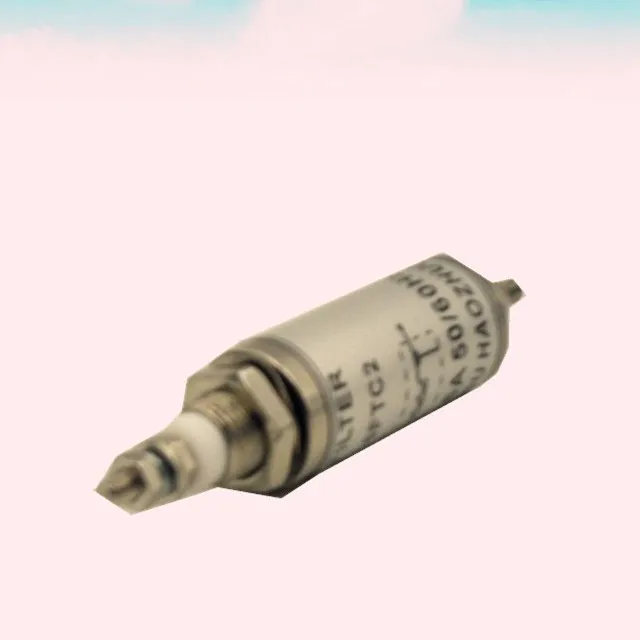

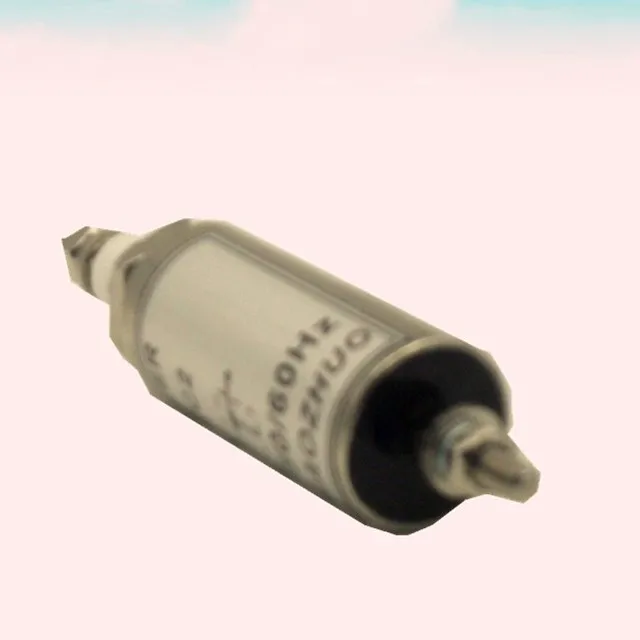

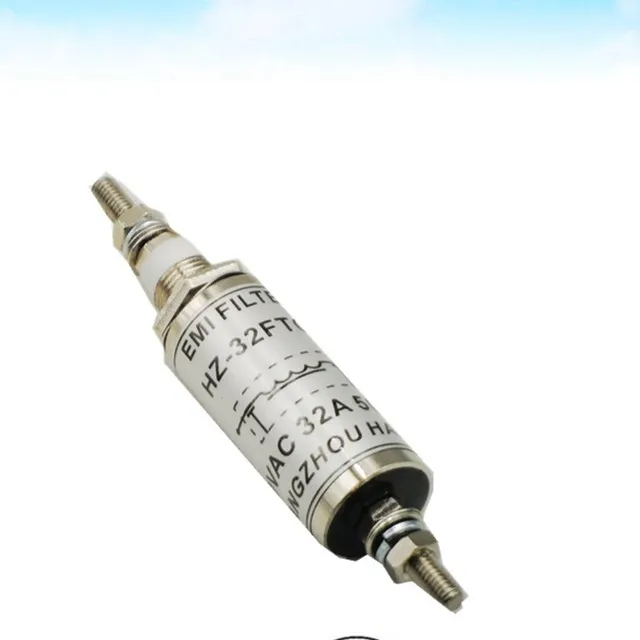

250VAC 32A feedthrough emi filter for anechoic chamber

Product Overview

Description

Ø Description:

n Feedthrough Capacitors offer a high insertion loss across a broad band of frequencies from

a few tens of kHz up to the GHz region

n Very low internal series idductance

n Very high self-resonant frequency

n Self-healing dielectric

n High quality and reliability

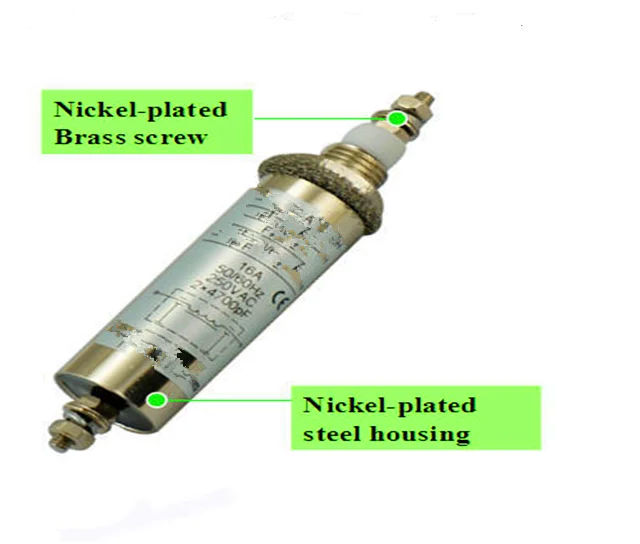

n Anti-twist protection

n Through-buikhead mounting

n Custom-specific or dual-versions on request

electrical feedthrough Low Pass power line filter

ØTypical Applications:

n AC Power line filter for 250VAC power lines

n DC Power line filter for 48VDC battery power

n Increasing system and information security

n Power supplies

n Swiching and cellular equipment

n computer servers

n UPS power supplies

n Medical equipment

n Shielded rooms

Filter	Rated Current(A)	Rated Voltage(V)	Leakage Current(mA)	Capacitance( μF)	Test Voltage1min(VDC)
16-M4	16	250	4.14	2*0.022	2250
63-M6	63	250	88.5	2*0.47	2250
100-M8	100	250	564	2*3.0	2120
100-M8	100	250	564	2*3.0	2200
250-M12	250	250	157	2*1.0	2250
30-M5	30	600	-	2*0.018	2500
50-M6	50	200	-	0.22	720
65-M6	65	200	-	2*4.7	1000
62-M6	65	250	-	2*0.25	2250
