Hot Sale Pp Packing Straps PET Strap Production Line

Name: Hot Sale Pp Packing Straps PET Strap Production Line
SKU: 62145127750
Availability: InStock

Price:

Quantity:

Product Description

Based on recycled PET bottle flake as the main raw materials,can produce many specifications,multi-purpose,high performance package strap.

SPECIFICATIONS FOR PET STRAPPING BAND PRODUCTION LINE
Model and parameters	JZX/50-1	JZX/65-2	JZX/90-2
Packing tape number	1	2	2
Packing specification	9.5~19mm	9.5~19mm	9.5~19mm
The highest yield of about	80kg/h	120kg/h	150kg/h
Cooling water flow	0.6m³/h	0.6m³/h	0.6m³/h
Compressed air consumption	0.25m³/min	0.25m³/min	0.25m³/min
Compressed air pressure	0.6Mpa	0.6Mpa	0.6Mpa
The total installed power equipment	113KW	178KW	215KW
The whole line length	About 25m	About 28m	About 40m

No	Name	Qty.
1	Vacuum loader	1set
2	CSG2000 dehumidify dryer	1set
3	S90/33 single screw extruder(can be adjusted according to client's demand)	1set
4	Hydraulic screen exchanger	1set
5	Melt pump	1set
6	Mould	1set
7	Water tank cooling system	1set

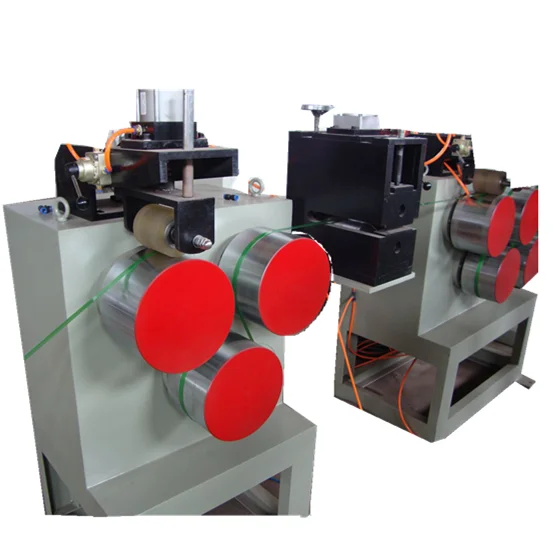

8	Haul-off machine	1set
9	Heating oven	1set

Detailed Images
