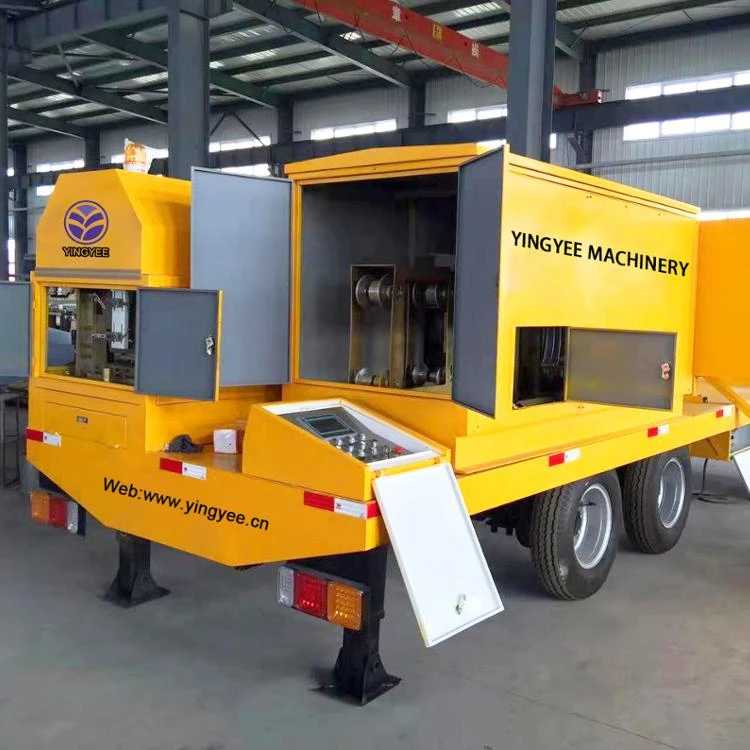

Fast building arch sheet roll forming machine/YY914-610

Share on:

Price in USD:Details


Product Overview


Big span galvanized metal roof sheet roofing panel roll forming machine


Size: 8900mm × 2250mm × 2300mm

Total Weight: about 13000KG

Main Motor Power: 18.5KW  forming power is 7.5kw ; bending power is 4.0kw; cutting power is 4.0kw; conical power is 3.0kw

Working Speed: Straight sheet: 15m/min

Arch sheet: 13m/min

Sewing: 6m/min

Material of rollers: 45# steel, quenched HRC 58-62

Material of roller shafts: 45# steel, adjusted

Material of cutting blade: Cr12, 1Mov

PLC Type: Omron

Step of rollers: 13 steps

Feeding Width: 914mm

Effective Width: 610mm

The depth of the groove: 203mm

Thickness of the coil: 0.8-1.5mm

Operating factor of the panel: 66%

Proper span: ≤38m













Packaging & Shipping

Safe package by tight leak and well wooden package for LCL shipping.

Famous shipping compnay as our partner,

Delivery in time,

Full insurance.




Company Information


Shijiazhuang Yingyee Import&Export Co., Ltd.


YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor from all the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.


Our products were sold to more than 20 countries already. Also included US and Germany.


Main product :

  •  Roof roll forming machine
  •  Roller shutter door roll forming machine
  •  C and Z purlin roll forming machine
  •  Downpipe roll forming machine
  •  Light keel roll forming machine
  • Guardrail roll forming machine
  • Storage roll forming machine
  • Cable tray roll forming machine
  •  Shearing machine
  •  Hydraulic decoiler
  •  Bending machine
  •  slitting machine








Our Services



Installation and training:


1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized
