Post Pile Driver
- Category: >>>
- Supplier: Jiaxing Pink Electronic Technology Co. Ltd.
Share on (62145329098):
Product Overview
Description
Product Description

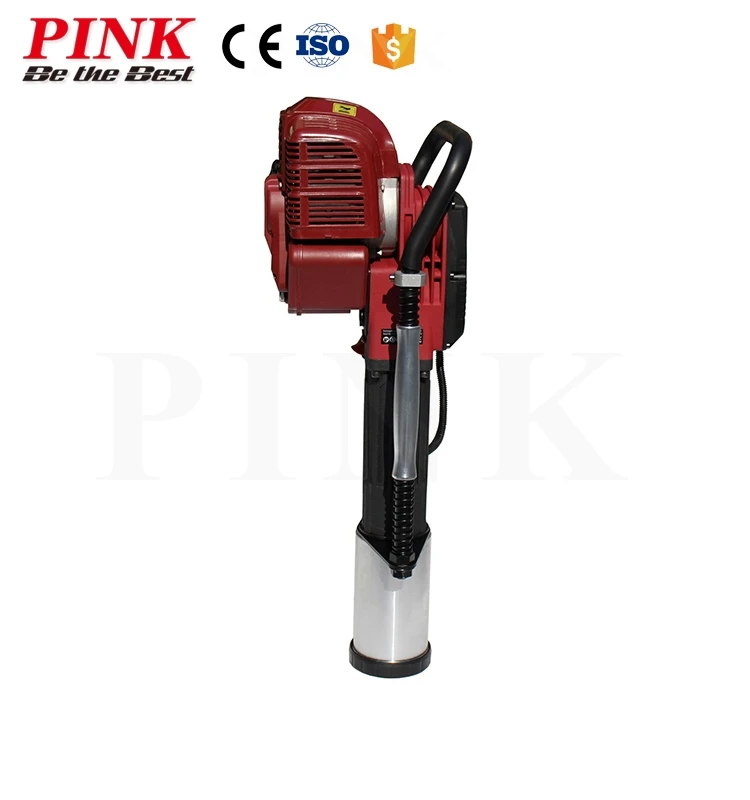

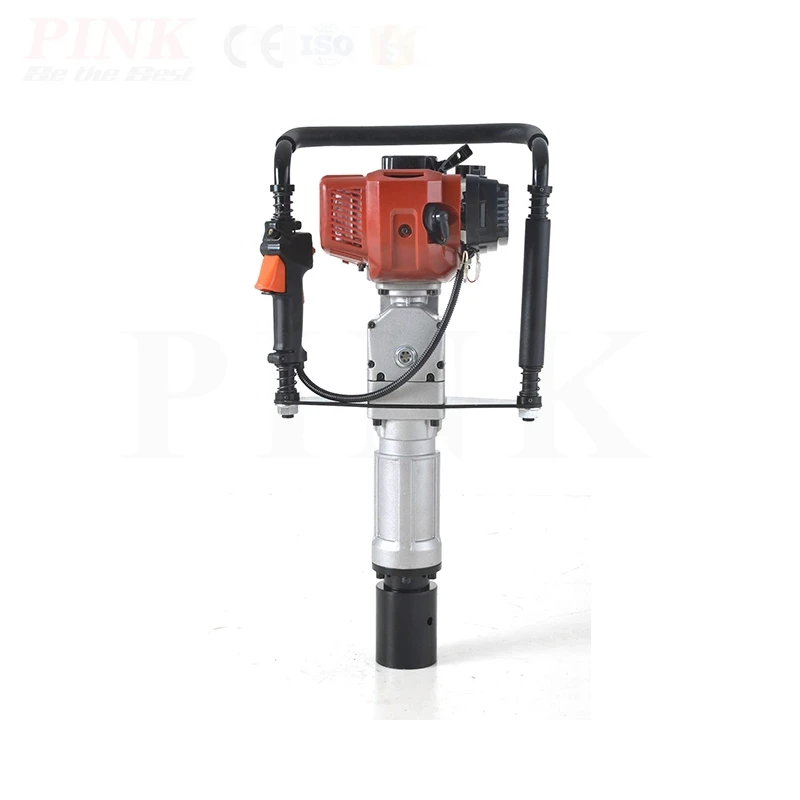

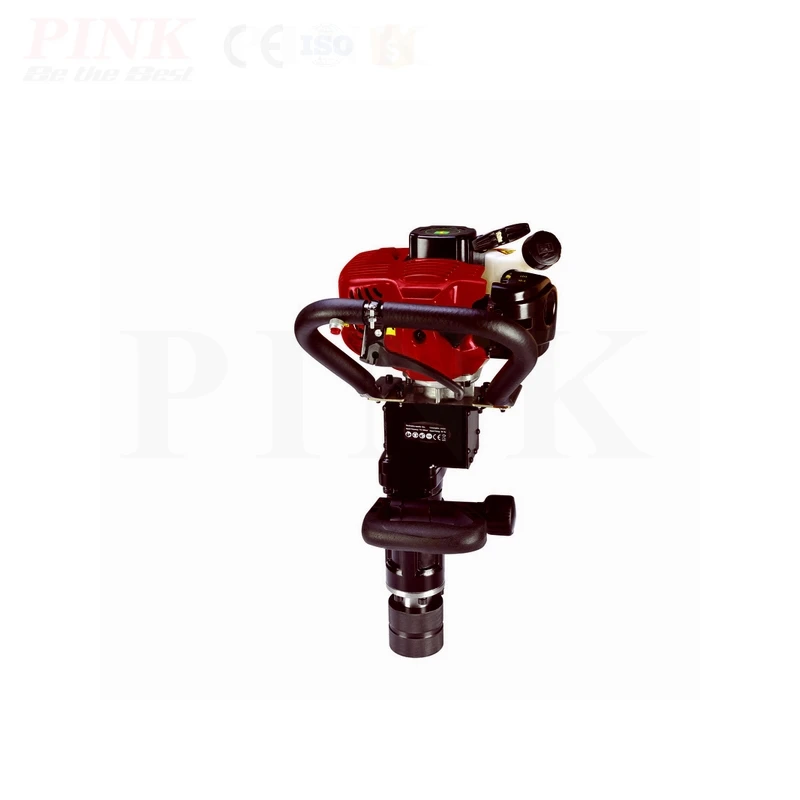

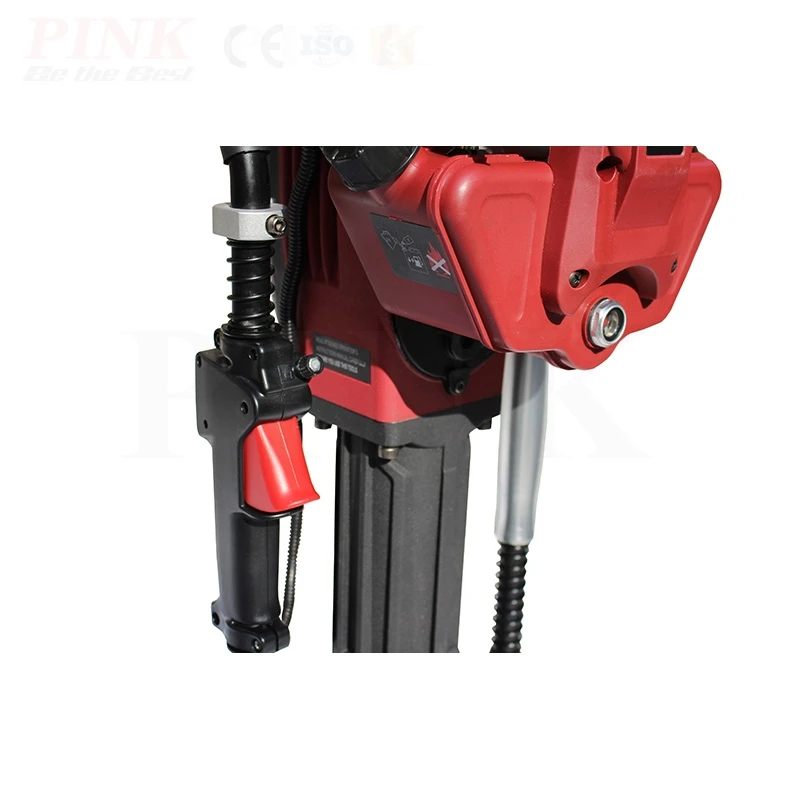

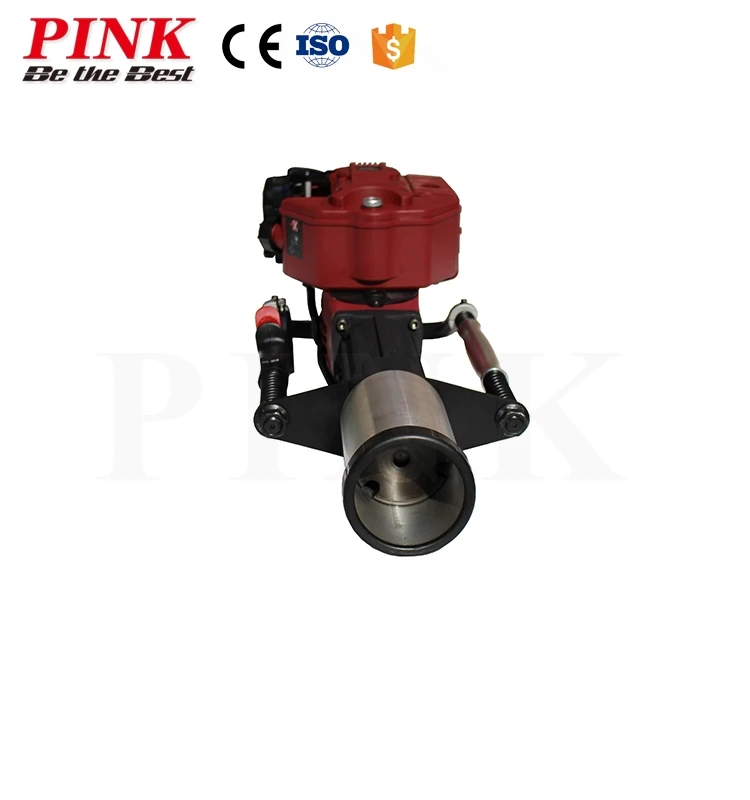

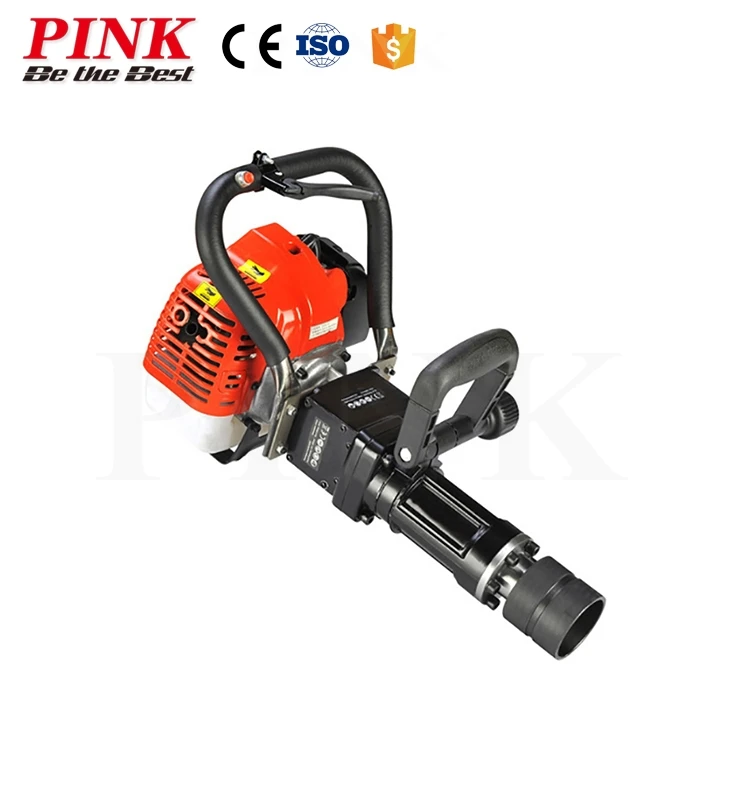

Gasoline Pile Driver
1.Engine Type:44*34mm,2 Stroke
2.Displacement:52CC;
3.Fuel Tank Capacity:1.3L
4.Fuel:Mixed Oil (25 Gasoline:1 Motor Oil)
5.Max Power and Speed:900W(1.2Hp)/6500r/min
6.Max Torque and Speed:2.5N.M/5000r/min
7.Fuel Consumption Rate:≤ 0.6L/H
8.Impact Frequency:700-1350Bpm
9.Impact Energy: 20~55J;
10.Certificate:CE,EMC,ROHS,EPA
Gasoline Pile Driver Detail:
1.Our Gasoline Pile Driver with large power 52cc displacement, could use for any less than 100mm pile, to knock posts, stakes or pegs into the ground within a matter of seconds, it could use for fencing posts, signs and tree stakes among other items.
2.It can regulate the number of impact energy and impact, apply for a variety of materials suitable for construction, such as crashing project in road-building, electric power, telecom, and cable, ditch.
3.Our machine is not limited by the pipe line, electric line, cable, no matter how high and how far, you can work in all kinds of environment.
| Model | Product Name | Specification | Packing Size(cm) | G.W/N.W (kg) | PCS/CTN | 20´GP(pcs) |
| NEGJH-06 | Gasoline Jack Hammer/Gasoline Pile Driver | Engine Type:36*32mm, Single Cylinder, Air Cooling, 2 Stroke Displacement:32.7CC; Fuel Tank Capacity:0.9L Fuel:Mixed Oil (25 Gasoline:1 Motor Oil) Max Power and Speed:900W(1.2Hp)/6500r/min Max Torque and Speed:1.45N.M/5000r/min Fuel Consumption Rate:≤ 0.5L/H; Impact Energy: 25~45J Impact Frequency:1700-2230Bpm Carburetor Type:Diaphragm 1 E36F-2A.1 Spark Plug Type:L6T; Starter System:Hand Pull Start Product Size:60.5*28*37.5cm/57*28*37.5cm Tine Chisel, Flat Chisel/Piling Head, Tools Kit, Oil Bottle single function:$100.00; double function:121.00; carts:$12.00 | 64*30.5*38.5 | 18.5/12.5 | 1 | 382 |
| NEGPD-01 | Gasoline Pile Driver | Engine Type:36*32mm, Single Cylinder, Air Cooling, 2 Stroke Displacement:32.7CC; Fuel Tank Capacity:0.9L Fuel:Mixed Oil (25 Gasoline:1 Motor Oil) Max Power and Speed:900W(1.2Hp)/9000r/min Max Torque and Speed:1.45N.M/5000r/min Fuel Consumption Rate:≤ 0.5L/H Impact Frequency:1700-2230Min-1 Impact Energy: 25~45J; Carburetor Type:Mz10.7 Spark Plug Type:L6T; Starter System:Hand Pull Start Product Size:74*26*34cm 49mm Piling Head | 60*41*36 | 18.5/12.5 | 1 | 382 |
| NEGPD-02 | Gasoline Pile Driver | Engine Type:44*34mm, Single cylinder, air cooling, 2 stroke Displacement:52CC;Fuel:mixed oil (25 gasoline:1 motor oil) Fuel Tank Capacity:1L Max power and speed:1900W/6500r/min Max torque and speed:3.5N.m/5000r/min Fuel Consumption Rate:0.6L/h Impact Frequency:1300-3000BPM Impact Energy:30-55J;Carburetor type:MZ15-048 Spark plug type:TORCH BM6A;Starter system:Hand pull start Product size:76.5*26*39.5cm; Piling head size: 50 Two Socket Sleeves: 55 & 70 | 74*44*30 | 23.5/17 | 1 | |
| NEGPD-03 (CE) | Gasoline Pile Driver | Engine Type:44*34mm, Single Cylinder, Air Cooling, 2 Stroke Displacement:52CC; Fuel Tank Capacity:1.3L Fuel:Mixed Oil (25 Gasoline:1 Motor Oil) Max Power and Speed:900W(1.2Hp)/6500r/min Max Torque and Speed:2.5N.M/5000r/min Fuel Consumption Rate:≤ 0.6L/H Impact Frequency:700-1350Bpm Impact Energy: 20~55J; Carburetor Type:Mz10.7 Spark Plug Type:Bm6A; Starter System:Hand Pull Start Product Size:80.5*30.5*27cm | 72.5*39*32.5 | 26.5/20.5 | 1 | 323 |
Company Information
Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.
We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.
Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.
Packaging & Shipping
FAQ
If you are interested in our Gasoline Pile Driver, please don't hesitate to contact us.
