UK series terminals block
1. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.
3. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.
4. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.

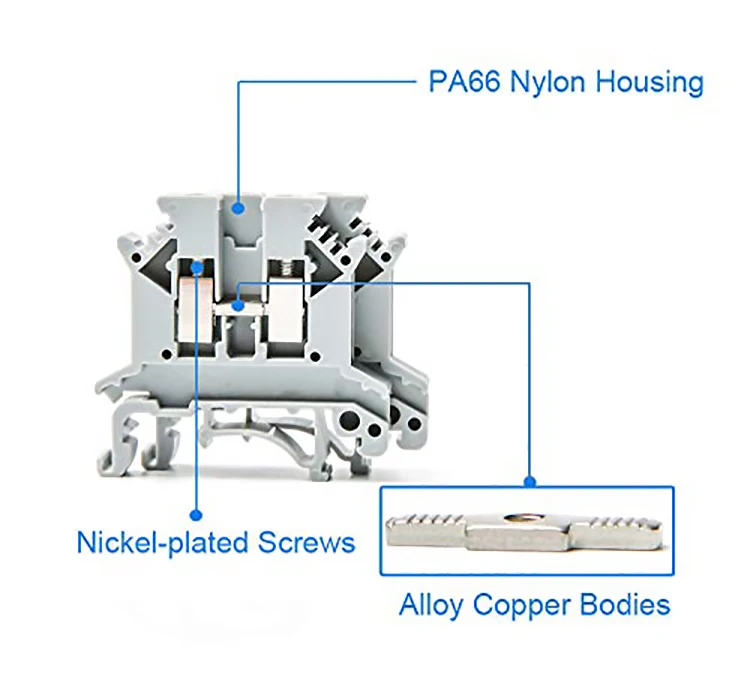

5. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.
6. Two ends on the top with white marking system to realize uniformed sign.
7. 15 years lifetime.
8. OEM acceptable.
|Product name||UK Terminal BlocksUK Terminal Blocks|
|Plastic material:||made from PA|
|Certification||ISO9001,CE and ROHS|
|Metal material:||brass and steel|
|Color||GREY BASIC,OTHER COLOUR CAN SERVE ACCORDING CUSTOMER'S REQUEST|
|Feature:||Durable screw type|
CNBX factory price UK waterproof din rail electric plastic spring 4pin 3.5mm terminal connector block
