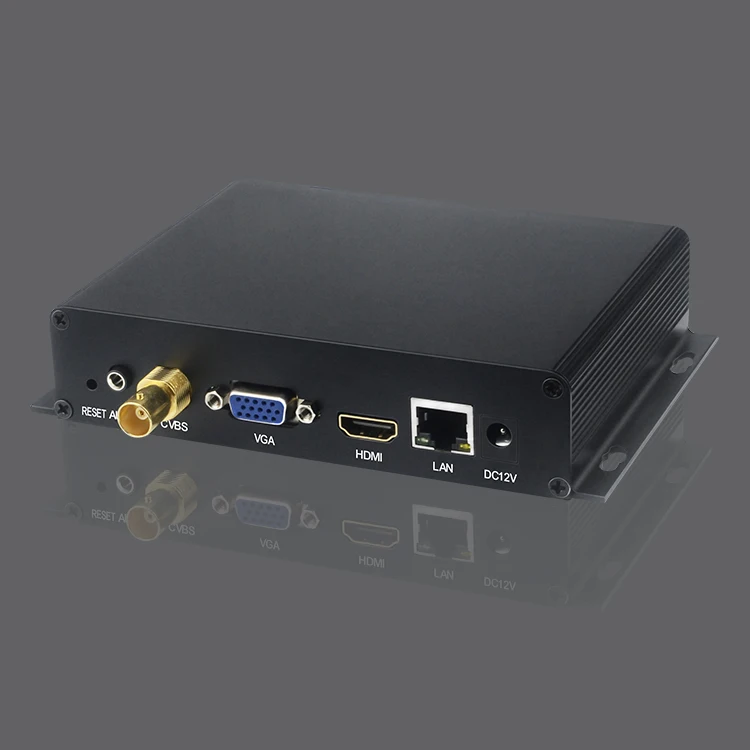

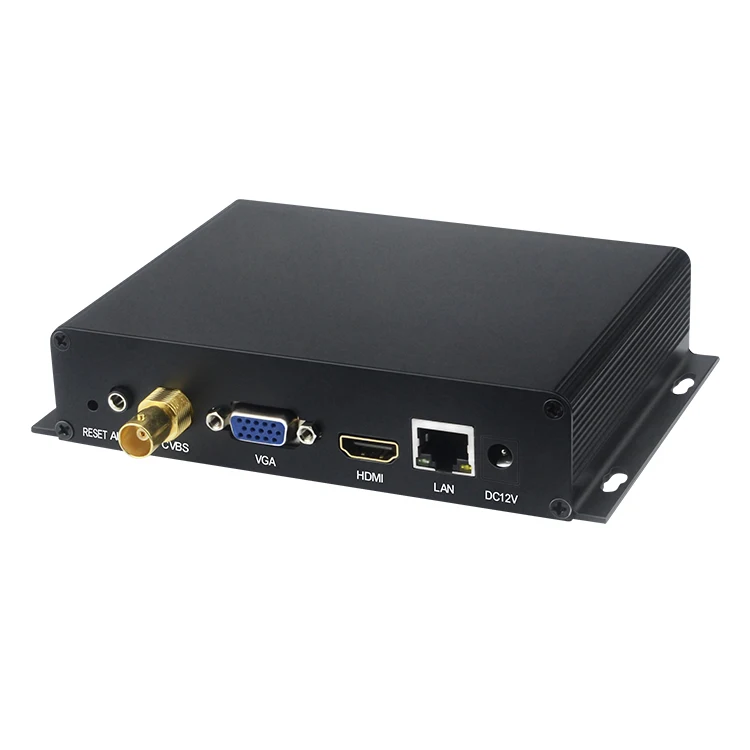

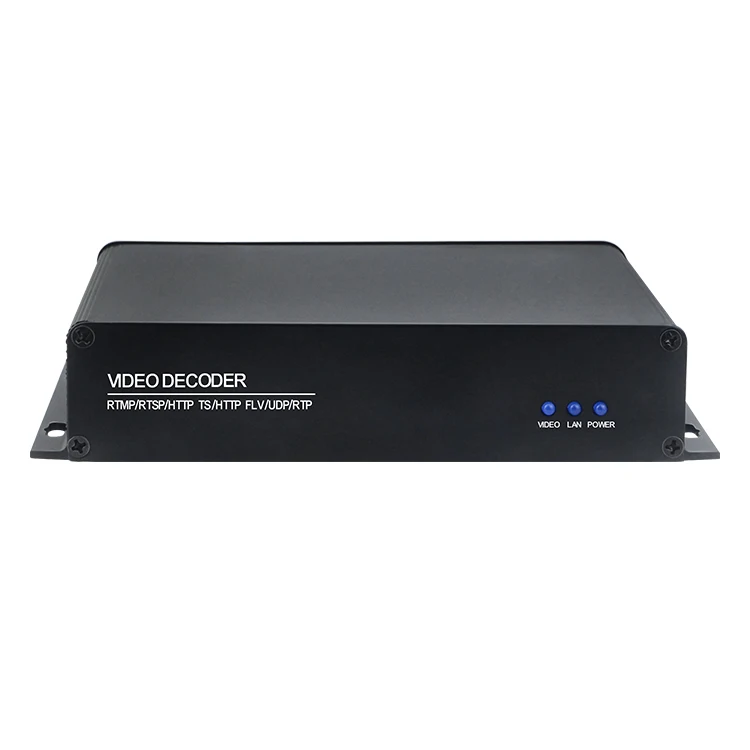

4K H.265 CCTV IP Video Rtsp To HDMI Decoder

Specification

Parameter

Input

Standard Protocols

RTSP/HTTP TS/HTTP FLV/RTMP/UDP

Personal Protocols

HTTP PTE

Video Decoding

Type

H.265/H.264

FPS

1-60

Bitrate(kbps)

32-32000

Resolution

Up to 2160P@30

Channels

1~4

Audio Decoding

Type

G711A/G711U/AAC+/AAC++/MP2/MP3

Audio Channels

L/R Stereo

Sample rates

8000/11250/22500/44100/48000 Hz

Video output

HDMI

2160P@30/1920*1200@60/1440P@30/1080P@60/1080I@60/

1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/

576P50/480P60/1024*768@60

VGA

1920*1080@60/1600*1200@60/1680*1050@60/1440*900@60/

1280*1024@60/1024*768@60/1366*768@60/800*600@60/

640*480@60

CVBS

720x576@50I

Color

Brightness, contrast, chroma, saturation, adjustable

Audio Output

HDMI

48KHz L/R

3.5MM

L/R

Enable

Enable/disable

Others

Network

1000M

Configuration management

Configuration management through WEB

Power

12V 2A  <5W

Operating temperature

-20℃+ 60℃

Working humidity

<90% non-condensing

Size

11.2cm x 15cm x 2.8cm

Weight

472g
