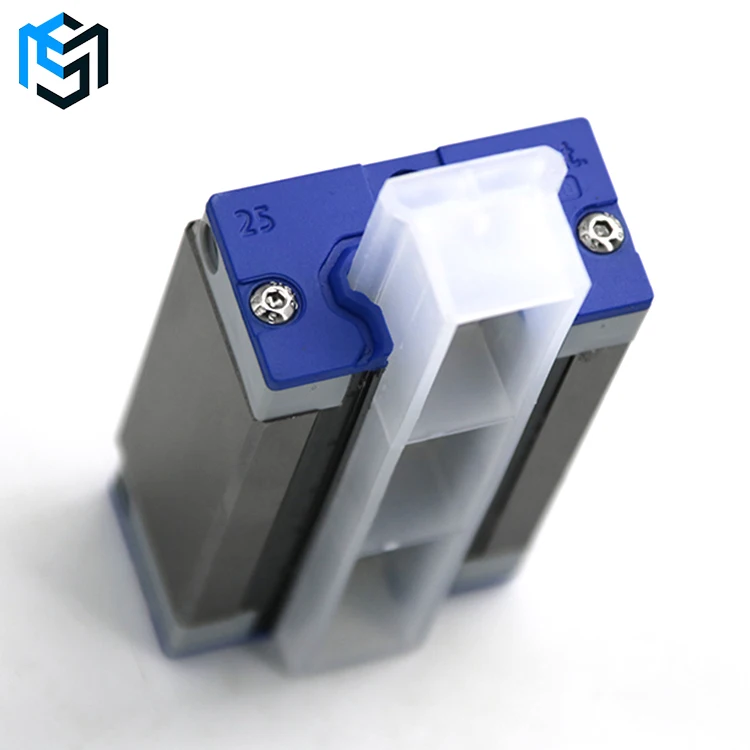

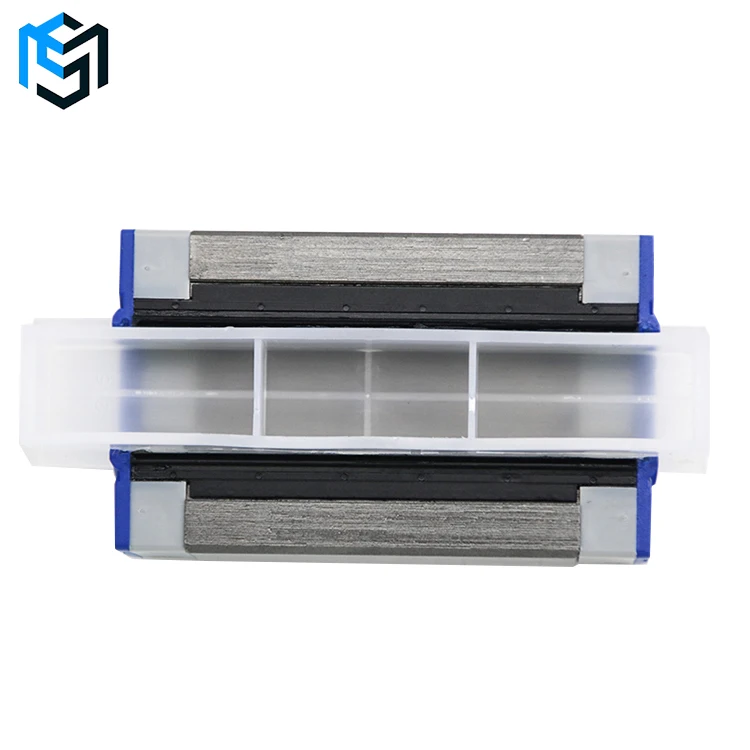

STAF high precision linear slider linear guide BGCS30BS BGCS30BN BGCS30BL BGCS30BE linear guide

Product Overview

Description

Product Name	TAIWAN STAF LINEAR GUIDE
Material	Bearing Steel
Advantage	High Precision, Large Load Capacity, Low Noise, High Rigidity
Delivery Details	5-15 Days After Order
Applications	Automation Industry, Semiconductor Industry, Industrial Machinery, Medical Industry, Solar Equipment, Tool Machinery, Parking Equipment. .. .. .. In related industries.





Product Description

Advantages of STAF linear guide:

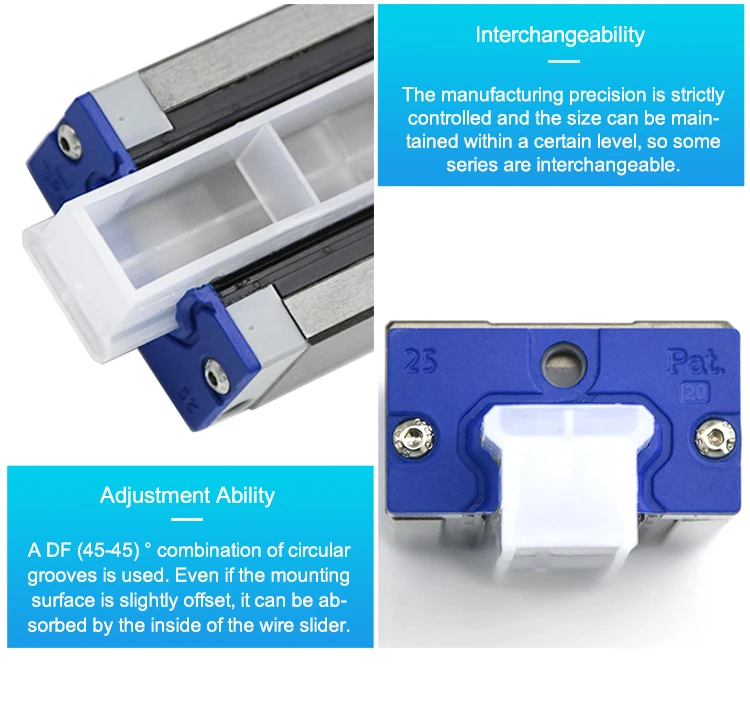

1, Automatic self-aligning ability;
From the arc grooves of DF (45 ° 45 °) combination, at the time of installation, by the transfer of the elastic deformation of steel ball and the contact point, even if the installation surface somewhat deviation, can also be line rail slider internal absorption, automatic self-aligning ability effect and high precision and stable smooth movement.

2, Interchangeable;
Due to strict control for manufacturing accuracy, linear guide size can maintain within a certain level, and the design of the sliding block have a retainer in order to prevent the steel ball falls off, so part of the series precision interchangeability, customers can according to need to place an order guide or slider, can also be stored separately guide rail and slide block, to reduce the storage space.

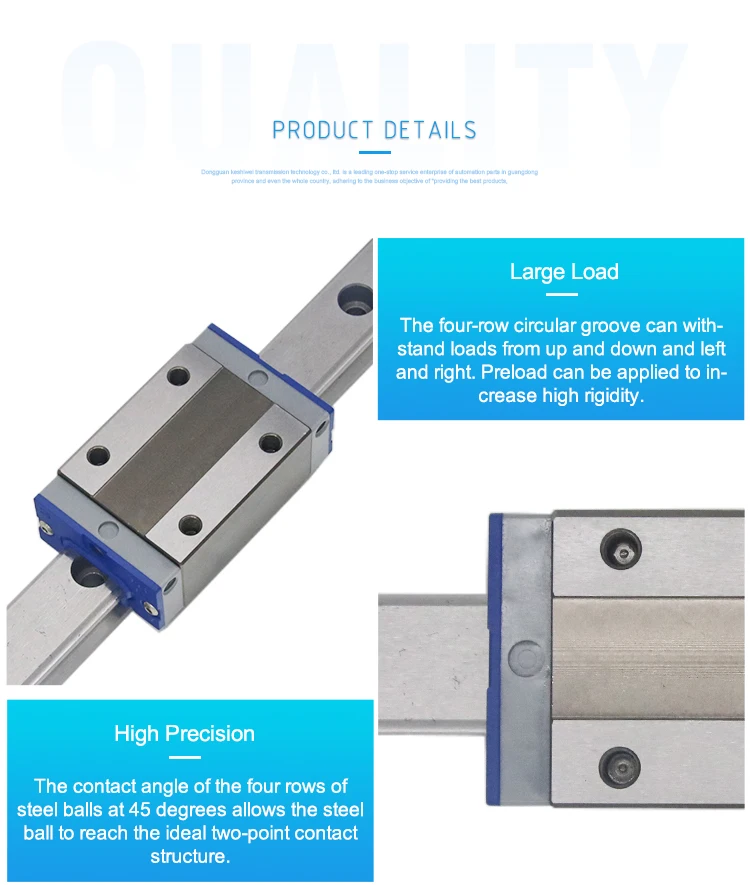

3, All directions have high rigidity;
The use of four-row arc groove, with four rows of steel beads and other 45 degrees of contact Angle, so that the steel ball to achieve the ideal two-point contact structure, can withstand the load from the direction of up and down and left and right; Where necessary, preloading can be applied to improve rigidity.
