elstein ceramic infrared heaters 400w
- Category: >>>
- Supplier: Yancheng Hongtai Alloy Electric Apparatus Co. Ltd.
Share on (62145487994):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

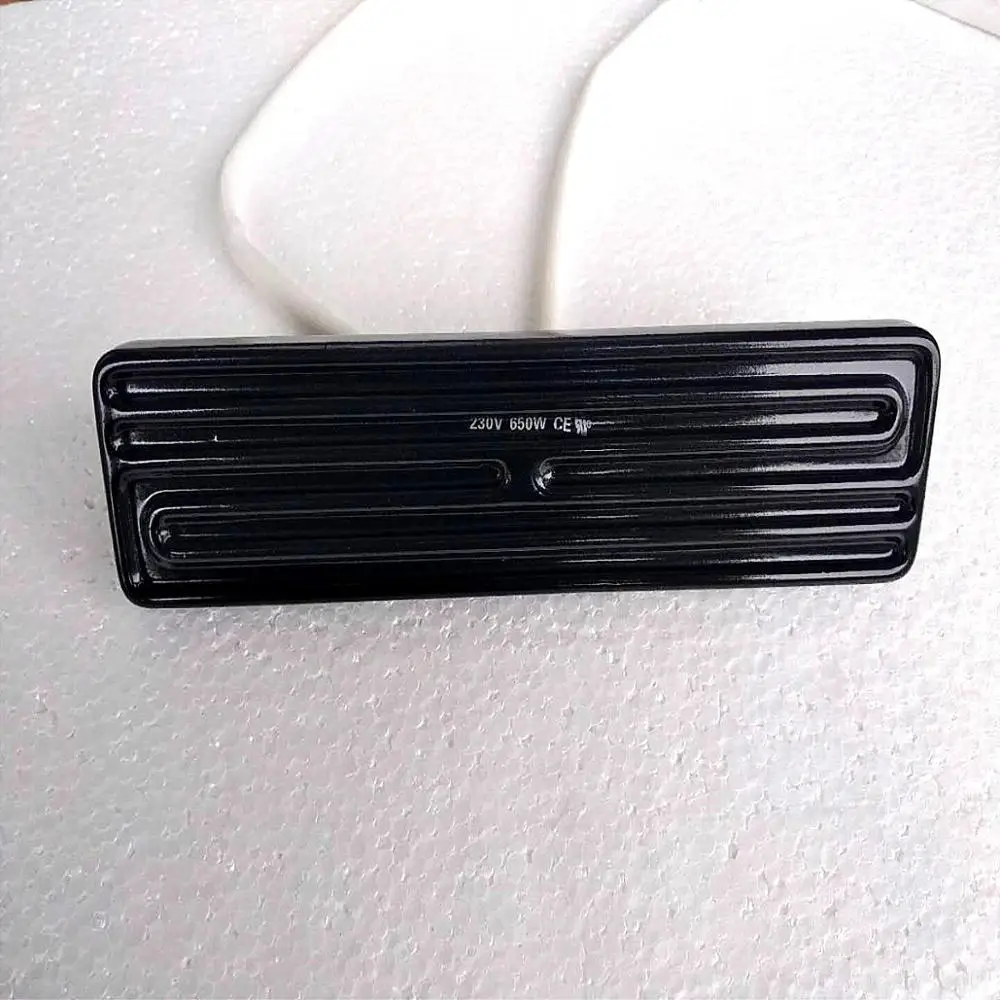

Curve Ceramic Infrared Heater 400W
Curve Ceramic Infrared Heater 400W efficient, robust heaters which provide long wave infrared radiation. They are used in diverse range of industrial processes. Most plastics and many other materials absorbs infrared wave best in this range.

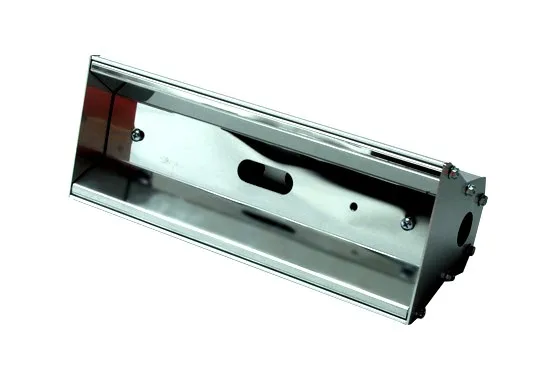

Curve Ceramic Infrared Heater 400W operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market. A range of aluminized steel reflectors are also available to ensure the maximum amount of infrared radiation is reflected forward to the target area.
The element wire of Curve Ceramic Infrared Heaer 400W is embedded in glazed refractory which protects the wire from atmosphere to get longer life. In normal operating condition the life of the heater for most application would be well in excess of 10,000 hrs of 80% power. These are available with built in J or K Type Thermocouple or without Thermocouple variants in Yellow, White & Black colors.
Size | 122 x 122 mm | ||||
Wattage available | 150W - 800W | ||||
Resistance wire | NiCr Heating Wire | ||||
Heater Voltage | 120V, 220V, 230V, 240V | ||||
Useful wavelength range | 2-10 microns | ||||
Average Operating Life | Up to 20,000 hrs depending on conditions | ||||
Certification | CE | ||||
Recommended radiation distance from heater | 100 mm to 200 mm | ||||
Thermocouple | J or K Type | ||||

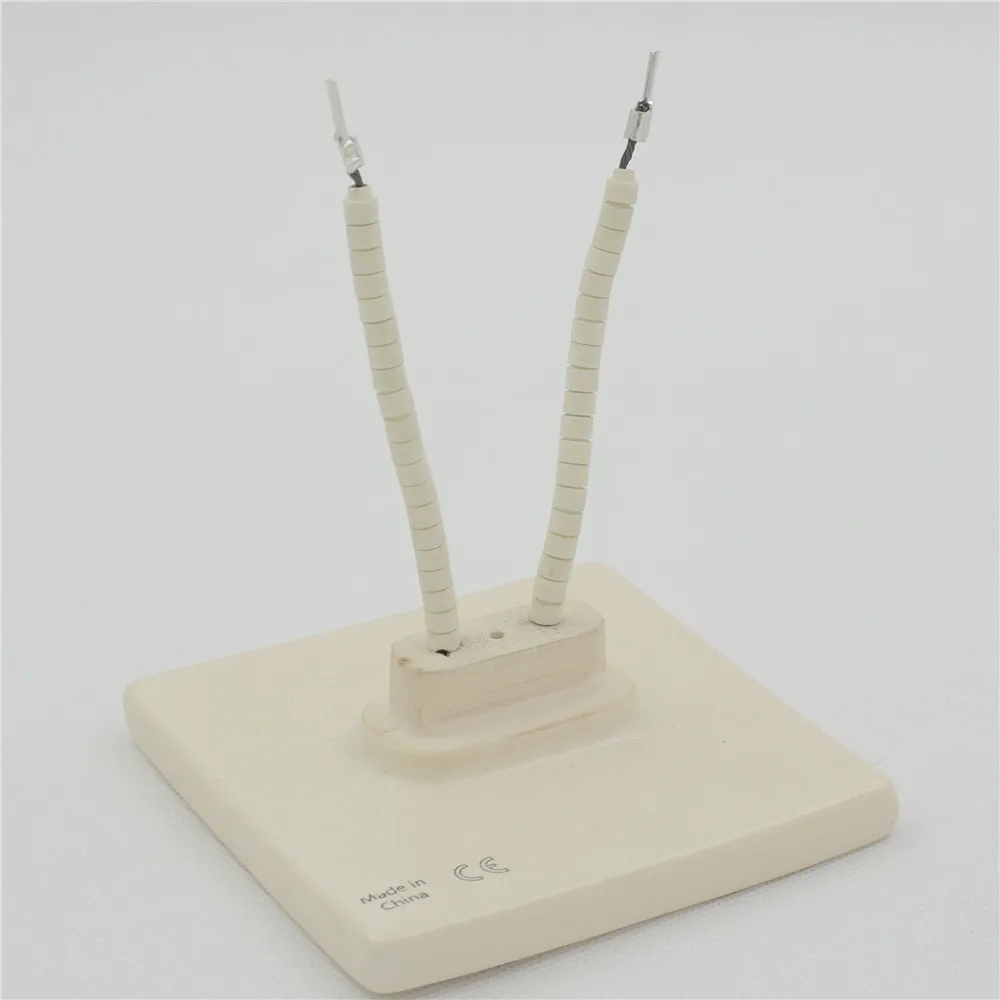

Lead Wire | 100mm ceramic beaded power leads | ||||

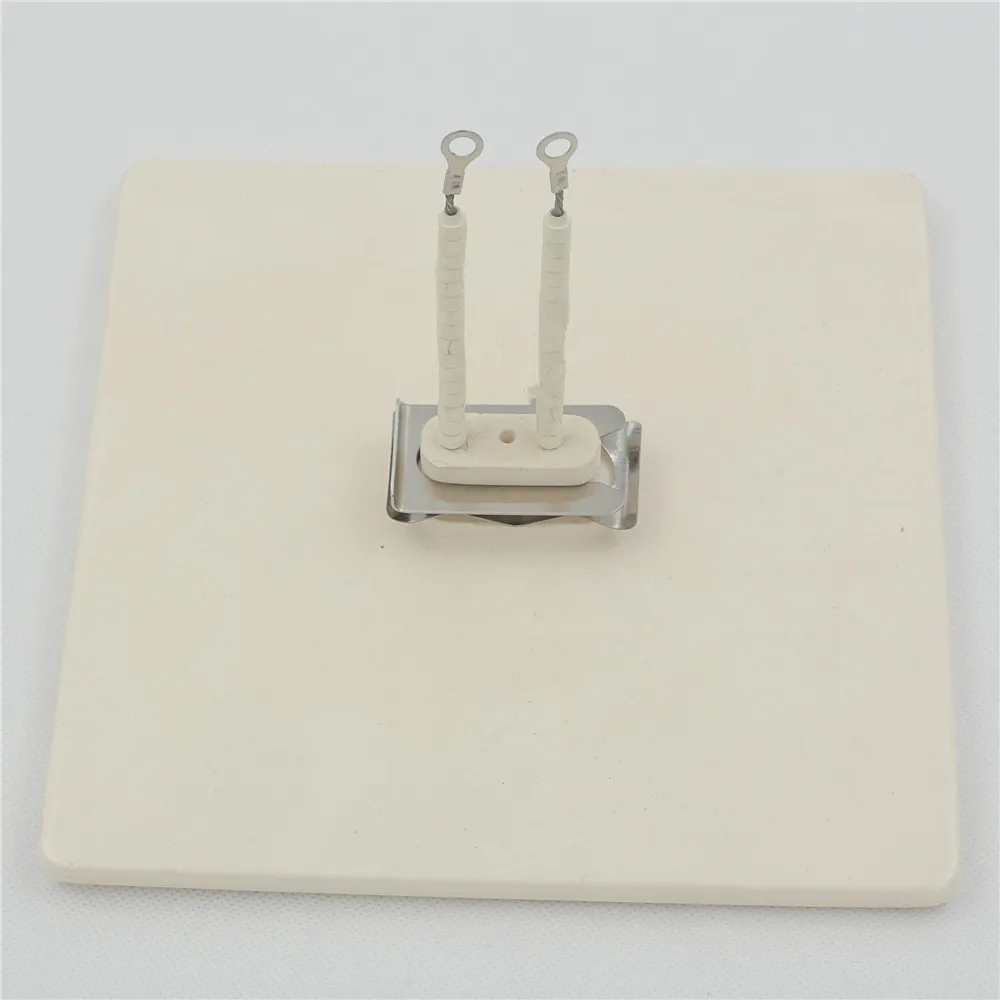

Terminals Option | Pin or Ring | ||||
Color Option | White / Yellow / Black / Pink | ||||

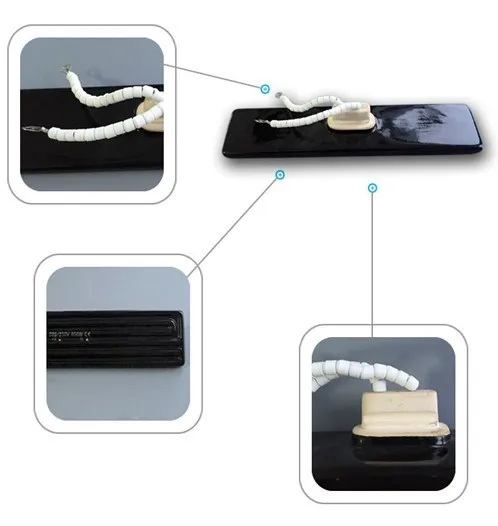

Product Details
Size:245*80mm
Type: Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Size:245*60mm
Type: Trough,Hollow and Flat
Vottage: 120/220/230/240/480V
Wattage: 125-1000W
TC: Optional K or J Type

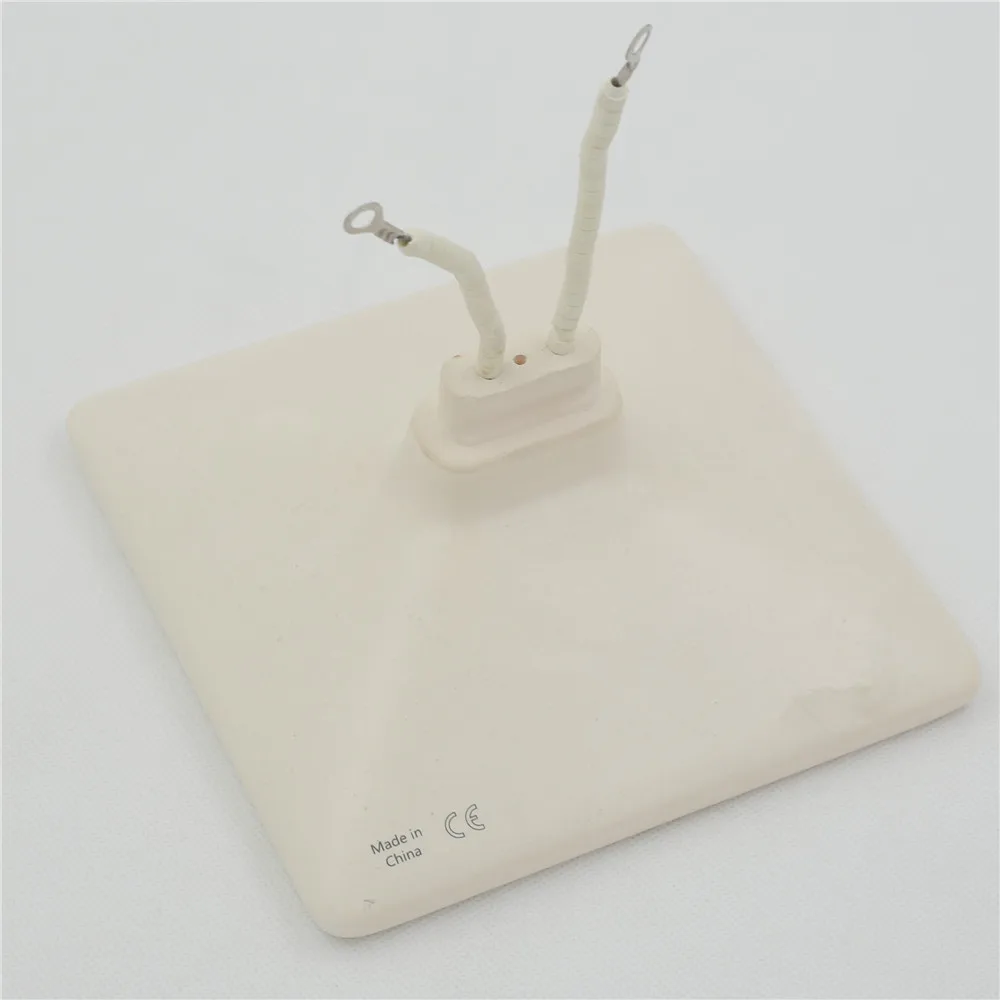

Size:122*122mm
Type:Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-750W
TC:Optional K or J Type
Size:122*60mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-500W
TC:Optional K or J Type
Size:80*80mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type
Size:60*60mm
Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type

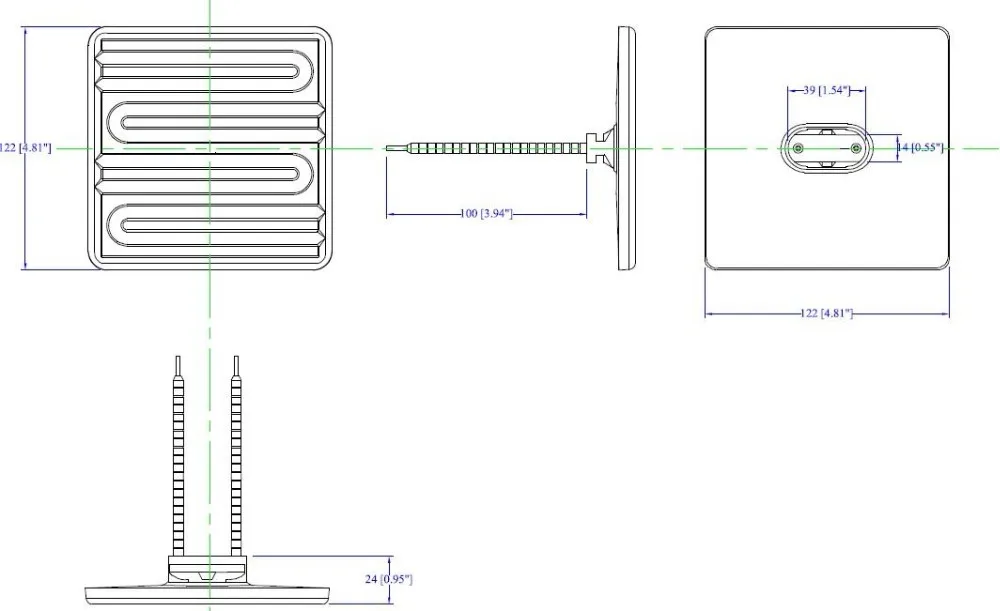

Product Drawings
Standard Elements Available
Element Type | Size | Loading / Watts At 220~240V | ||||||||||||||
Trough / Flat / Hollow | 245x60mm | 150 | 250 | 350 | 400 | 500 | 650 | 750 | 1000 | |||||||
Trough / Flat / Hollow | 122x60mm | - | 125 | - | 200 | 250 | 325 | - | 500 | |||||||
Trough / Flat / Hollow | 60x60mm | - | - | - | - | 125 | - | - | 250 | |||||||

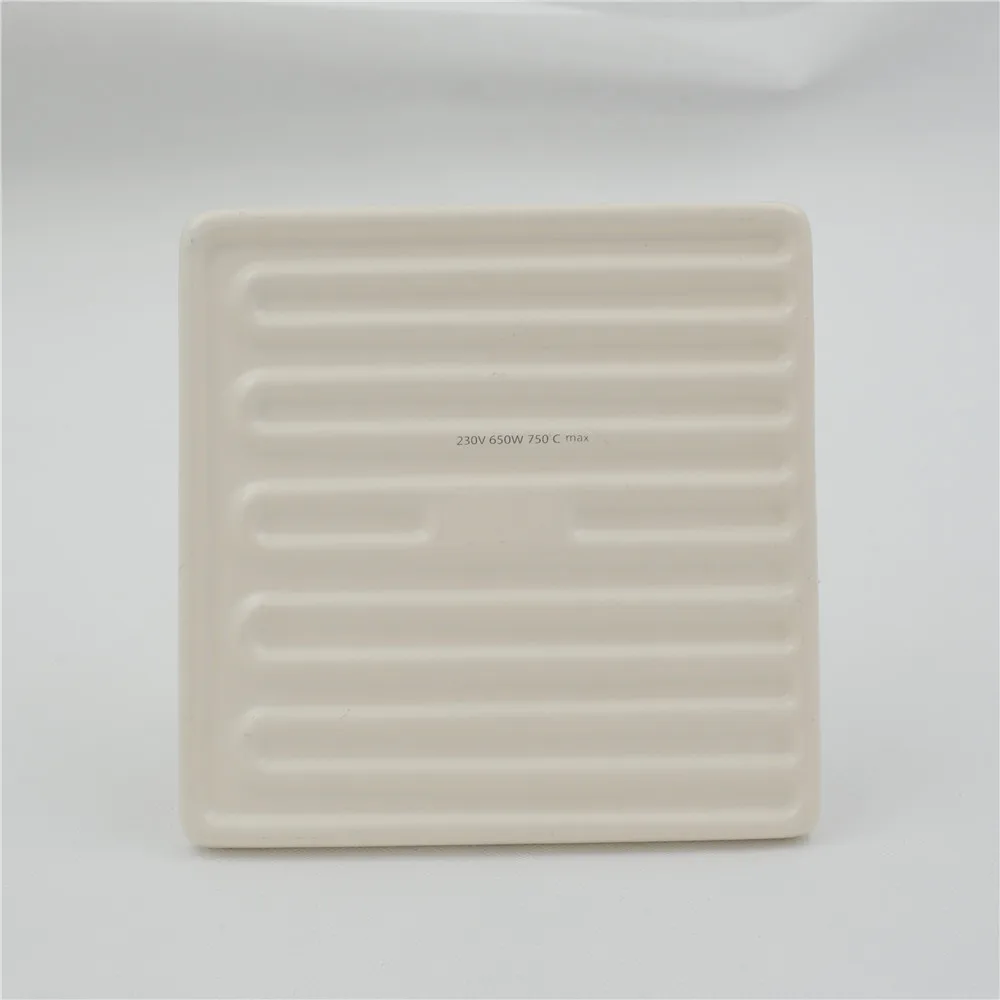

Flat | 122x122mm | 150 | 200 | 300 | 350 | 400 | 500 | 650 | 750 | |||||||
Trough | 240x85mm | - | - | 350 | 400 | 500 | 650 | 750 | 1000 | |||||||
Flat | 245x110mm | - | - | 350 | 400 | 500 | 650 | 750 | 1000 | |||||||

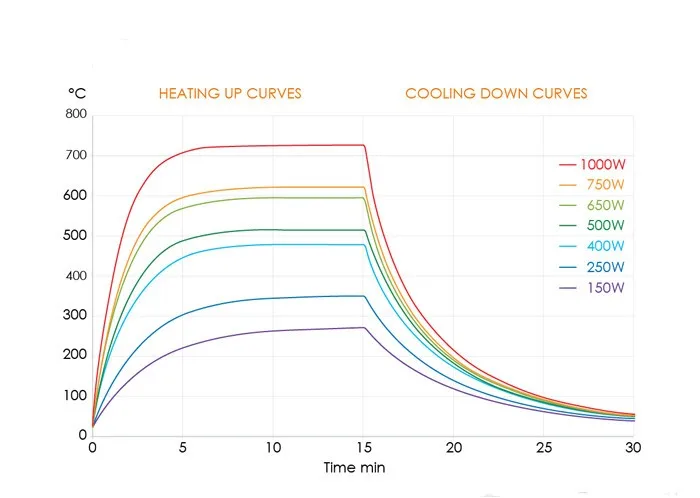

Mean Surface Temp. In °C | - | 315 | 418 | 480 | 515 | 560 | 630 | 670 | 750 | |||||||
Min wave length in micron | - | 6 | 4.9 | 4.5 | 4.2 | 4.0 | 3.55 | 3.7 | 3.0 | |||||||
Apart from the above Sizes and Wattages, other sizes and Wattages can be Customized as per application and customers requirement.
How to Order?
When you order, pls provide following informations:
1. The ceramic heater type: Trough/Curved, Hollow and Flat
2. The ceramic heater size: 245x60mm,245x80mm, 122x122mm, 60x60mm (and other size can be customized).
3. Vottage : can be customized.
4. Wattage : can be customized.
5. Terminal Type: Pin or Ring
6. Thermocouple: Type K or J
7. Color: White / Black / Yellow / Pink (Color Pink need be ordered over 200pcs)
\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t
Curve Ceramic Infrared Heater 400W is used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing, and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.
Plastic Industries
1. Thermoforming & Vacuum Forming for plastification of Sheets / rolls.
2. Lamination and welding of Plastic
3. Curing / Shrinking Of PVC Paste.
Rubber Industries
1. Preheating & vulcanizing of rubber Sheets.
2. Preheating of Synthetic Pipes before Coupling..
Textile Industries
Drying Of finished Textile / Garments / Carpets. Setting of Nylon & Perlon Threads.
Paper Industries
1. Drying of Paper Pulp, Drying of Paper Glue.
2. Drying of Paper Coating, Adhesive Activation.
Paint Industries
Stoving for Car Bodies epoxy. Lacquer Steel Panels.
Screen Printing
Ink Drying, Instruments Dial Plastic. Fascia Panel Aluminum.
Food & Other Industries
Baking & Brewing Of Bakery Products, Packaging Food Product. Drying Tobacco, Sprayed and Powder Coating.
