100kg 250kg Mortar Refractory Castable Portable Cement Pan Mixer
- Category: >>>
- Supplier: Gaode Equipment Co. Ltd.
Share on (62145665347):
Product Overview
Description
Products Description
GRM250 refractory mixer

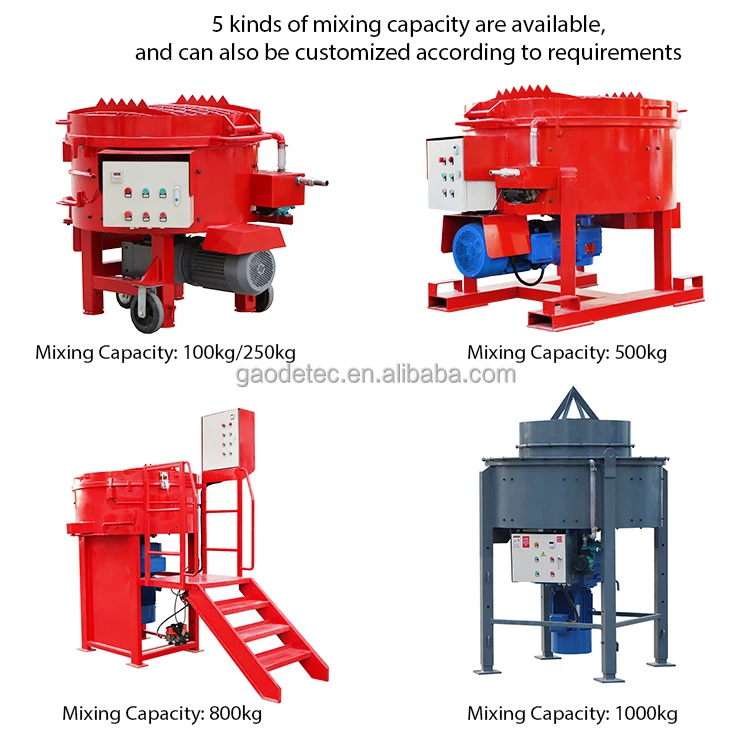

1. GRM250 refractory mixer mixing capacity is 250kg, power is 7.5kw. We have 100kg, 250kg, 500kg, 800kg, 1000kg, can also customize it according to your needs.

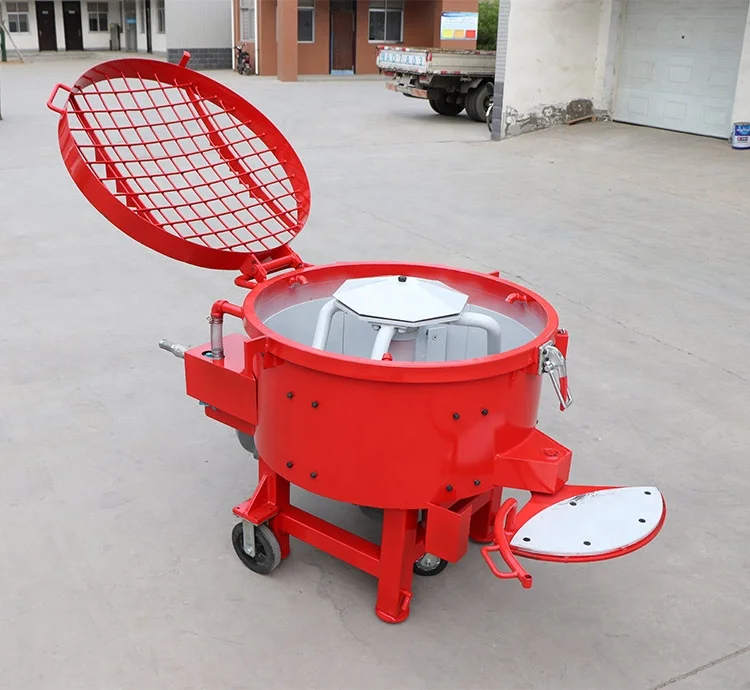

2. For GRM100 and GRM250 refractory castable mixer, it is equipped with walking wheels, two operators could easily move it in working site.
2. For GRM100 and GRM250 refractory castable mixer, it is equipped with walking wheels, two operators could easily move it in working site.
3. Manual discharge door and hydraulic discharge door are optional.
Model | GRM100 | GRM250 | GRM500 | GRM800 | GRM1000 |
Mixing Capacity | 100kg | 250kg | 500kg | 800kg | 1000kg |
Rotate Speed | 33rpm | 34rpm | 36rpm | 39rpm | 39rpm |
Feed Height | 1100mm | 1200mm | 1300mm | 2500mm | 2100mm |
Power | 4kw | 7.5kw | 11kw | 22kw | 37kw |
Dimension | 1.4*1.3*1.1m | 1.48*1.38*1.23m | 1.7*1.25*1.35m | 2.8*1.88*2.64m | 1.6*1.5*2.14m |
Weight | 550kg | 650kg | 1010kg | 1350kg | 1680kg |

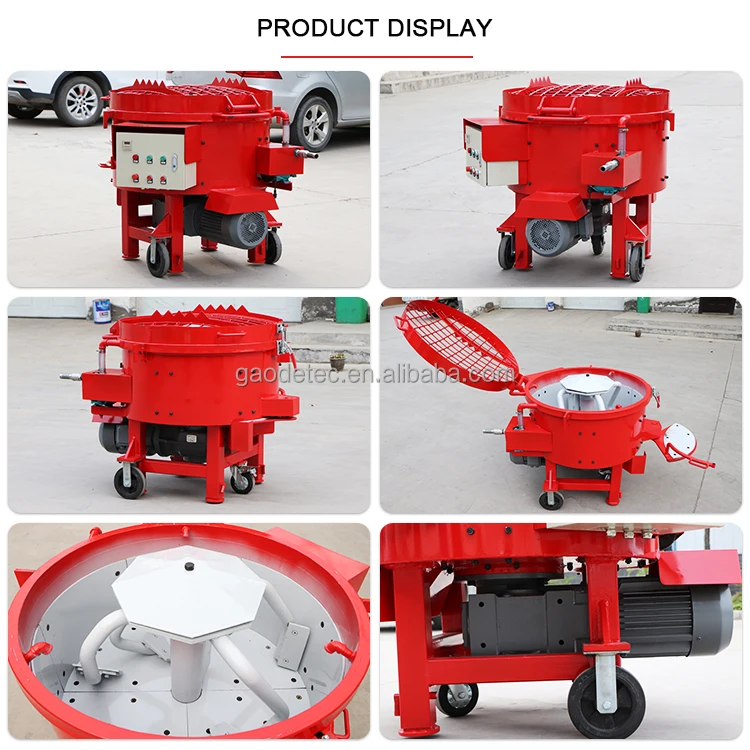

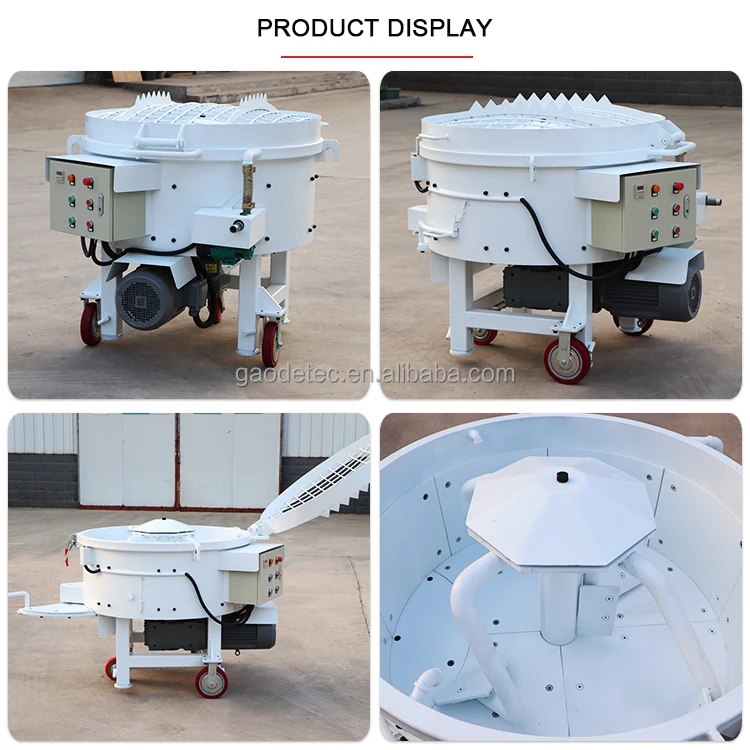

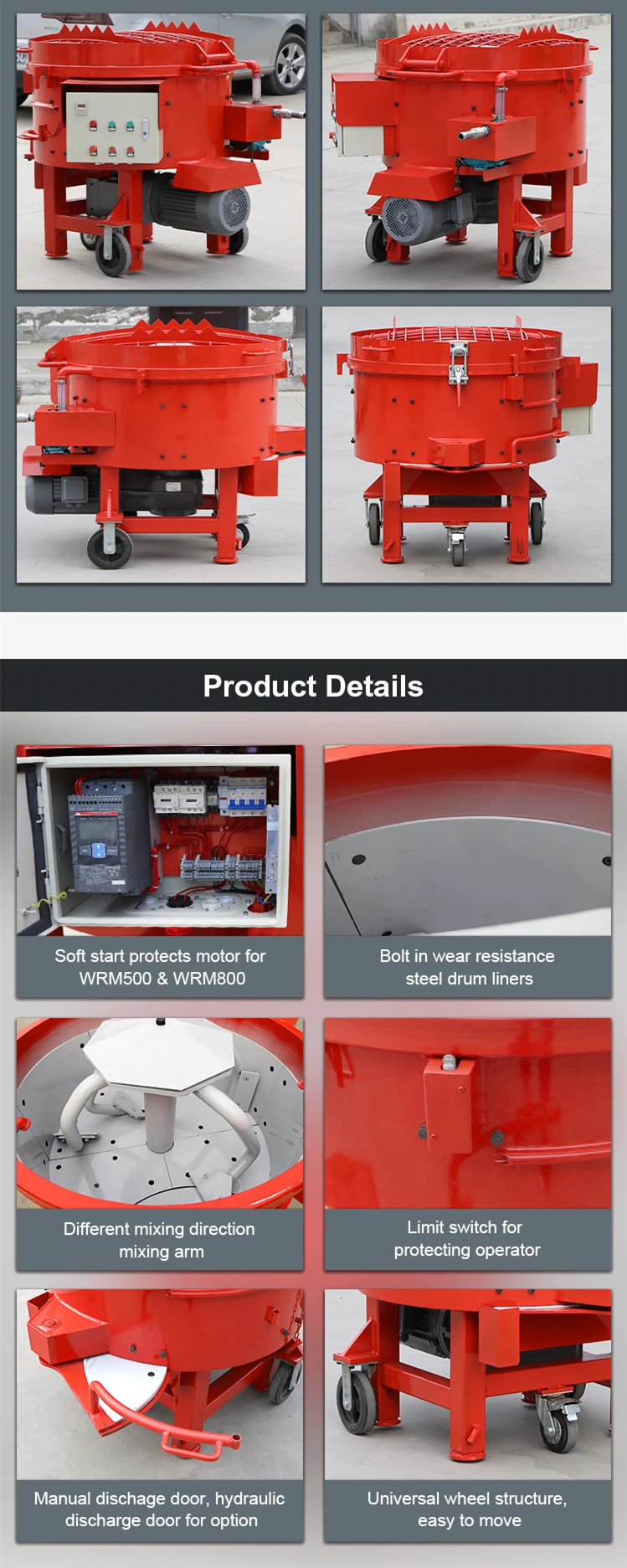

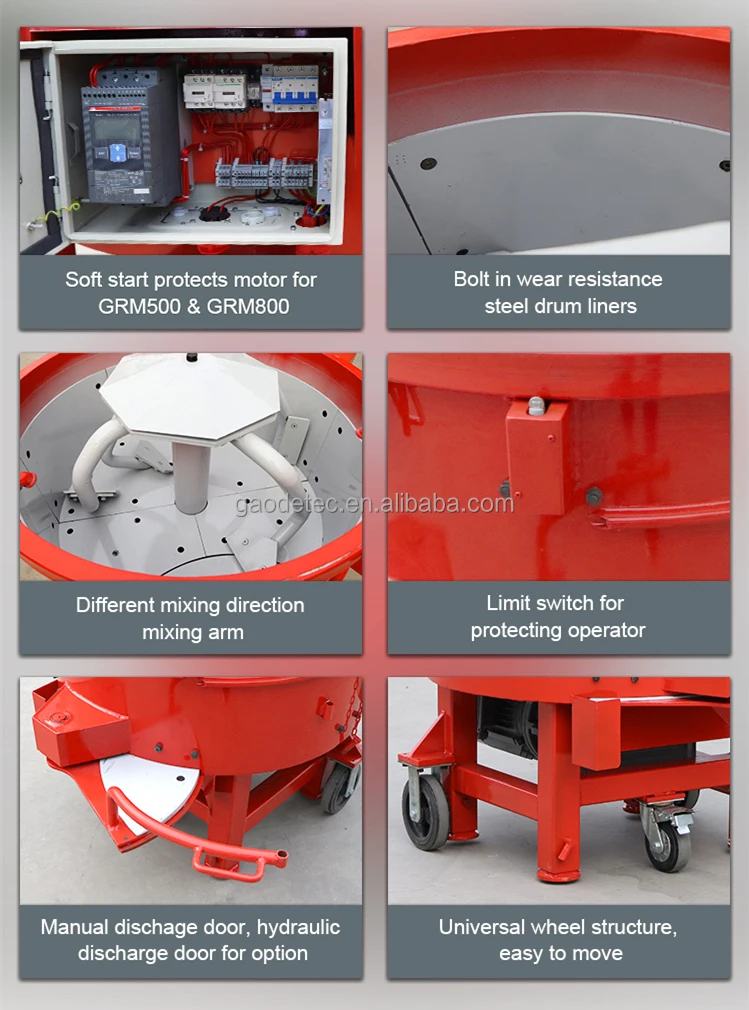

Details Images

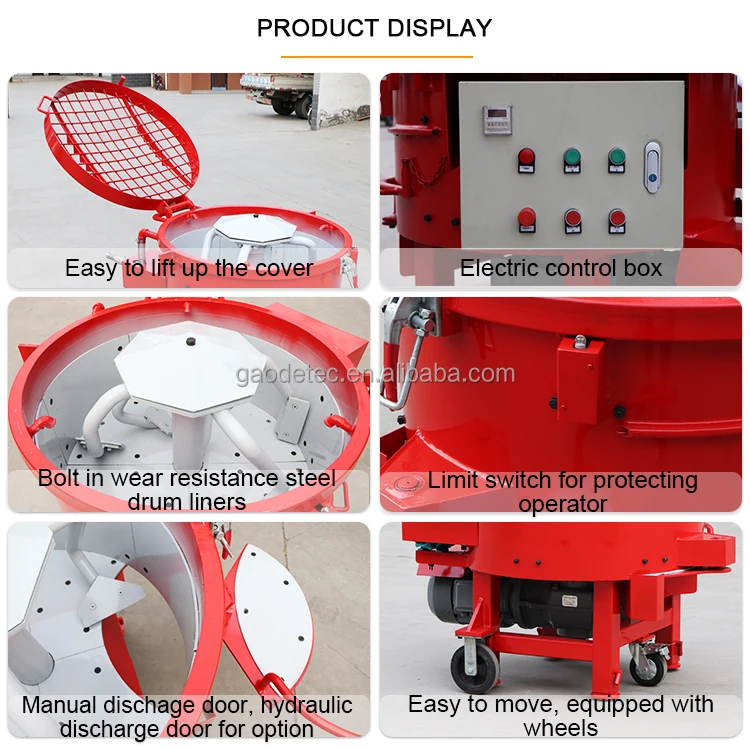

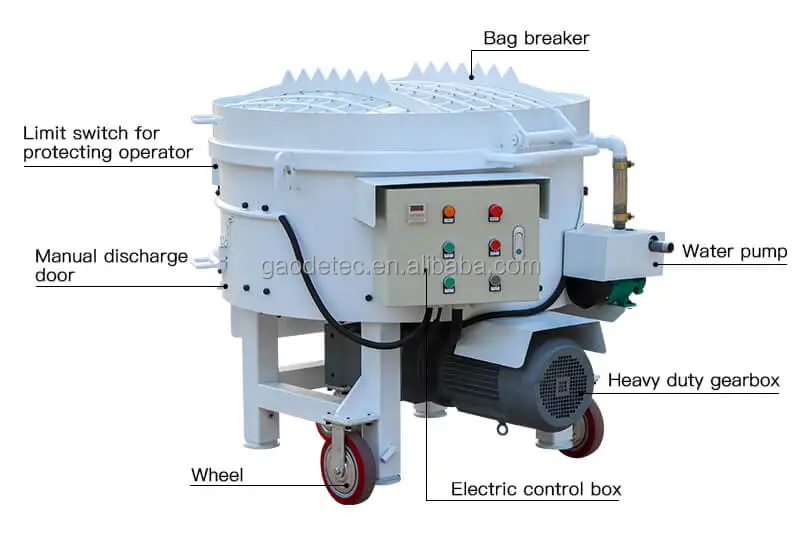

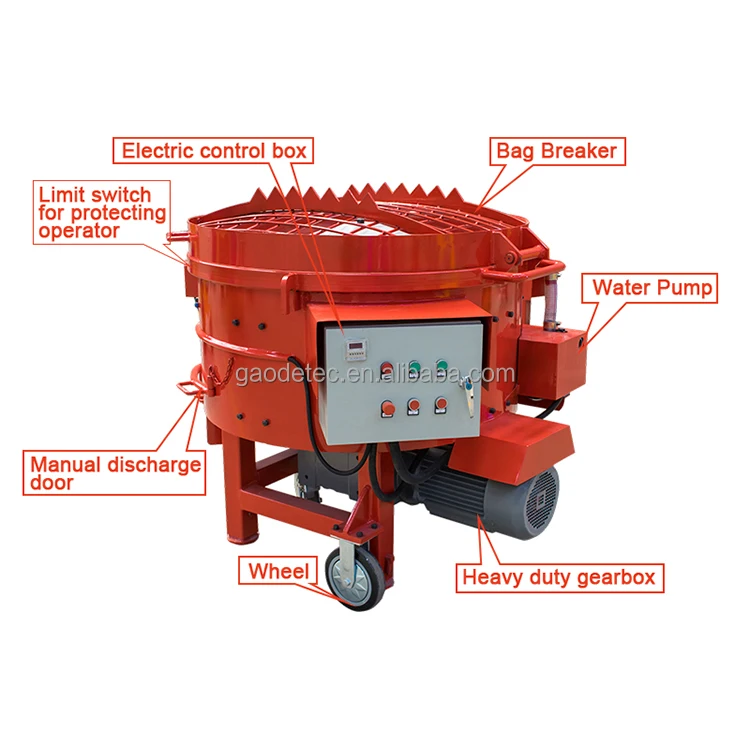

Features
1. Pan mixer;
2. Special designed for site operation;
3. Fast mixing speed and homogenous;
4. Compact structure;
5. Comfortable feeding height;
6. Easy to move;
7. With bag breaker;
8. Water spray nozzles;
9. Low maintenance cost.
2. Special designed for site operation;
3. Fast mixing speed and homogenous;
4. Compact structure;
5. Comfortable feeding height;
6. Easy to move;
7. With bag breaker;
8. Water spray nozzles;
9. Low maintenance cost.
Application
Refractory pan mixer application
GRM refractory mixer is used for mixing refractory materials, castables, friction materials, chemical matrials, precast concrete, mortar, aggregrate mixing and glass materials, etc. Could work together with refractory wet shotcrete machine, used for refractory materials spraying project in the steel industry.
Related Product

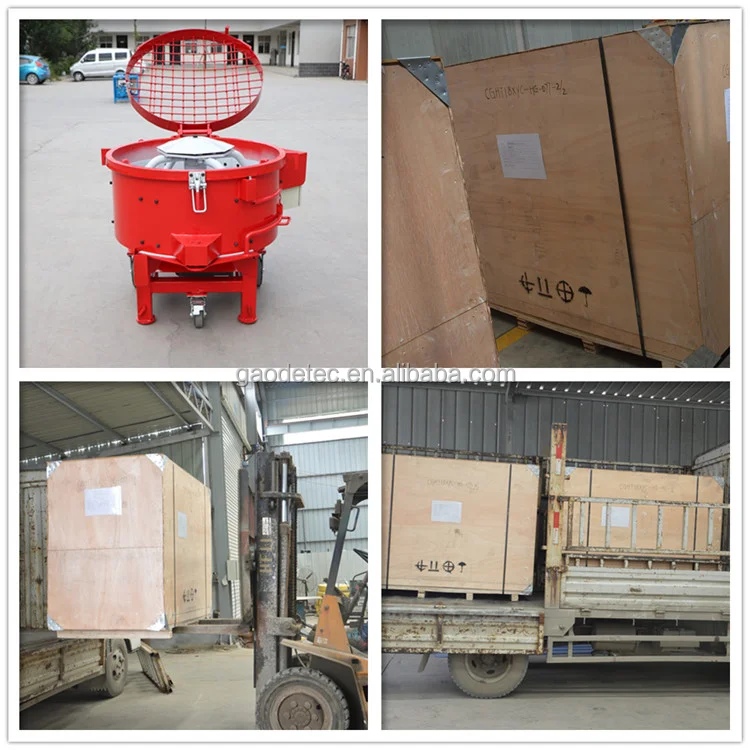

Packaging&Shipping
Certifications
Company Profile
Contact Us
Contact us for refractory pan mixer price and catalog
In order to confirm which type refractory pan mixer suitable for your job, could you please help us to confirm the following information:
1. What is mixing materials with our machine, for mixing refractory materials, castable or others?
2. What is the mixing capacity your require, 100Kg per batch, 250Kg per batch, 500Kg per batch, 800Kg per batch, 1000Kg per batch or others?
3. What is the voltage you require, Here 380V, 50HZ, 3phase, it is ok for you?
1. What is mixing materials with our machine, for mixing refractory materials, castable or others?
2. What is the mixing capacity your require, 100Kg per batch, 250Kg per batch, 500Kg per batch, 800Kg per batch, 1000Kg per batch or others?
3. What is the voltage you require, Here 380V, 50HZ, 3phase, it is ok for you?
