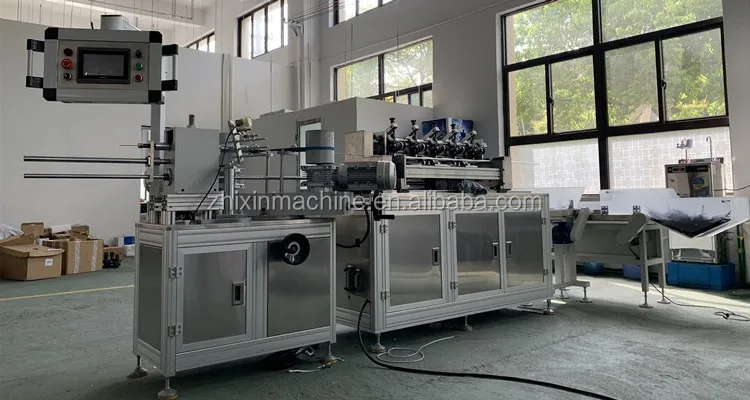

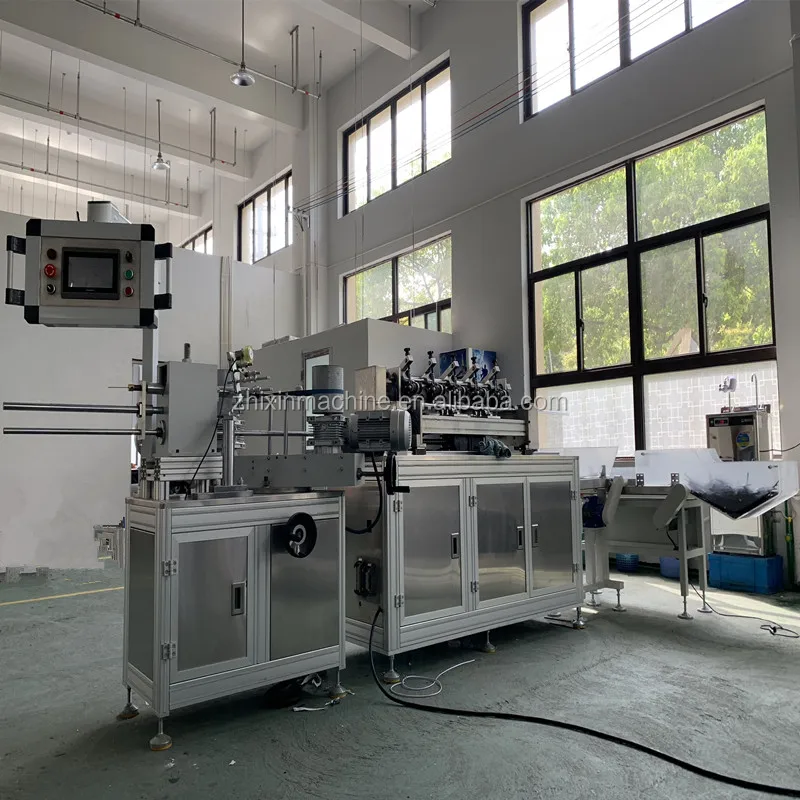

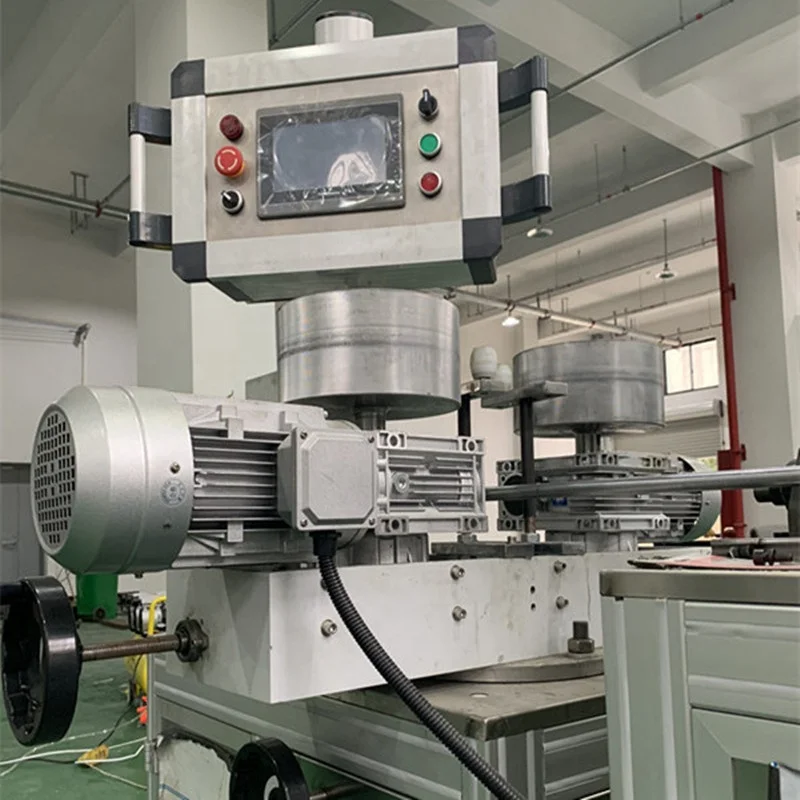

ZX 60 Automatic three layer paper drinking straw forming machine

The paper pipette machine is a new type of machine specially developed by our company in line with the trend of environmental protection. Suitable for the production and processing of paper straws, the diameter can be 5mm, 6mm, 8mm, 10mm and so on.
The secondary machine is equipped with upper limbs, glued, wound, and cut into one. It is equipped with a CNC multi-tool cutting system. The servo control system controls the stroke and the finished paper straw can be cut online. Compared with other similar devices, the structure is more reasonable, faster and more stable.

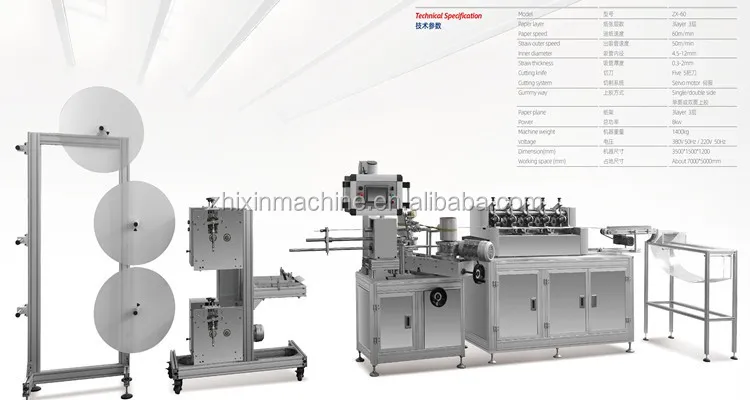

SPECIFICATIONS FOR PAPER STRAW MACHINE
Model	ZX-60
Paper layer	3layer
Paper speed	60m/min
Straw outer speed	50m/min
Inner diameter	4.5-12mm
Straw thickness	0.3-2mm
Cutting knife	Five
Cutting system	Servo motor
Gummy way	Single/double side
Dimension(mm)	3500*1500*1200
Paper material	Inner two layer paper 168gsm, outside paper 68gsm.
Power	6kw
Machine weight	1400kg
Voltage	380V 50Hz / 220V 50Hz
Dimension(mm)	3500*1500*1200
Working space (mm)	About 7000*5000mm

Motor	Schneider(1.5kw)
Bearing	HRB

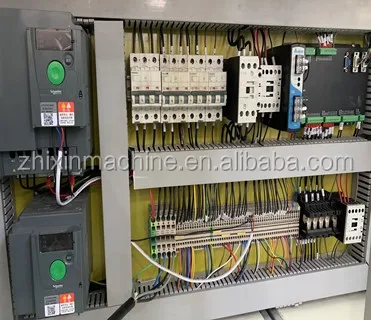

Frequency converter	Schneider(3.7kw)
PLC	TRIO(United Kingdom)
Screen	Schneider
Servo motor	Taiwan TBI
Electric components	Schneider

Remarks:
1) Price Term: Ningbo Port, China.
2)Payment term: TT (30% deposit, the balance70% before delivery).
3) Delivery time: 30 working days after receiving the deposit
4) After sale service:
1. Spare parts guarantee for one year from the date of installation.
2. Send the technician for installation & training. Buyer bears the cost (round tickets ,accommodation, and allowance of 80USD per day).

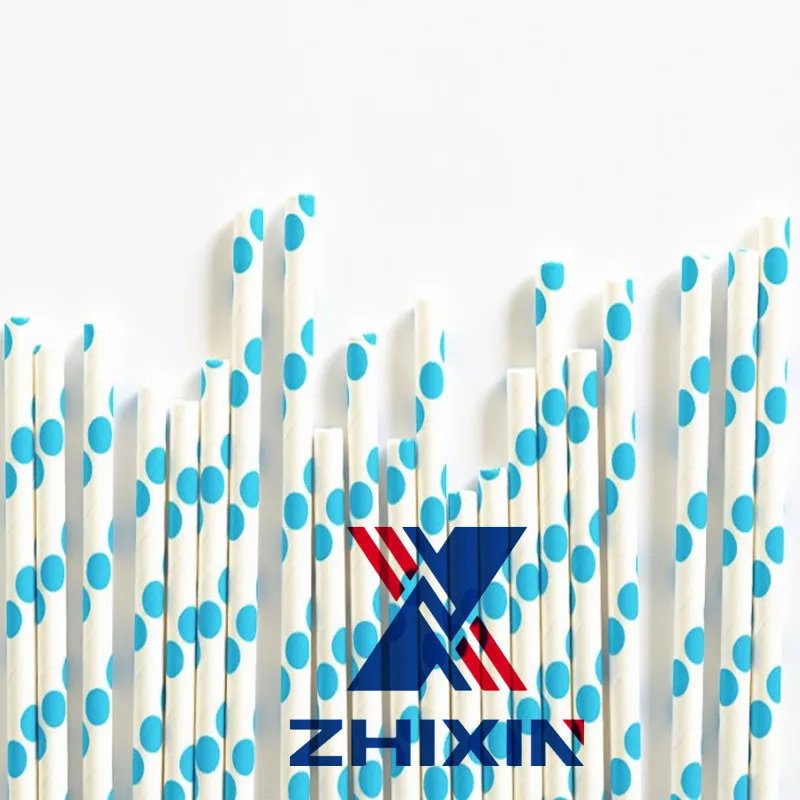

Colorful Paper Straw

Detailed Images

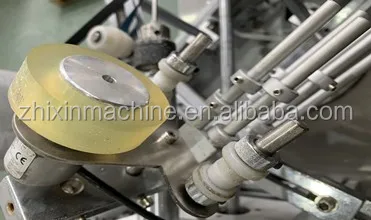

Machine Parts

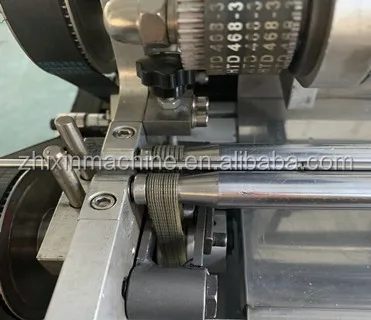

Name: Incr. Encoder
Brand: SICK
Original: Malaysia

Function: counting paper feed length
Different from others, better for paper feeding and forming

Main Features

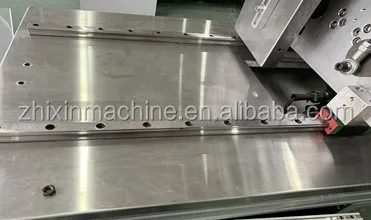

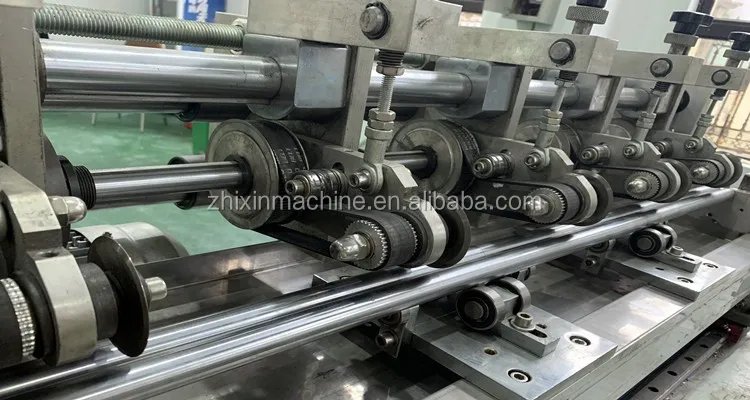

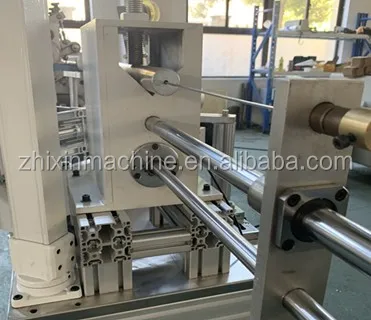

Name: Linear guideway
Brand: HIWIN
Original:TAIWAN

Material high-strength steel from Germany, high precision, low noise and high wear resistance, mature heat treatment technology.

Main Features

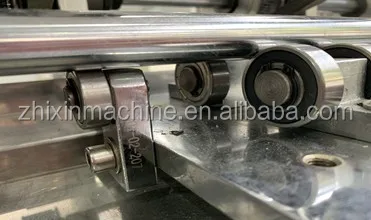

Name: Bearings
Brand: NACHI
Original:JAPAN
High quality bearings, high machine quality!

Our Service

Provide related supplies

we can provide oll paper and glue which used in paper straw machine.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Paper Straw Machine Packaging
Size	3600 (L) * 1600 (W) * 1300 (D)
Weight	1.4 T
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Paper Straw Machine Sea Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	20GP L × W × H(m) Weight CBM Iinner: 5.898×2.352×2.385 17.5t 28m³ Outer :6.058×2.438×2.591 17.5t 28m³ 40GP L × W × H(m) Weight CBM Iinner: 12.032×2.352×2.385 26t 58m³ Outer:12.192×2.438×2.591 26t 58m³
