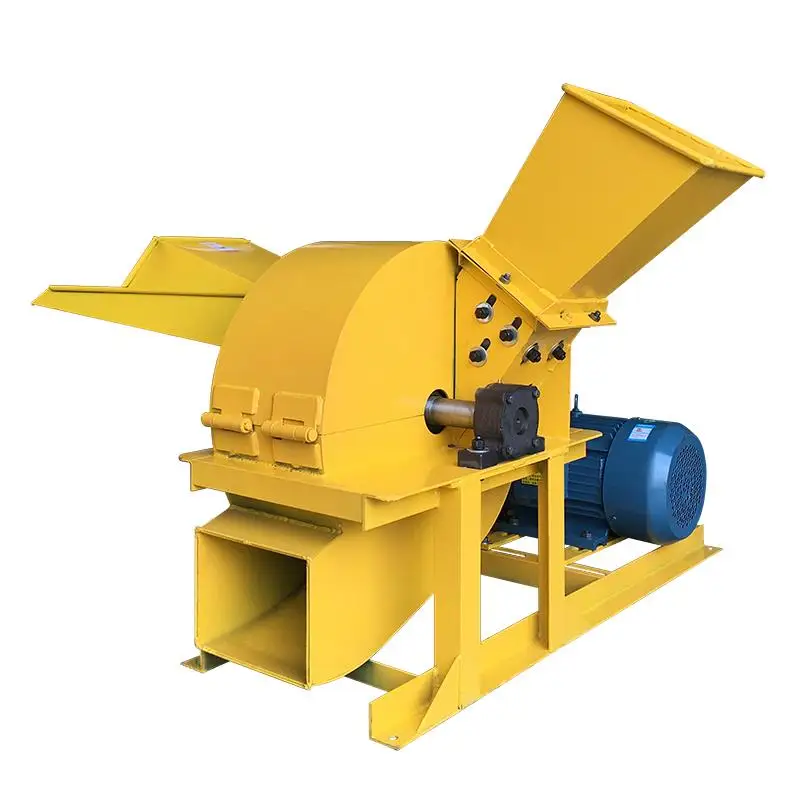

CE ISO Approved wood chip and coconut husk crusher machine to make sawdust
CE ISO Approved wood chip and coconut husk crusher machine to make sawdustcan be used to crushed the hardwood which diameter less than 250mm into sawdust size at 1-40mm.
Sawdust manufacturing machine:
1.Compact structure and considerable layout;
2.Easy to install,operate and maintain;
3.Small size ,high production efficiency,low investment,high profit return;
4.Product good quality sawdust ,size can be adjusted in range 1-10mm
5.Long service life, low noise, stable working situation;
6.Can use electrical motor/diesel motor according to customer's needs;
7.Can Install the wheels, Cyclone and make other customized designs for customers.
![]() | ![]() |
Traditional Design one Inlet | New design Two Inlet,multipurpose |
Model no. | H420 | H600 | H800 | H1000 |
Disc Dia.(mm) | 400 | 600 | 800 | 1000 |
Speed(r/min) | 2600 | 2600 | 2300 | 2000 |
Knives (pcs) | 4 | 4 | 6 | 4-6 |
Feeding size (mm) | 150*180 | 200*200 | 250*300 | 300*300 |
Output(kg/h) | 300-600 | 800-1000 | 1500-2000 | 2000-3000 |
Motor power(kw) | 7.5-11 | 18.5-22 | 30 | 75+7.5 |
Feed Dia.(mm) | 40 | 60 | 100 | 150 |
Weight(kg) | 350 | 400 | 1500 | 1800 |
Dimension( m) | 1.2*0.85*0.9 | 1.5*1.0*1.1 | 2.1*1.1*1.3 | 2.6*1.1*1.5 |
Usage of Sawdust:
1.The base raw material for cultivated edible fungus/Edible mushroom cultivation;
2.Production of biomass fuel pellet/wood charcoal:
For Civil heating burning ,industrial boilers ,replace of coal, heavy oil, natural gas
3.Medium,small particleboard and fibreboard production:
Particleboard, plywood, high density board, sawdust board, MDF, etc.
4.Mosquito-repellent incense making;
5.Paper making raw material.
![]() | ![]() | ![]() |
Sawdust Briquette Machine | Mushroom Bagging Machine | Pellet Machine |
CE ISO Approved wood chip and coconut husk crusher machine to make sawdust plays an necessary role for other production line
1.As crusher ,crushing wood waste,branches,into sawdust to making sawdust briquette charcoal
2.As crusher, Crushing mushroom compost ,prepare raw material for bagging machine
3.As crusher ,crushing wood,branches,logs into sawdust,for making wood pellets.
