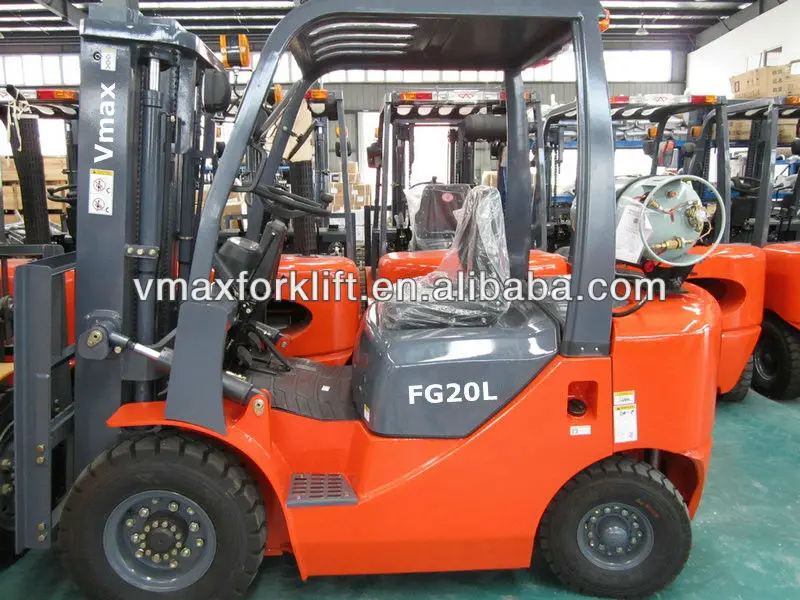

VMAX Brand 2.5 ton LPG&gas forklift truck with NISSAN engine
- Category: >>>
- Supplier: Vmax International Group(shanghai)co. Ltd.
Share on (62145948624):
Product Overview
Description
Product Description
| Item | General | Basic Model | Unit | FG20(FG20L) | FG25(FG25L) | FG30(FG30L) | FG35(FG35L) | ||
| 1 | Power type | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | Gasoline/LPG | ||||
| 2 | Rated capacity | Kg | 2000 | 2500 | 3000 | 3500 | |||
| 3 | Load centre | mm | 500 | 500 | 500 | ||||
| 4 | Characteristic&Dimension | Lift height | mm | 3000 | 3000 | ||||
| 5 | Free lift height | mm | 160 | 165 | 170 | ||||
| 6 | Fork size | LxWxT | mm | 1070x122x40 | 1070x125x45 | 1070x125x50 | |||
| 7 | Fork regulating range | Min./Max. | mm | 250/1040 | 250/1100 | 260/1100 | |||
| 8 | Mast tilt angle | F/R | Deg | 6/12 | 6/12 | 6/12 | |||
| 9 | Front overhang | mm | 460 | 485 | 505 | ||||
| 10 | Rear overhang | mm | 460 | 495 | 520 | 585 | |||
| 11 | Min. ground clearance(Bottom of mast) | mm | 125 | 140 | |||||
| 12 | Overall dimensions | Length to face of fork (without fork) | mm | 2510 | 2545 | 2685 | 2750 | ||
| 13 | Overall width | mm | 1150 | 1210 | 1210 | ||||
| 14 | Mast lowered height | mm | 2010 | 2075 | 2150 | ||||
| 15 | Mast extended height (with backrest) | mm | 4020 | 4100 | 4160 | ||||
| 16 | Overhead guard height | mm | 2145 | 2170 | 2170 | ||||
| 17 | Turning radius(outside) | mm | 2180 | 2250 | 2430 | 2450 | |||
| 18 | Min. right angle stacking aisle width (add load length and clearance) | mm | 1940 | 2010 | 2140 | 2160 | |||
| 19 | Performance | Speed | Travel(Unladen) | Km/h | 19 | 19 | |||
| 20 | Lifting(Laden) | mm/s | 490 | 390 | 360 | ||||
| 21 | Lowering(Laden) | mm/s | 450 | 450 | |||||
| 22 | Max. Drawbar pull(Laden/unladen) | KN | 17/15 | 18/16 | 19/17 | ||||
| 23 | Max. Gradeability(Laden) | % | 20 | 20 | 18 | ||||
| 24 | Chassis | Tyre | Front | mm | 7.00-12-12 PR | 7.00-12-12 PR | 28*9-15-14 PR | ||
| 25 | Rear | mm | 6.00-9-10 PR | 6.00-9-10 PR | 6.50-10-10 PR | ||||
| 26 | Tread | Front | mm | 970 | 1000 | ||||
| 27 | Rear | mm | 980 | 980 | |||||
| 28 | Wheelbase | mm | 1600 | 1700 | |||||
| 29 | Fuel tank capacity | L | 60 | 70 | |||||
| 30 | Weight | Self weight | kg | 3450 | 3620 | 4310 | 4750 | ||
| 31 | Weight Distribution | Laden | Front Axle | kg | 4690 | 5260 | 6290 | 7090 | |
| 32 | Rear Axle | kg | 760 | 860 | 1020 | 1160 | |||
| 33 | Unladen | Front Axle | kg | 1550 | 1630 | 1940 | 2140 | ||
| 34 | Rear Axle | kg | 1900 | 1990 | 2370 | 2610 | |||
| 35 | Battery | Battery | Voltage/Capacity | V/Ah | 12/60 | 12/60 | |||
| 36 | Transmission | Transmission | Manufacture | China | China | ||||
| 37 | Type | Powershift | Powershift | ||||||
| 38 | Stage | F/R | 1/1 | 1/1 | |||||
| 39 | Operating pressure(For attachments) | Mpa | 17.5 | 17.5 | |||||
Certifications
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

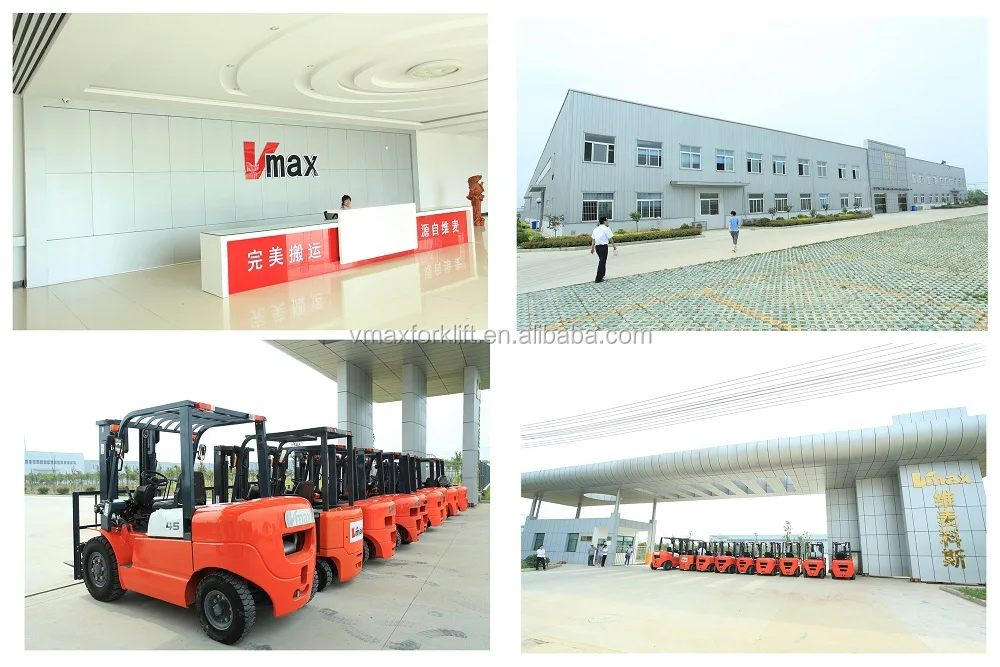

Company Information
FAQ
Any questions, welcome to contact us, we ill be always help you and support you.
1.May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2.How long the product warranty period?
The product warranty period is 18 months or 2000 hours.
3.How long have you engaged in this industry?
We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
