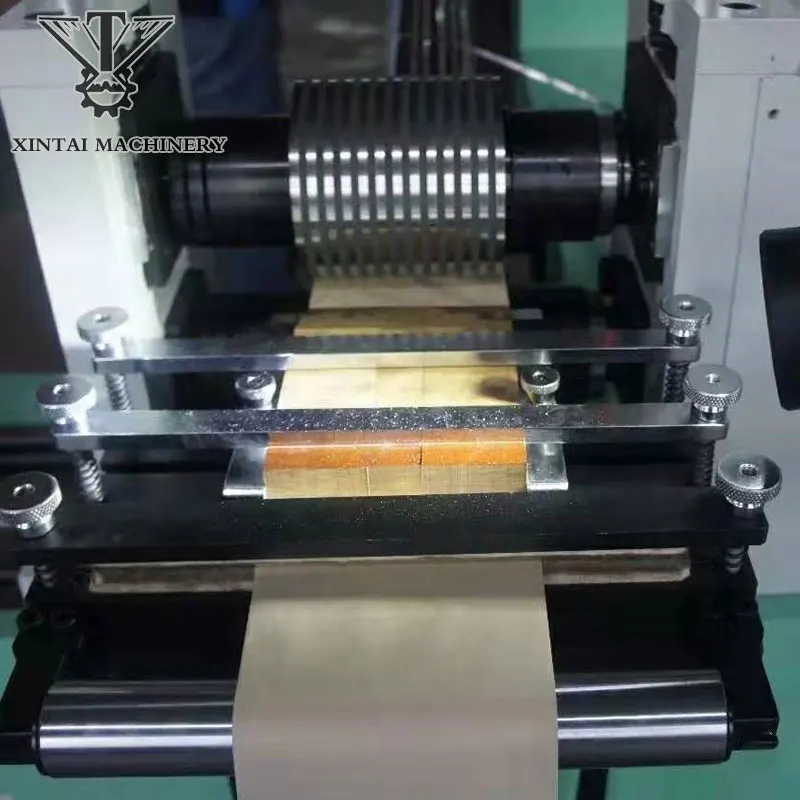

Best quality metal strip tape coil slitting machine industrial machines in China factory

Product Application

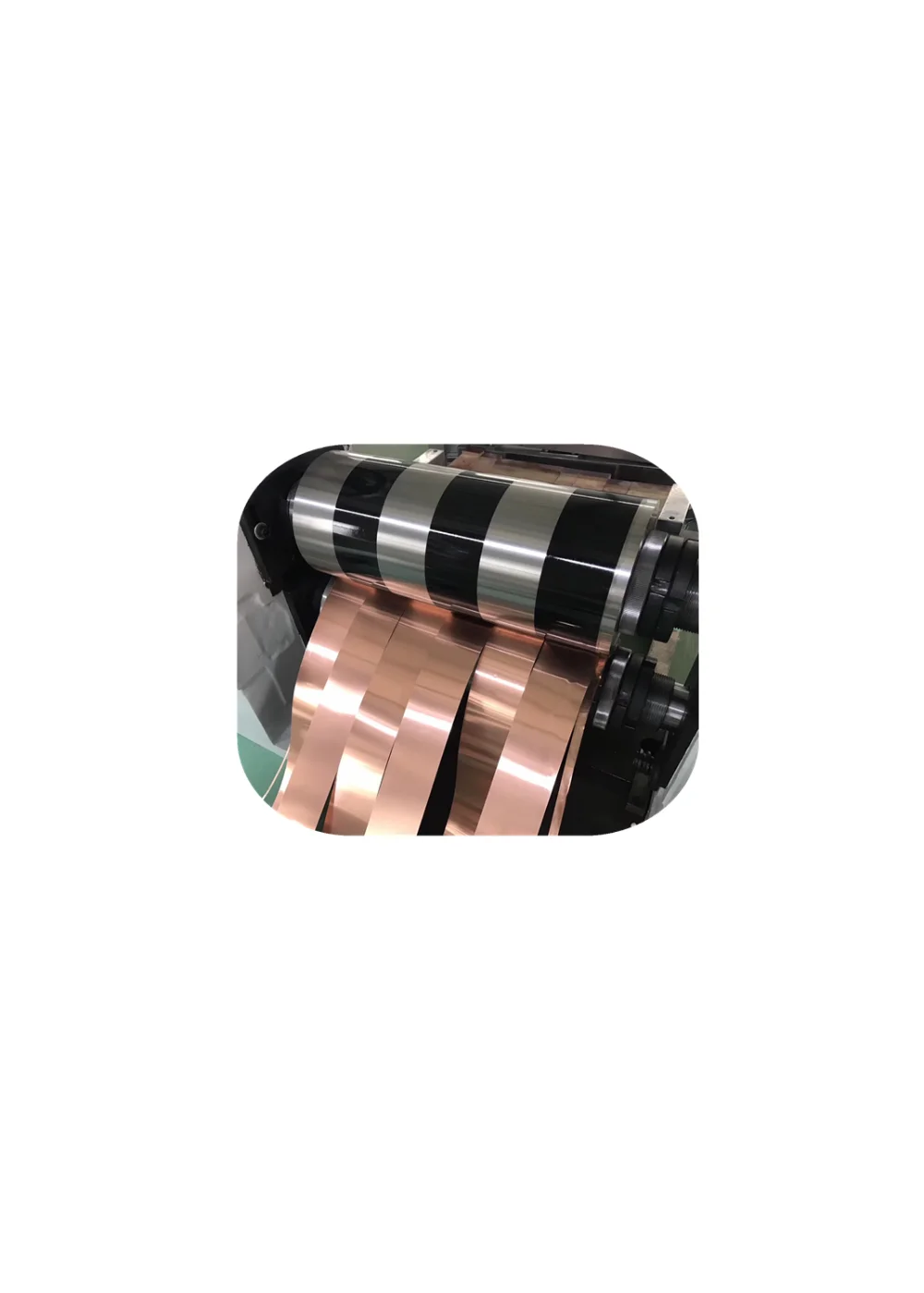

    The precision cutting machine is used to cutting stainless steel, copper strip, galvanized strip, aluminum strip, cold rolled metal. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.

Equipment characteristics

1. The tension of the equipment is constant and the tension adjustment is convenient.

Main Features

1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.
2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment.
3. Equipment color: black and white (customizable)
4. Date of production: 20 days
5. Support overseas after-sales service.

Raw material parameter

1. Raw materials: stainless steel/copper strip/galvanized strip/aluminium strip/cold rolled and various metal strips
2. Slitting zone thickness: 0.1mm-0.8mm
3. Maximum feed width: <305 mm
4. Maximum Outer Diameter of Raw Materials: <1000 mm
5. Raw material inner diameter: 150mm (customizable)
6. Raw material weight: <800kg

Finished product parameters

1. Material width of finished product: 4mm~305mm
2. Outer diameter of finished coil: <1000mm
3. Finished coil inner diameter: 150mm (customizable)
4. Number of slices: 25 (depending on the thickness of the material)
5. Width tolerance of finished product: ±0.02mm

Device parameters

1. Operation direction of equipment: from right to left
2. Equipment speed: 1-80 m/min
3. Equipment capacity: 4KW
4. Equipment coverage L*W*H:5m*2m*1.6m
5. Equipment weight: 1.8T

Electrical parameters

1. Inverter: Audi (China)
2. Intelligent Voltmeter: French School (China)
3. Intermediate relay: Omron (Japan)
4. Electrical Switching Components: Zhengtai (China)
5. Equipment Power Supply: Sanhuo 101, AC380V, 50Hz
6. Motor: Wuxi, China
7. Reducer: Wuxi, China

Our advantages:

1. Factory direct supply.
2. Full cast iron fuselage, parts are produced by ourselves.
3. Products are guaranteed. We have profession Quality Test Report.
4. High speed and stable effectiveness,Suitable for mass production.
5. Focus on metal non-metal foil strips industry more than 24 years.
6. High utilization rate of materials,Stepless cutting speed regulation.

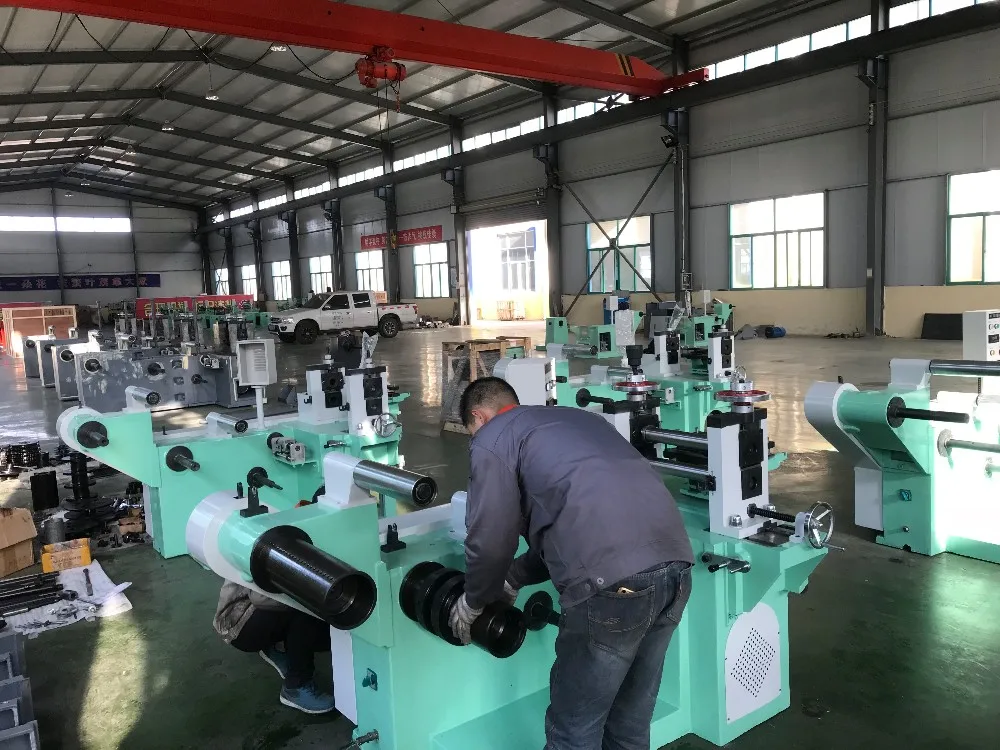

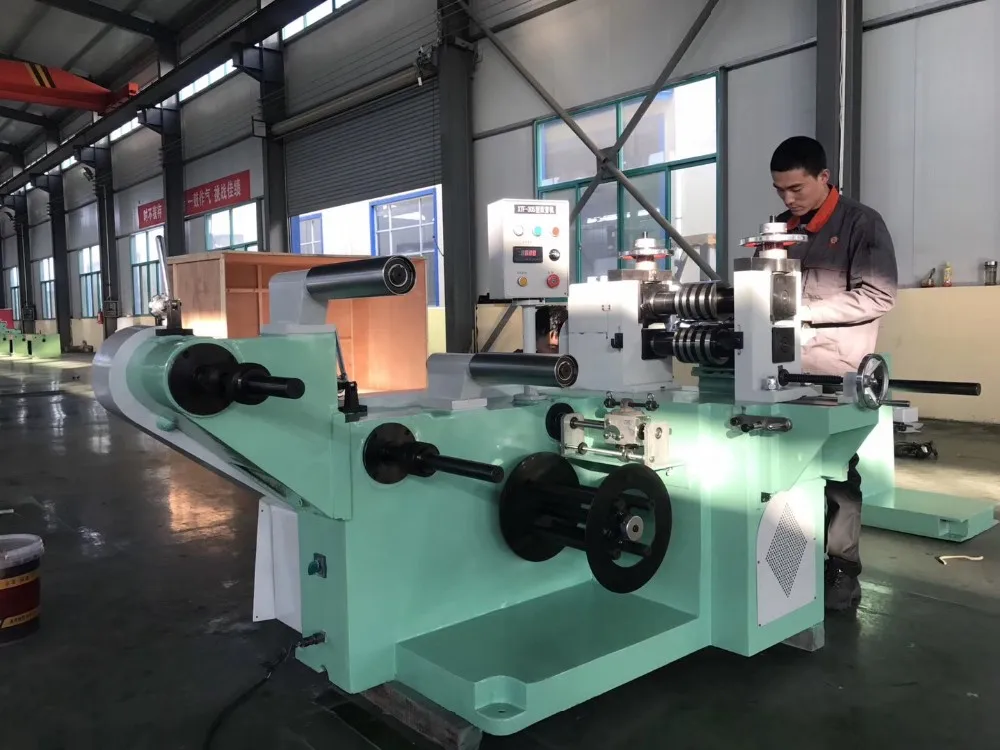

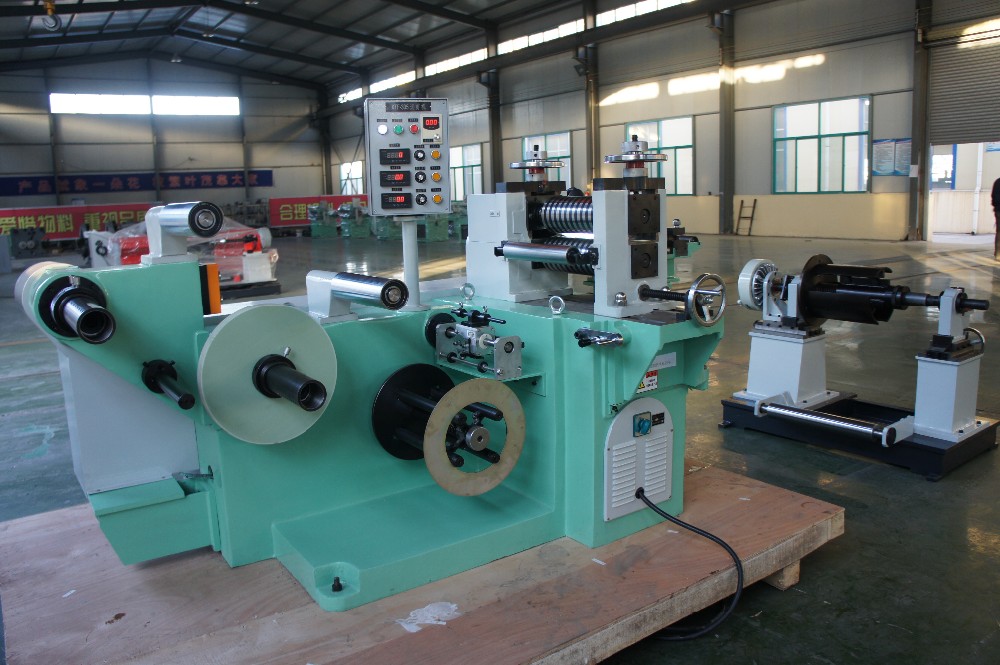

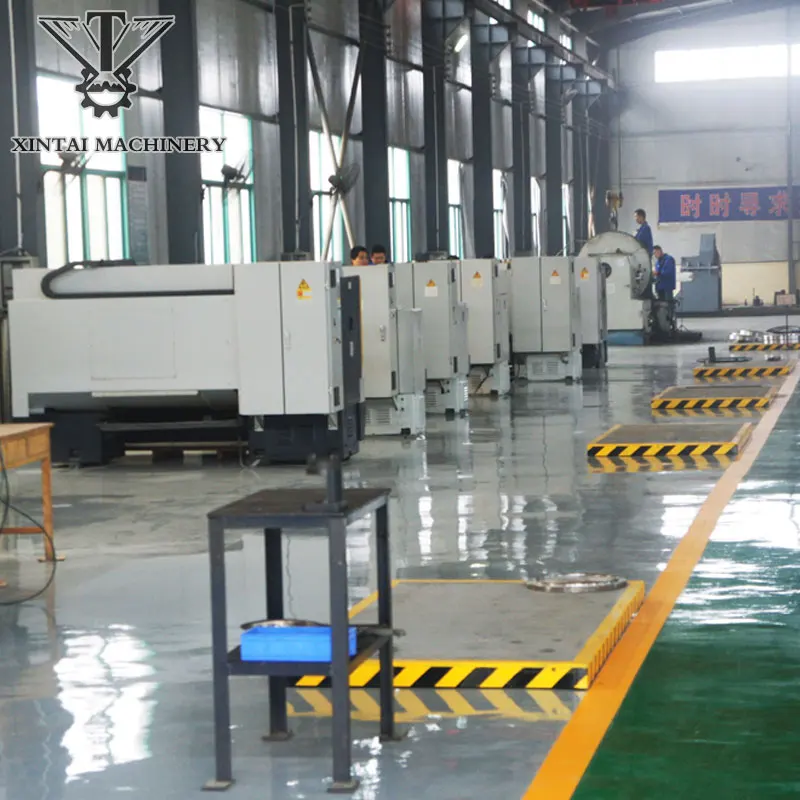

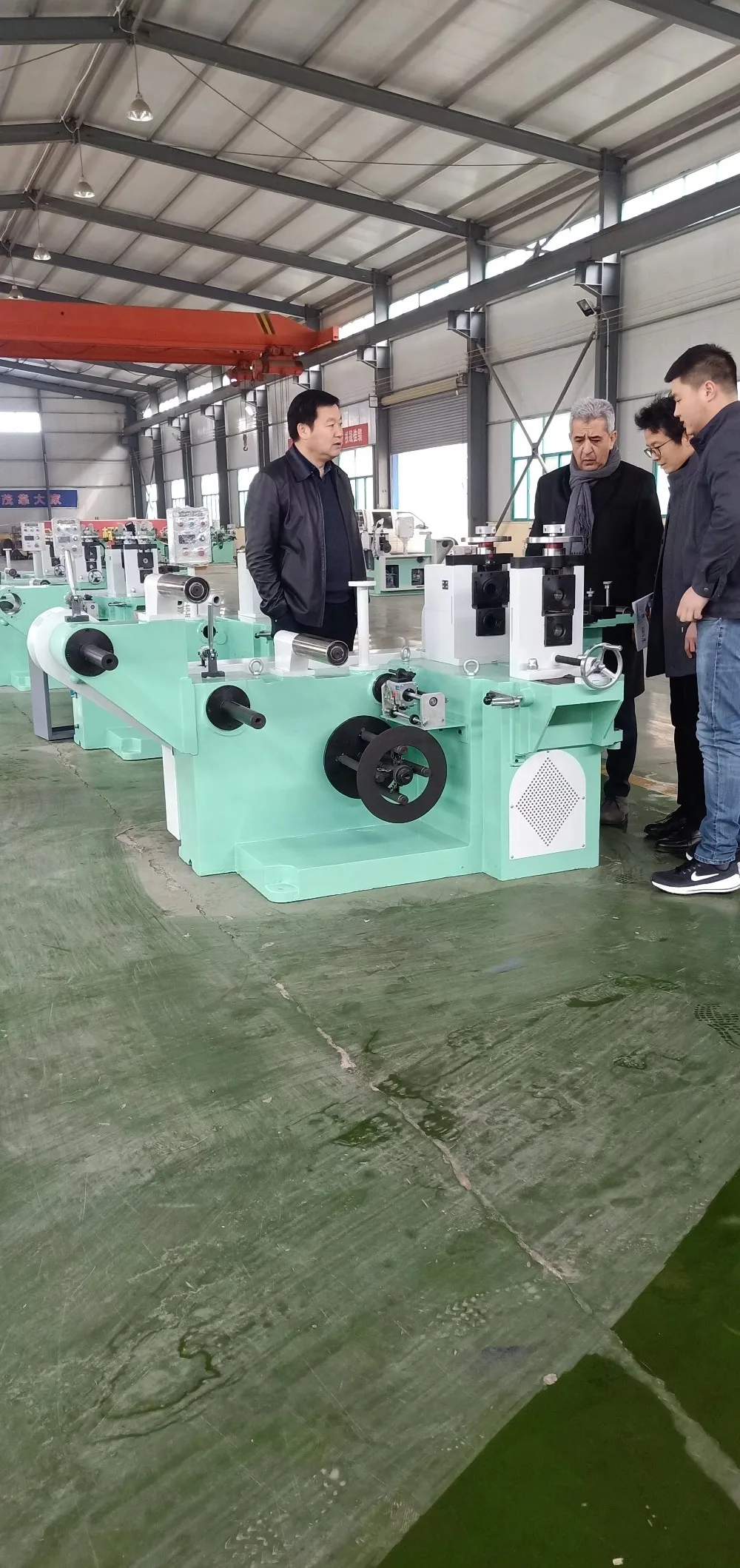

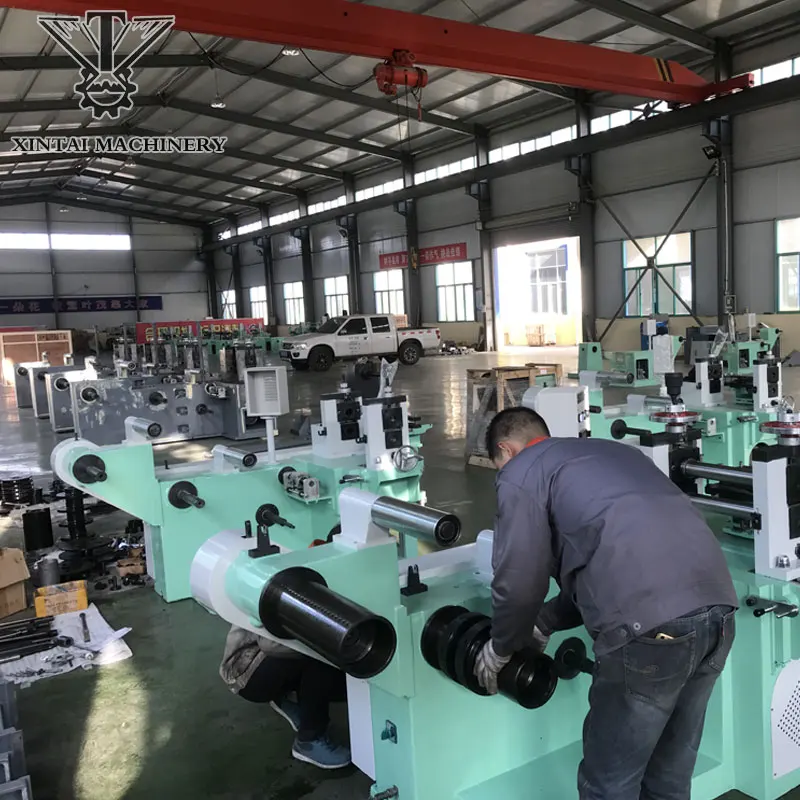

Production workshop

 In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.
