SEAFLO 22 Series 12V electric water high pressure pump solar pump diagram for Boat and RV
- Category: >>>
- Supplier: Fujian Aidi Electric Co. Ltd.
Share on (62146267255):
Product Overview
Description
Application
Product Overview
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm and have an internal bypass feature which reduces pump cycling. It provides up to 1.4 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

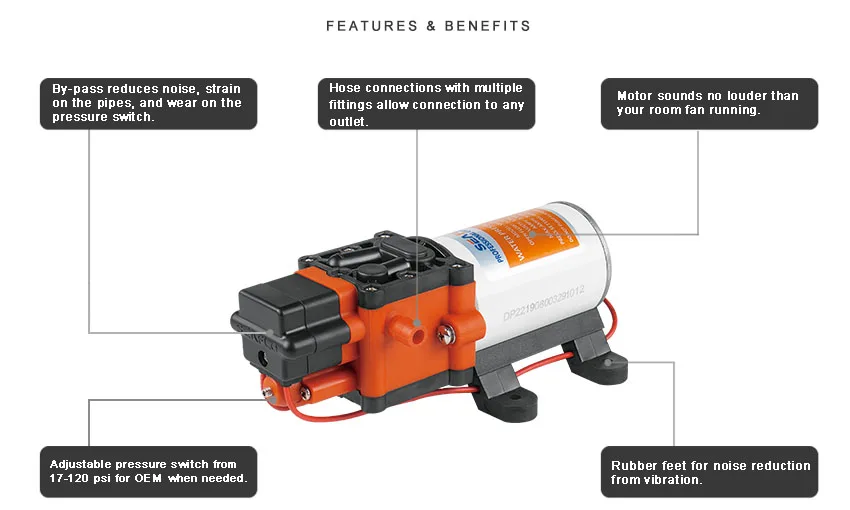

FEATURES & BENEFITS
• Continuous Duty
• Capable of supplying 1-2 fixtures
• By-pass technology reduces cycling
• On- demand pressure switch
• Adjustable pressure setting
• Capable of up to 100 PSI
• Capable of supplying 1-2 fixtures
• By-pass technology reduces cycling
• On- demand pressure switch
• Adjustable pressure setting
• Capable of up to 100 PSI
• Run dry safe
• Quiet operation
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
• 18 AWG, 9.5" (24 cm) long Leads
• Quiet operation
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
• 18 AWG, 9.5" (24 cm) long Leads

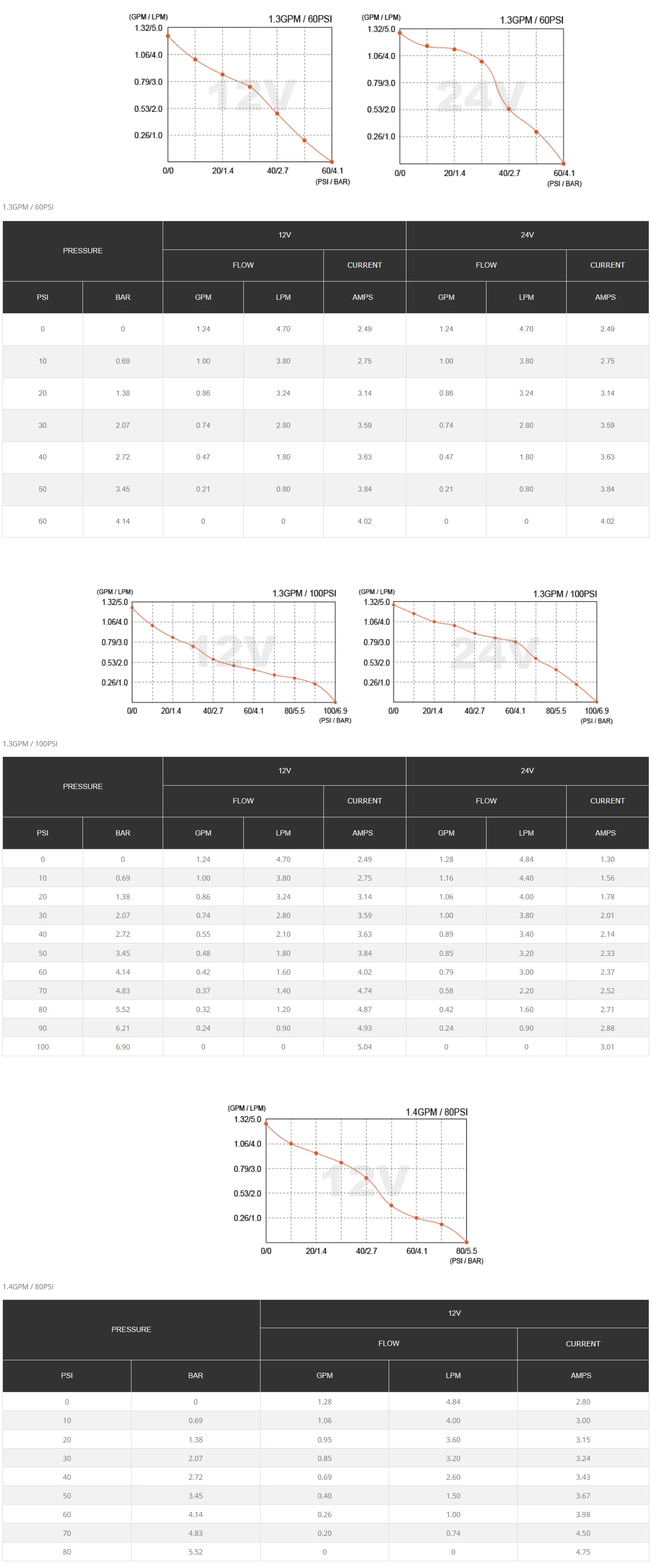

PRODUCT SPECIFICATIONS
Model | Voltage | Open Flow （GPM/LPM） | Max Draw | Shut-off Pressure （PSI/BAR) |
SFDP1-013-060-22 | 12V | 1.3 / 5.0 | 5.0A | 60 / 4.1 |
SFDP2-013-060-22 | 24V | 1.3 / 5.0 | 2.5A | 60 / 4.1 |
SFDP1-013-100-22 | 12V | 1.3 / 5.0 | 6.0A | 100 / 6.9 |
SFDP2-013-100-22 | 24V | 1.3 / 5.0 | 3.0A | 100 / 6.9 |
SFDP1-014-080-22 | 12V | 1.4 / 5.1 | 5.5A | 80 / 5.5 |

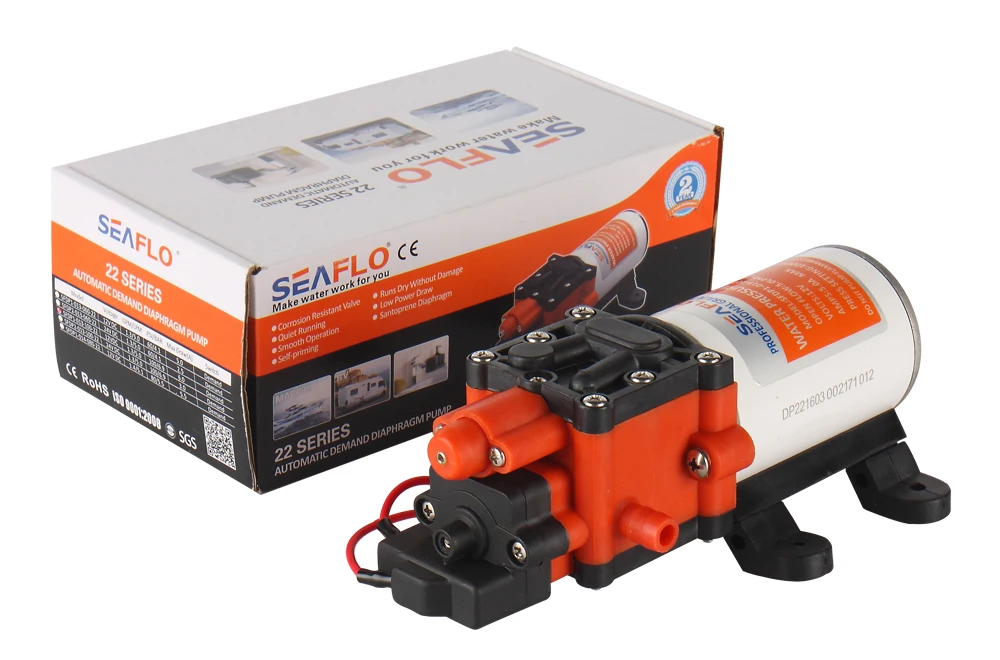

Product packaging
Unit Weight | 2.82 lbs (1.28 kg) |
Selling Unit Size (L x W x H) | 8.15" x 4.13"x 2.91" (20.7 x 10.5 x 7.4 cm) |
Selling Unit Weight | 1.52 lbs (0.69 kg) |
Master Carton Size (L x W x H) | 17.32" x 9.05" x 13.38" (44 x 23 x 34 cm) |
Master Carton Qty | 16 pcs |
Master Carton Weight | 45.19 lbs (20.5 kg) |
Master Carton Volume | 0.034 m³ |
Company Profile
FAQ
Q: What is your MOQ?
A: Minimum Oder amount is USD500.00 in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. The MOQ is 500 pcs per model per order for OEM/ODM orders (including private brands, bar codes, labels, different colors etc.)
Q: How can I pay for my order?
A: Please send us your order details including your email address, company details including delivery address. We will issue an order on Alibaba Trade Assurance, and send you the payment link. Besides T/T, your Mastercard, VISA, Online Bank Payment, Pay Later can be used to pay.
Q: What is your terms of payment?
A: 100% in advance for order amount less than USD5000. And if order amount is above USD5000, payment term can be 30% by T/T in advance, balance against copy of B/L. If you have any another question, please feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: How about the freight cost?
A: It depends on your final order quantity, final gross weight and final dimension when shipped by sea and by air. If orders by air, we advise you to use your own TNT, FedEx, DHL account for freight collect.
Q: What is your warranty?
A: 1-2 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen, China.
Q: Where can I find more information?
A: Visit-www.seaflo.com to check all SEAFLO Marine and RV bilge pumps, fresh water pumps, switches, blowers, hatches, etc.
A: Minimum Oder amount is USD500.00 in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. The MOQ is 500 pcs per model per order for OEM/ODM orders (including private brands, bar codes, labels, different colors etc.)
Q: How can I pay for my order?
A: Please send us your order details including your email address, company details including delivery address. We will issue an order on Alibaba Trade Assurance, and send you the payment link. Besides T/T, your Mastercard, VISA, Online Bank Payment, Pay Later can be used to pay.
Q: What is your terms of payment?
A: 100% in advance for order amount less than USD5000. And if order amount is above USD5000, payment term can be 30% by T/T in advance, balance against copy of B/L. If you have any another question, please feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: How about the freight cost?
A: It depends on your final order quantity, final gross weight and final dimension when shipped by sea and by air. If orders by air, we advise you to use your own TNT, FedEx, DHL account for freight collect.
Q: What is your warranty?
A: 1-2 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen, China.
Q: Where can I find more information?
A: Visit-www.seaflo.com to check all SEAFLO Marine and RV bilge pumps, fresh water pumps, switches, blowers, hatches, etc.
