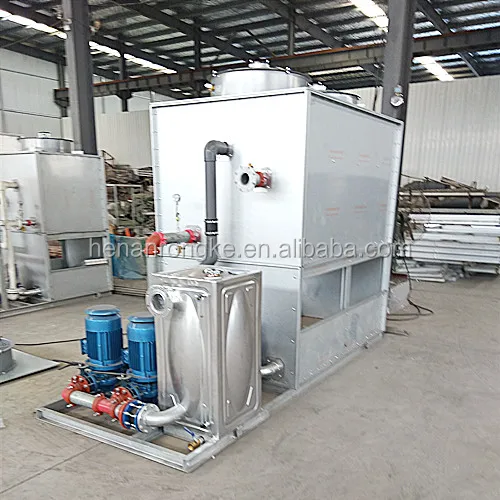

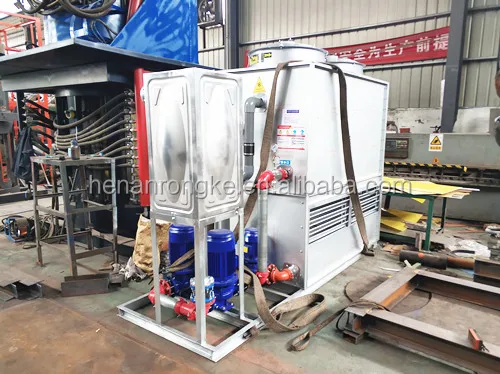

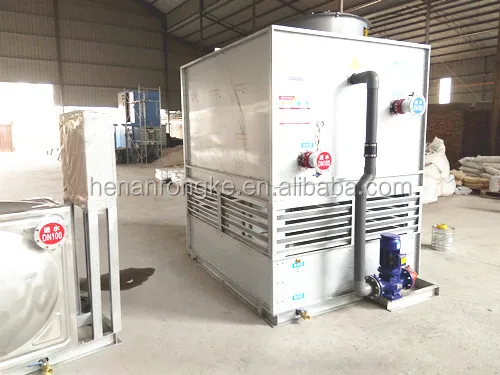

Closed Circuit Industrial Coolers Cooling Systems of Induction Melting Furnace

Product Overview

Description

  closed-circuit industrial coolers Cooling Systems of induction melting furnace



Tech Specs:
Standard Features:
Able to Cool Multiple Units
No Condensation Problems When Used with a Diversion Valve
Minimum Corrosion, Scaling and Electrolysis
Internal Water-to-Water Heat Exchanger for Ease of Installation
No Coolant Contamination
Completely Closed-Loop Pressurized Circuit
Water-Cooled Design
Reliable Year-Round Cooling
Abnormal Temperature Protection
Audible and Visible Alarms
Full-Access Water Pumping Modules
Fan Cycling Controls for Reduced Power Usage
Optional Features:
Basin Heaters
Basin Sweeping System
Automatic Water Treatment Systems
Factory Tested:
Critical Components



Our factory has many induction melting systems operating around the world, our Water Cooling Systems are proven to be suitable for virtually every climate type and temperature extreme. Each system is customized for your application to ensure optimum efficiency. All our cooling systems are protected for abnormal temperature and pressure with audible and visible alarms.



Cooling and melting Systems can be used together to provide proper, year round equipment operation and supplemental heat during the winter months to reduce heating costs.



Reasons include no condensation problems, no coolant contamination, and minimum corrosion, scaling, and electrolysis. These systems can be configured into a variety of different systems depending on the cooling requirements of the system. In a typical dual-loop system, Power Supply Unit cooling is achieved through a heat exchanger coupled to a furnace cooling tower loop. An industrial tower is often used to cool the furnaces because it provides the greatest cooling power in the least amount of space, as well as expelling the most heat.



Water Systems with Closed-Circuit Industrial Coolers have many advantages and are ideal for cooling in any climate for a wide variety of reasons.



Technical Sepcification:

Model	DS-N60T
Cooling capacity	300000 kcal/h
Water Flow	60m3/h
Fans parameter	21500m3/h;1.5kw
Fans Quantity	2 Plant
Pump parameter	44.8m3/h;10m;2.2kw
Pump quantity	1plant
Main circulation pump parameters	50m3/h;32m;7.5kw
main circulation pumps quantity	2plants, one working one stanby
Water supply container	0.5T  304 Stainless steel expansion tank
Water inlet and outlet diameter	DN:100
Water supply diameter	DN:20
Sewage caliber	DN:40
Working pressure	0.15~0.5Mpa
Empty Weight	1250kg
Working wieght	3850kg
main machien dimensions(mm)	2850×1300×2500
Auxiliary machine dimentsions(mm)	1300×1015×1950
