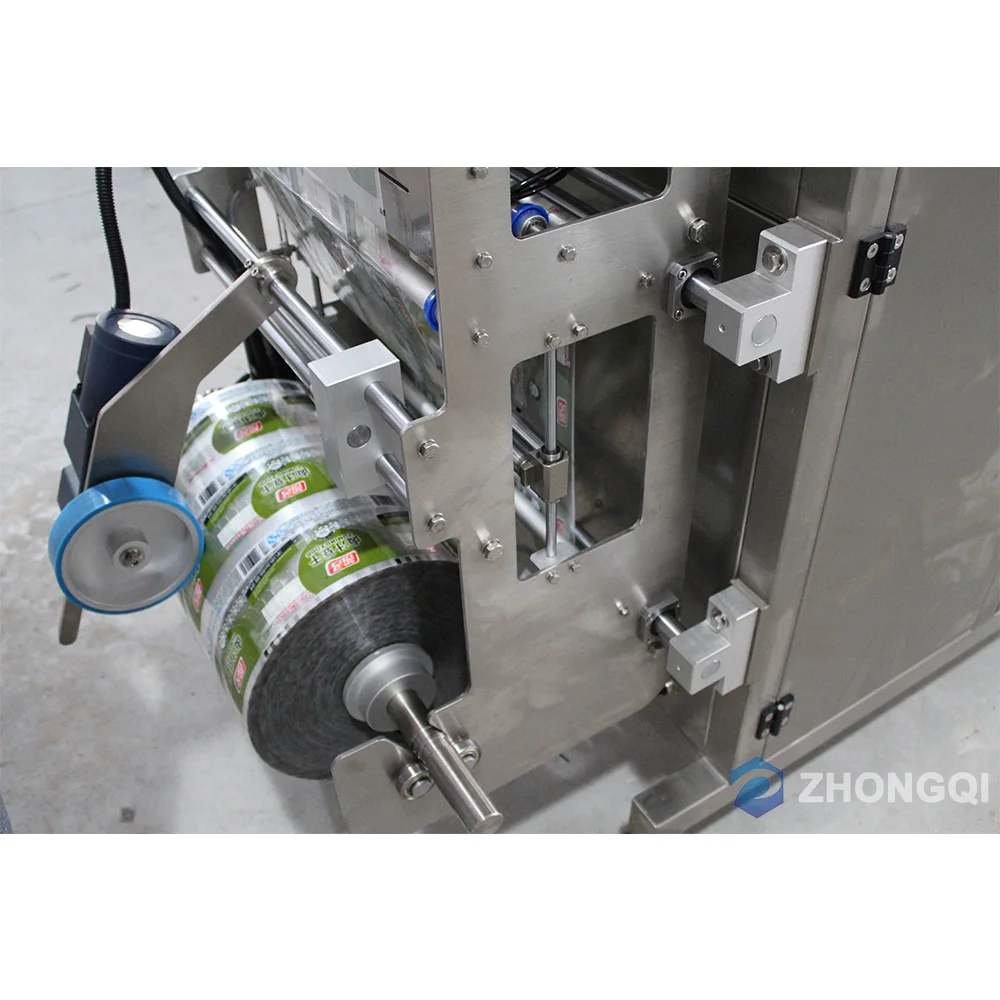

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time; 2. Intelligent: Packing speed and bag length can be set through the screen without part changes; 3. Profession: Independent temperature controller with heat balance enables different packing materials; 4. Characteristic: Automatic stop function, with safe operation and saving the film; 5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Technical Parameters:

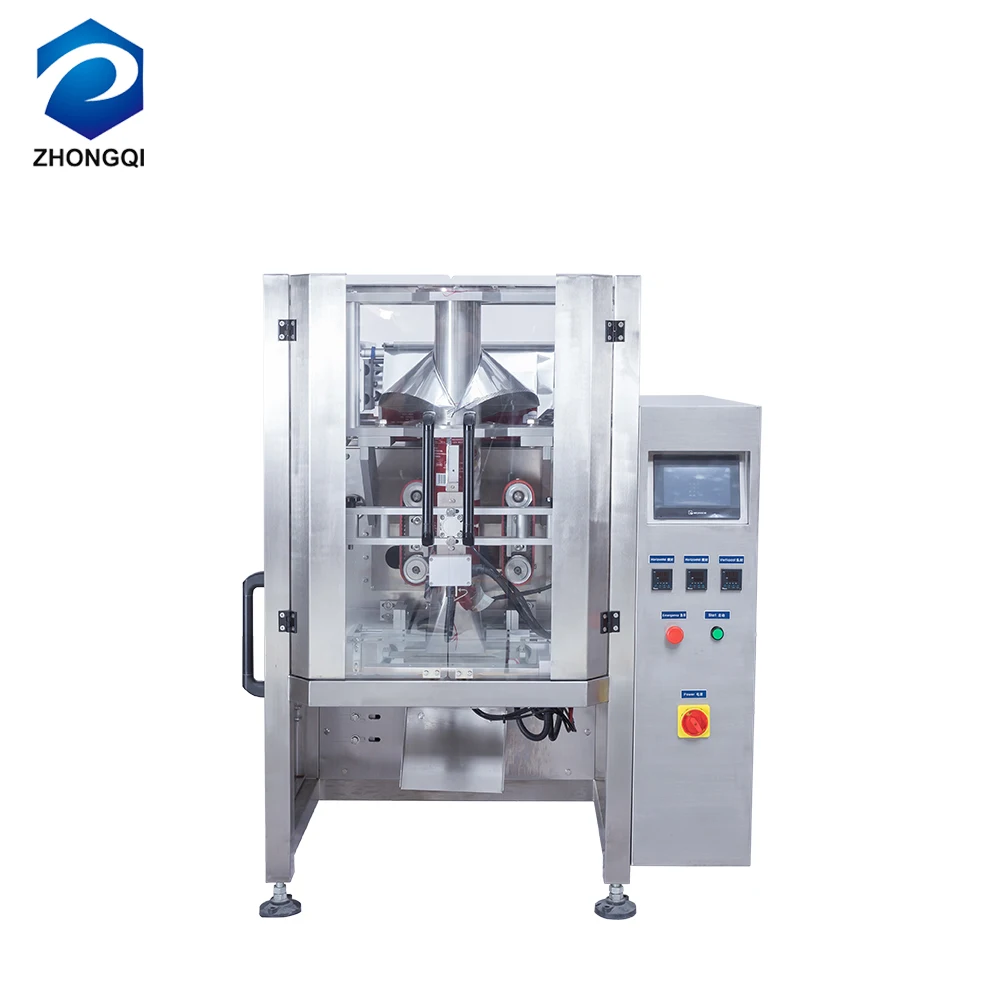

Model No.
ZQ- 420
ZQ-520
ZQ-620
ZQ-720
ZQ-820
Product Name:
Legumes Packaging Machine
Machine Material:
201/304 Stainless Steel
Voltage:
220V, 50/60HZ
Power:
3KW
4KW
5KW
6KW
7KW
Packing Speed:
30~80bags/min
30~80bags/min
5~60bags/min
5~60bags/min
5~60bags/min
Bag Width:
100~200mm
100~250mm
100~300mm
100~350mm
100~400mm
Bag Length:
100~280mm
100~340mm
100~380mm
100~480mm
100~550mm
Film Material:
OPP/CPP OPP/CE PET/PE NILO/PE PE
Film Tickness:
0.04~0.12mm
0.04~0.12mm
0.04~0.12mm
0.04~0.12mm
0.04~0.12mm
Warranty:
2 Years
2 Years
2 Years
2 Years
2 Years
Dimension:
(L)1457mm
(W)1130mm
(H)1350mm
(L)1630mm
(W)1230mm
(H)1470mm
(L)1700mm
(W)1290mm
(H)1760mm
(L)1780mm
(W)1350mm
(H)1950mm
(L)1600
(W)1530
(H)2110mm
Machine Weight:
500kg
550kg
600kg
700kg
800kg
Optional Device:
Date Coder/Air Exhaust Device/ Nitrogen Device/Inflatable Device/Punching Device/Tear Notch Device/Gusset Device/Linking Bag Device
Application
Company Information
Foshan Zhongqi Packing Machinery Co., Ltd is located in Foshan, Guangdong, China.
Zhongqi has an independent research and development department, with professional technicians, engineers, programming designers, proficient in Mitsubishi, Siemens programming system, to meet the requirements of different customers.
ZHONGQI specialized in granular packing machine, powder packing machine, and liquid packing machine. Widely used in the automatic packaging of food, medicine, toys, hardware, Chemical and other products.
Our Advantage:
12 years experience on packaging machine industry.
Obtain more than 10 relevant patent related to packaging machine
Have independent R&D department for OEM and ODM order.
Our Services
OUR SERVICE
Pre-Sales Service:
1. Machine testing for free.
2. According to customer's inquiry, our engineer, sales, designer will provide the suitable packaging solution, even you are new factory.
After-Sales Service:
1. Provide set of video for installation, setting, maintenance.
2. Provide tool case with spare part for each machine FOR FREE.
3. Provide a 2-YEARS WARRANTY.
4. Engineer available to service machinery oversea.
