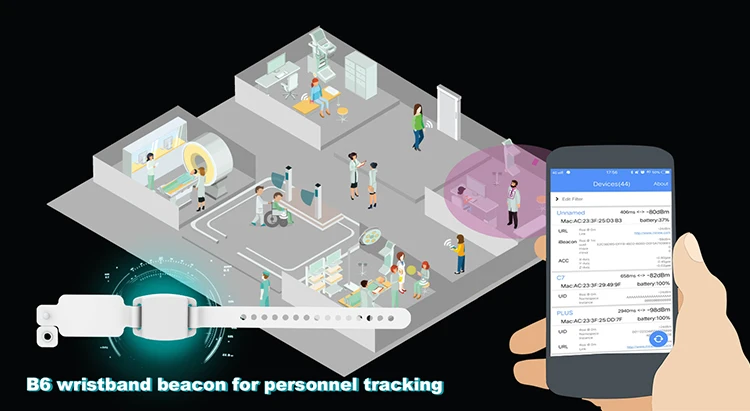

Heath care ble beacon silicon wristband bracelet bluetooth beacon

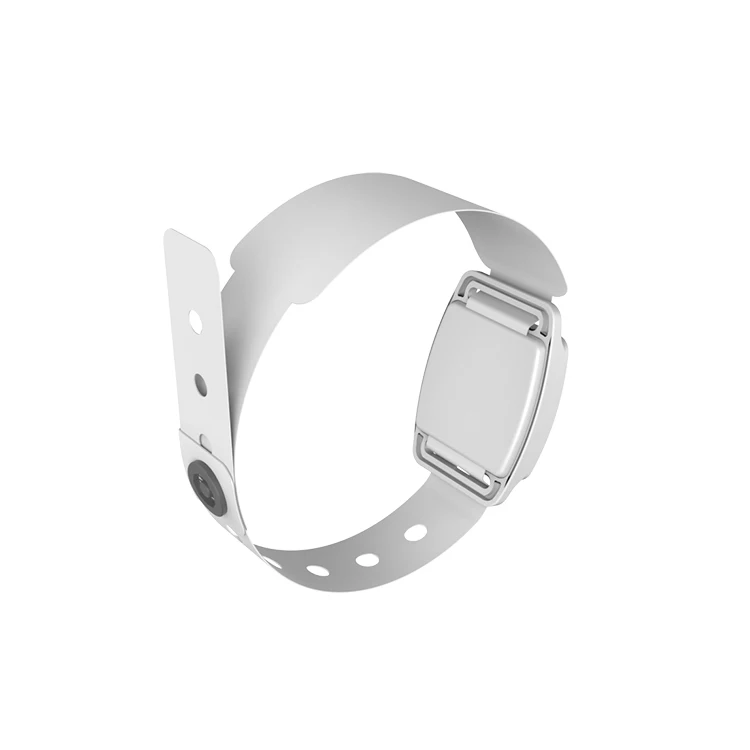

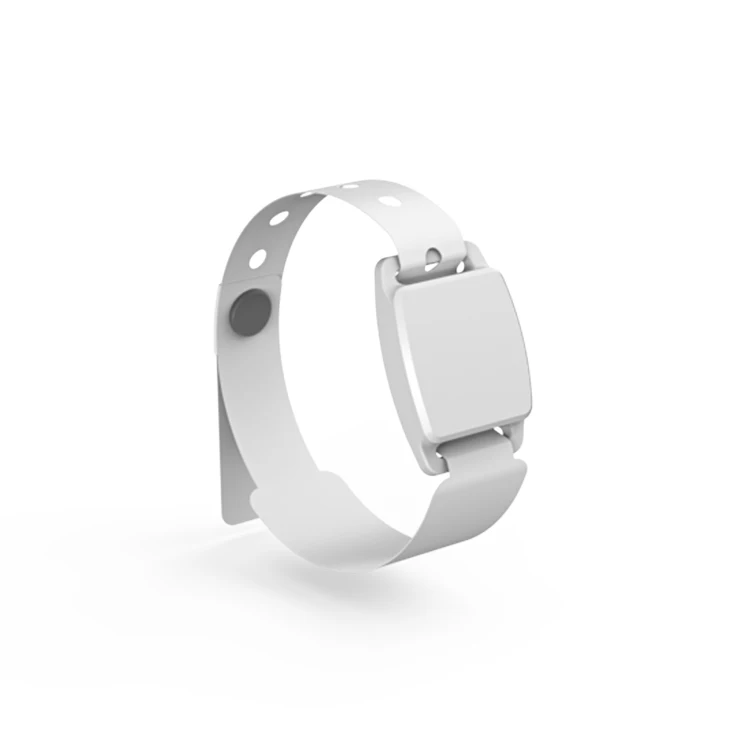

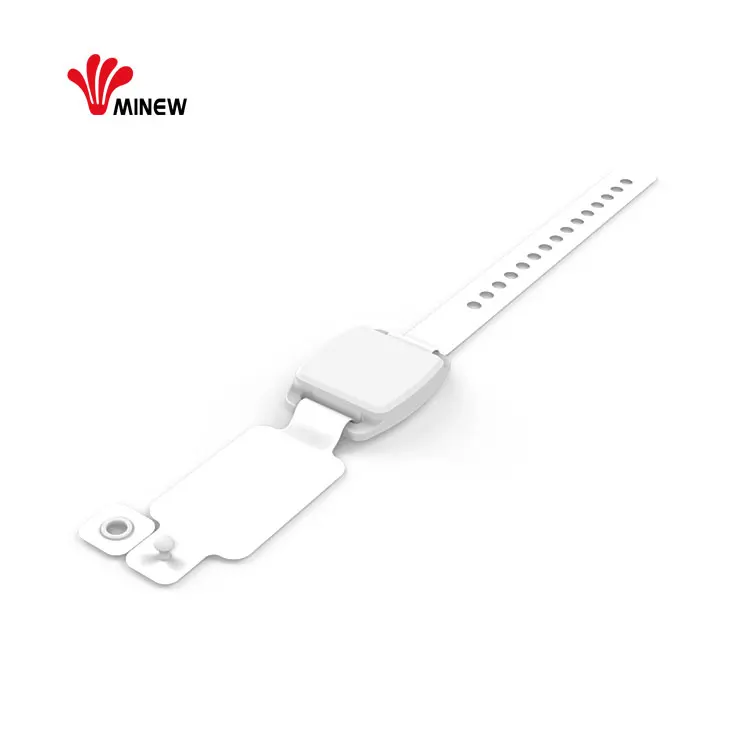

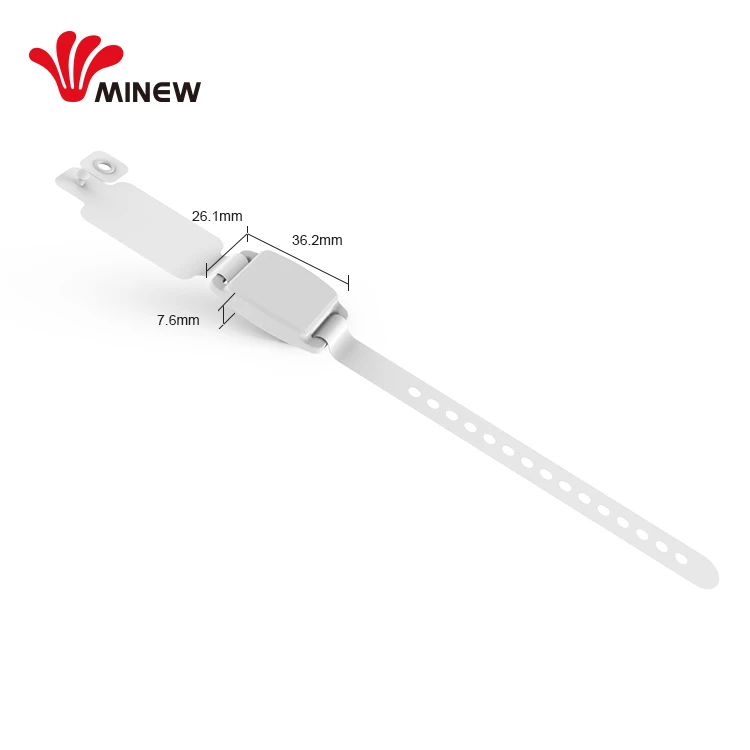

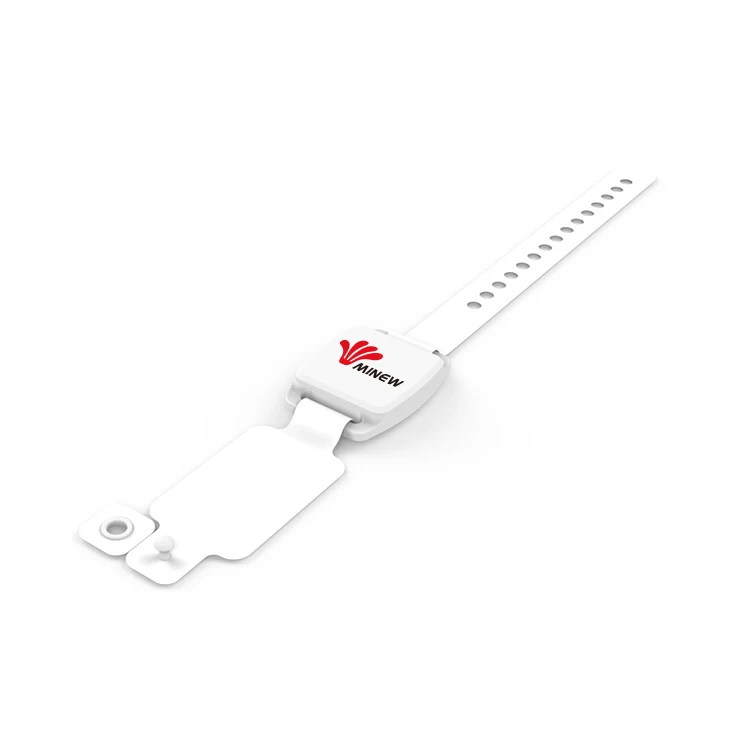

The Wristband Beacon B6 is a new generation beacon that loaded Bluetooth 5.0 hardware platform and

MiniBeacon intelligence software. It's a wearable type beacon with one-time use wristband strap.

B6 Wristband Beacon advertises standard iBeacon well. The user can configure the B6 Wristband Beacon via configuration app BeaconSET.

Features:

Wearable/Wristband/Bracelet
It is one time use bracelet which can be wearable, you can install the bracelet you want as it is removable.

Battery
Replaceable: No
Model: CR2032 coin battery
Expected life: 18 months with default settings;

Sensors can be added
Accelerometer: 3-axis linear accelerometer (used to enable Accelerometer-based Modes: Down-to-Sleep, Down-to-Unset, Advertise-on-Motion, Advertise-on-Shake)

Enclosure:
Material: medical level material
Colour: white (your logo laser printing/silk-screen printing are available on demand; optional colours available))
Protection: waterproof

Radio performances
nRF52810/52832 SoC and optimized antenna design, for best on the market signal performances

Fully configurable
Beacon can be configured with Minew configuration BeaconSET for Android and iOSwith a secure AES-128 ECB encrypted-password access.

Advertising
Advertising interval (independently configurable for each slot): 100ms to 5 secs
TX power (independently configurable for each slot):  -30 dBm, -20dBm to 4 dBm (with 4dB steps)
Additional configuration options: non-connectable mode, change password

Radio
Version: 5.0 Bluetooth Smart (Bluetooth Low Energy)
Frequency: 2.402 to 2.480 GHz

Minewtech was established in 2007 in Shenzhen China. We are an Apple Certified iBeacon/Google Eddystone Official/RFID(NFC)/Bluetooth Module/Key Finder/BLE&WiFi gateway manufacturer in Shenzhen, China.

1. Provide IOT hardware with built-in firmware, like Ibeacon, eddystone, sensor, gateway.
2. OEM/ODM project: from PoC to mass production
3.Manufacture: ISO9001, ISO14001 & OHSAS18001 , complete quality management and control,.
4. daily capacity is 3W units. All to guarantee short production lead time and high quality
5. Service: pre-configurate before shipment, SDK provided, ready coniguration APP, free laser printing logo

Ø Attend the IoT Solutions World Congress (IOTSWC) in Barcelona, Spain
Ø Meet Minew at CES in Las Vegas every year
Ø Mobile World Congress Americas (MWCA) in Los Angeles
Ø Bluetooth World in the US
Ø Internet of Things India

1.OEM Manufacturing welcome: Product, Package...
2.Print your logo on the top of Beacon;
3.Programmer your firmware into iBeacon Module;
4.Pre-configure the value of parameter before the shipment;
5.PCB can be customized if needed;
6.Prototyping the casing and mold tool design and injection service

Q1.Could you provide SDK if I have my own APP?
Yes, we are the developer of APP and Device, we could provide SDK or BLE document.

Q2.Can I customized functions?
Sure, we have professional R&D team to provide best support, and give you best suggestions.

Q3.Could brand the product with our company LOGO?
Yes, pls send an AI file with your logo to us, then our engineer will access for you.

Q4.Are the Beacons Certified?
Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.

Q5.I want to buy sample to test firstly, how should I move on?
Yes, we can supply sample with MOQ 3 pcs for testing and evaluating, we can make an online order in Alibaba or offline order through sample profoma invoice issued by Minew.
