Product Overview
Description

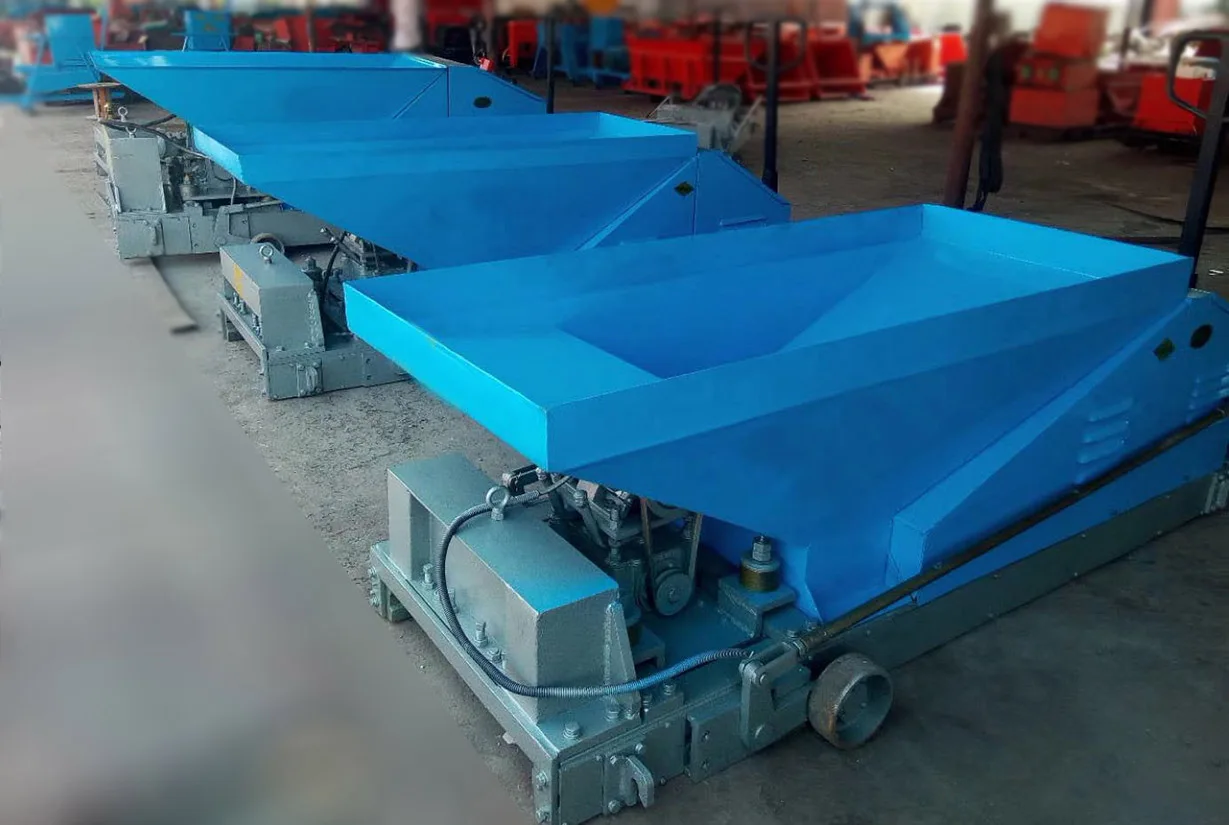

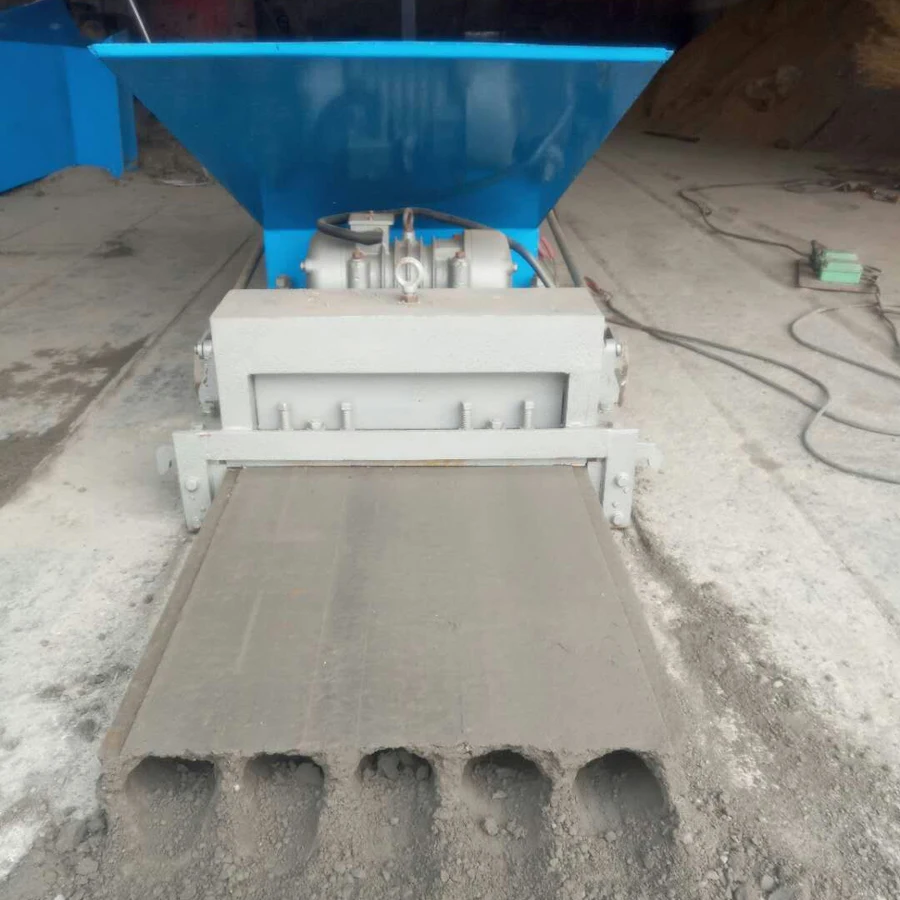

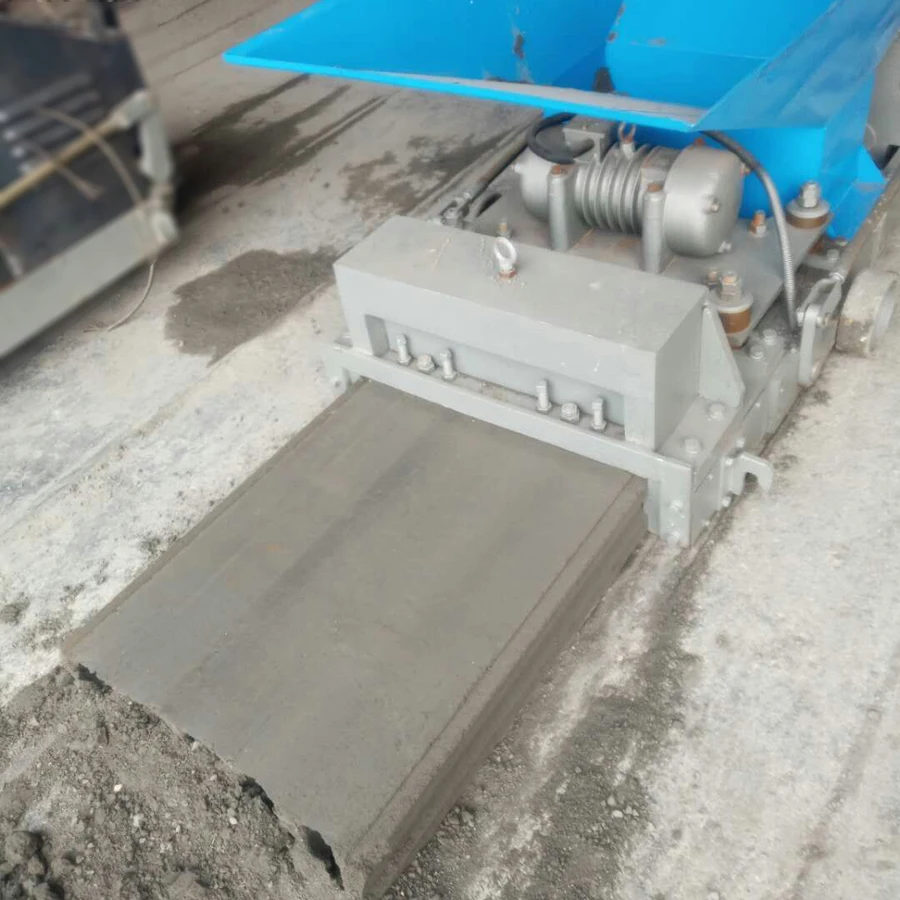

Lightweight Wall Panel Extruding Machine

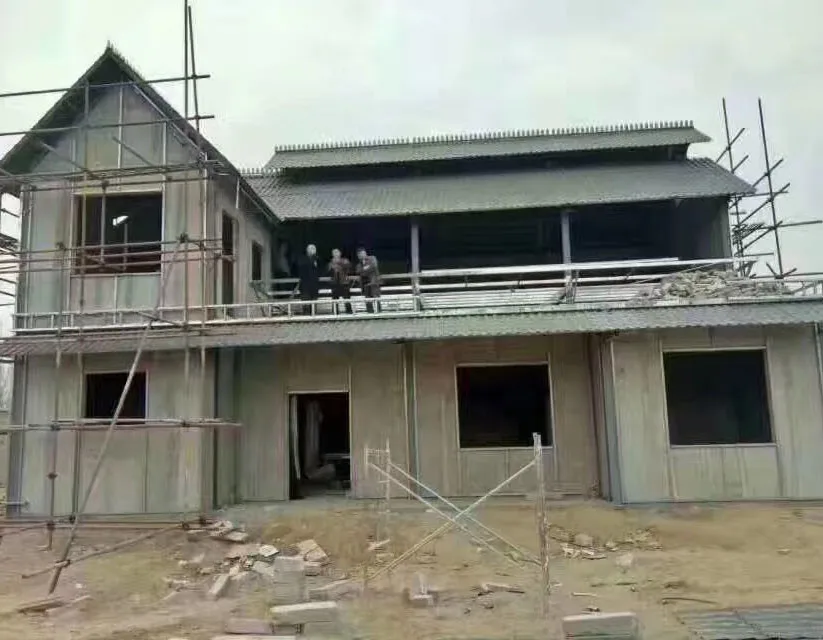

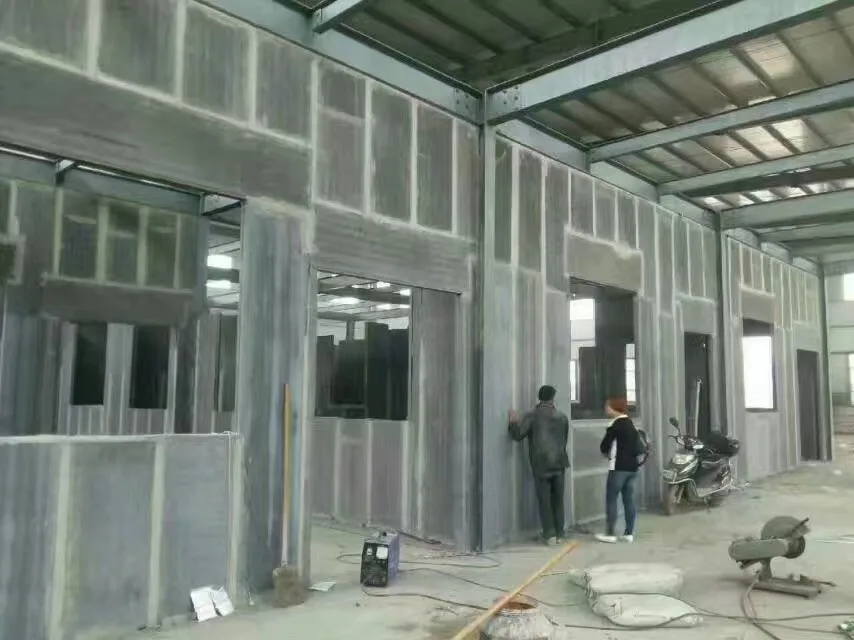

The wall panel extruding machine is used to make lightweight concrete panels, used as building walls or fence walls.
Specific of wall panel extruding machine:
Interior wall panel making machine Models: 80*600mm, 90*600mm, 100*600mm, 120*600mm (Choose the suitable model for your purpose);
Exterior wall panel making machine Models: 150*600mm, 180*600mm, 200*600mm (Choose the suitable model for your purpose).
Accessories: Screen, Crusher, Mixer, Cutter, Dumper, Board Carrier, Wire Rack, etc.
Random stretched rebar or pretensioning rebar (1.6-2.5mm), up 4 pieces, and lower 4pcs,
Portland cement as the gelling agent
Low carbon steel wire as the reinforced material
Specification:
Model (JQT) | Slab Width (mm) | Slab Thickness (mm) | Holes Diameter | Forming Speed (m/min) | Main Motor (KW) | Vibrator (KW) | Weight (KG) |
80*600 | 595±2 | 78±1 | 8×Φ48 | ≥1.4 | 4 | 0.8 | 1010 |
90*600 | 595±2 | 88±1 | 7×Φ58 | ≥1.4 | 4 | 0.8 | 1050 |
100*600 | 595±2 | 98±1 | 6×Φ68 | ≥1.4 | 4 | 0.8 | 1150 |
120*600 | 595±2 | 118±1 | 5×Φ88 | ≥1.4 | 5.5 | 1.1 | 1300 |
150*600 | 595±2 | 148±1 | 5×Φ95 | ≥1.4 | 5.5 | 1.1 | 1500 |
180*600 | 595±2 | 178±1 | 3×Φ140 | ≥1.4 | 7.5 | 1.5 | 1800 |
200*600 | 595±2 | 198±1 | 3×Φ142 | ≥1.4 | 7.5 | 2.2 | 2000 |
Note: the wall panel extruding machine adopts Alloy spiral reamers which are more durable. | |||||||
Characteristics:
1- High efficiency, can produce 1.4m~1.8m/min board;
2- Uniform board density;
3- High mechanization degree, hydraulic lifting;
4- Save energy;
5- Long lifetime, Reamer can produce more than 6000-8000meter boards, vibration layering can produce more than 100000meter boards.
Rich material source: Expanded Perlite, Ceramsite, Cinder, Fly ash, River Sand, Grain Slag, Straw etc.
Special technology, save cost, improves quality and efficiency.
Applications:
