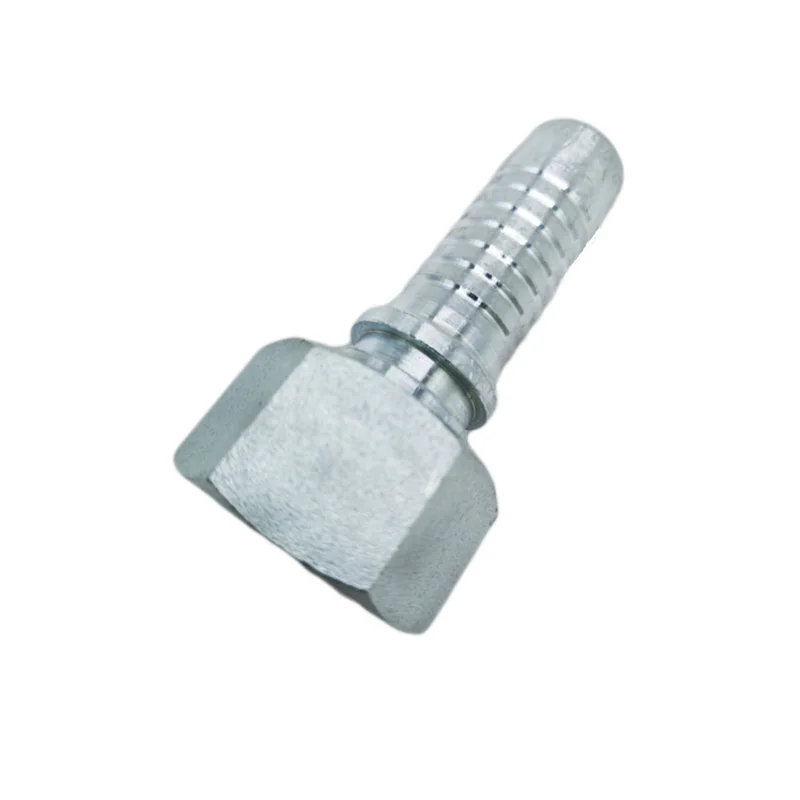

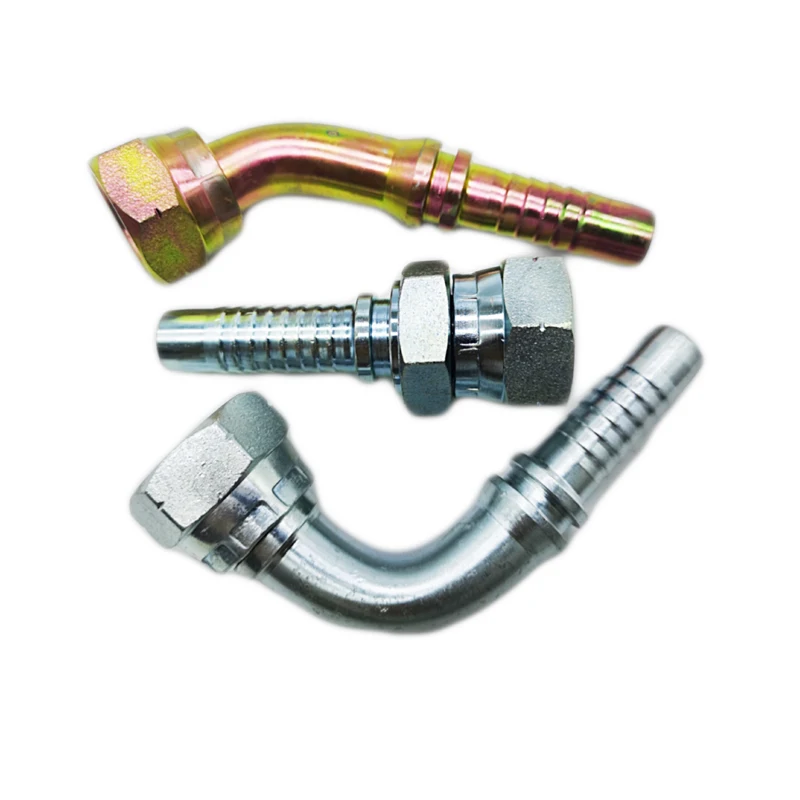

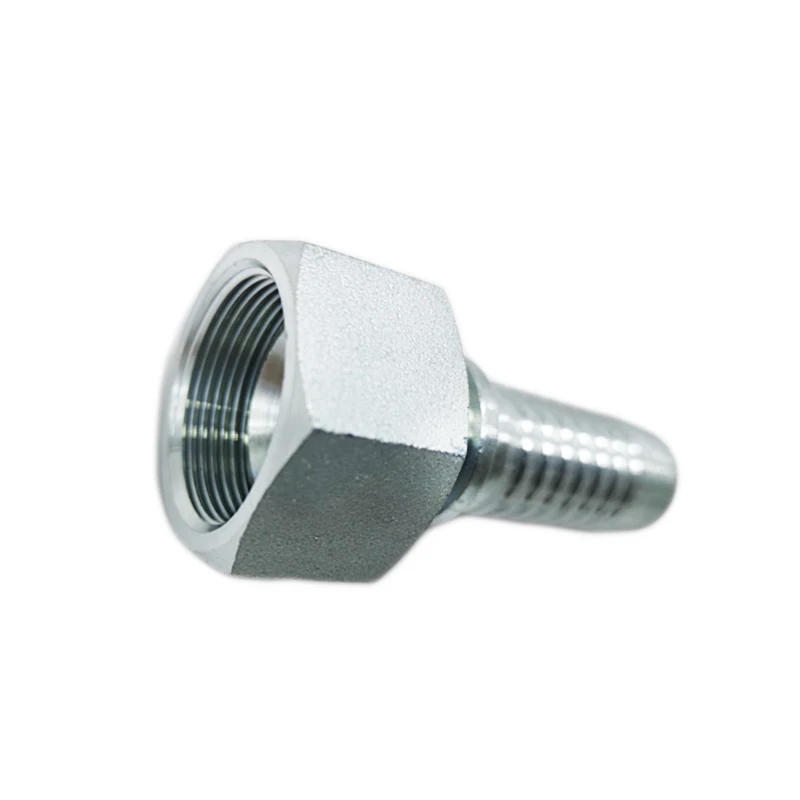

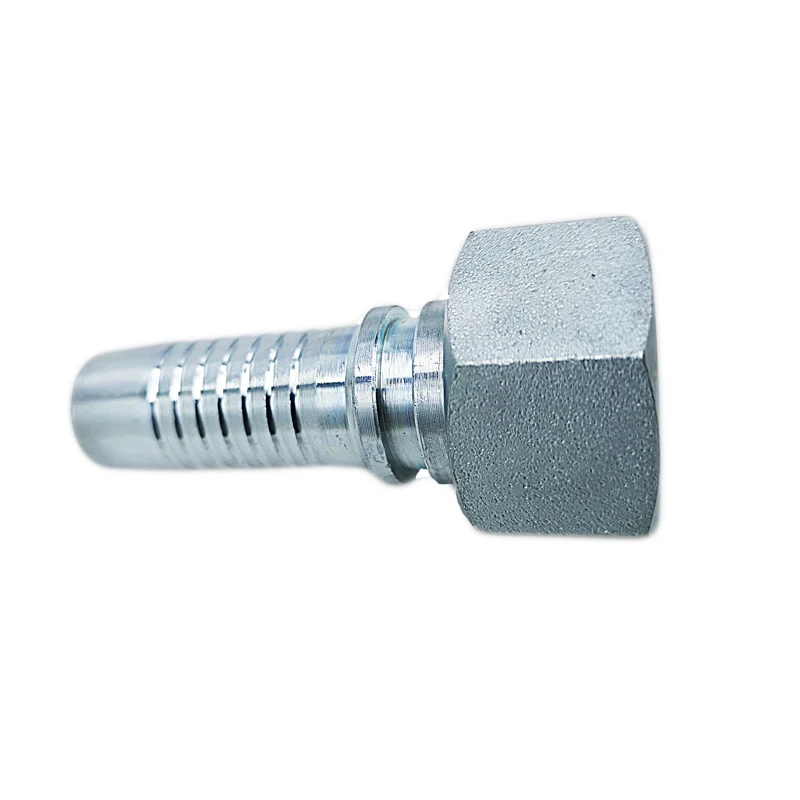

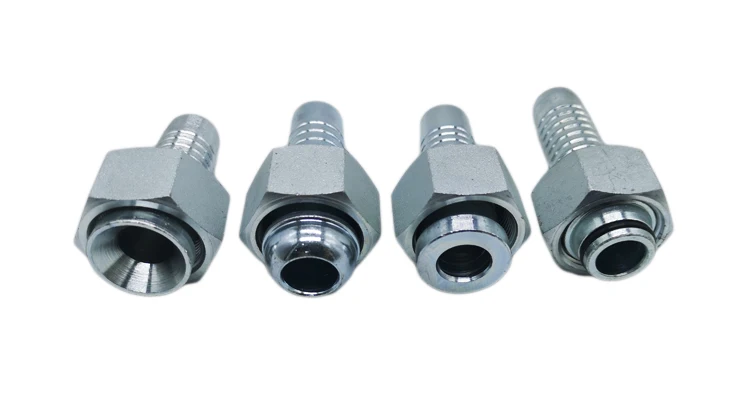

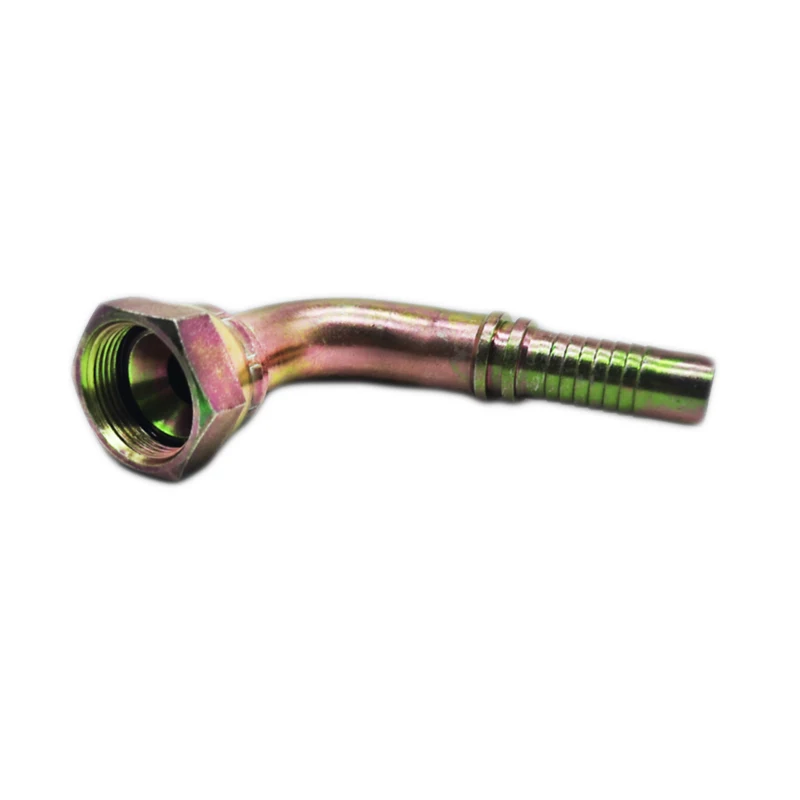

Carbon Steel hydraulic rubber hose fittings
- Category: >>>
- Supplier: Guangzhou Rongshun Machinery Parts Co. Ltd.
Share on (62146766918):
Product Overview
Description
GB METRIC FEMALE 74°CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | C | S2 | ||
| 30711-10-04 | M10X1.0 | 6 | 4 | 2.5 | 14 |
| 30711-12-04 | M12X1.0 | 6 | 4 | 4 | 17 |
| 30711-12-04 | M12X1.5 | 6 | 4 | 4 | 17 |
| 30711-12-04 | M12X1.25 | 6 | 4 | 4 | 17 |
| 30711-14-04 | M14X1.5 | 6 | 4 | 4.5 | 19 |
| 30711-16-04 | M16X1.5 | 6 | 4 | 4.5 | 22 |
| 30711-16-05 | M16X1.5 | 8 | 5 | 4.5 | 22 |
| 30711-16-06 | M16X1.5 | 10 | 6 | 4.5 | 22 |
| 30711-18-05 | M18X1.5 | 8 | 5 | 4 | 24 |
| 30711-18-06 | M18X1.5 | 10 | 6 | 4 | 24 |
| 30712-20-08 | M20X1.5 | 12 | 8 | 5.5 | 27 |
| 30711-22-06 | M22X1.5 | 10 | 6 | 5 | 27 |
| 30712-22-08 | M22X1.5 | 12 | 8 | 5 | 27 |
| 30712-22-10 | M22X1.5 | 16 | 10 | 5 | 27 |
| 30712-24-10 | M24X1.5 | 16 | 10 | 5 | 30 |
| 30712-27-10 | M27X1.5 | 16 | 10 | 5.5 | 32 |
| 30712-27-12 | M27X1.5 | 20 | 12 | 5.5 | 32 |
| 30712-30-12 | M30X1.5 | 20 | 12 | 6 | 36 |
| 30712-33-14 | M33X2 | 22 | 14 | 7 | 41 |
| 30712-36-16 | M36X2 | 25 | 16 | 7 | 41 |
| 30712-42-20 | M42X2 | 32 | 20 | 8.5 | 50 |
| 30712-45-20 | M45X2 | 32 | 20 | 8.5 | 55 |
| 30712-52-24 | M52X2 | 32 | 20 | 9 | 60 |
| 30712-64-32 | M42X2 | 32 | 20 | 14 | 75 |
GuangZhou Rongshun Machinery parts Co.,Ltd.,Located in Guangzhou City, Guangdong Province.The factory covers an area of 3000 square meters, It is a collection of production,sales for the integration of hydraulic fittings manufacturers
Our products include: Hydraulic hose,Hydraulic joint,Ferrule, Flange, Flange clemp, Adapter etc.
Our products have been widely used in various industries like engineering machinery,coal mines,chemicals,metallurgy,petroleum,automobile,shipbuilding,aviation and transport.
We execute relevant national standards,American SAE standard and German DIN standard, We can also manufacture according to customer standard.Welcome to trade with us.We will provide warm services to you.
1 Q: Do you know the Detail Size for the fitting?
A: Of couse,We have a database for all kinds of fitting.
2 Q: Are these fittings standard in size?
A: These are standard size fitting.
3 Q: Are you a factory or a Trade Company for fitting?
A: We are the factory and a trade Company.
4 Q: Could you supply free sample of fitting for our test?
A: Yes,Free sample can be offer.But you need to pay for shipping.
5 Q: Do you have stocks?
A: Yes.Most of the fitting showing on alibaba are in stock.
6 Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you have another question, please contact us .
