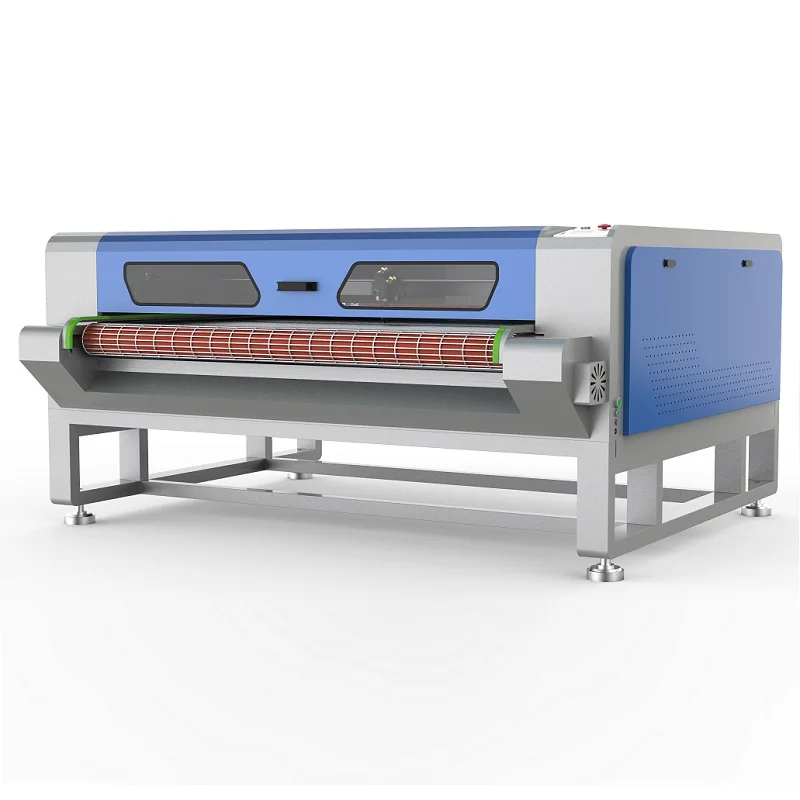

Auto Feeding Vision Scanning Laser Cutting Machine for Sublimation Printed Fabric in Roll Y 1810
- Category: >>>
- Supplier: Jinan Yizhou Laser Technology Co. Ltd.
Share on (62147352299):
Product Overview
Description
Product Description
Product Application
CCD laser cutting machine with vision for sublimated dye textile
This laser cutting machine is equipped with advanced Vision system.Camera auto positioning and Laser cutting applied on printed fabric, such as digital printed apparel, sublimated sports garment, cycling clothes, racing suits, swimming suit, printed toys, carpet, home furnishing, banners, flags and so on.
SPECIFICATIONS FOR CNC LEATHER CUTTING MACHINE | ||||||
Driver&Motor | Driver | Stepper driver | Leadshine | |||
Motor&Driver Power | stepper | Leadshine | ||||
Motor | stepper motor | Leadshine | ||||
Main performance parameters | Working size | 1600*100 mm 1800*1000mm | 1600*3000 mm | |||
Travel speed (max. & min.) | 900mm/s | 10mm/s | ||||
Table | auto feeding | stainless steel | ||||
Laser details | Laser power/Life | 150W EFR/RECI | 10000 hours | |||
Cooling type | water chiller | CW-5200 | ||||
Laser tube | L:1650 mm | Dia. 80mm | ||||
Main Features
-High cutting precision, no burn, no yellow mark
-Easy/friendly operation system
-Perfect optical system
-EU-USA standard step motor & driving system with high precision synchronization system to make sure fast cutting speed and high precision.
-Interactive three kinds of data( U disk ,PC ,internet)
-software support multiple formats: AI, PLT, BMP, JPG, DXF, DST, seamless compatibility CorelDRAW, CAD, PHOTOSHOP, and other graphic software, easy operation
-A LAN interface, two-way communication, to improve transmission speed and accuracy; allows a computer to control up to 254 laser equipment, greatly reduces the user cost of investment.
-Support WIFI control for optional
-10000 hours life for laser tube
-Stainless steel auto feeding table
-CCD camera for printed textiles or fabrics
Certifications
Samples Display

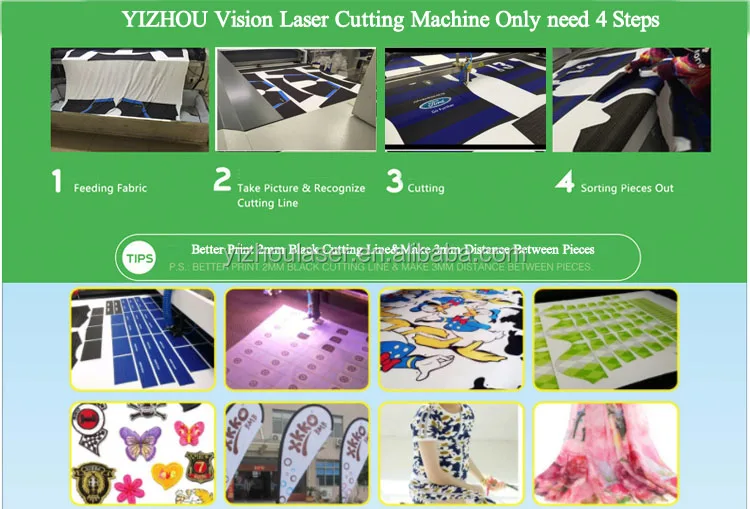

Work Flow
Features
* Fast and Precise Cutting of Dye Sublimated Textiles
* No need to create cut designs
* Fabric deformation or printing error can still be cut accurately
* Cuts Any Type of Textile
Step 1
Various graphics printed on fabric and loaded to the laser cutter working table with our auto-feeder.
Step 2
Material information extracted by the HD Camera automaticly
1:1 size, error code:0.02mm
Step 3
The software recognize outer contour of graphics, then automatically create the cutting path
About Us
Customer Feedback
Packing & Delivery
Packaging | ||
Size | 2.3m (L) * 2.2m (W) * 1.3m (D) | |
Weight | 0.7T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
