8 25mm copper rod upcast continuous casting machinery

Share on (62147364564):


Price:$95,000.00 - $100,000.00

Quantity:


Product Overview

Description


Product Description
Upcast continuous casting machine is used to produce long and bright oxygen-free copper rod ,copper tube and copper flat slab.it can produce rod, tube, flat slab or other profile with different specifications directly from electrolytic copper continuous casting. According to the annual production capacity, the upward continuous casting is divided into four grades:3000/4000tons, 5000/6000 tons, 8000/10000 tons and 12000tons. Compared with the traditional copper ingot calendering production, the new technology of upward continuous casting line is characterized by advanced technology, good product quality, low energy consumption per unit, flexible and diverse production varieties and specifications, strong adaptability, no three-waste pollution, and less investment, etc. It is an ideal process for processing copper conductor and copper material.
\t
Product Name
\t
Upcast continuous casting machine
\t
Furnace
\t
Electric induction heating,3channels
\t
Annual capacity in tons
\t
3000/4000tons, 5000/6000 tons, 8000/10000 tons and 12000tons
\t
Rod diameter in mm
\t
8mm,12mm,17mm,20mm,25mm,etc
\t
Line speed
\t
2500mm/min for 8mm
\t
Power consumption
\t
315 to 350 kwh/ton production
\t
Pulling
\t
Servo motor and inveter
\t
Control
\t
PLC and touch screen operation
\t
Loading
\t
Manual or automatic
Feature & Advantages
1) Induction furnace ,the melting temperature is easy to control ,good product quality and low energy consumption and so on.

2) Simple structure ,easy in installation and maintaining.

3) Double-servo motor pulling , meet different product demand in same time.

4) Level tracker monitoring the melting liquid level real time and send signal to continuous casting machine to adjust location up or down to guarantee that the deep of the crystallizer inserting into the copper liquid is stable

5) Crystallizer can quickly cool the copper liquid into copper rod by heat exchange and every crystallizer can be changed and controlled alone expediently.

6) limited device is an automatic coordinator which can control the speed of take-up machine by the electrical signal produced by the copper rod touching the up or down spacing.

7) PLC and touch screen operation make control convenience and fast.

8) The visual temperature monitoring system can display melting liquid and cooling water temperature in time that helps machine work well, long time and safety

9) Self- protection system

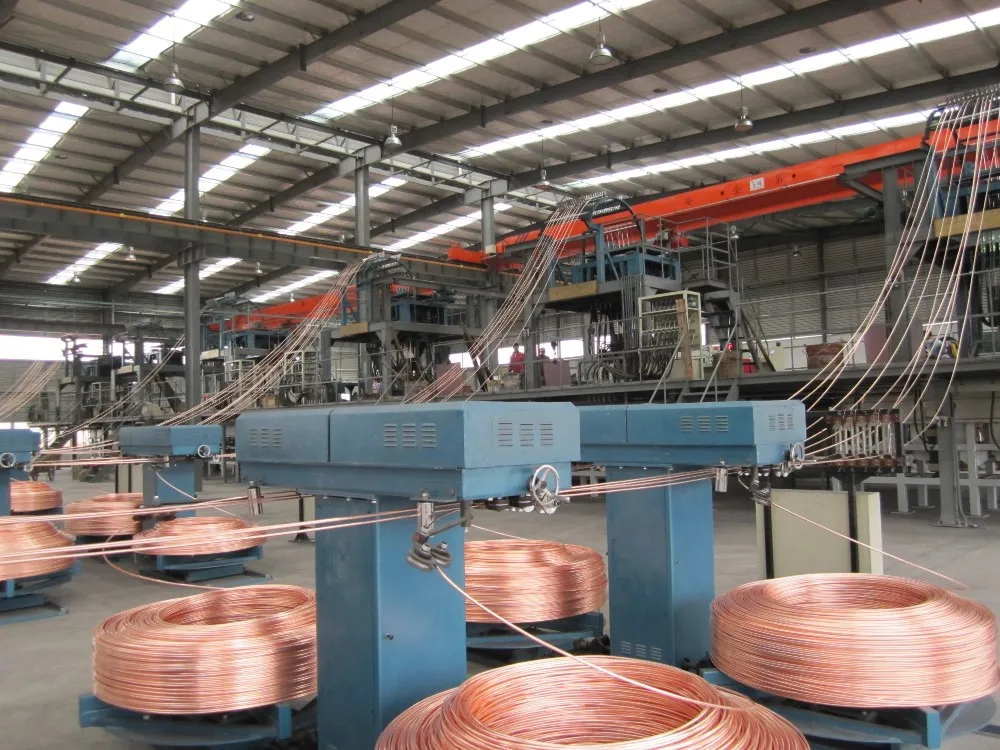

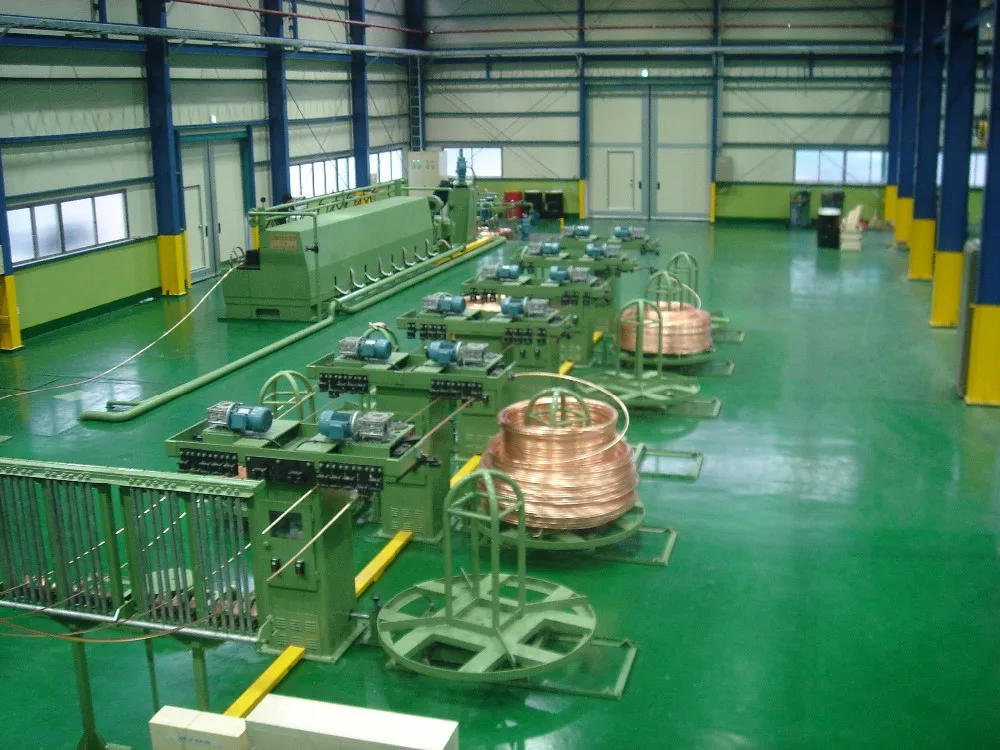

Products Show

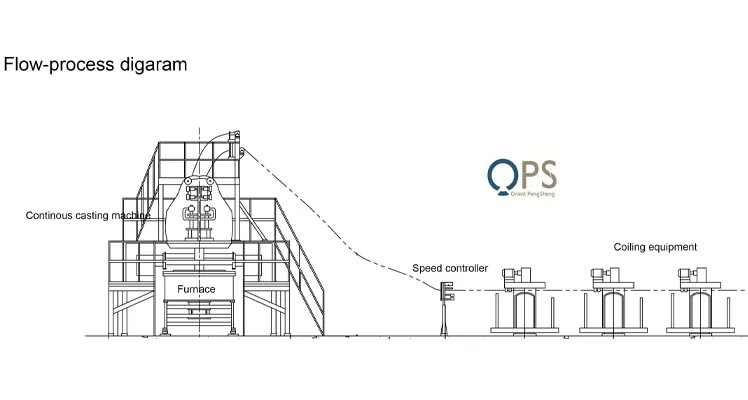

Flow-process Diagram

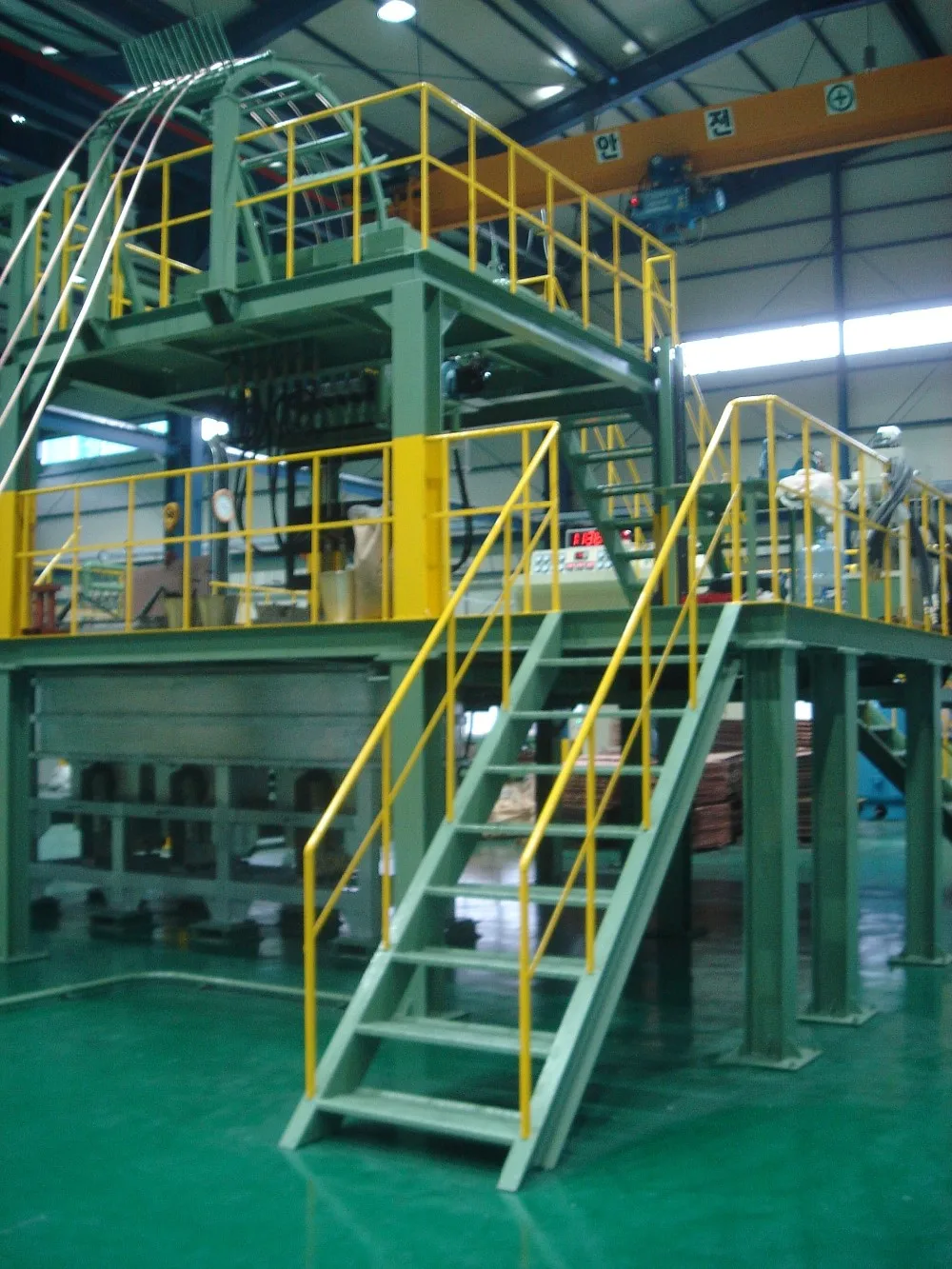

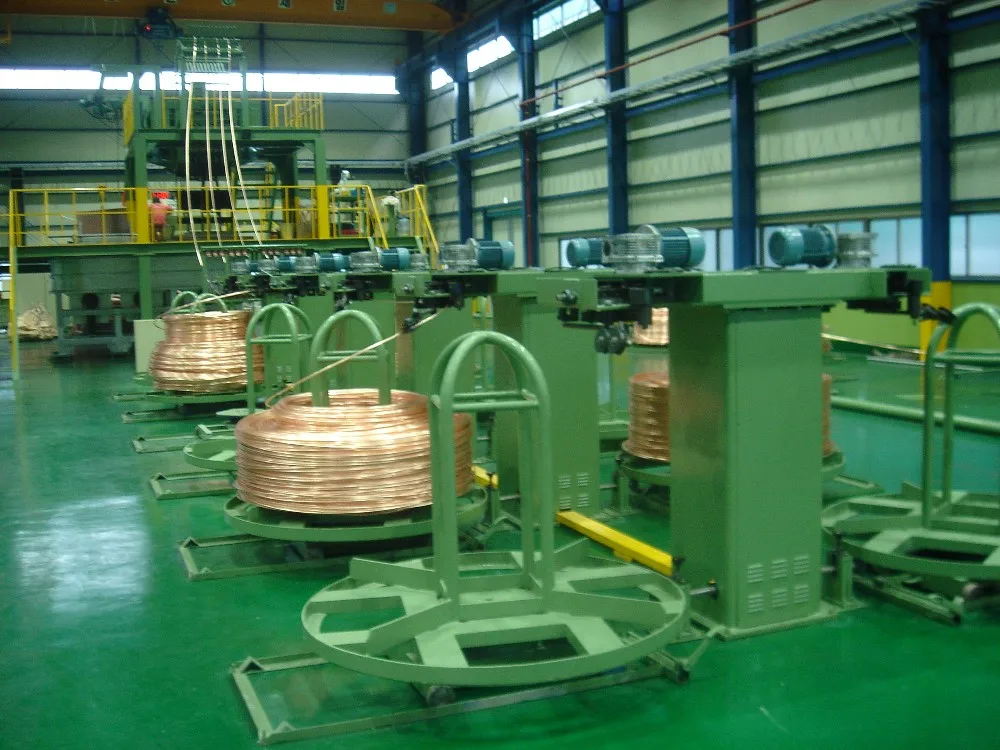

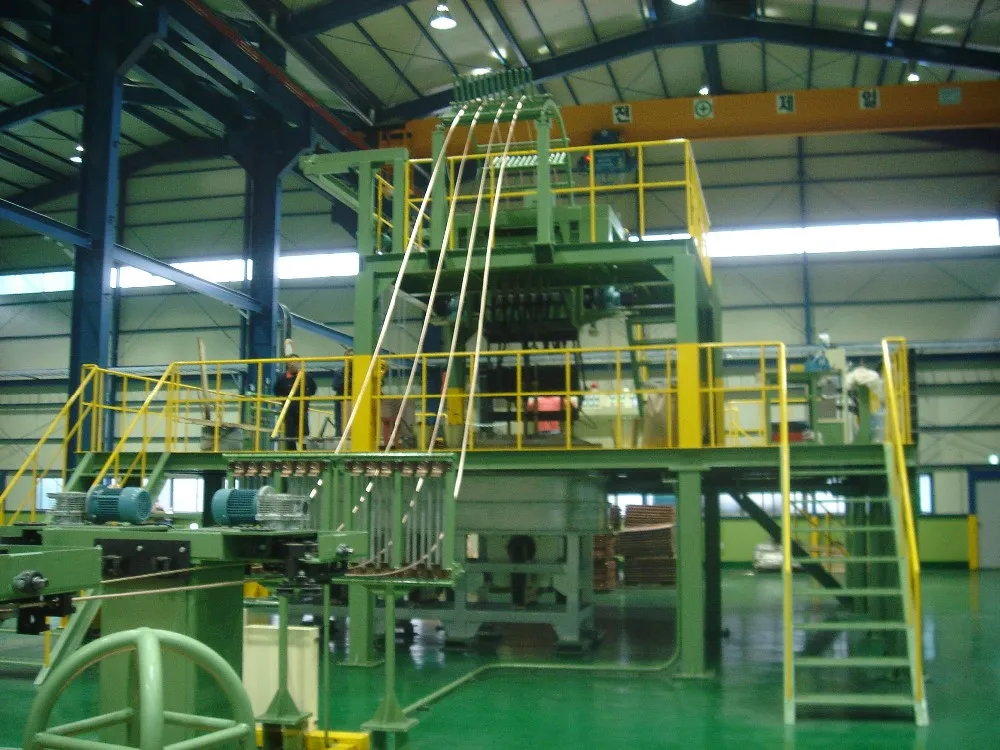

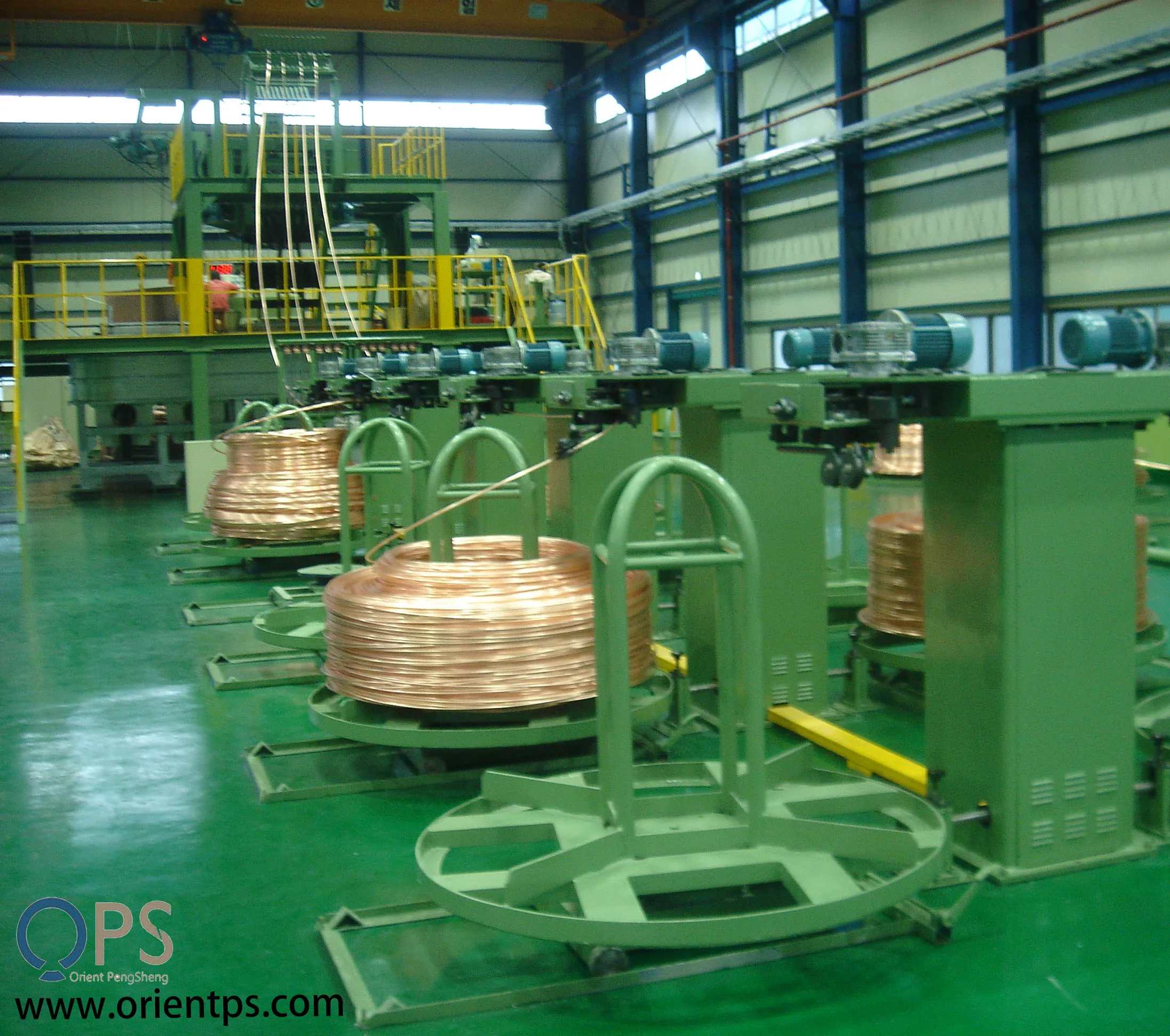

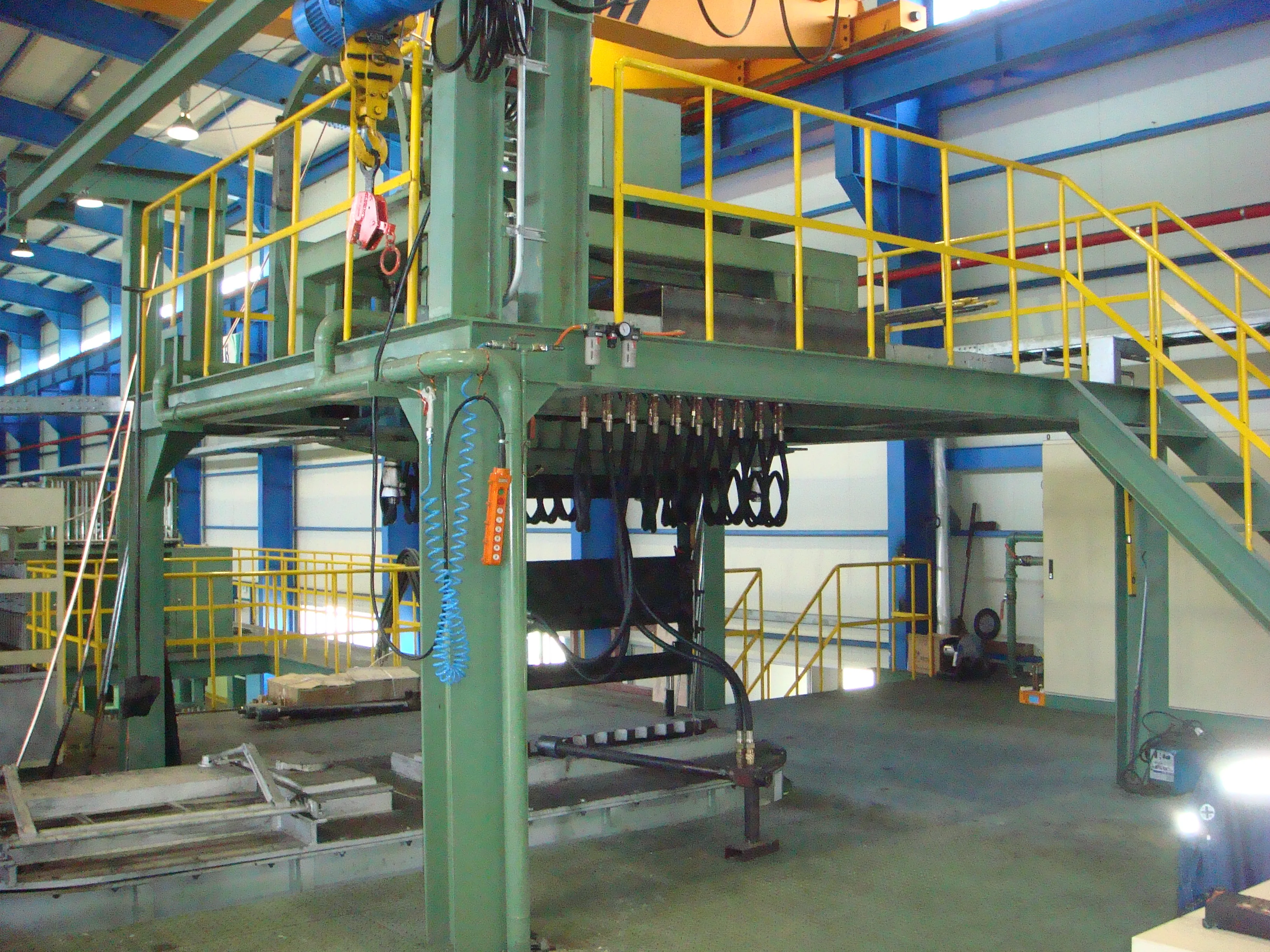

Detailed photos
Fair Photos
Why choose us
FAQ

Q: Are you trading company or manufacturer ?

A: We are an international trading company with 10+ years experience in professional service for upward continous casting line , drawing machine ,continuous casting and rolling line for copper and aluminum and continous extrusion machine,etc.we have stable customers all over the world . you are warmly welcomed to conminicate with us.

Q: How long is your delivery time?

A: Generally it is 2-3months ,it is according to quantity.

Q: What is your advantages ?

A: Proffessional service to help you to chosse better supply in china
