7.5HP 10HP 15HP solar deep well water pump with 4 40 m3/h water flow with DC AC pump
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62147388322):
Product Overview
Description
7.5HP 10HP 15HP solar deep well water pump with 4-40 m3/h water flow with DC AC pump

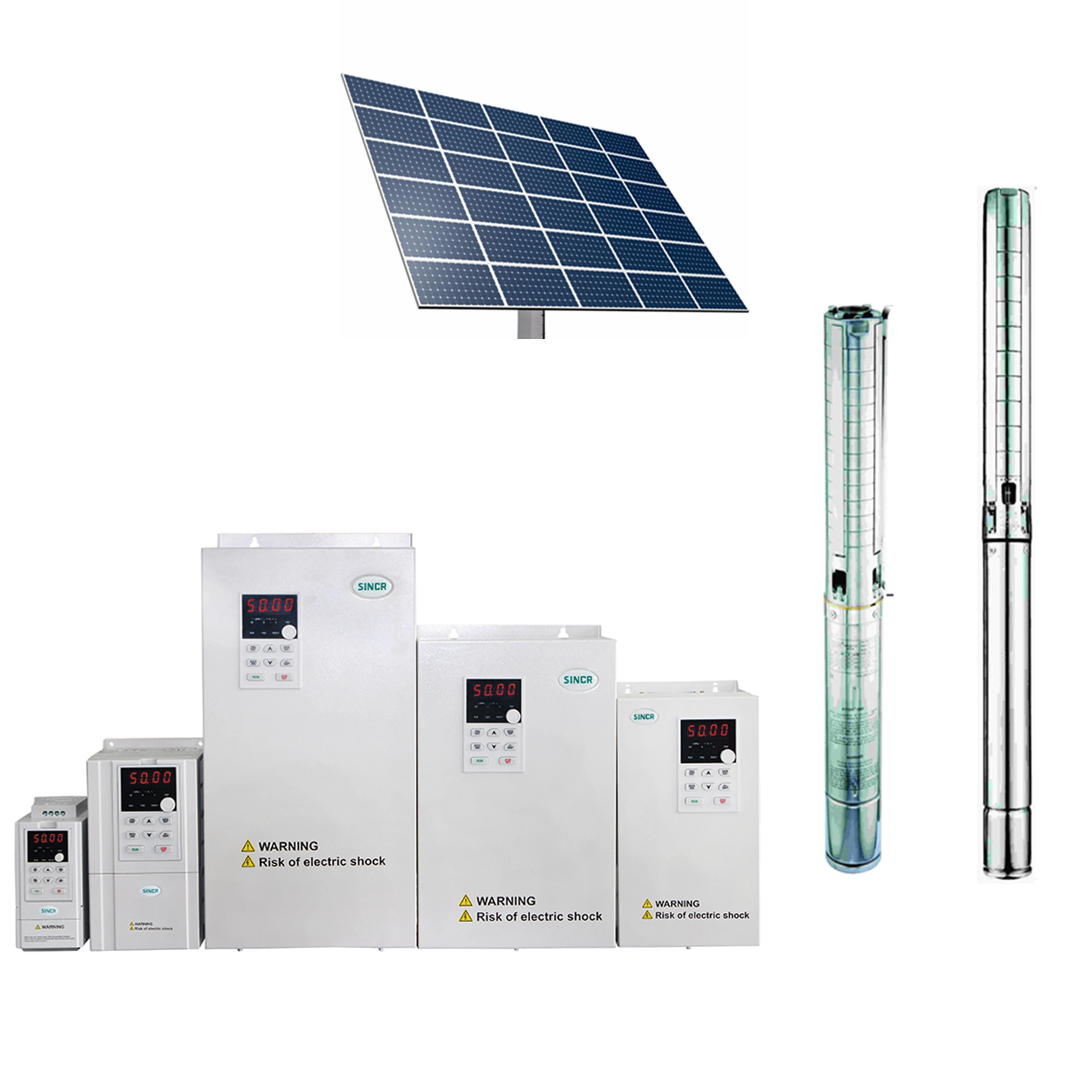

Solar Pump Systemn
♦ System Features
solar deep well water pump
- Solar energy drives the pump to work directly, no need battery,used for agricultural irrigation and domestic water, low cost and maintenance-free.
- High-efficiency monocrystalline silicon and polycrystalline silicon solar modules with conversion efficiency up to 19.58%, 10-year material process warranty, and 25-year line warranty.
- Pump power: 0.75KW~110KW; water flow: 1-800 m3/h; lift head: 5-500m; stainless steel material, service life of more than five years.
- Deep well pump can be used for pumping water from 10-500m deep well, high lift head and large water flow, long distance water delivery.
- According to the sunshine and water demand in different regions, the system can pump water with 6-10 hours per day, and the maximum daily pumping capacity can reach 5000 cubic meters per day.
- Deep well water shortage protection, water tower full of water protection, light weak sleep, light intensity wake up, can achieve unattended, fully automatic operation, no manual operation.
Product Details

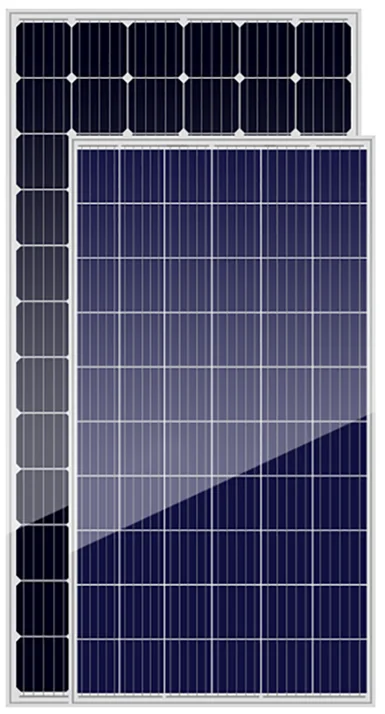

 | Solar panels> 25 years Warranty. > High Efficiency PV Module of 17% - 20%. > Highest quality with TUV, ETL, CE, ISO certificates. > PID Resistant,High salt and ammonia resistance. |
Solar pump inverter> 1 Phase 220~240V AC, 3 Phase 380~480V AC. > Mppt voltage range 250~350V, 500~700 DC. > Out put power 0.75~630KW. > 2 years Warranty. |  |

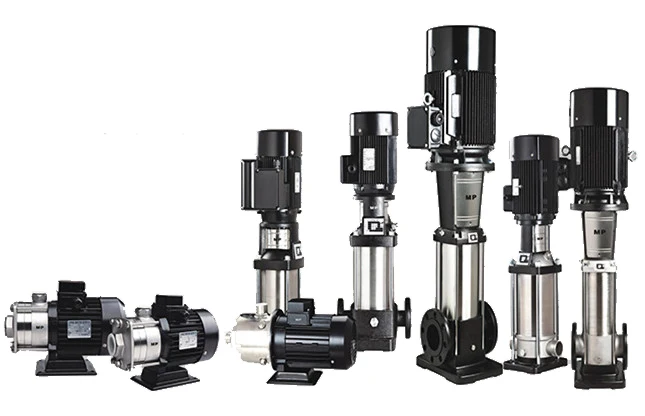

s olar deep well water pump | Water pump> Stainless steel 304, 316, iron casting, etc. > single phase 110V/220V, three phase 220V/380V. > 50/60HZ. > Maximum depth 70m. |
PV Combiner Box> IP65 protection class,suitable for outdoor installation uses. > High voltage lightning proection(SPD) special for PV. > With DC fuse protection and anti-reverse proection. > Max open circuit voltage(VOC) can reach 1000V. Note: can be customized according to requirements. |  |

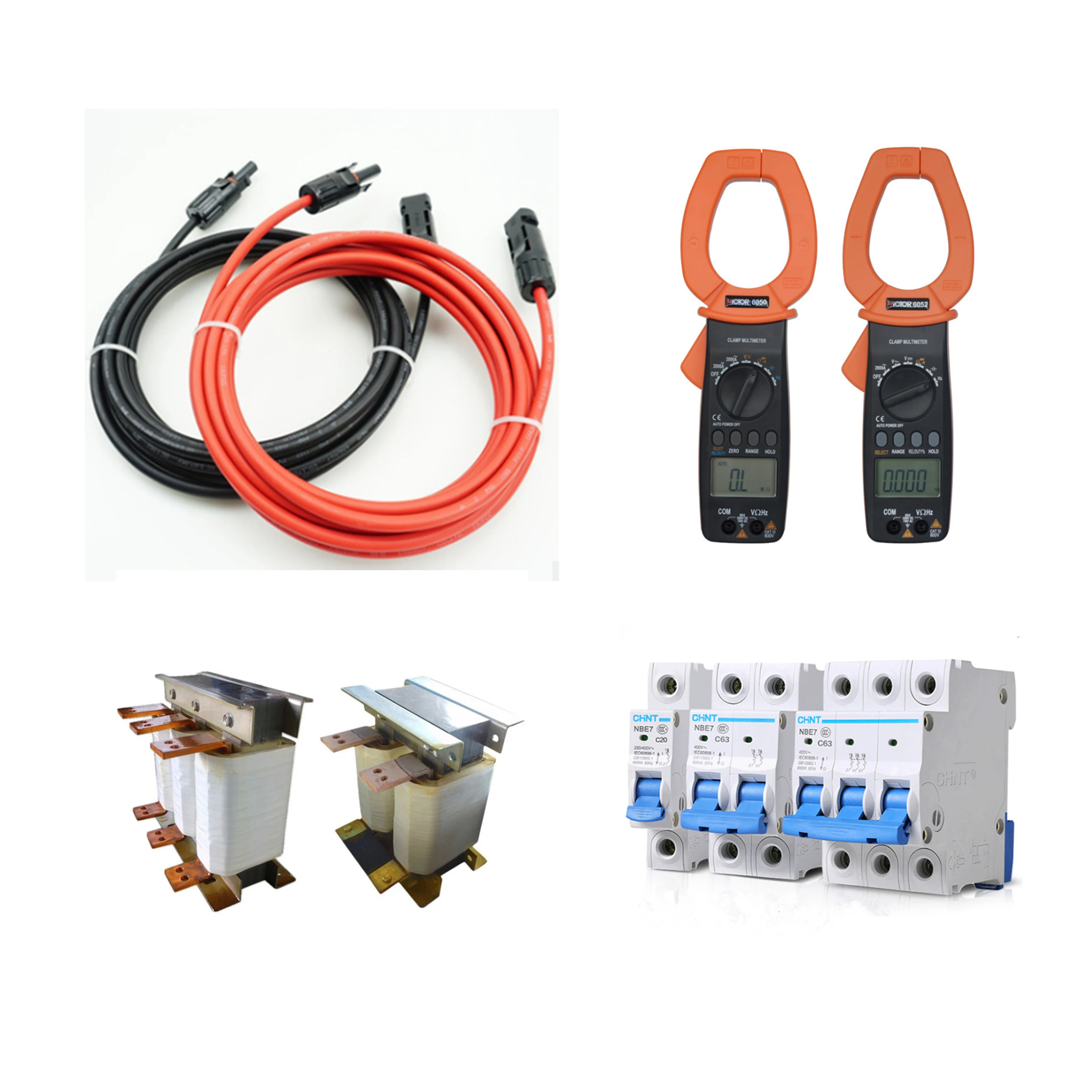

 solar deep well water pump | Accessories> Various AC/DC cables for the system. > AC /DC breaker. > Water level sensor. >Output reactor and filter. |

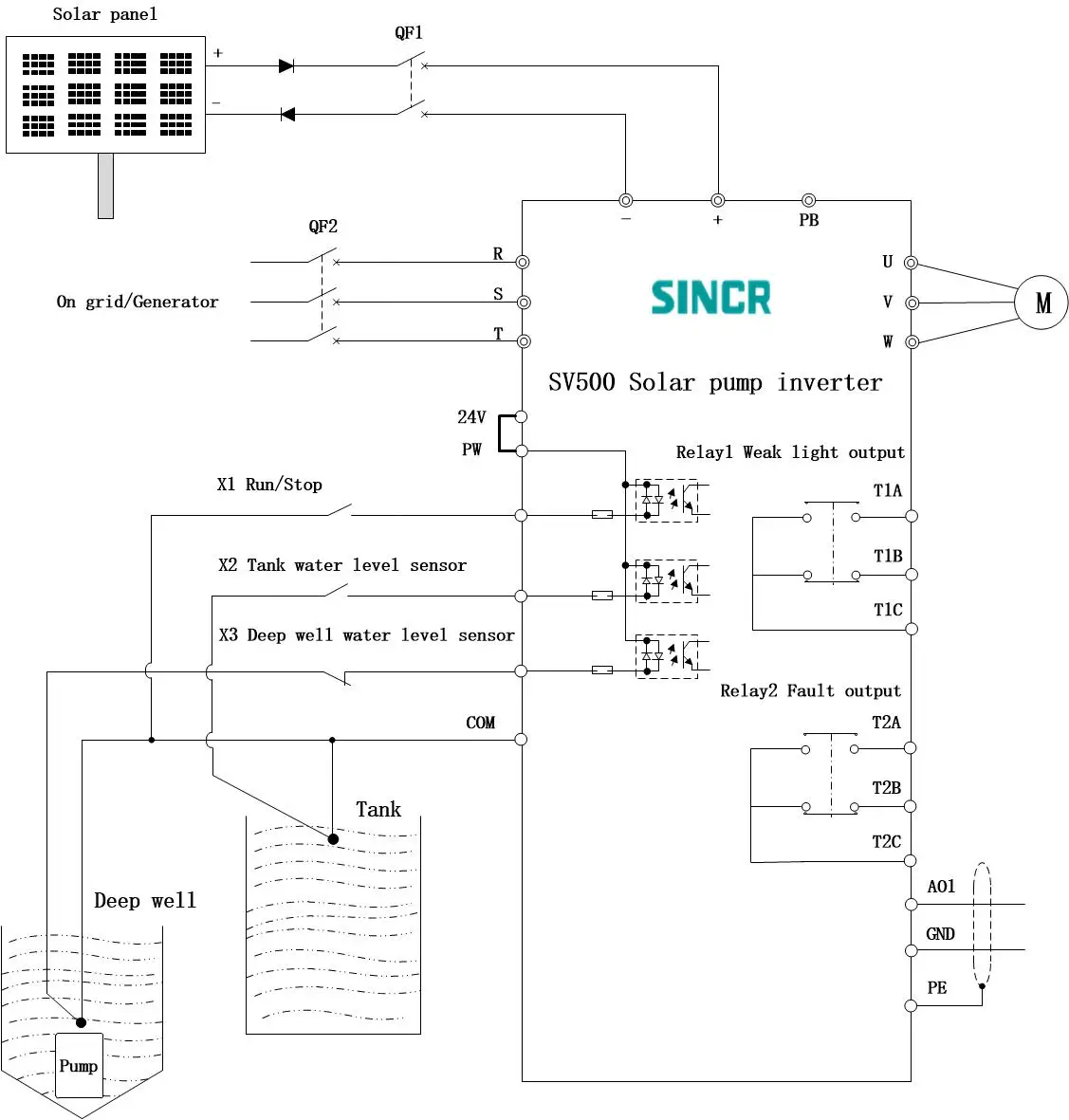

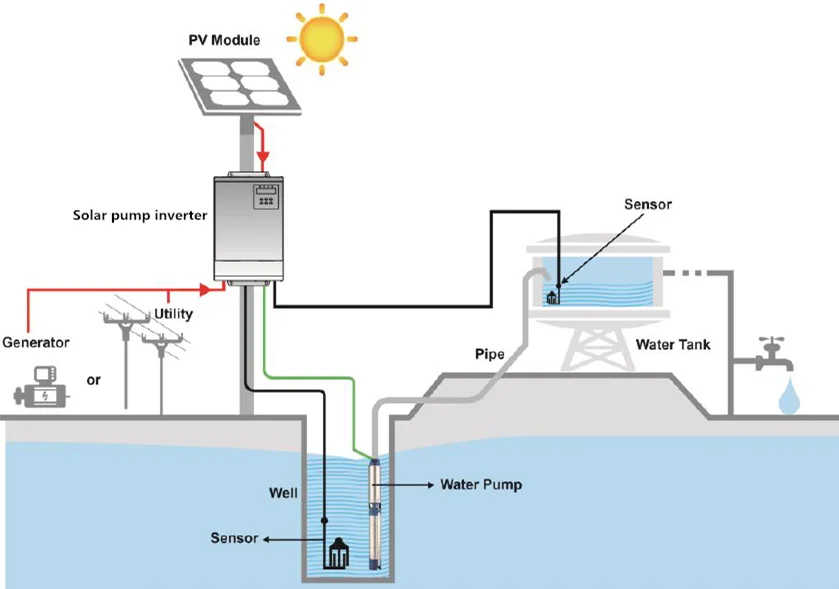

Wiring Diagram
solar deep well water pump

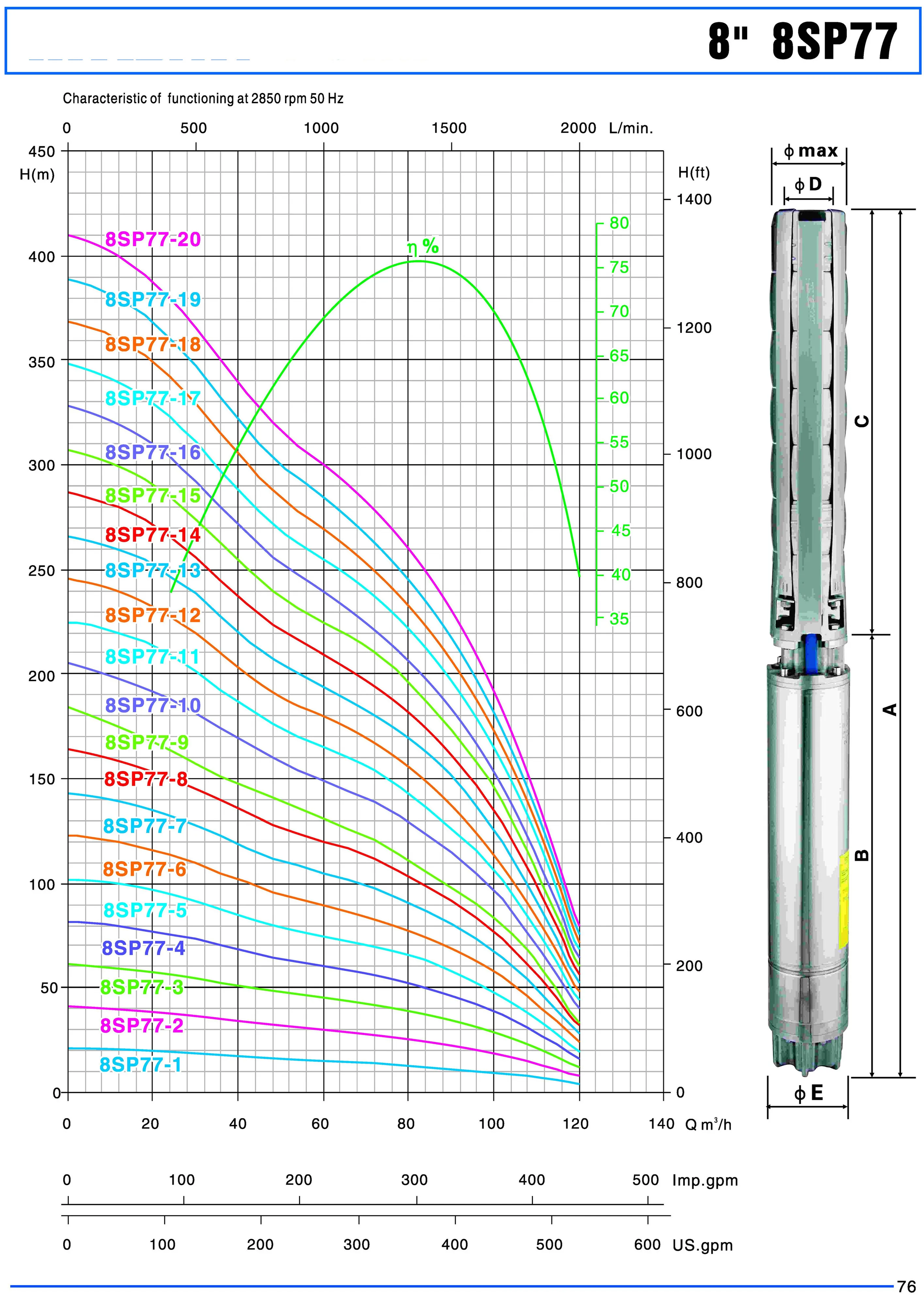

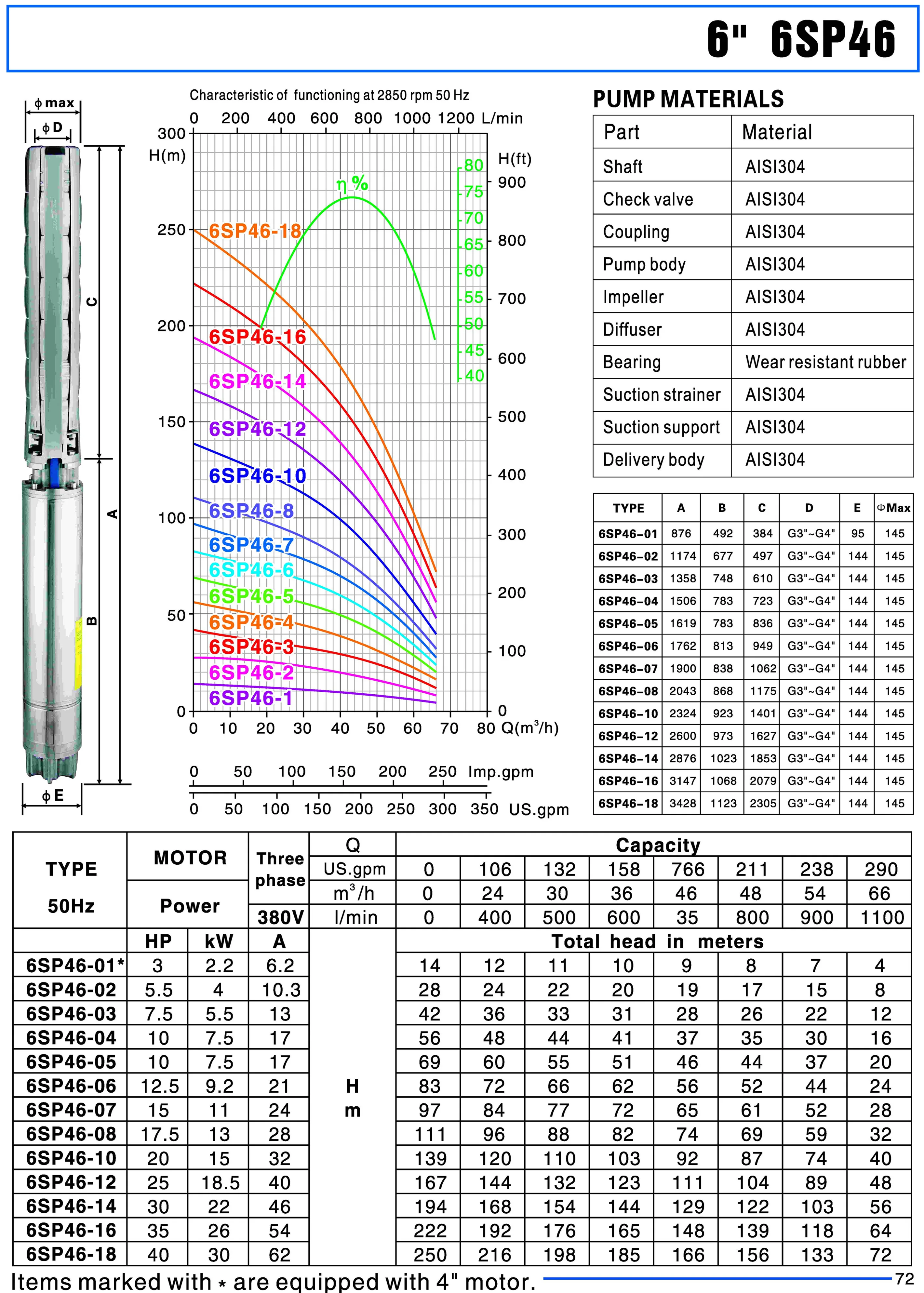

Head & Flow Curve
◊ Model Definition
Note: 1 m³=1,000 litres

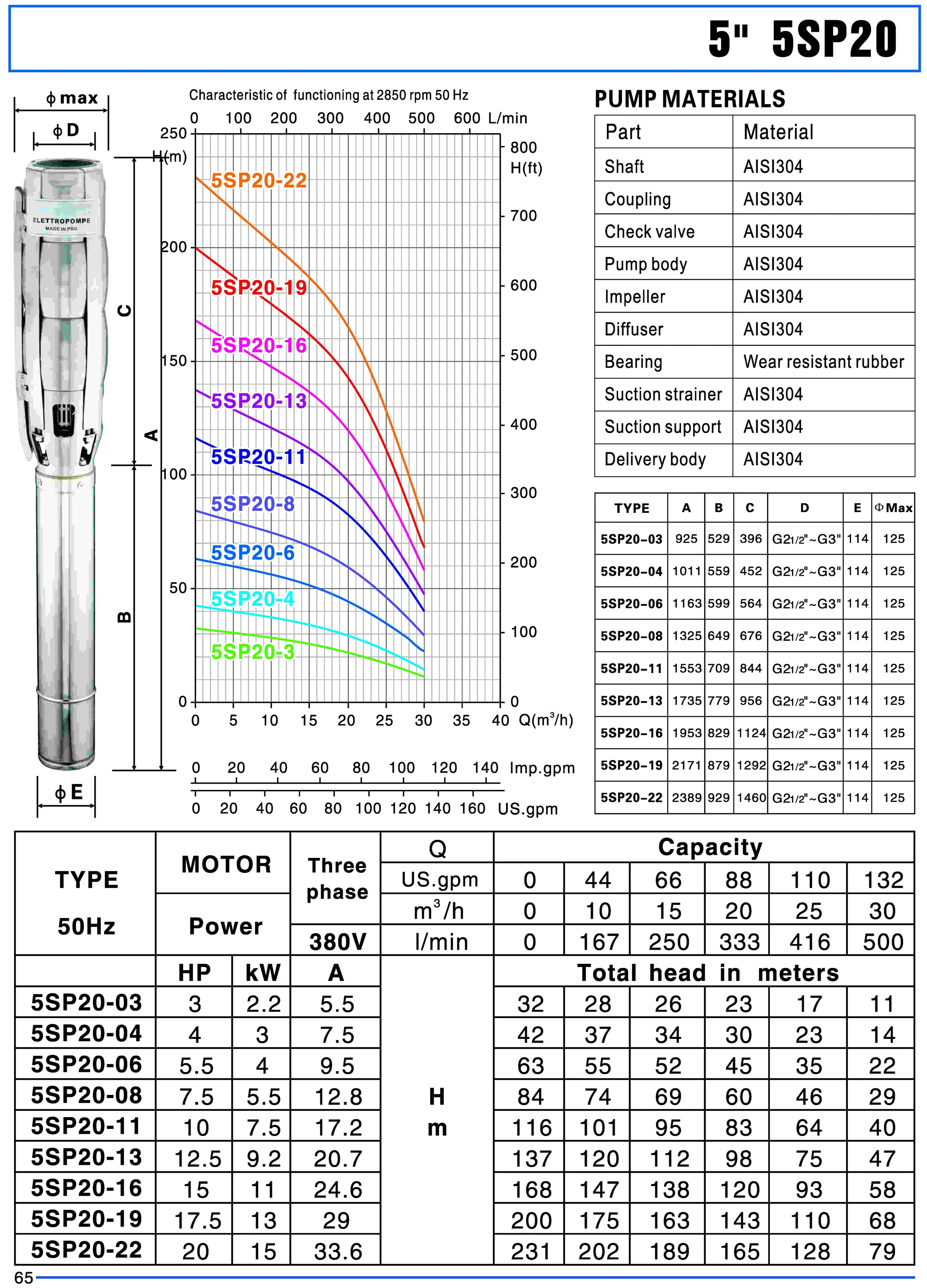

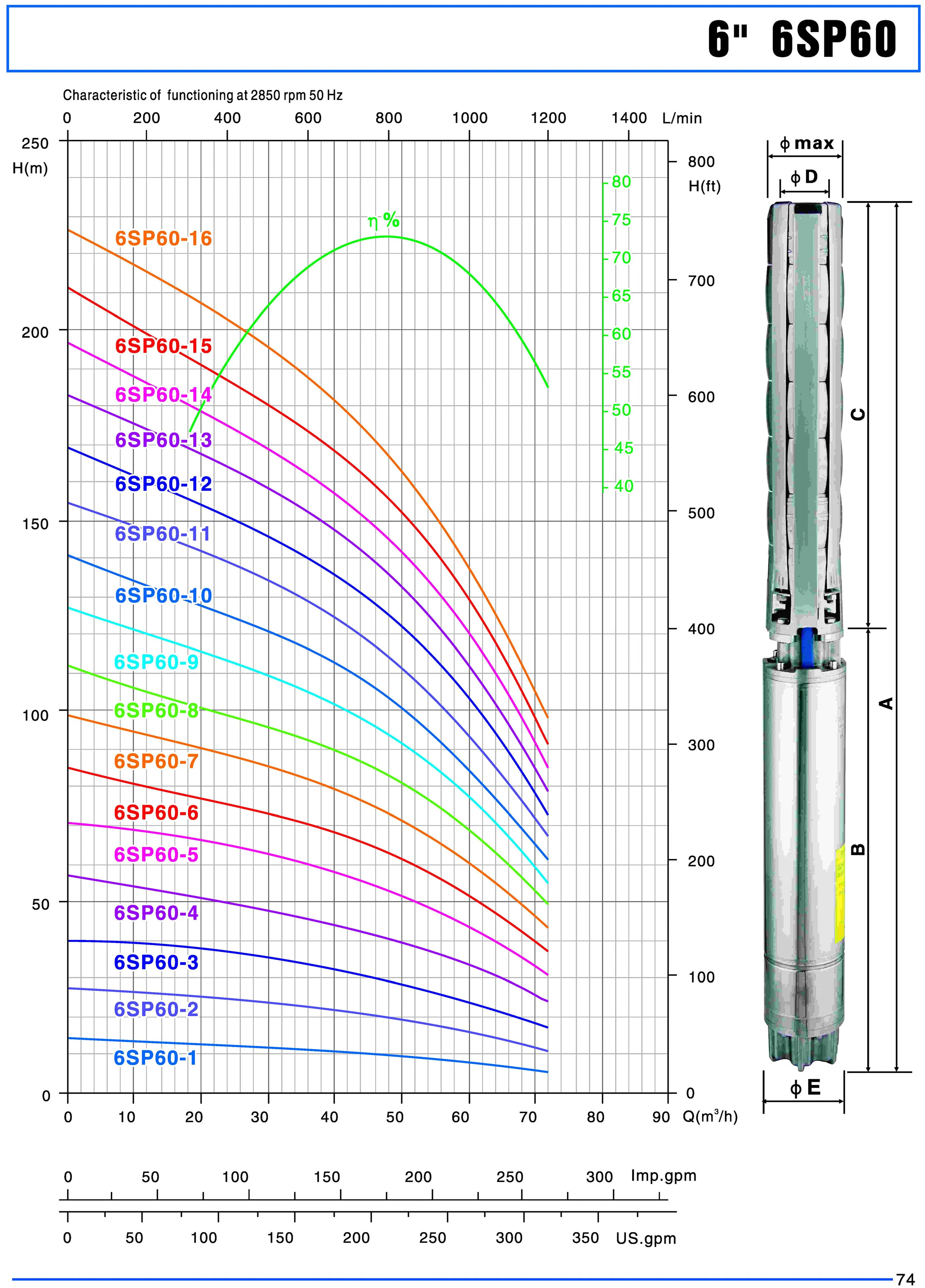

◊ 5SP series Head & Flow performance curve
solar deep well water pump
Product Application

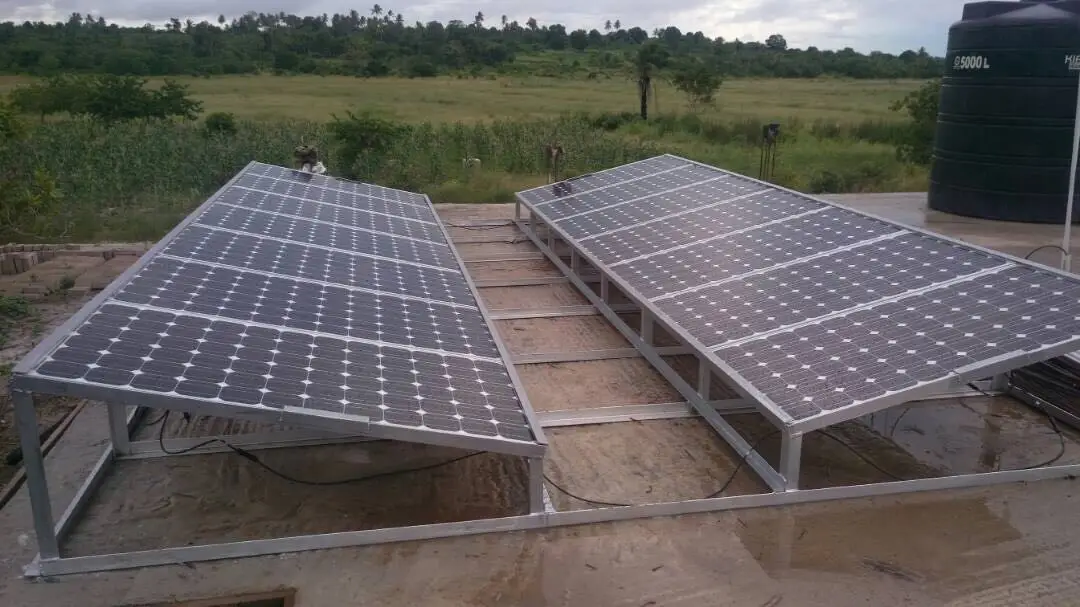

♦ Tanzania 2.2KW solar pump system for farm irrigation solar deep well water pump
| Location | Dar es Salaam-Tanzania | |
| Purpose | Farm land irrigation for corp | |
| Water source | 90m depth deep well | |
| Requiredments | Before when cultivate, they only do farm irrigation by labour work,in order to solve the problem of farm irrgation water supply difficulty,save their labour work,customer want to pump water from 90m deep well to 50m long distance farm land by solar. | |
| Solution | Water pump | 2.2KW deep well pump with 5 m3/h water flow and 90m lift head. |
| Solar panel | 3.5KW,16pcs 220W Mono solar panel | |
| Solar pump inverter | SINCR,Model:SV100-004-4TB 4KW Solar pump inverter,3phase 220V | |
| Mounting bracket | Made by themselves | |
| Accessories | DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc | |
| Benefits | After the farm irrigation system running by solar, the farmers save much labour work,and can share the water to nearby farmer’s land. More and more villiage farmers apply to the irrigation by solar. | |
Company Information
♦ Company Introduction
Shenzhen SINCREA Electrical Technology Co., Ltd. is a professional enterprise on frequency inverter technology development and application. In the future, SINCREA Electrical Technology will continue to take 'to be the best general use frequency inverter supplier' as our enterprice vision, and constantly improve ourselves, develop ourselves and beyond ourselves, create a better tomorrow with our partners.
♦ Our Serives
1. Pre-sale service
- Listen to any raised needs and technical issues;
- Send relevant technical information and solutions quickly;
- Offer the best solution and quotation for the equipments;
- Provide convenience to visit factory and on-site inspections.
2. Sale service solar deep well water pump
- Treat very contract seriously, impartially and honestly;
- Implement the contracts on time and in good quality strictly ;
- Free to provide the service(installation, debug, trainning.etc).
3. After-sales service
- Free warranty in service period, lifetime cost price maintenance;
- After installation and commission, free training for system;
- Fault site: reply within 12 hours, dispatch staff within 3 days if necessary.
