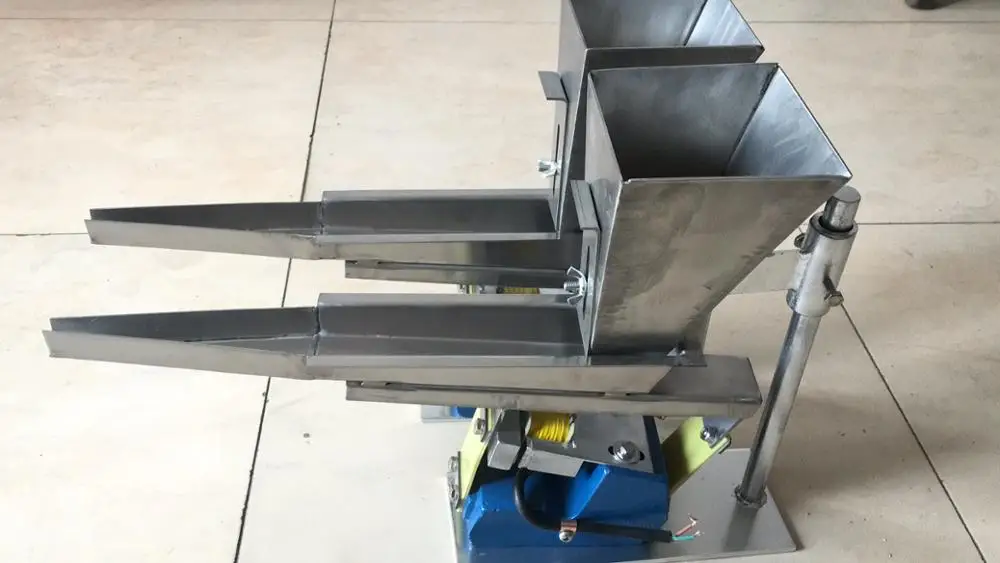

micro electromagnetic vibration feeder Stainless steel powder micro feeder
- Category: >>>
- Supplier: Haian Flourishing Machinery Equipment Co. Ltd.
Share on (62147422096):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
GZV Vibration Feeder
Vibratory parts feeder is the machine which can orient and feed small parts to the assembly line by vibration.
Characteristic
The utility model has the advantages of small size, light weight, simple structure, convenient installation and low operating cost;
The use of half wave rectifier control, can be used in the stepless adjustment.
The feeder in the course of continuous feeding thrown the parts up, so to wear small trough.
In order to reduce the noise and improve life and feed efficiency, the inside of the bowl is usually coated by urethane.

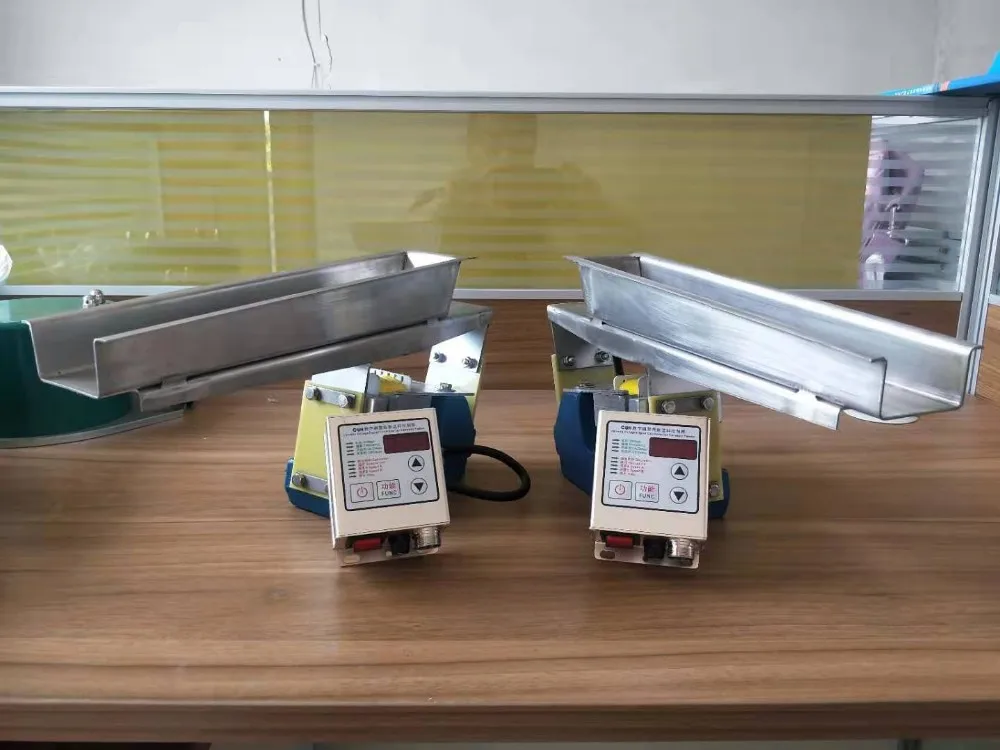

The vibrators are controlled by control boxes.
Technical parameter for GZV vibrating feeder | ||||||||||||||||
Model | GZV1 | GZV2 | GZV3 | GZV4 | GZV5 | GZV6 | GZV8 | |||||||||
Capacity(t/h) | 0.1 | 0.5 | 1 | 2 | 4 | 6 | 8 | |||||||||
Double amplitude(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |||||||||
Frequency(tim/min) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |||||||||
Power(w) | 5 | 8 | 20 | 25 | 30 | 50 | 100 | |||||||||
Control equipment | Model | XKZV-Ⅱ | ||||||||||||||
Control way | Controllable half wave rectifier | |||||||||||||||
Voltage | 220 | 220 | 220 | 220 | 220 | 220 | 220 | |||||||||
Frequency(HZ) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |||||||||
Current(A) | 0.08 | 0.12 | 0.15 | 0.2 | 0.25 | 0.6 | 1.0 | |||||||||
Weight | 4 | 7 | 12 | 18 | 27 | 45 | 60 | |||||||||
Shape and size

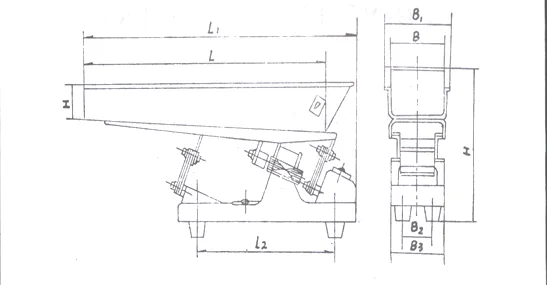

Machine dimensions
The overall dimensions of the mainframe are shown belowr
Model | Outline dimension | ||||||||||||||||
B | B1 | B2 | B3 | L | L1 | L2 | H | H1 | |||||||||
GZV1 | 40 | 60 | 50 | 80 | 200 | 273 | 92 | 20 | 155 | ||||||||
GZV2 | 60 | 80 | 50 | 80 | 300 | 374 | 95 | 30 | 168 | ||||||||
GZV3 | 80 | 110 | 60 | 100 | 400 | 480 | 224 | 40 | 222 | ||||||||
GZV4 | 100 | 130 | 70 | 120 | 500 | 568 | 310 | 50 | 256 | ||||||||
GZV5 | 120 | 150 | 70 | 120 | 550 | 630 | 310 | 60 | 295 | ||||||||
GZV6 | 200 | 240 | 120 | 180 | 300 | 760 | 440 | 70 | 330 | ||||||||
GZV8 | 300 | 340 | 180 | 230 | 1000 | 1050 | 560 | 80 | 340 | ||||||||
Use and installation
Applied field for Electromagnetic vibrating Feeder
Miniature electromagnetic vibrating feeder is very popular in various industries such as light industry, chemical industry, food industry and so on. It was used for the feeding of powder and granular materials, and makes the production process centralized control and automatic control be possible.
Main Features for Electromagnetic vibrating Feeder
Miniature electromagnetic vibrating feeder is a new type of feeding equipment,it has the following
characteristics,when compared with other feeding device:
1) Small size, light weight, easy installation, low noise
2) High accuracy and feeding capacity
3) Low energy consumption
4) Simple structure, and easy to carry and adjust
5) As the materials in the feeder trough are fed up continuously in the process of feeding, therefore it causes less damage to feeder.
\t\t\t\t\t\t\t\t\tCompany introduction \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tproduction process \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tDelivery and Logisti \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tProduct recommendati \t\t\t\t\t\t\t
GZV Miniature Electromagnetic Vibration Feeder
Circular Vibrating Screen
CZ Warehouse Wall Vibrator
Vibrating motor
GZ electromagnetic vibration feeder
CZ Warehouse Wall Vibrator
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
If you can not choose a suitable model by yourself,pl answer the following questions?
1.the feeding material_______
2.particle size _________
3.the capacity per hour ______kg/h
4.voltage supply in your country_______
