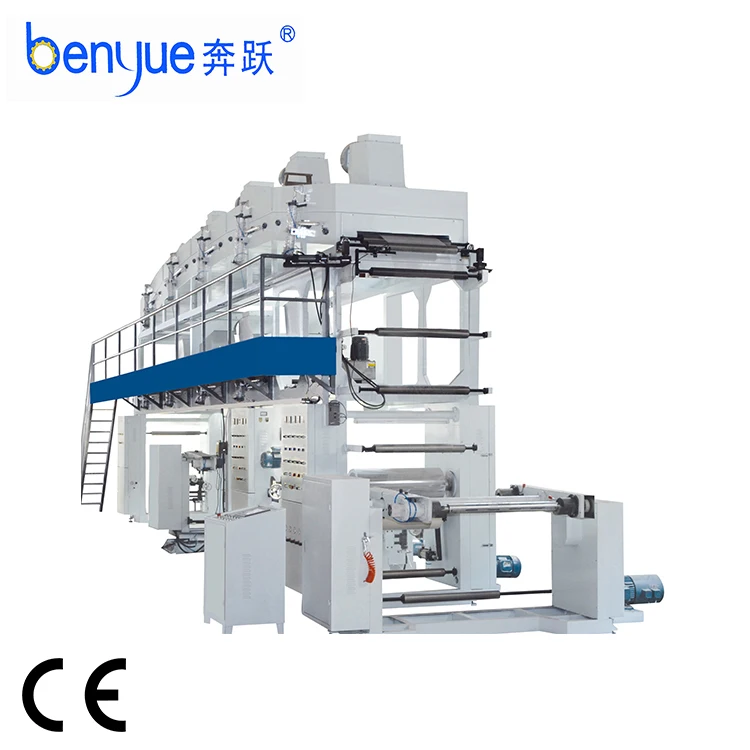

Sell Well New Type Custom Low Consumption High Efficiency Thin Film Adhesive Coating Machine
Features:
Overall machine adopt 3frequency motor control,
Electrical rotation double station unwinding frame, adopt magnetic powder auto control the tension
Gravure coating method, coating blade shaft adopt heavy double shaft type machine independently moving, blade adjust by manual with pneumatic type, angle is adjusted freely, coating quantity is depend the gravure roller mesh, different coating quantity can change different mesh gravure roller.
For coating more evenness, there is one pc uniformity roller by motor inverter control
Oven:14m for 6section independently control, heating adopt conduction oil cycle heating, hot air intake type drying system, adjustable inner cycle air intake and out device, air intake and out with strong air , dry thoroughly,
Oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker can work very easily.
The tension between coaitng roller and traction steel roller adopt float swing arm
Auto-length and speed meter device
Webguide adopt EPC air sensitive register to assure the trimness when rewinding
Rewinding and unwinding adopt key type airshaft for easily operate when loading and unloading the material
High presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat. to reach good cooling effect.
Rewinding frame is alongside rewinding, the drive same as traction unit
