Product Overview
Description
Quality Professional Quick Printed Circuit Board Assembly Manufacturer PCB PCBA China
Product Description
PCB capacity
| Base material | FR4,High-TG FR4,CEM3,aluminum, High Frequency frequency(Rogers,Taconic,Aron,PTFE,F4B) |
| Layers | 1-4 Layers(Aluminum), 1-32 layers(FR4) |
| Max Panel | 1550mm*800mm |
| Copper Thickness | 0.5oz, 1oz, 2oz, 3oz,4oz |
Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
| board Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm and 3.2mm |
| Board Thickness | 0.4mm - 4.0mm |
| Thickness Tolerance | +/-10% |
| Aluminum Machining | Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
| Min Hole | 0.2 mm |
| Max Working Voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
| Min Track Width | 0.2mm (8mil) |
| Min Track Gap | 0.2mm (8mil) |
| Min SMD Pad Pitch | 0.2mm (8mil) |
| Surface Finishing | HASL lead-free, ENIG, Plated Gold, Immersion Gold, OSP |
| Solder Mask Color | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Legend Color | Black, White, etc |
| E-test | Yes |
| Rohs, CE, UL | Yes |
| Reference Standard | IPC-A-600G Class 2 |
| Special Hole | Spot facing, Cup holes |

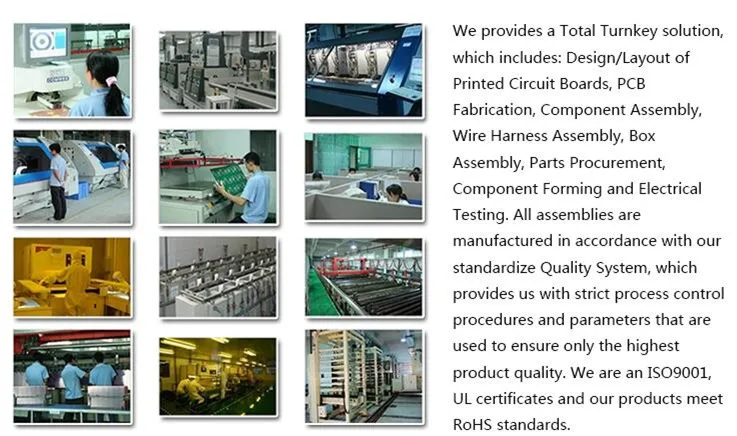

Production process:
HUA XING PCBA LIMITED
Quick Details
- Place of Origin: China (Mainland)
- Brand Name: HUA XING
- Model Number: HX-059
- Base Material: FR-4, PTEE, aluminum
- Copper Thickness:0.5oz-6oz
- Board Thickness:0.1-6.0mm
- Min. Hole Size:0.1mm
- Min. Line Width:4mil
- Min. Line Spacing:4mil
- Surface Finishing: Immersion Gold

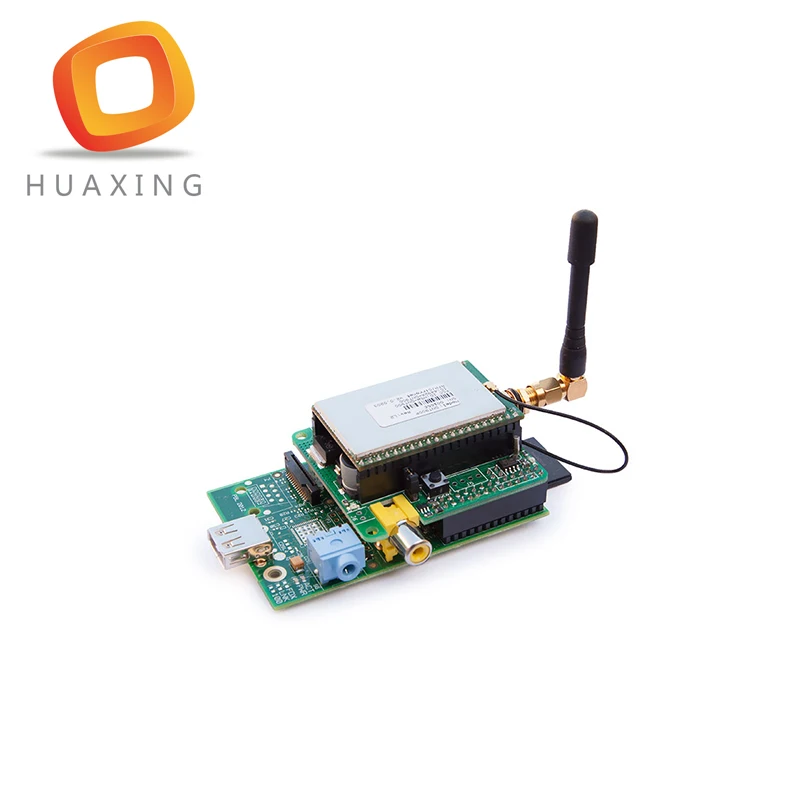

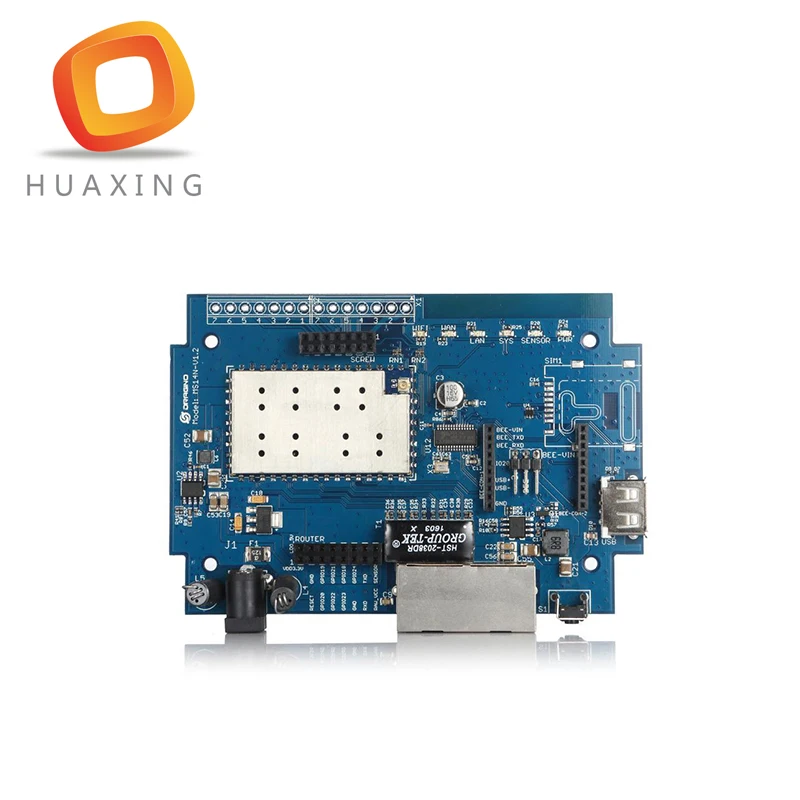

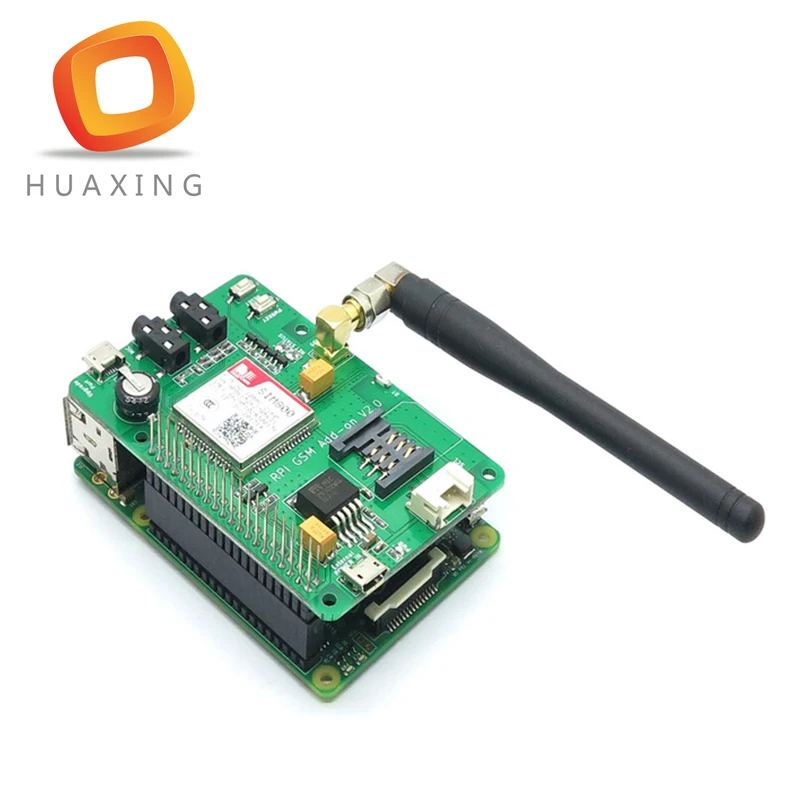

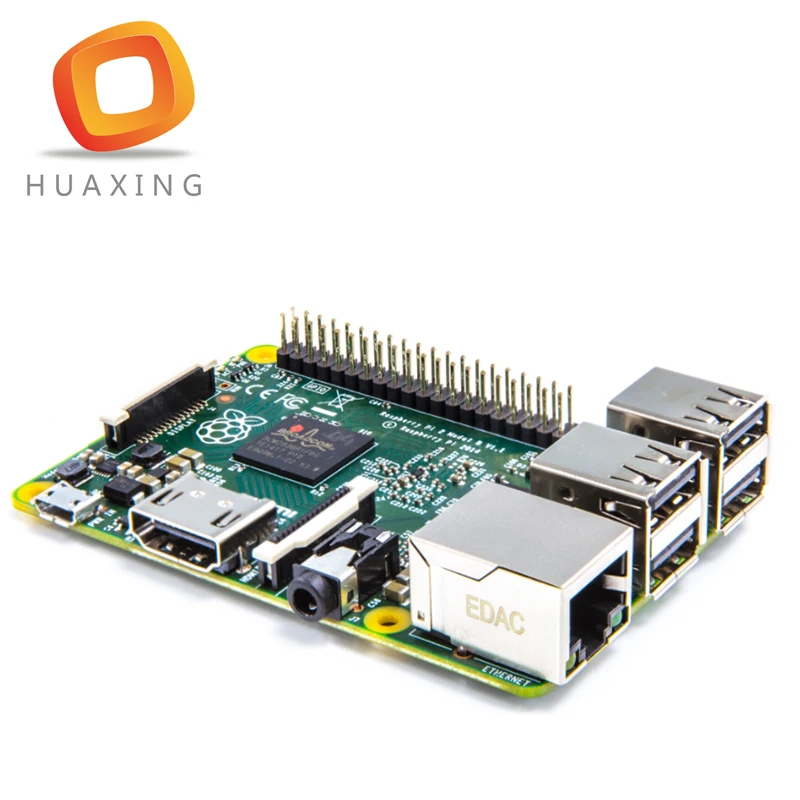

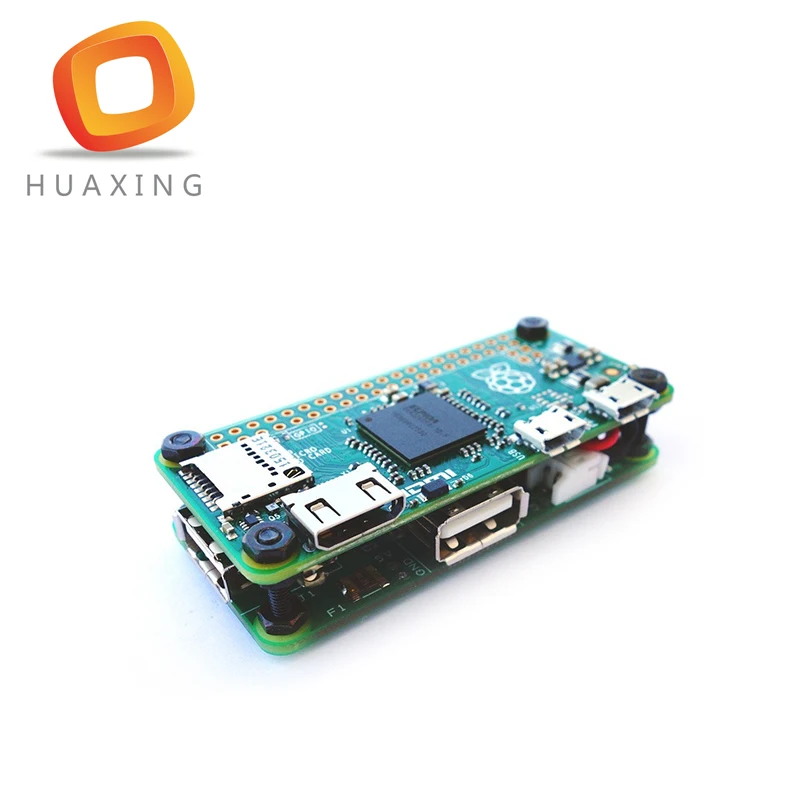

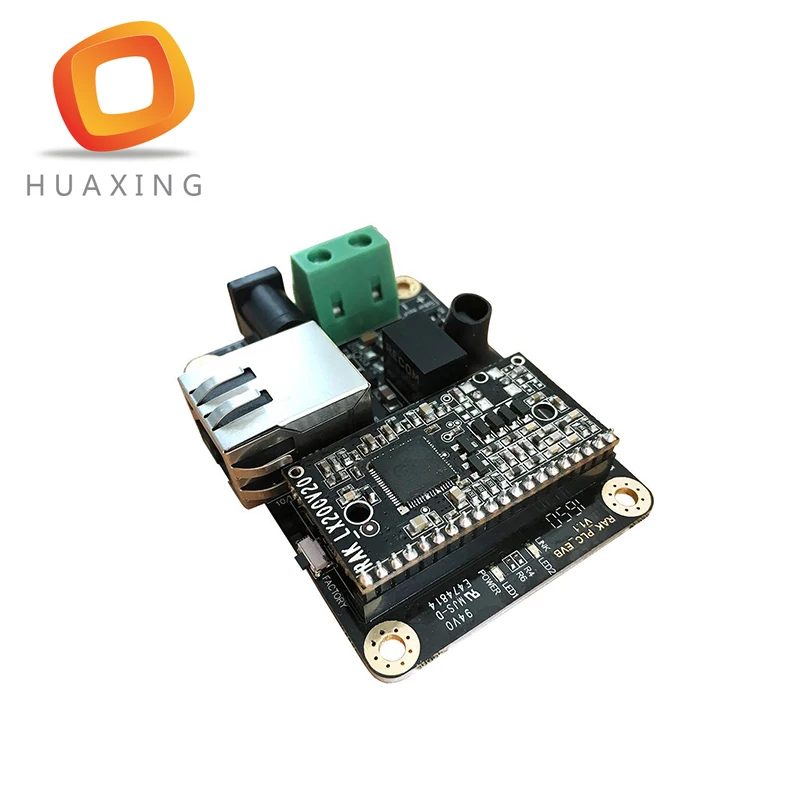

2.Picture of product
3. Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In-Circuit Test), FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High-density interconnected board placement technology capacity

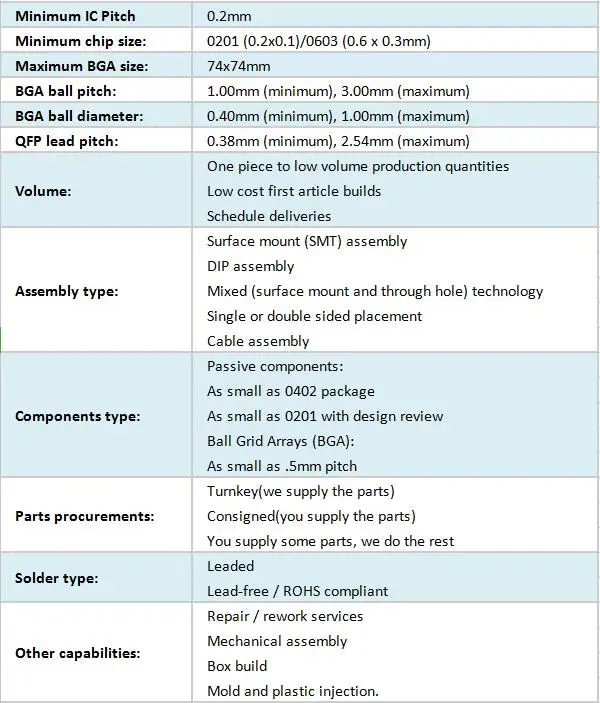

4.Technical capacity
PCBA specification
5.PCB Material Supplier
We are a Manufacturer & Supplier Specializing in Double Side PCB, Multi-Layer PCB, F4BK PCB, Ceramic PCB, Rogers PCB, Aluminum PCB. Meanwhile, we provide PCBA ( Assembly) and ODM, OEM service. We specialize in a full SMT and through hole PCBA assembly, obtaining components, building prototype quantities, and testing.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.
1. Our professional engineering team can put your project into production in a short time. Sample pictures and BOM are needed to make customized products
2. We can supply CAD and Pro-E designed precision moulds. Moulds can be designed and manufactured according to customers' requests or samples. Plastic injection processing available.
3. We have advanced equipment for through-hole and SMT DIP COB cable assembly.
4. ROHS compliant and lead-free process.
5. In-circuit, functional tests& burn-in tests, full system test
6. High output to guarantee prompt delivery.
6.Packaging
7.Certifications
Certifications
8.PCB or PCB Assembly files requests
1)Gerber files of the PCB Board
2)BOM(Bill of material) for assembly
To short the lead time, please kindly advertise us if there is any acceptable components substitution.
3)Testing method & Test fixtures if necessary.
4)programming files & programming tool if necessary
5)Schematic if necessary

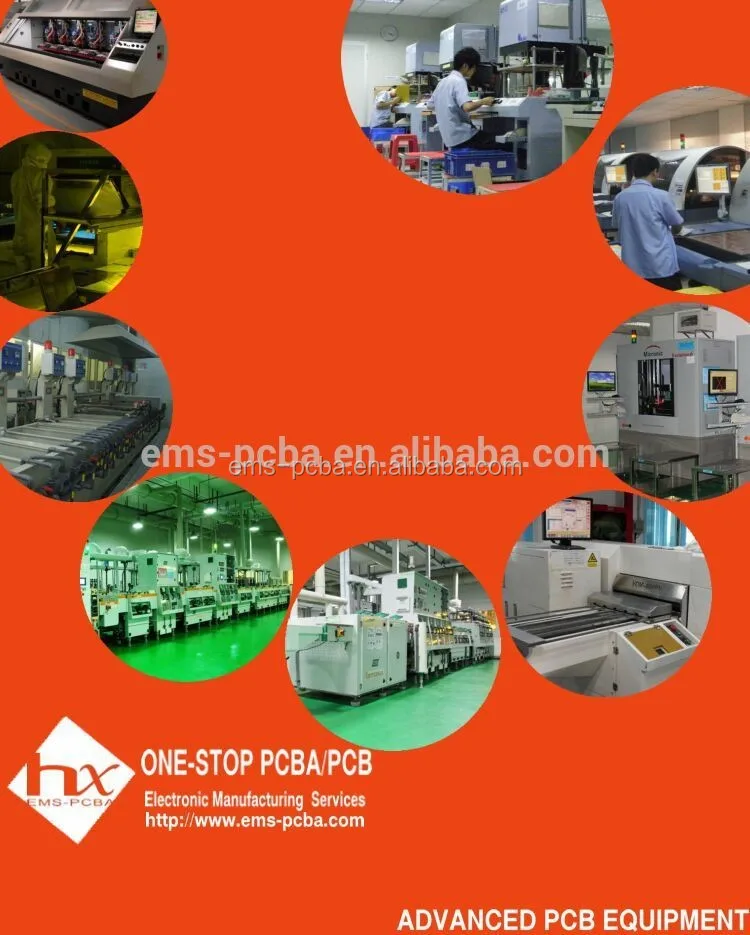

9.Our factory
10.Customer visit
2) Cloning and Copy service
3) Prototyping service
4) Mold making and plastic Injection
5) FPC making
6) Supply Chain service
12, Shippment
More details about us, kindly scan website: //www.szpcbassembly.com
If you send us your Gerber Files, PCB specification and BOM, we will quote for you within 12 hours.
Thanks in advance!
If there are any inquiries please don't hesitate to contact us, we'll respond in 24 hours!
