Портативный LCR метр AT826 с ESR от 100 Гц до 100 кГц
- Category: >>>
- Supplier: Changzhou Applent Instruments Ltd.
Share on (62148328860):
Product Overview
Description
Product Description

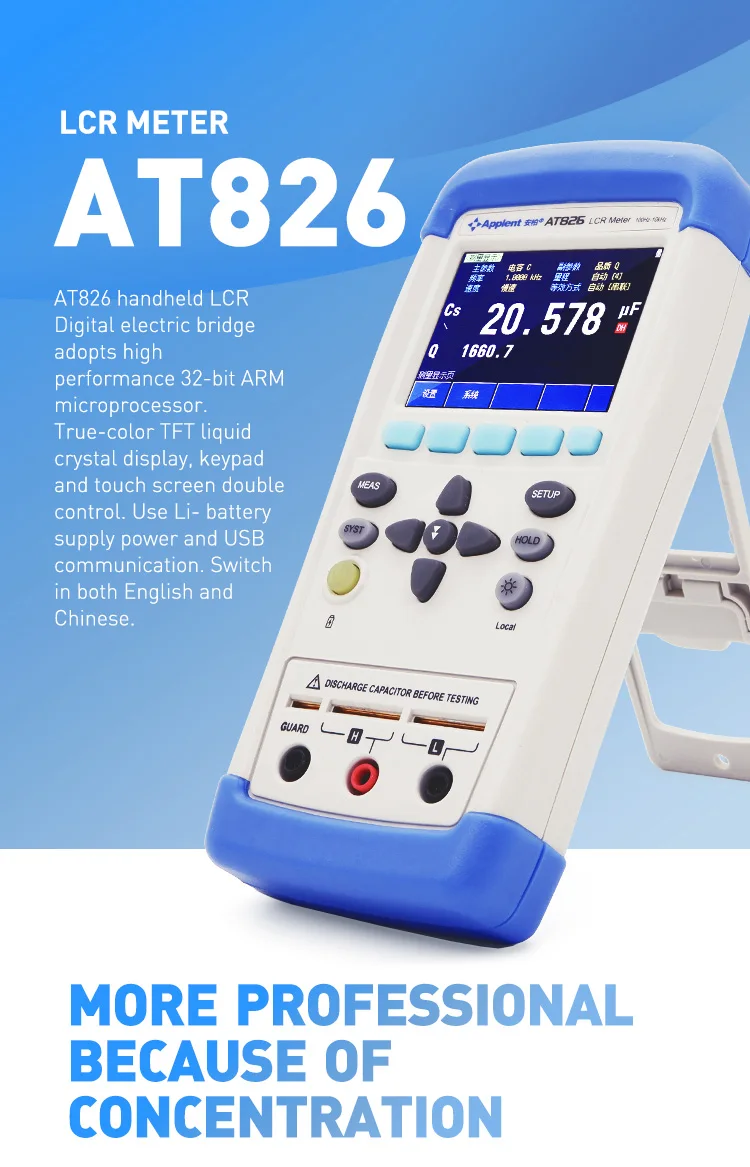

Adopt high preformance 32-bit ARM microprocessor control.

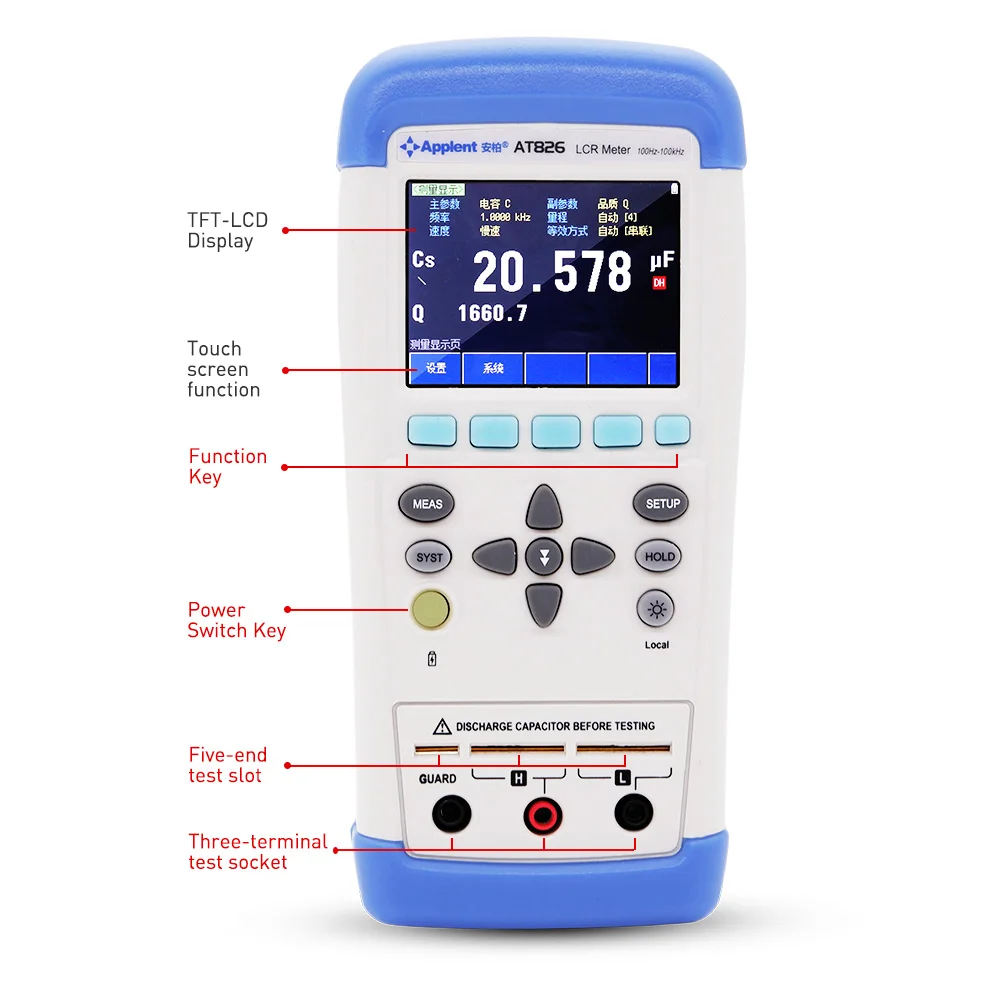

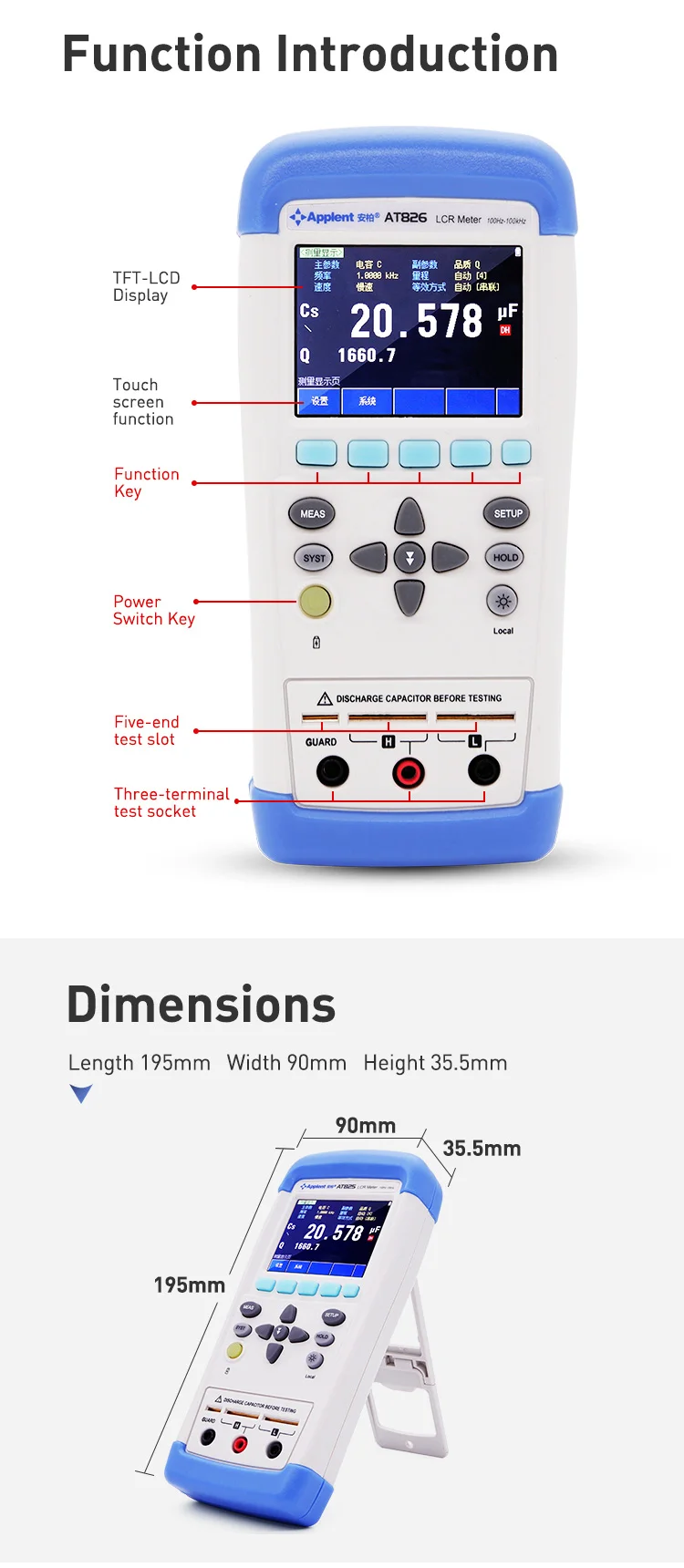

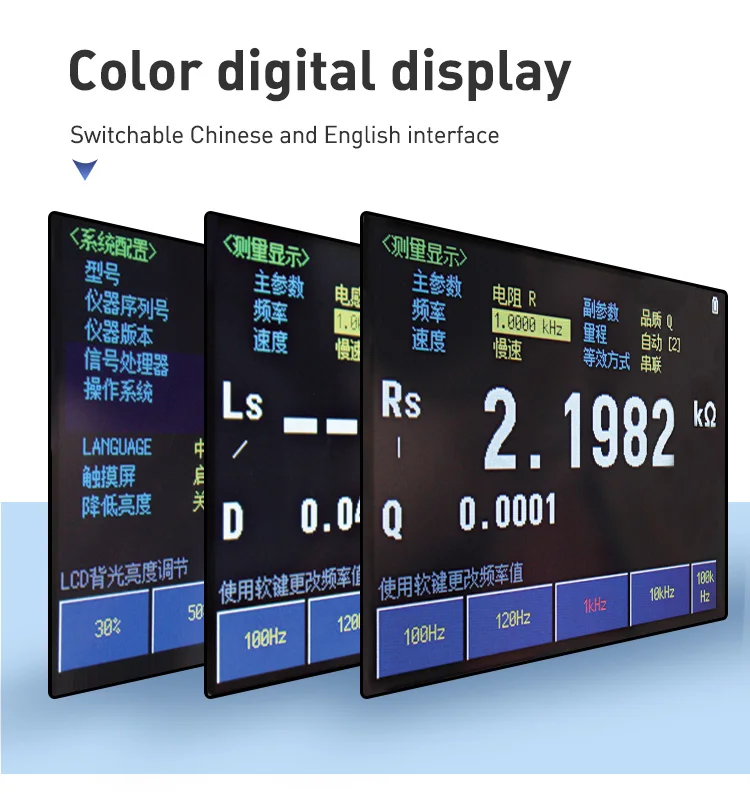

Ultra-low power consumption and density SMD assembly technology,color TFT-LCD display with keyboard,touch screen double control.
Adopt Li-battery, USB communication and English operation.
Test frequency from 100hz to 100khz,constant 100Ω internal resistance and 0.6Vrms test signal level with 0.2% accuracy.
All products are CE certificated.
Product Effects
Product parameter
| Specification | |
| AT826/AT825 | |
| Parameters | L, C, R, Z Auto |
| Sub parameters | OFF, AUTO, D, Q, θr, |
| θd, X, ESR | |
| Accuracy | 0.20% |
| Frequecny | AT826:100Hz,120Hz,1kHz,10kHz,100kHz |
| AT825:100Hz, 120Hz, 1kHz,10kHz | |
| Source | 100Ω |
| Resistance | |
| Range | Auto, Manual |
| Max display | Principle parameter: 49999 |
| sub parameter:49999 | |
| Signal level | 0.6Vrms,accuracy±10% |
| Speed | 4t /s,1.5t/s |
| Comparator | 1set, main parameter compare, beep |

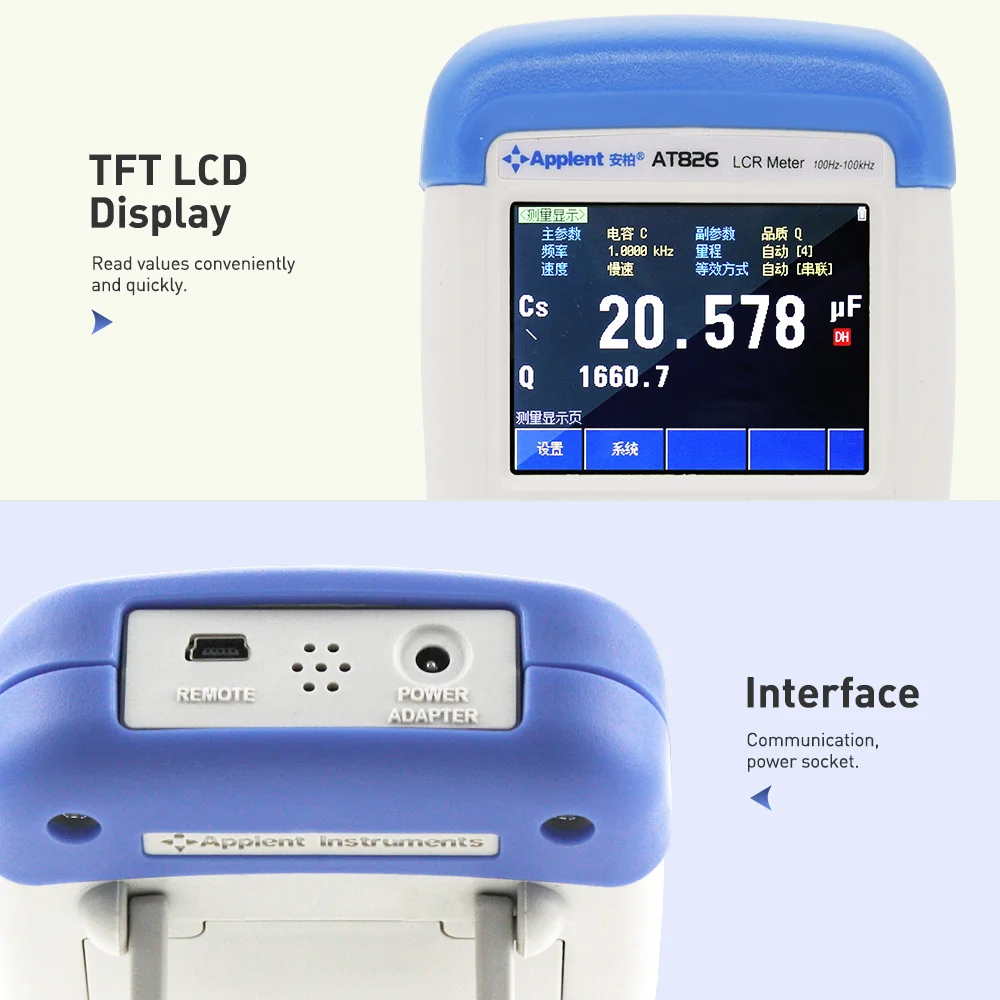

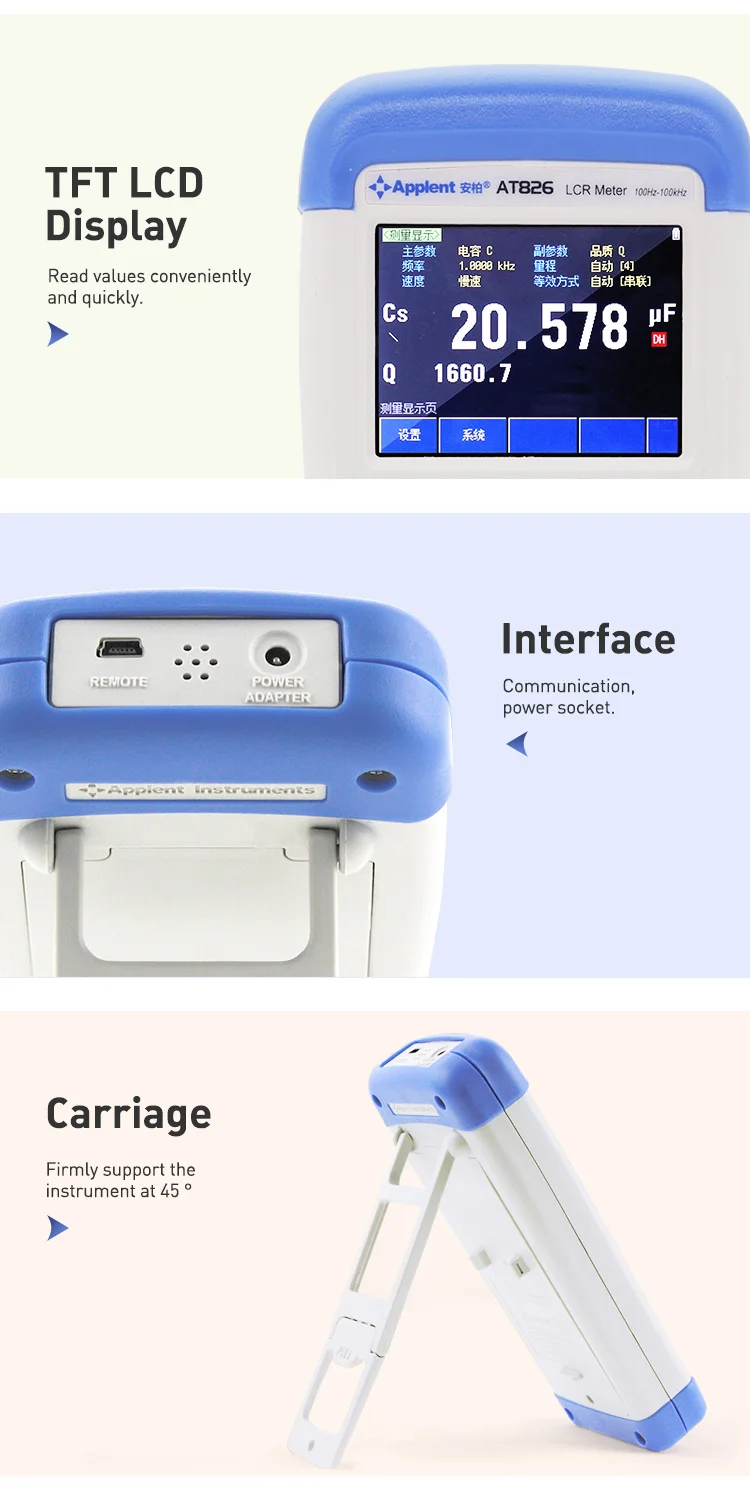

| Others | 2.8 inch 16M color TFT-LCD display |
| Touch screen; USB communication ; compatible SCPI instruction set; Chinese & English switch; Back light adjustable; Auto shutdown | |
| Power supply | input:100-240V~50/60Hz 0.35A |
| output :9V 1A DC | |
| Battery | 8.4V,Li, 1400mAh rechargeable |
| parameter | |
| Charging time | Max single continuous : 200Min |
| Working time | Highlight 30% ≥ 14 H,highlight50% ≥ 11H, |
| Highlight 100% ≥ H | |

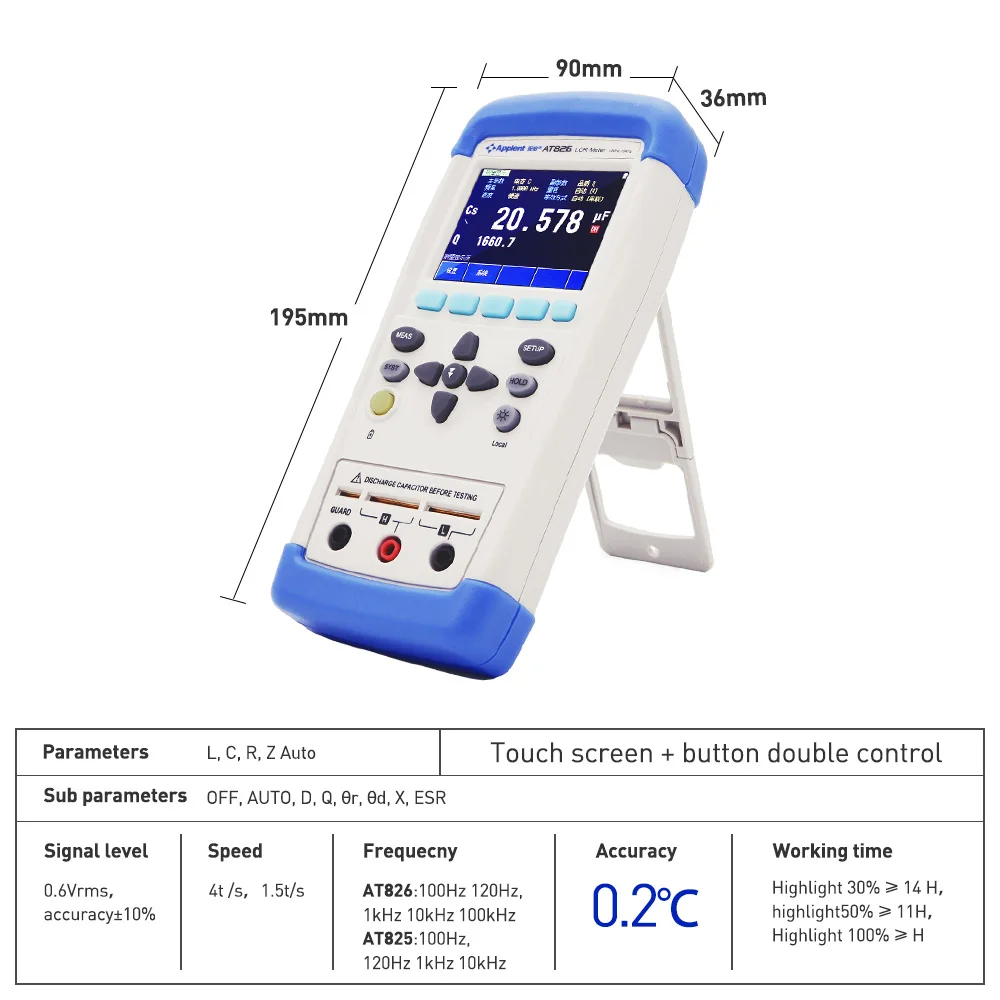

| Sizes | 90 x195 x35.5mm |
| Weight | 400g |

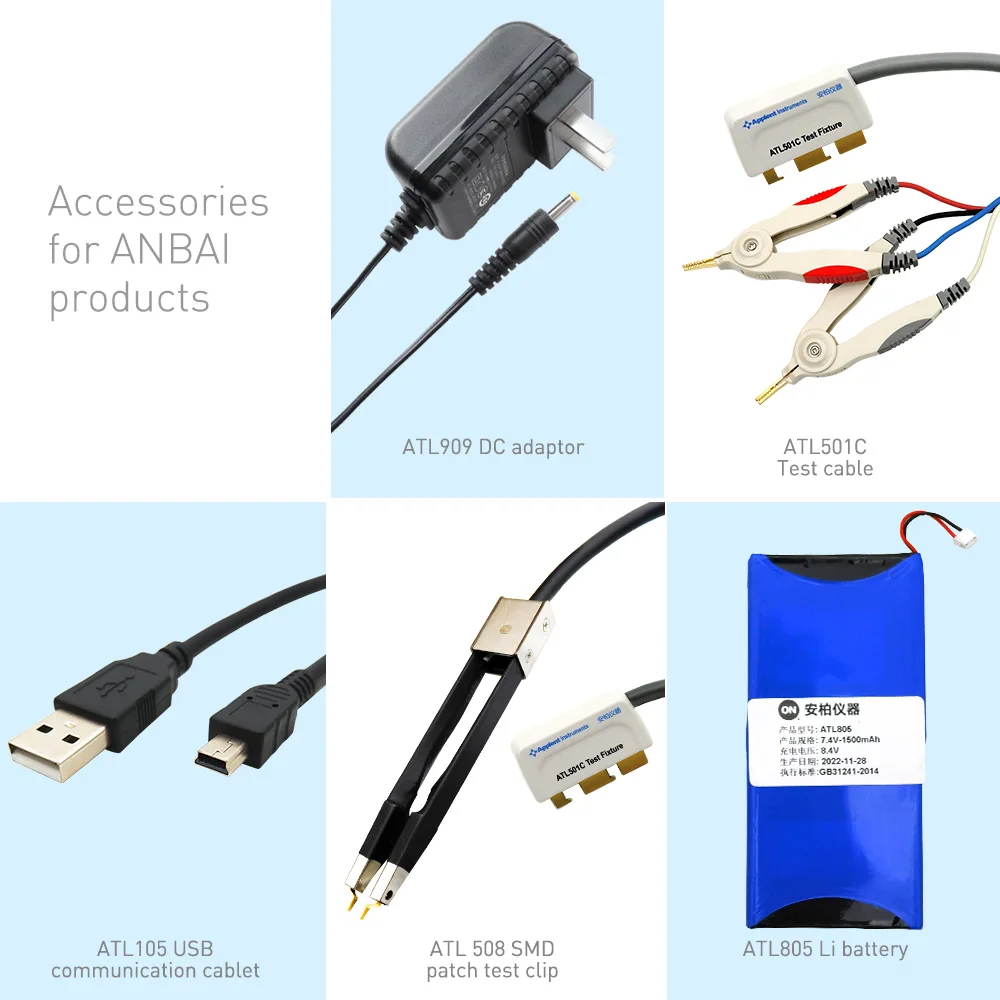

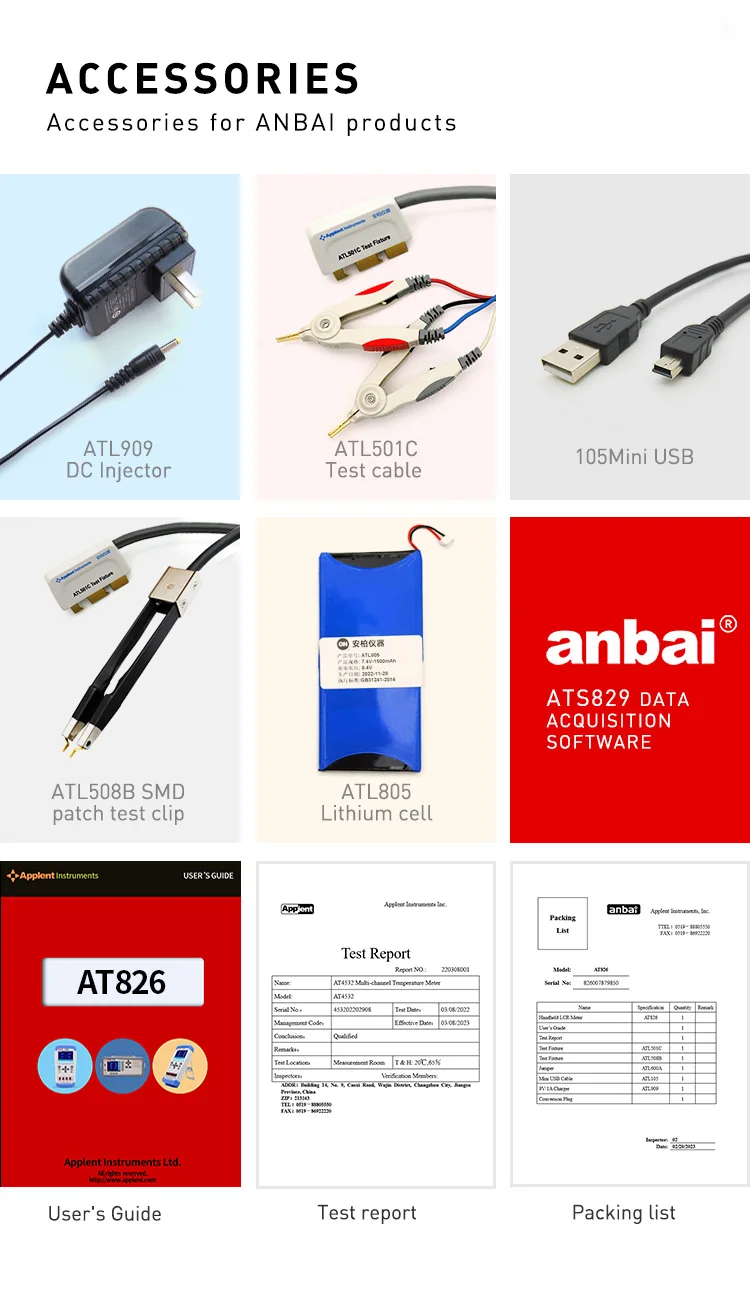

| Accessories | ATL501C Kelvin test clip |
| ATL909 DC adapter ATL805 Li battery ATL508B(AT826 standard) ATL105 USB communication cable ATS826 data acquisition sofware. | |
| Option (AT825) | ATL508B patch test clip |
Accessories
Packaging & Shipping
Certifications
Trade Shows
Company Information
Our main advantages:
A. we have strong technical team and focus on designing,researching and developing
B. we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C. we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
