Automatic Aluminum Tube Cosmetic Hair Dye Super Glue Filling and Sealing Machine
- Category: >>>
- Supplier: Zhangjiagang Mic Machinery Technology Co. Ltd.
Share on (62148590464):
Product Overview
Description
PRODUCT DESCRIPTION

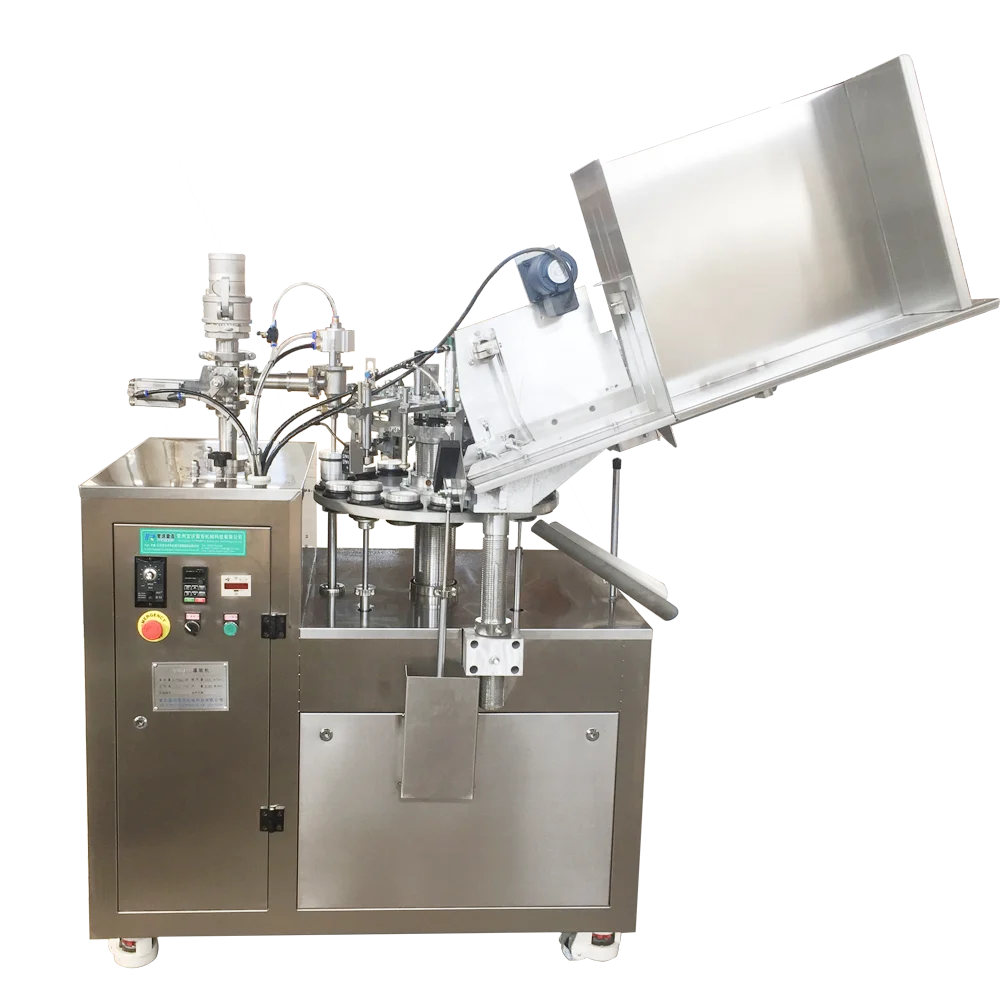

MIC-L45 small automatic Hair dye, cosmetic,super glue tube filling machine is mainly used for aluminum and metal tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc. It is pneumatic controlled, with 1 filling head and tube tail folding stations. It has total 18 positions for filling and sealing. And materials such as paste, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste, RTV silicone etc., are all applicable.
PRODUCT PARAMETER
Dimension | 1500*700*1800mm | ||
Motor | 1.5Kw | ||
Capacity | 25-35 tubes/min | ||
Maximum Tube Dia. | 60 mm | ||
Additional Function | Air pressured tank Diving filling function | ||
Dimension | 1500*700*1800mm | ||
Motor | 1.5Kw | ||
Capacity | 25-35 tubes/min | ||
Maximum Tube Dia. | 60 mm | ||
Additional Function | Air pressured tank Diving filling function | ||
PRODUCT APPLICATION
Hair dye,cosmetic,super glue tube.
DETAILED IMAGES
Working steps

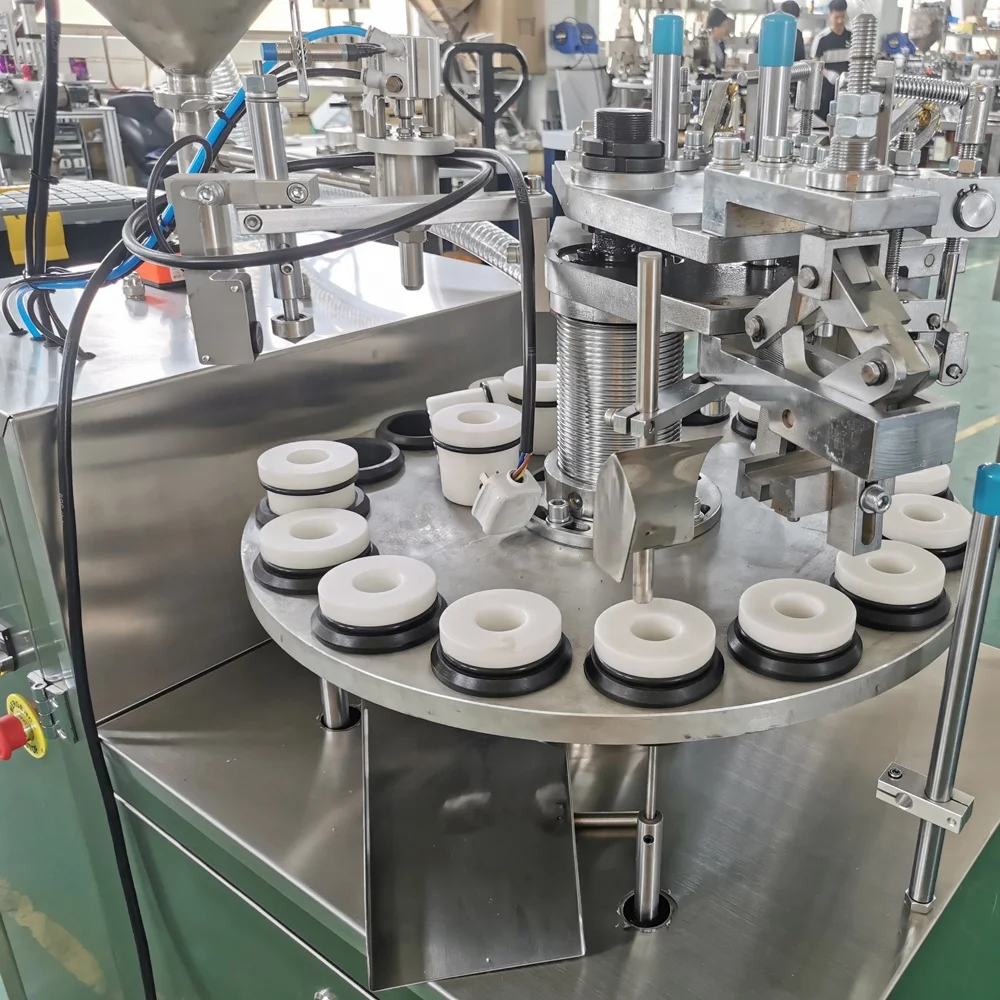

STEP1: Automatic put tubes into the molds on the plate (16 points)
STEP2: Tubes point located by the device (color sensor optional)
STEP3: Start filling when the tube is sensed by the light

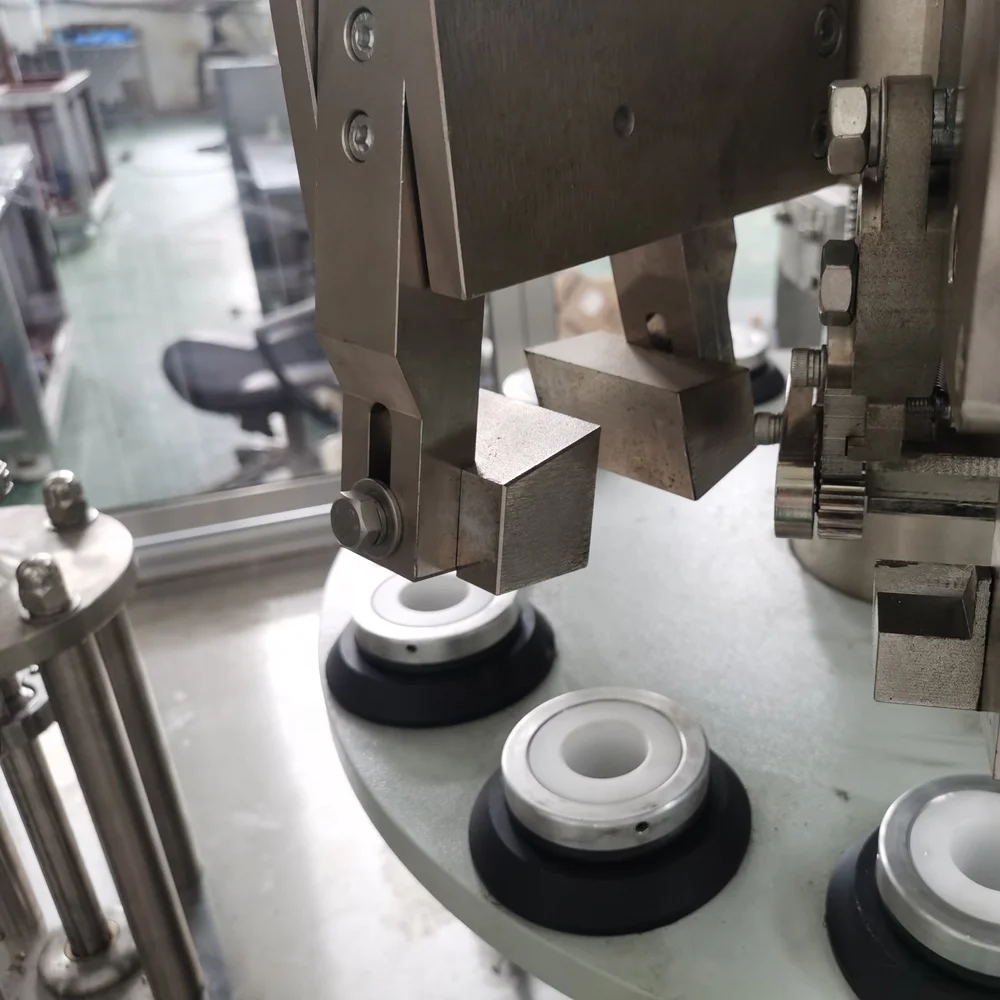

STEP4: 4 folds sealing1 and output finished products
4 folds sealing
1.Folding 180°2.Folding 180°one more time
3. Folding 180°oppositely4. Shape 5. Print
STEP2: Tubes point located by the device (color sensor optional)
STEP3: Start filling when the tube is sensed by the light
STEP4: 4 folds sealing1 and output finished products
4 folds sealing
1.Folding 180°2.Folding 180°one more time
3. Folding 180°oppositely4. Shape 5. Print
Air blowing cutting system
Suitable for hair dye, cosmetic and super glue, which are viscous liquid, help filling into tubes.
Nitrogen Dosing Filling system
Suitable for filling hair dye product, which could not touch with air directly, So it need exhaust air.
Each filling the tube base will up
PRODUCT REAL SHOT
