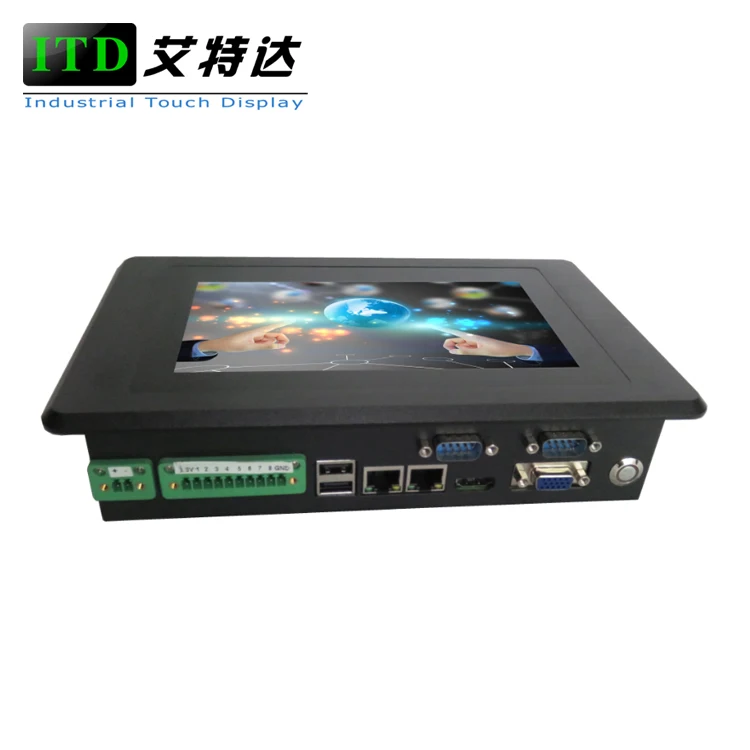

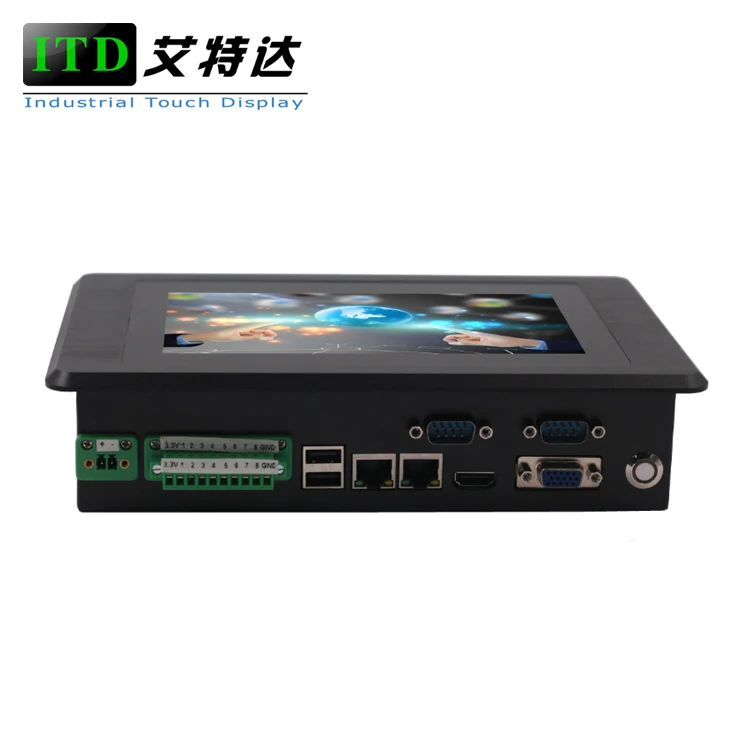

7 inch 8 inch 10 inch 12 inch industrial embedded touch screen windows7 panel PC 1000nits optional

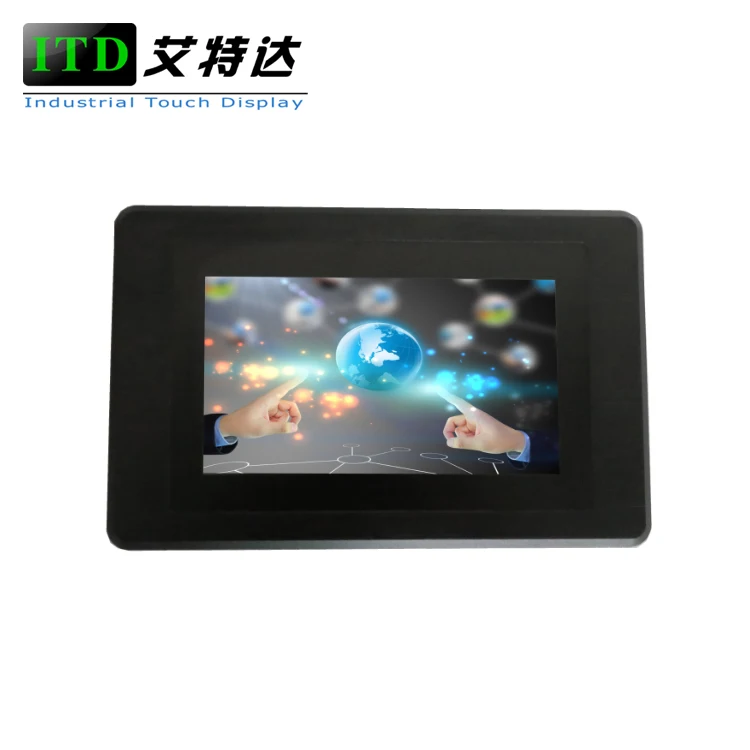

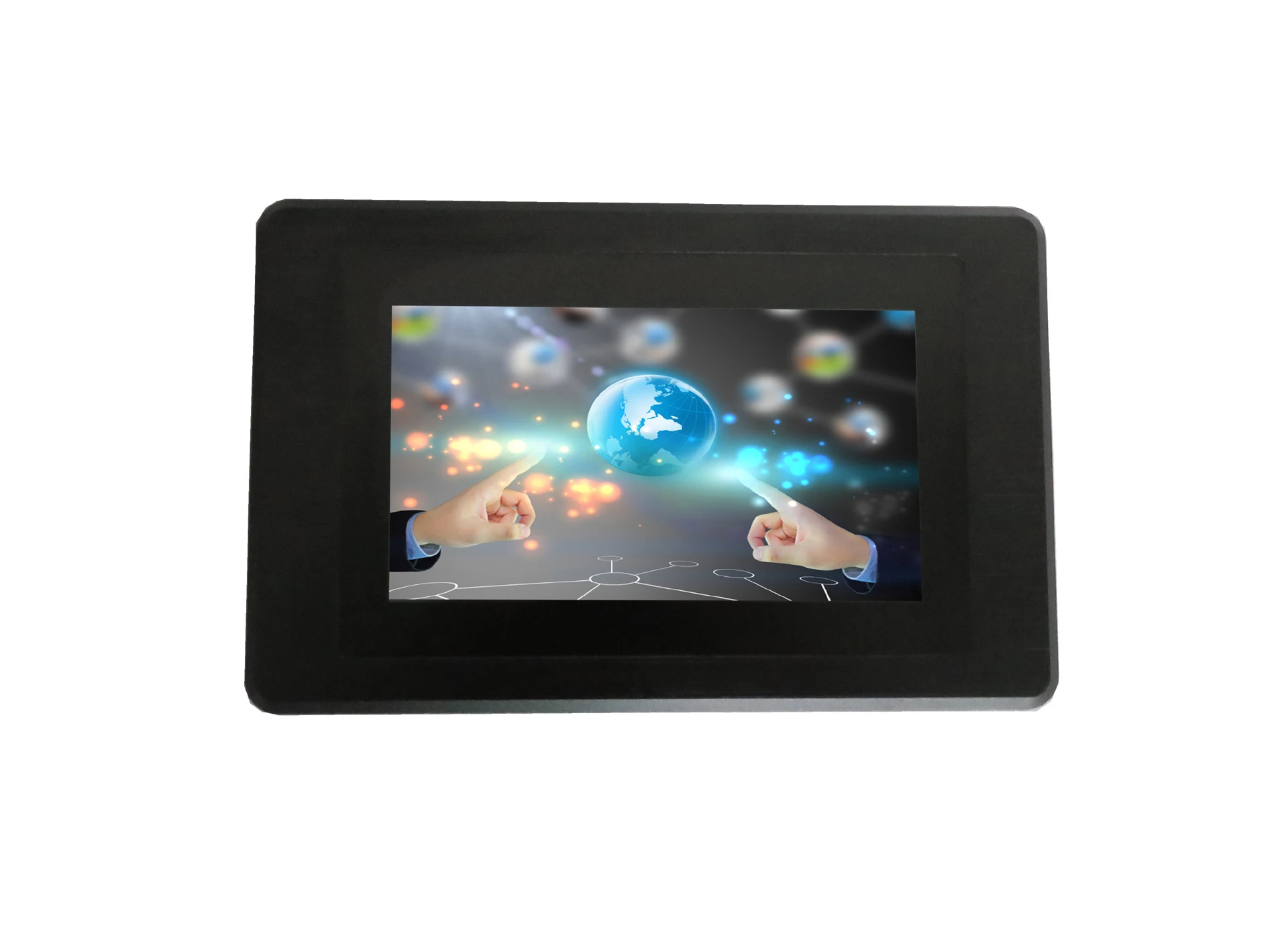

Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

7”/16:9

Active Area/ Pixel Pitch

153.6(W) x 90(H)mm/0.150 × 0.150mm

Native Resolution/ Colors

1024 x 600/ 262K/16.7M

Brightness/ Contrast

400cd/m/800:1

Response Time

50ms

Viewing Angle(Typical)

85/85/85/85

Light Source

LED Backlight with 50000Hours’Lifetime

Item

Android Solution

X86 Solution 1

X86 Solution 2

CPU

ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)

Intel® Celeron J1900 2.0GHz

Intel® Core i3/i5/i7

Chipset

RK3288

Intel Bay Trail SoC

Intel SoC Chipset

Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

Storage

8GB: 16GB/32GB/64GB Optional

1 x SATA, 1 x mSATA, Default to 64GB SSD

1 x SATA, 1 x mSATA, Default to 64GB SSD

Graphics

Supports max. 4K resolution

Intel HD Graphics (By CPU)

Intel HD Graphics (By CPU)

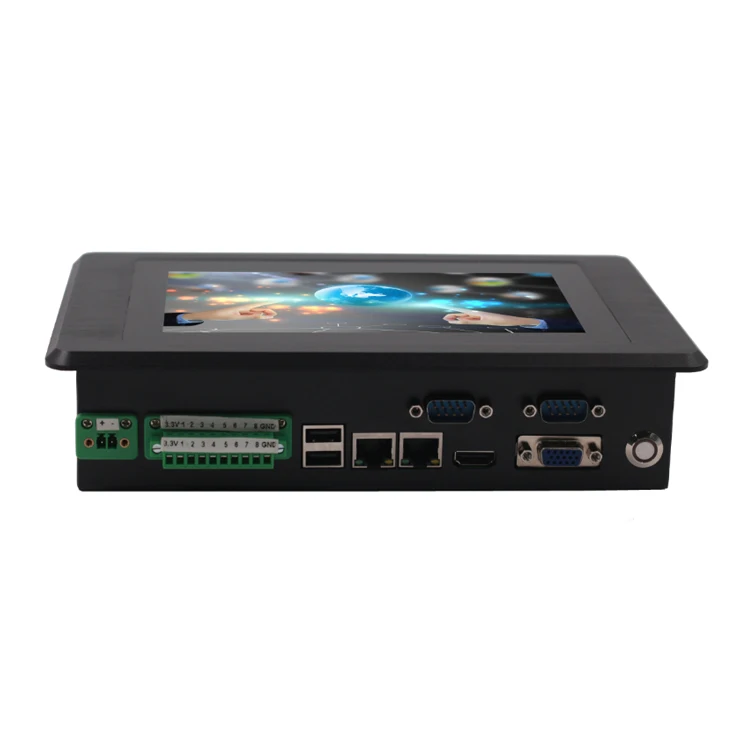

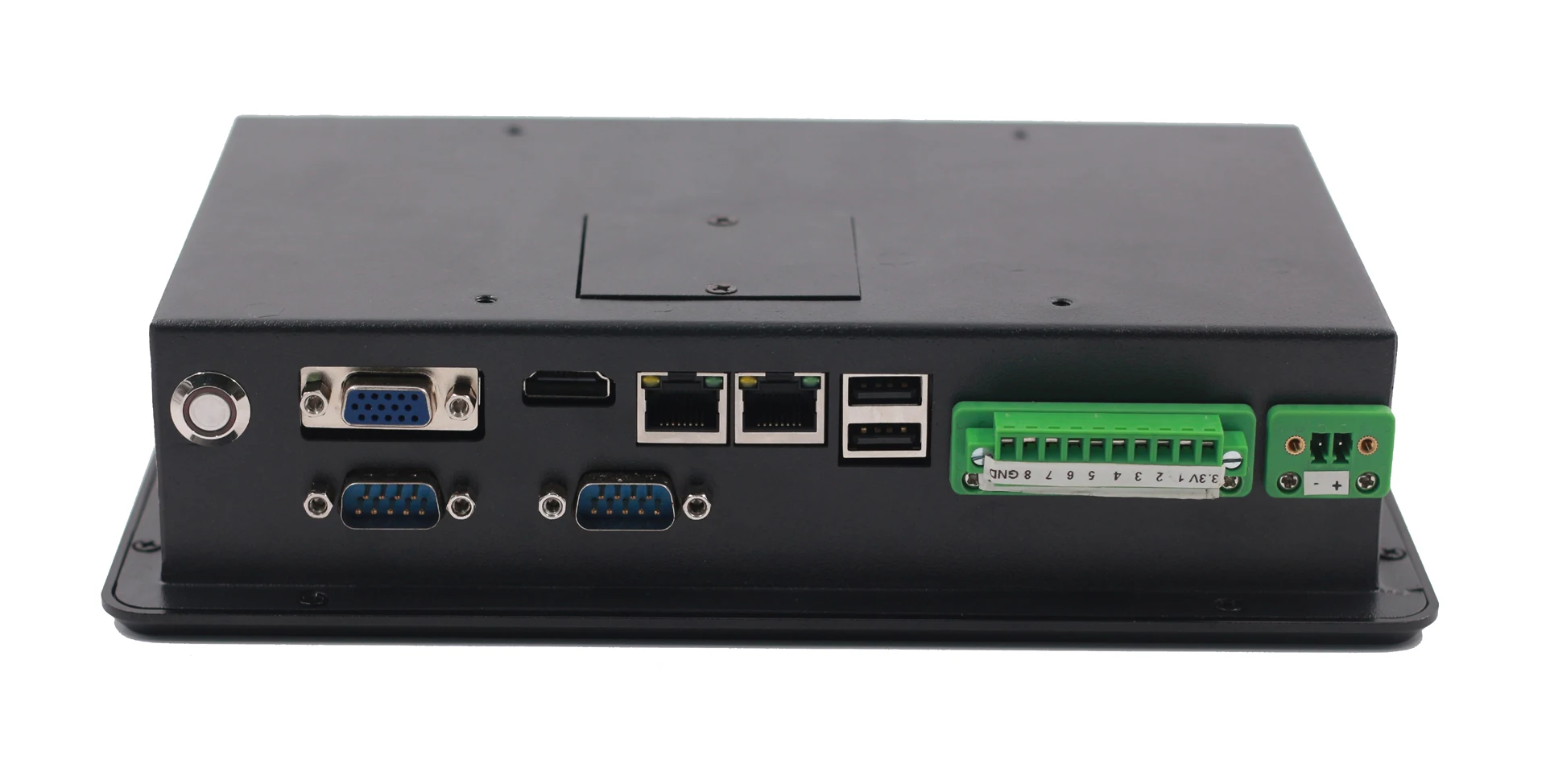

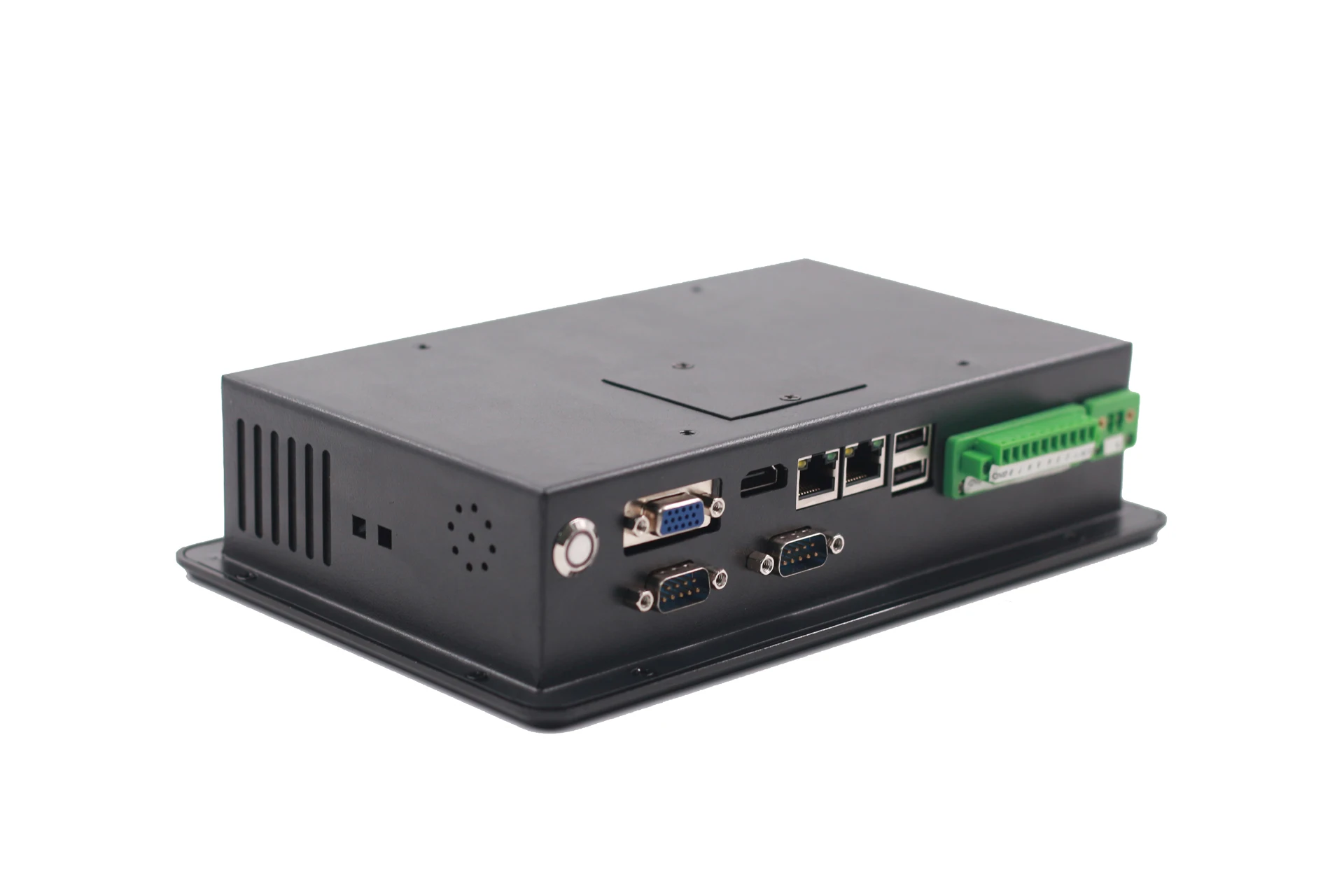

I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN

LAN

1 x 10/100/1000Mbps Ethernet

1 x 10/100/1000Mbps Ethernet

1 x 10/100/1000Mbps Ethernet

OS

Android 6.0 (Android 7.0 optional)

Windows 7/8/10, Linux

Windows 7/8/10, Linux
