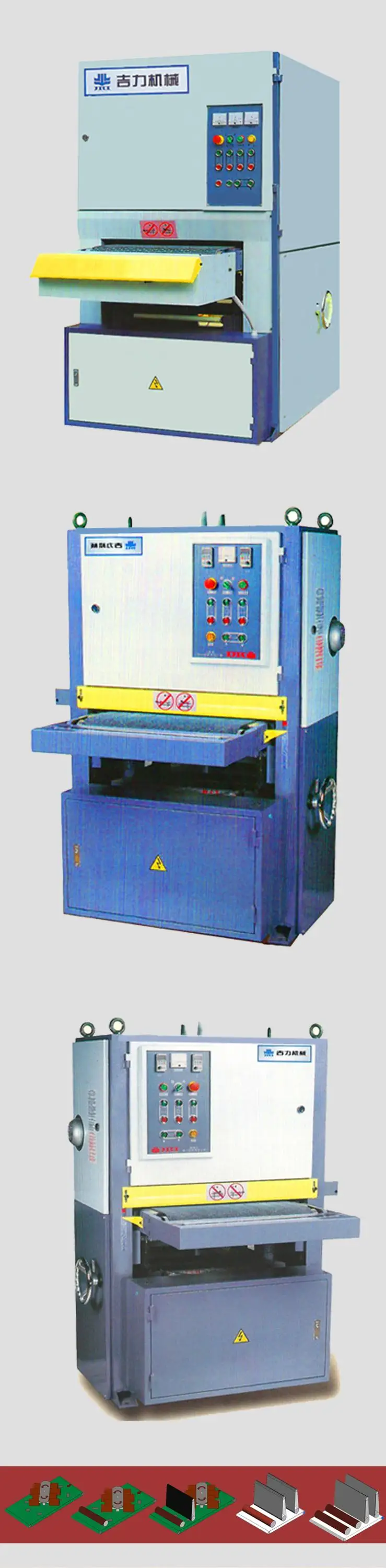

1. Special curved nonmetal material surface sanding machine
2. The sanding machine suits for finish sanding of some marble,solid wood, bamboo wood, panel
furniture, wood door and windows, veneer board, laminated wood etc.
3. It suits for calibrating and polishing all kinds of panels which thickness deviation is big.

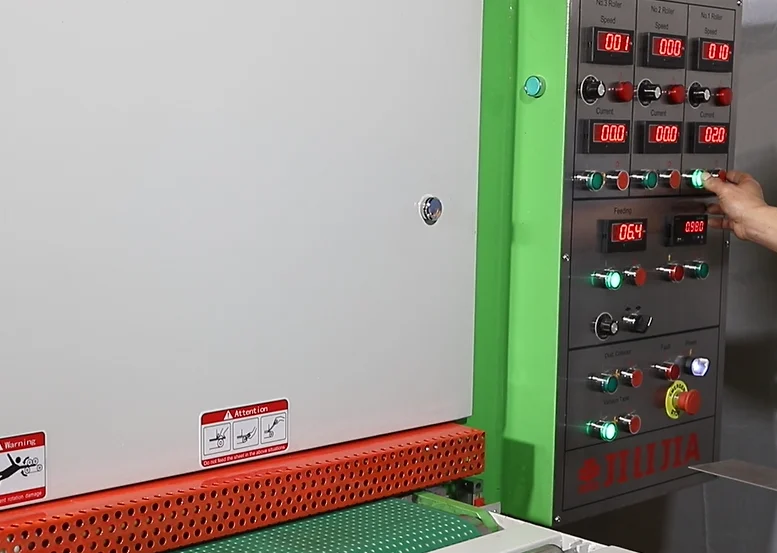

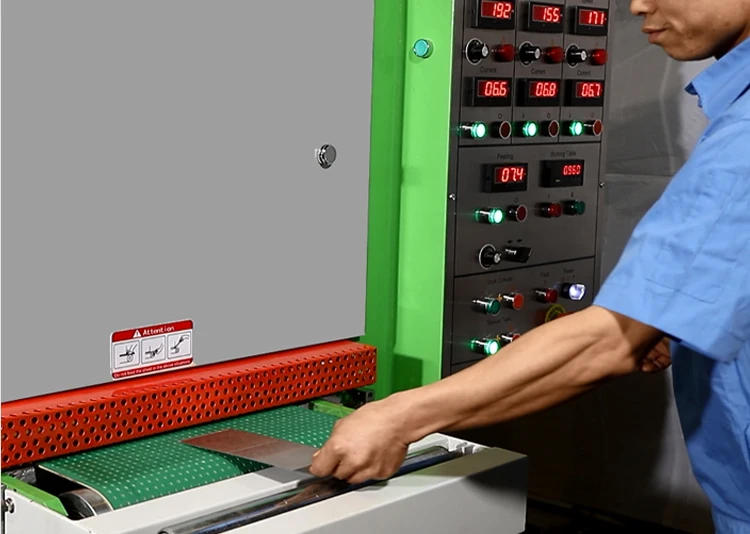

4. The micro computer controlling panel is easy to operate.
5. It is with high precision and good working stability.

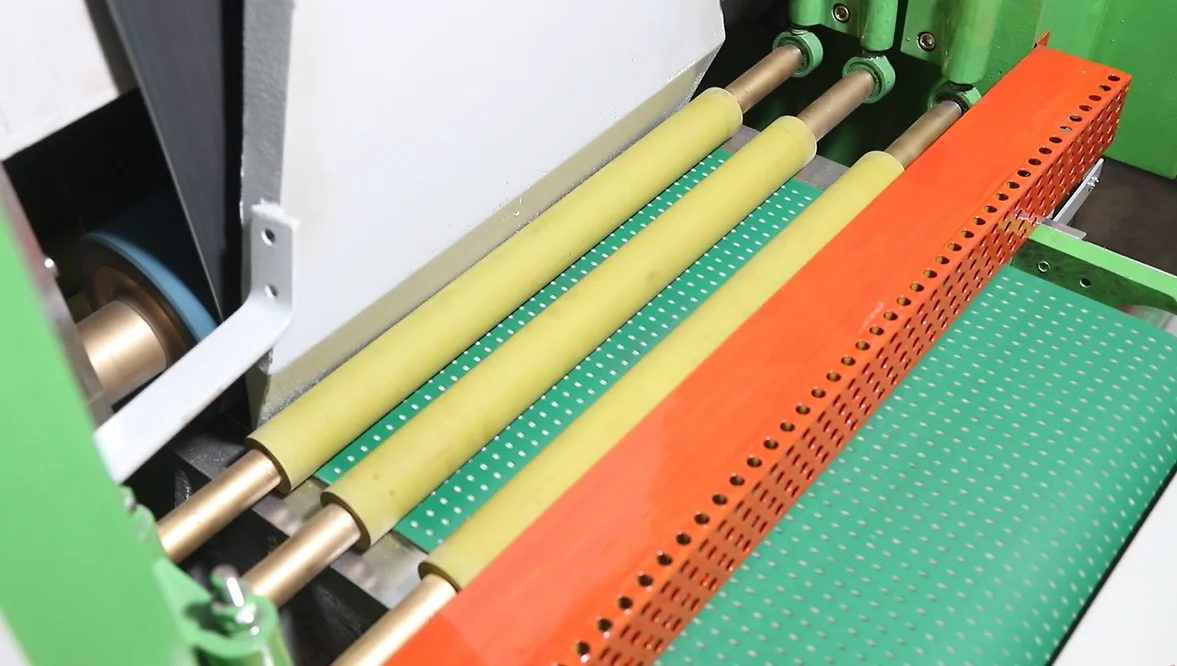

6. The machine with strong rigidity, big weight and using double pressing rollers.
7. The machine will auto stop to ensure safety when lacking of air pressure or breaking of abrasive
belt.
Model
JMS-400
JMS-600
JMDD-600
JMSS-600
JMS-700
Width
400mm
600mm
600mm
600mm
690mm
Thickness
120mm
130mm
130mm
120mm
130mm
Feeding Speed
7.5m/min
8m/min
20-30m/min
7.5m/min
8m/min
Sand Belt Size
400×1380
600×1380
600×1380
600×1380
600×1380
Main Motor
14.5kW
19.8kW
5.5kW
28kW
19.8kW
Air Pressure
0.55Mpa
0.55Mpa
0.55Mpa
0.55Mpa
0.55Mpa
Dimension
1.25×1.53×1.75
1.63×1.53×1.69
1.63×1.3×1.69
1.53×1.9×1.69
1.65×1.53×1.72
Weight
900kg
1200kg
560kg
2000kg
1400kg
Heads Number
2
2
1
2
2
Company Information
Foshan Ji Li Jia Machinery Co., Ltd. is a hightech company specialized in the R&D, production, and marketing kinds of surface treatment machine and related products. We start in this field in1995, and already install machines more than 20 countries.
Our company currently has 70 employee, including 10 expects, technician, and 2 programmer engineers. We have a high quality raw materials and manufacturing accuracy control, in order to represent the highest standard of the surface treatment machine.
Successful Case
We have more than 20 years experience on surface processing machinery, our team provide a powerful installation, training, turn-key service.
