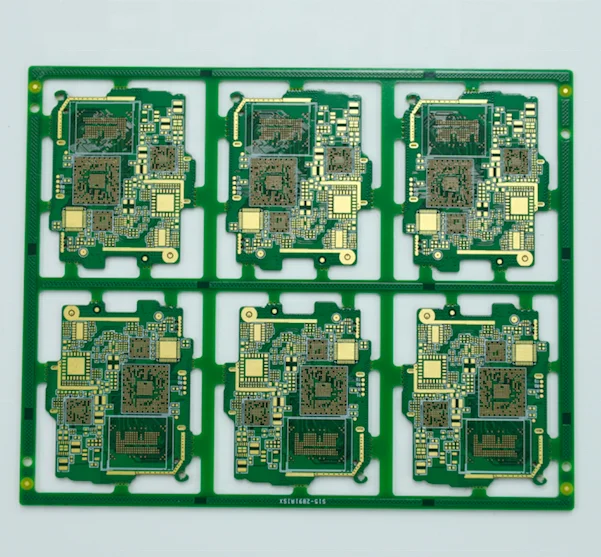

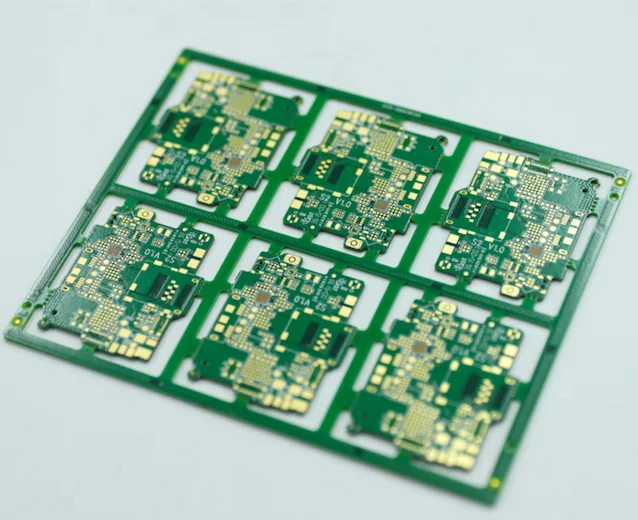

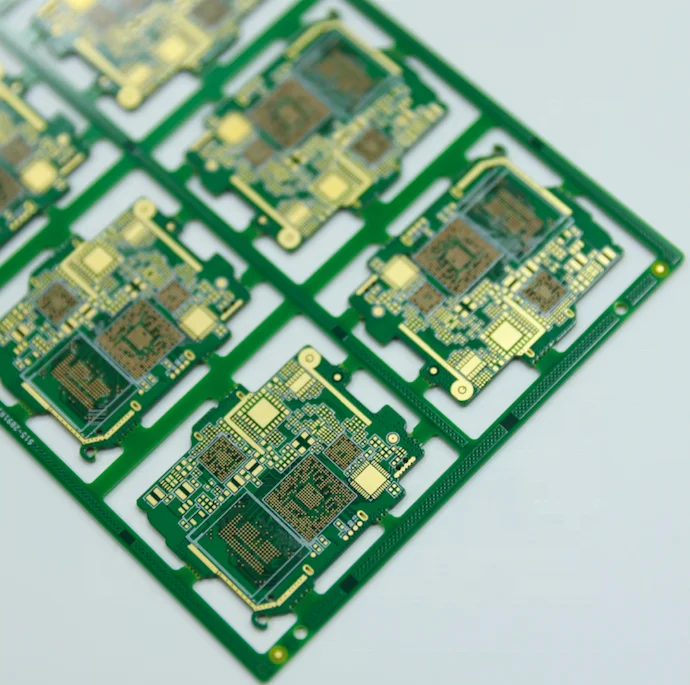

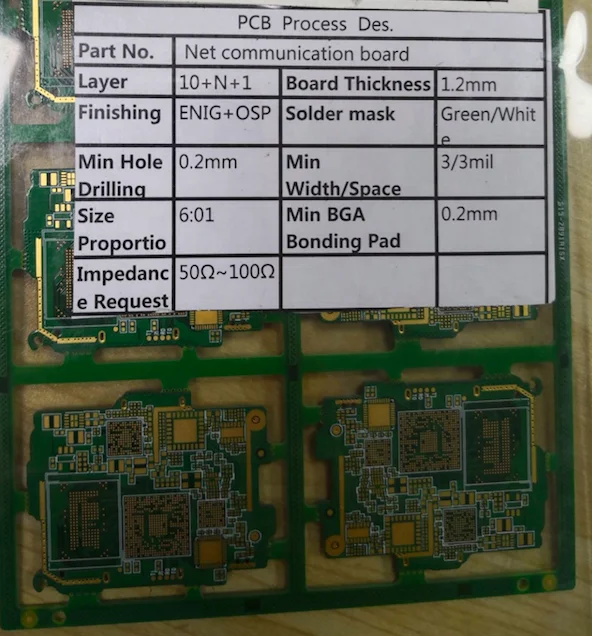

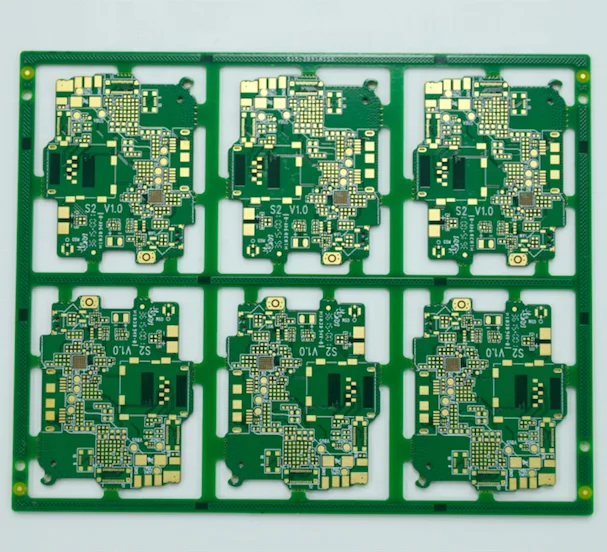

OEM Circuit board production multilayet fr4 94v0 PCB/Cem 1 94v0 /10 layers BGA net communication board

PCB Assembly Capability

LEAD TIME FOR PRODUCTION ORDERS:

OEM/ODM/EMS Services for PCBA:

·        PCBA, PCB Board assembly: SMT & PTH & BGA

·        PCBA and enclosure design

·        Components sourcing and purchasing

·        Quick prototyping

·        Plastic injection molding

·        Metal sheet stamping

·        Final assembly

·        Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

·        Custom clearance for material importing and product exporting

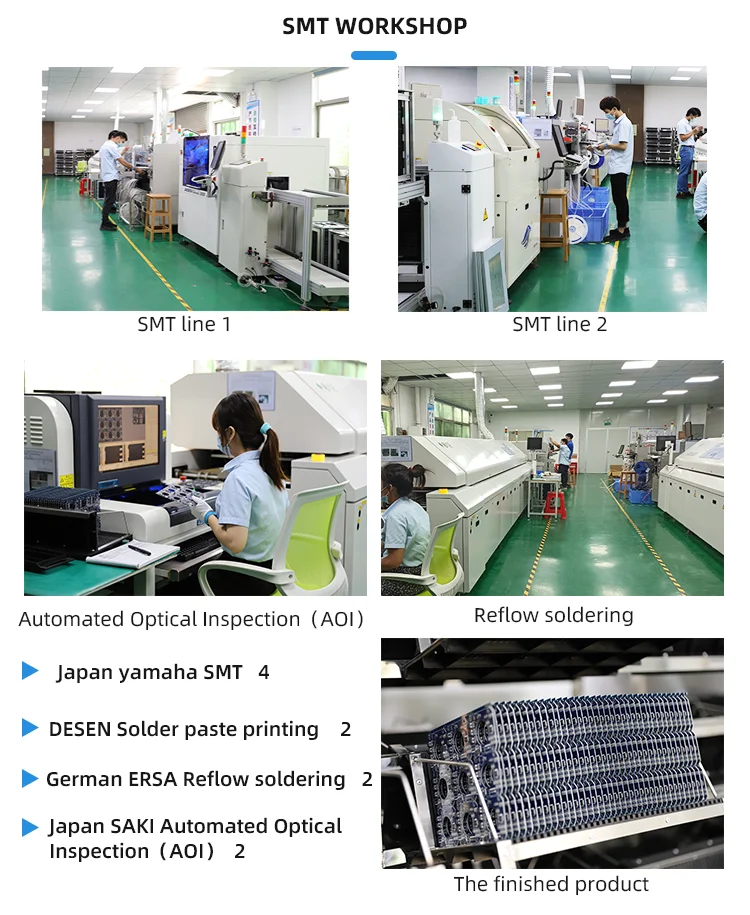

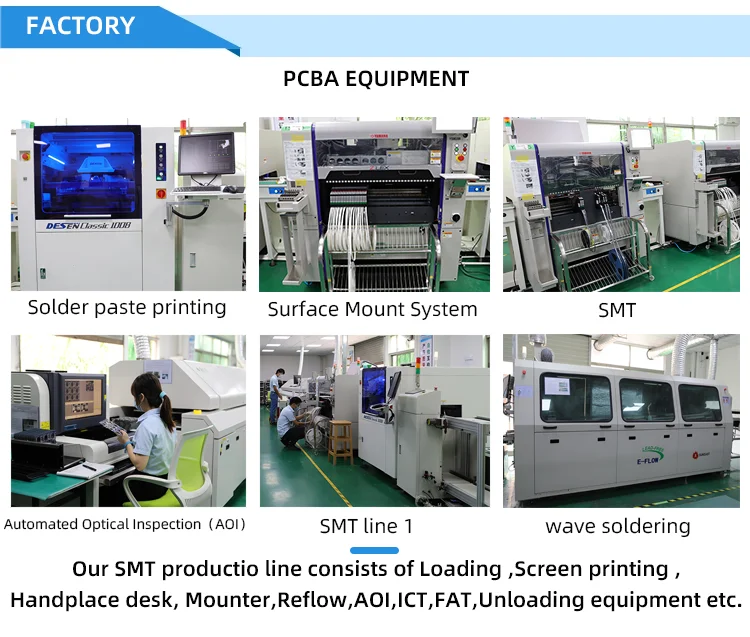

Capability - SMT

·        Lines                   9(5 Yamaha,4KME)

·        Capacity                 52 million placements per month

·        Max Board Size           457*356mm.(18”X14”)

·        Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP

·        Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

·        Lines                   2

·        Max board width         400 mm

·        Type                   Dual wave

·        Pbs status               Lead-free line support

·        Max temp               399 degree C

·        Spray flux               add-on

·        Pre-heat                 3

1. What professional service we offer ?
PCBA One-stop OEM service from PCB manufacture , Components sourcing , and then Assembly in house .

2. High quality control ability.
We provide 100% ICT Testing & 100% Function Testing for High quality control

3. MOQ.
No MOQ , and we provide samples testing before Mass production

4. Fast Delivery time.
PCB Samples or medium orders , 5-7 days, Mass production 2 weeks
PCBA samples or medium orders , 10-15days , Mass production 3 weeks.
