Product Overview
Description

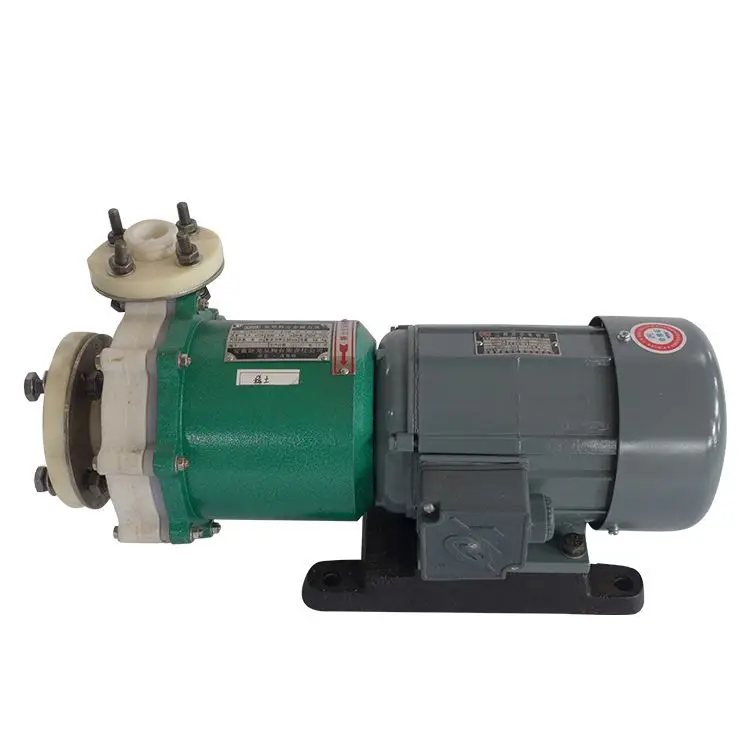

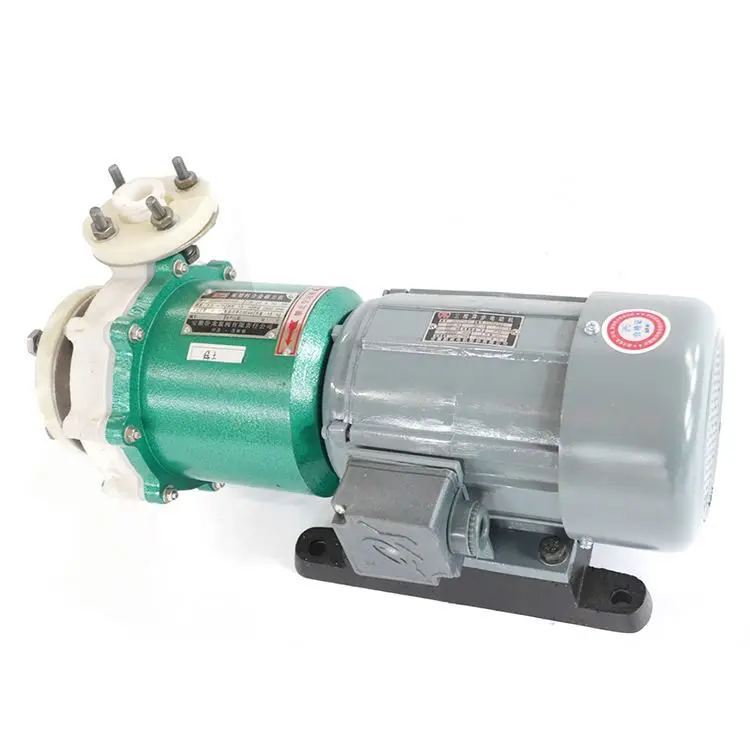

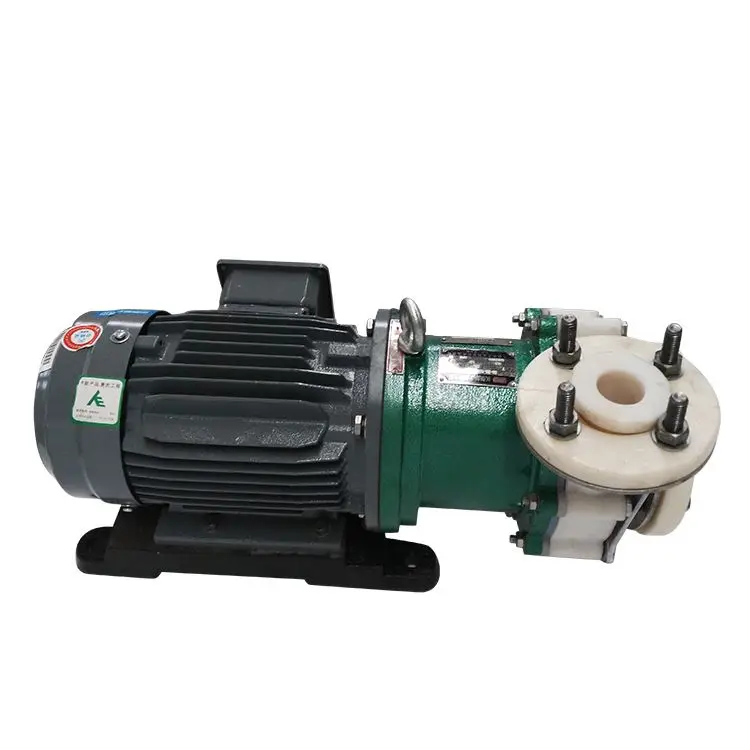

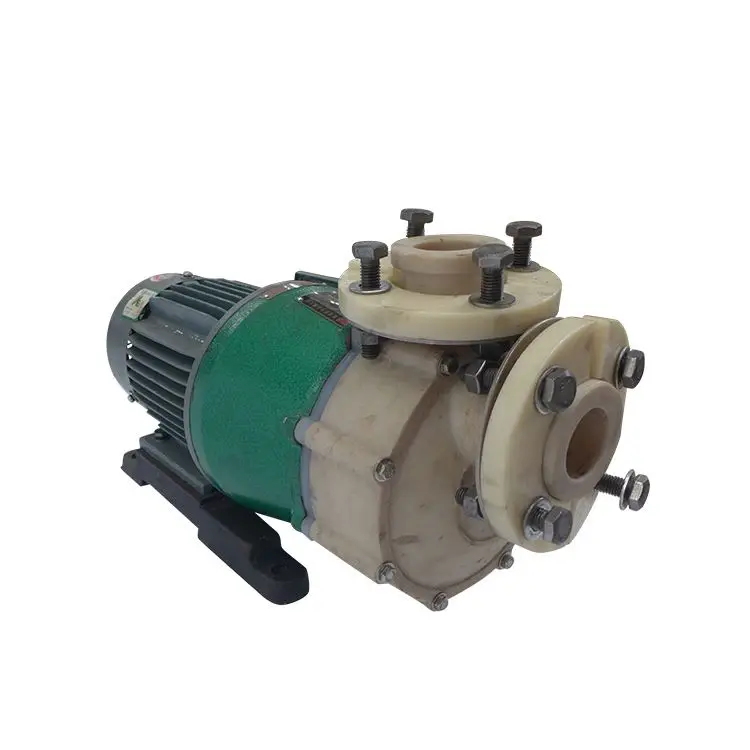

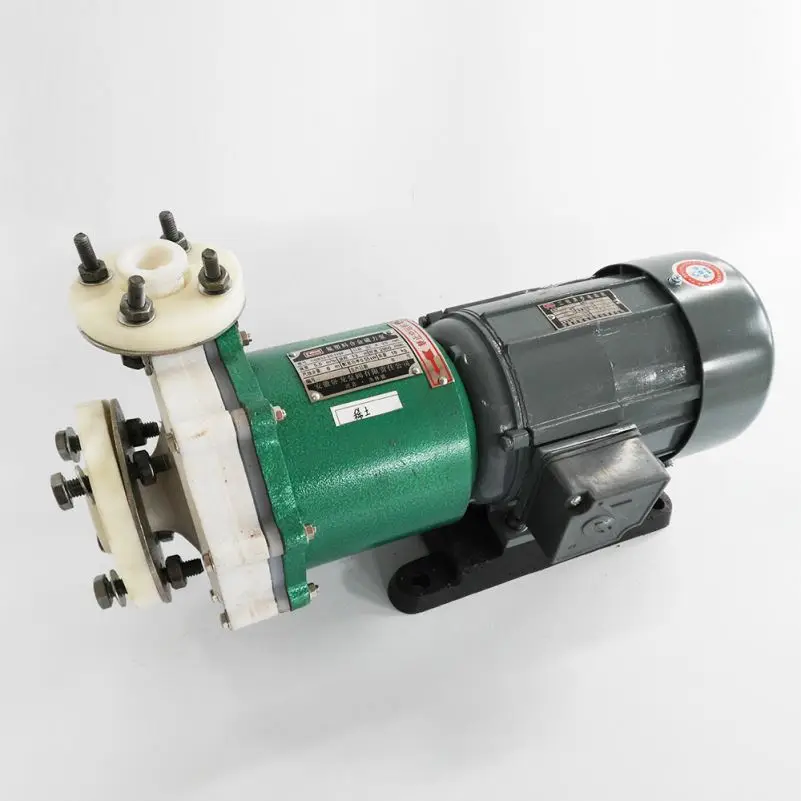

Magnetic drive chemical circulating pump
Product Description

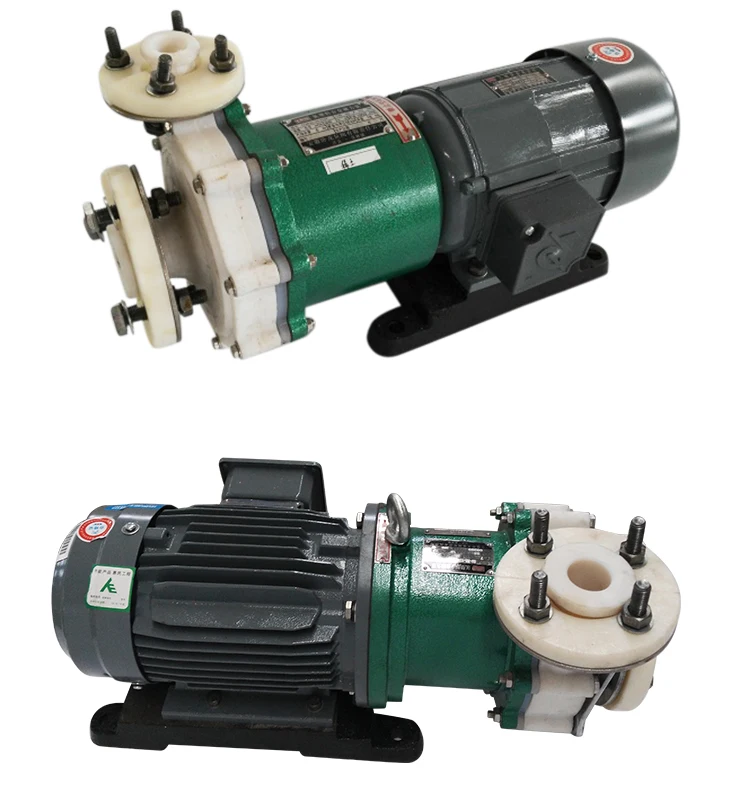

CQB40-40-125 Teflon Lined Magnetic Drive Pump
- Flow rate: 1~9 m3/h;
- Total delivery head: 16~19m
- Temperature ratings from -20 °C to +100 °
magnetic drive chemical circulating pump Application:
- Corrosive, pure and contaminated media in the chemical,
- Pharmaceutical and petrochemical industries,
- In metal processing,
- Waste water treatment etc.
- When Stainless steel is not sufficiently resistant
- Alternatively to expensive Haste alloy, titanium alloy Pumps
- When anti-corrosive surfaces are important.
Pumping Liquid
- Acid and caustic liquid
- Oxidizer corrosive liquids
- Difficult-to-seal liquids
- Sulfuric acid
- Hydroelectric acid
- Nitric acid
- Acid and lye
- Nitro muriatic acid
Leak-proof design
- -Seal-less Teflon lined magnetic drive pump, driven by magnetic coupling indirectly. Motor shaft and pump chamber are completely sealed, which avoids pump leakage problem and pollution.
- -Wetted part material is PTFE fused with FEP, which enables it to transfer both low and high concentration acid, alkali, strong oxidizer and other corrosive liquid.
- -The structure is tight, safe, and energy-saving.
-Cost-intensive wearing parts are canceled by the seal-less method of construction, which reduces maintenance costs and prolongs its service life.
Click Here >>>>> Get more Information !!!
Model and parameters
Design Pressure: 1.6MPa
Pump Model | Flow (M3/h) | Head (m) | Efficiency (%) | NPSHr (m) | Speed (n) | Inlet (mm) | Outlet (mm) | Motor Power | Pump and motor Weight (KG) |
CQB 40-40-125F | 4 | 19 | 35 | 3.7 | 2900 | 40 | 40 | 1.1 | 40 |
*6.5 | 17.5 | 42 | |||||||
9 | 16 | 40 |

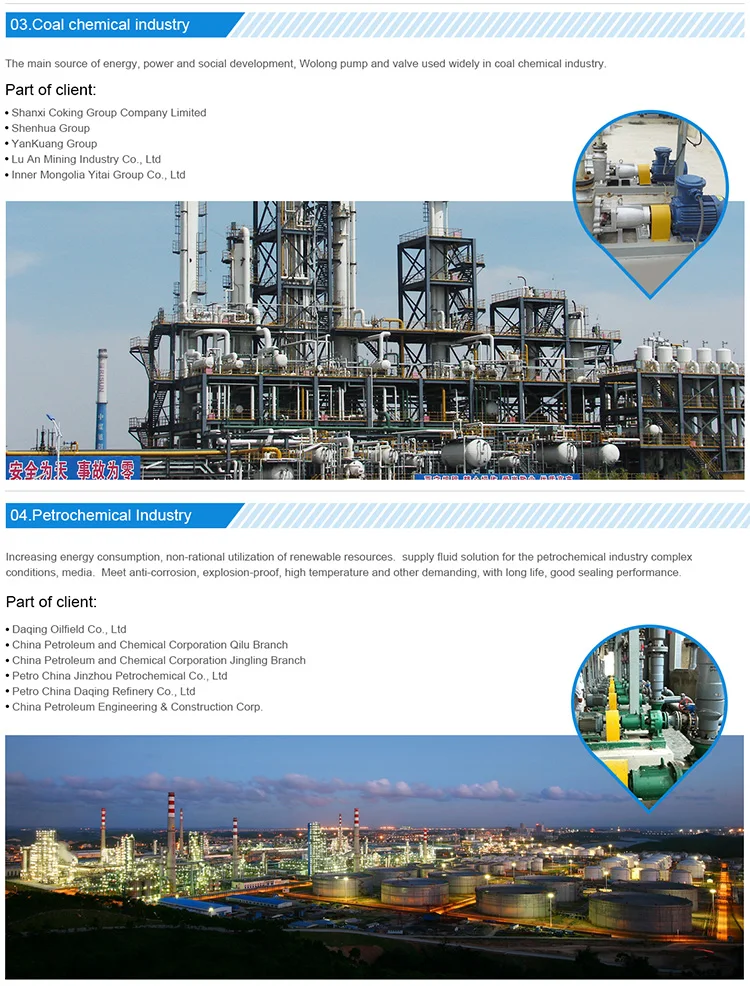

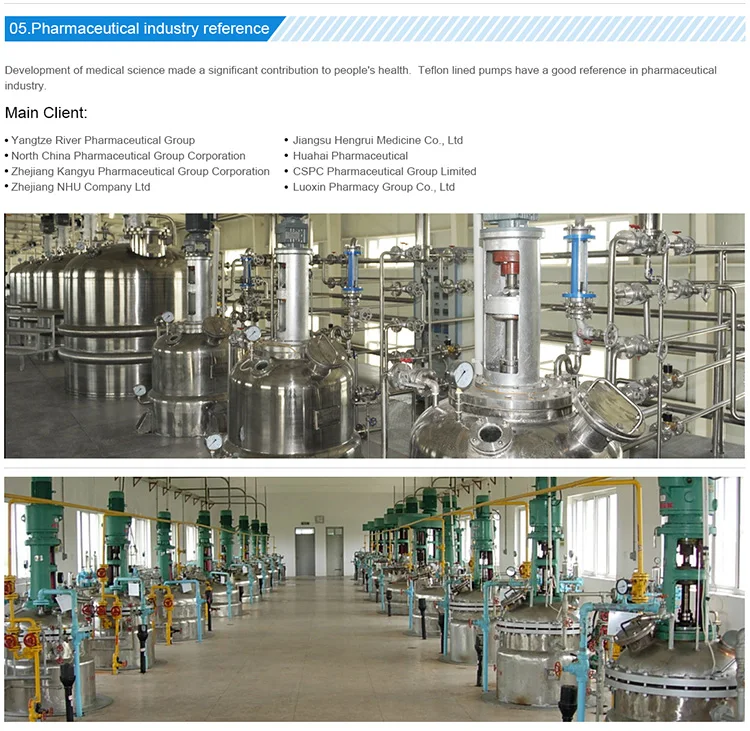

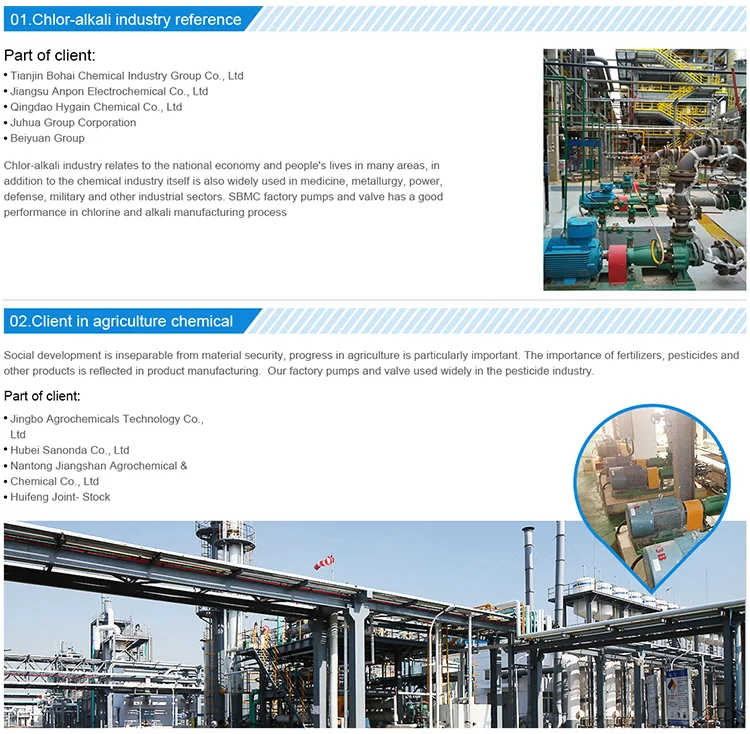

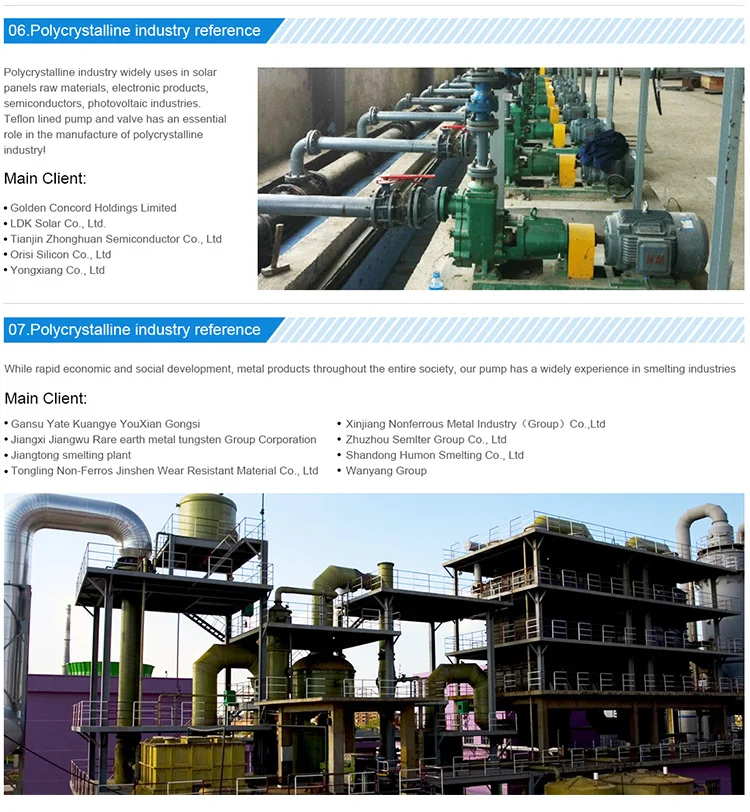

Successful Project
FAQ
Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our pump compliant with ISO / ASME/ANSI standard.
Q:How to customize pumps and mechanical seals ?
A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
