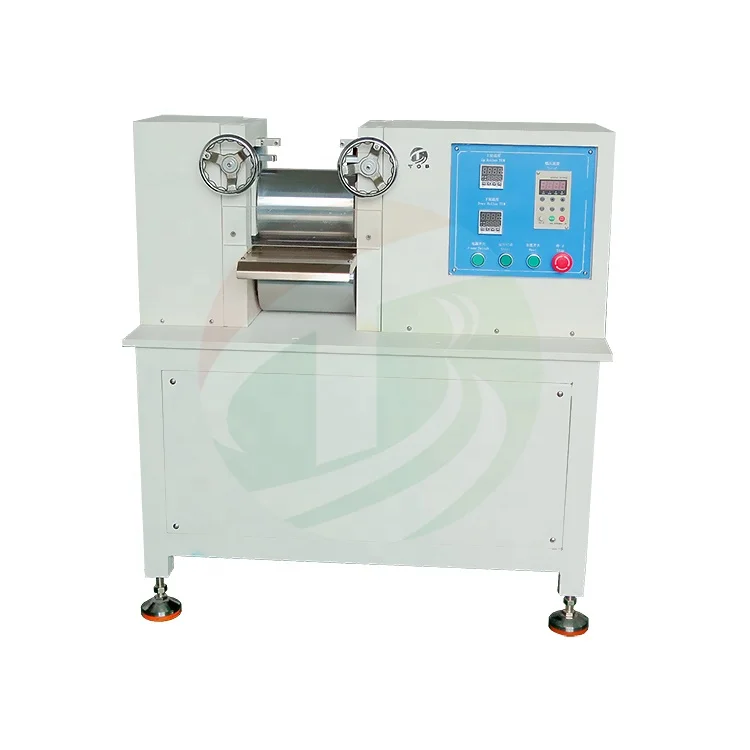

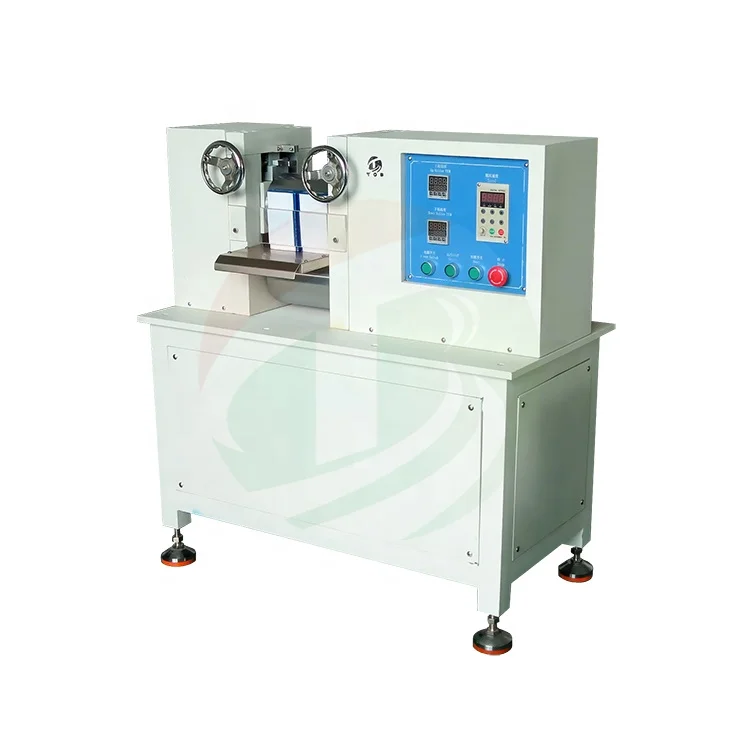

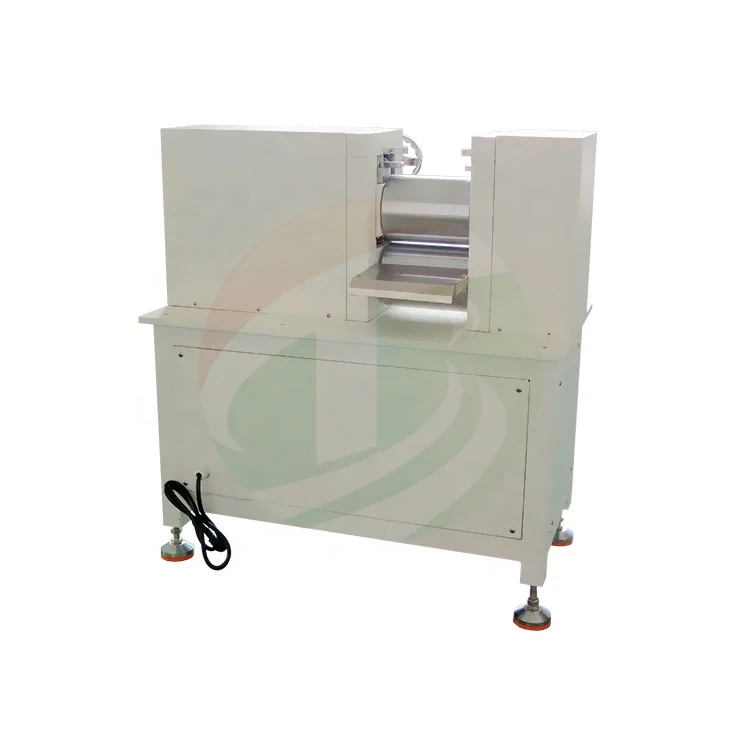

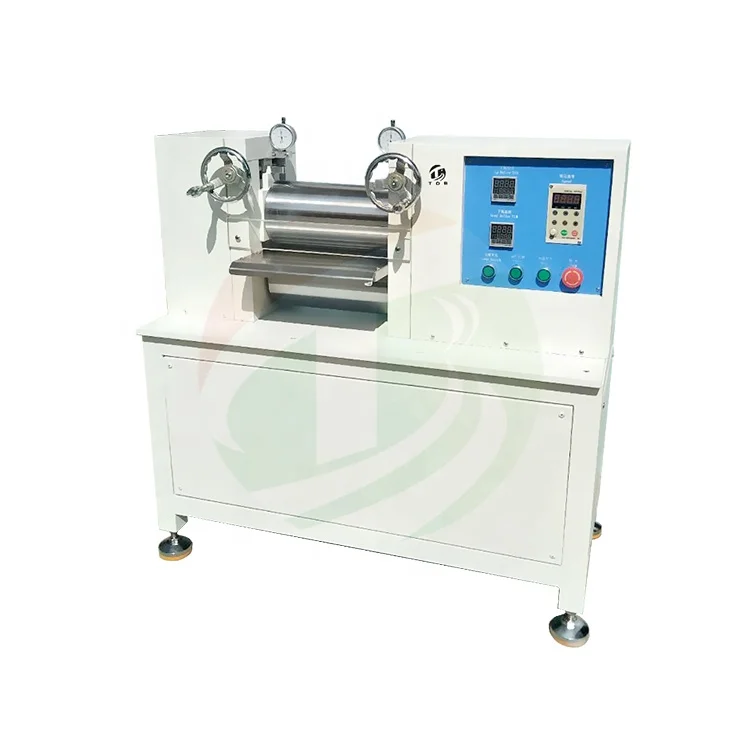

High Precision Lab Roller Heat Press Machine For Lithium Battery Electrode Calendering
SPECIFICATIONS

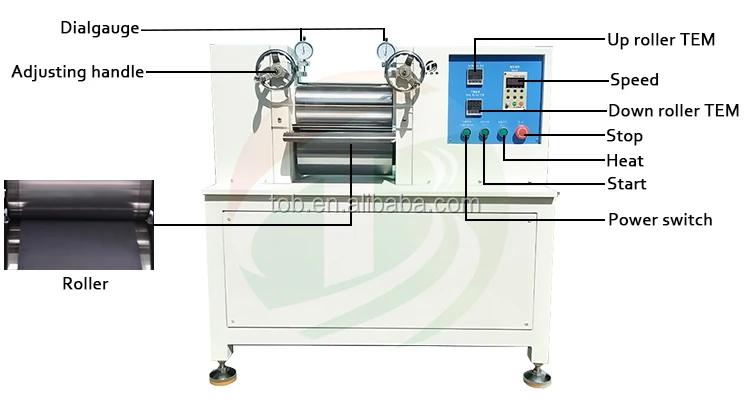

1 TOB-DR-H150-300 Lab Roll Press Machine is a compact precision Roll to roll Heat Press Machine . It has dual rollers of 150mm dia. x 300mm width and dual grade micrometer. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This model Electric Calender is used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.
3 It has a pair of 300mm width steel rollers. Such a roller can be heated up to 120℃.
Model | Φ150*300mm TOB-DR-H150-300 |
Working Voltage | 3phase 380v 50hz, or 3phase 208v 60hz |
Power | 6000W Total |
Warranty | One year limited manufacture warranty with lifetime support |
Roller Dimension | 150mm(Dia.) x 300mm(W) |
Roller surface hardness | >HRC62 |
Rolling press accuracy | ≤±0.005 |
Roller surface finish | 0.8 |
Roller surface hardening depth | 5mm |
Rolling press thickness | 0-3mm adjusted with Dial gauge |
Rolling press width | Max 300mm, Customized |
Rolling press speed | 0-6.5m/min adjustable |
Heating temperature | RT-120℃, (can customize to 200℃) |
Application Notes | This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. 1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting 2 Coated Rust-proof oil if machine were to be unused for a long period of time 3 The minimum thickness of the rolled sheet should depend on the physical property of the materials. |
Package weight | 400kg |
Package volume | 0.7M3 |
Product Display

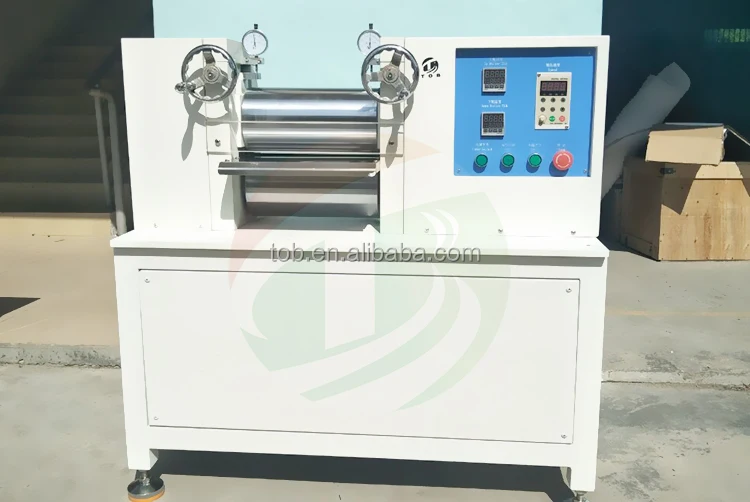

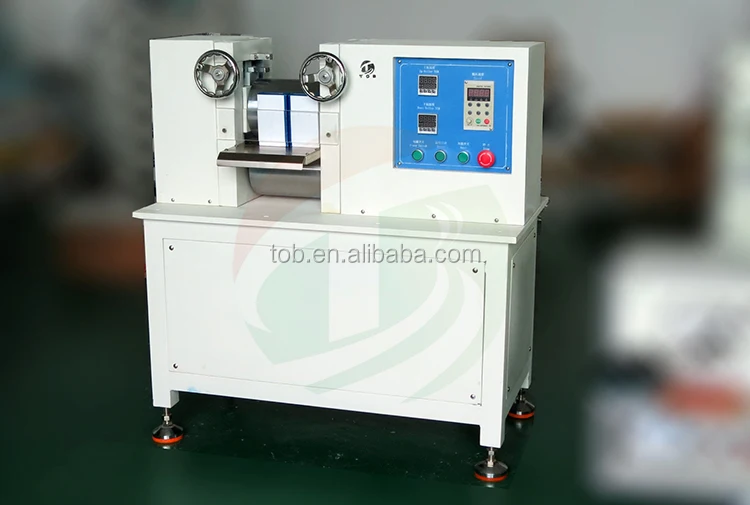

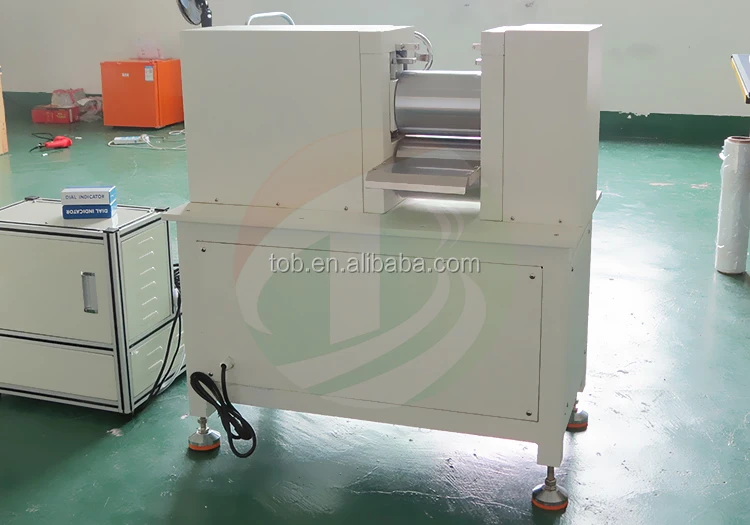

Φ150*300mm Roller Heat Press Machine
