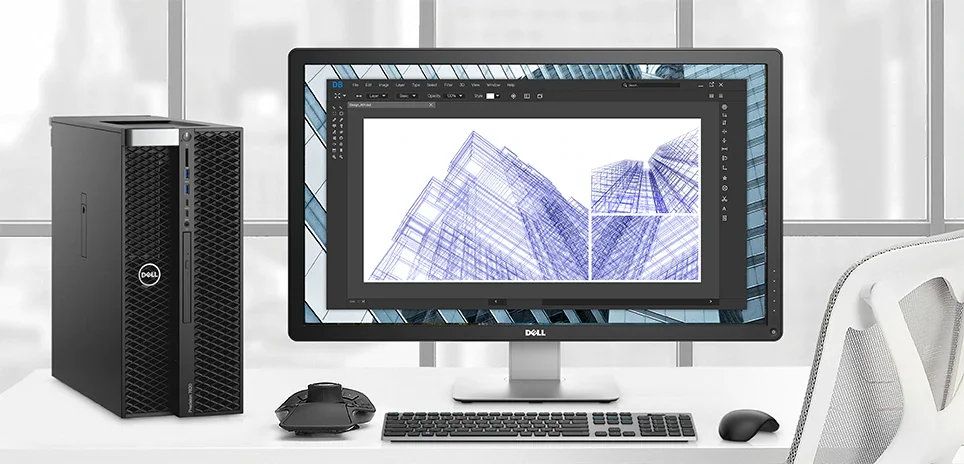

Dell Precision 7820 Intel Xeon 3104 Tower Workstation Server
- Category: Servers >>>
- Supplier: Beijing,Haoyue,Weiye,Science,&,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Dell Precision 7820 Intel Xeon 3104 Tower Workstation Server
Product Description
Specification
| Processor options | One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology |
| Operating system options | Windows 10 Pro for Workstations (up to 4 Cores) |
| Windows 10 Pro for Workstations (4 Cores Plus) | |
| Windows 10 Pro for Workstations Downgrade to Windows 7 (up to 4 Cores) | |
| Windows 10 Pro for Workstations Downgrade to Windows 7 (4 Cores Plus) | |
| Red Hat Enterprise Linux 7.3 | |
| Ubuntu Linux 16.04 | |
| Suse Linux (SLES 12 SP2) supported | |
| NeoKylin 6.0 SP3 (China only) | |
| Memory options | Six channel memory up to 384GB 2666MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots (6 DIMMs per CPU). |
| Chipset | Intel C621 (Lewisburg) |
| Graphics options | Support for 2 PCI Express x16 Gen 3 graphics cards - up to 500W with maximum of 2 x 250W double-width graphics cards on single CPU configurations. Up to 2 x 150W single width graphics cards on dual CPU configurations. |
High end 3D cards: Radeon Pro WX 9100 | |
Mid-range 3D cards: Radeon Pro WX 7100 | |
Entry 3D cards: Radeon Pro WX 3100 | |
Professional 2D cards: NVIDIA NVS 310 | |
| Storage options | Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated. |
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller. | |
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available as customer kit. | |
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC). | |
M.2 NVMe PCIe SSDs: Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards. | |
Front FlexBay M.2 NVMe PCIe SSDs: Up to 2 x 1TB drives | |
2.5” SATA SSD: Up to 6 x 1TB drives | |
3.5” SAS 7200 RPM 12Gb/s: Up to 5 x 4TB | |
2.5” SAS 10K RPM 12Gb/s: Up to 6 x 1.8TB | |
2.5” Self Encrypting Drives: 512GB 2.5” SED (OPAL/ FIPS (140-2) HDD | |
M.2 PCIe SED SSD: 512GB and 1TB | |
| Dimensions | Height: 417.9 mm (16.45”) X Width: 176.5 mm (6.95”) X Depth: 518.3 mm (20.41”). Optional 19” rackmount rail kit. Starting weight: 15.9kg (35.1 lb) |
| Security | Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise |
| Ports | Front 2 USB 3.1 Type A 2 USB 3.1 Type C 1 Universal Audio Jack Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs |
| Internal 1 USB 2.0 1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports) 8 SATA @6Gb/s plus 1 SATA for optical | |
| Rear 6 USB 3.1 Type A 1 Serial 1 RJ45 Network 2 PS2 1 Audio Line out 1 Audio Line in/Microphone | |
| Slots | All slots PCIe Gen 3 2 PCIe x16 1 PCIe x16 wired as x8 1 PCie x16 wired as x4 1 PCIe x16 wired as x1 1 PCI 32/33 |
| Chassis | Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit) (1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled).Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available. |
