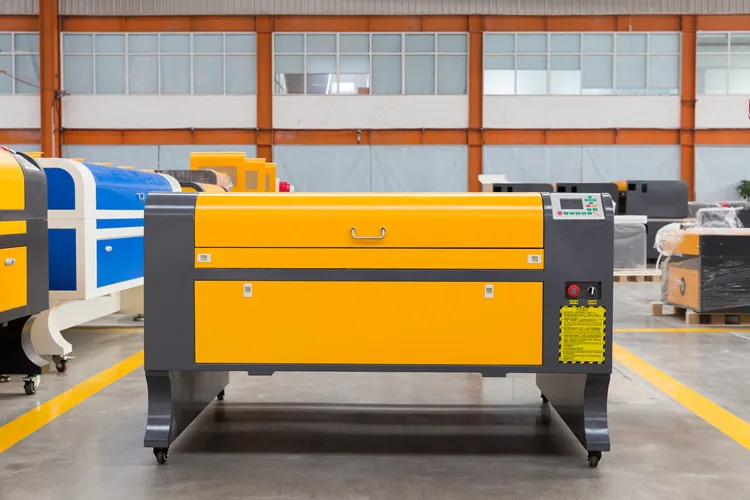

1080 Co2 laser cutting machine acrylic wood leather Mdf laser cutting engraving machine

Product Overview

Description



Product Application



Laser engraving machine is used for engraving and cutting on non-metal material. It is widely used on engraving or cutting on acrylic wood rubber glass PVC MDF leather etc.

SPECIFICATIONS FOR 1080 laser engraving machine
Basic performance param eters	working area	mm	1000*800
	laser power	W	60/80/100/130/150
	laser type	glass	sealed CO2 laser tube
Main performance parameters	cutting speed	mm/s	0-300
	engraving speed	mm/s	0-1024
	cutting thickness	mm	0-20
Detail parameters	engraving thickness	mm	0-2
	Location precision	mm	<=0.01
	lift range	mm	0-270





Main Features

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
40W exhaust fan, flow can be 5.27m³\\Min.
5. Rotary Axis, Engrave any cylindrical object.

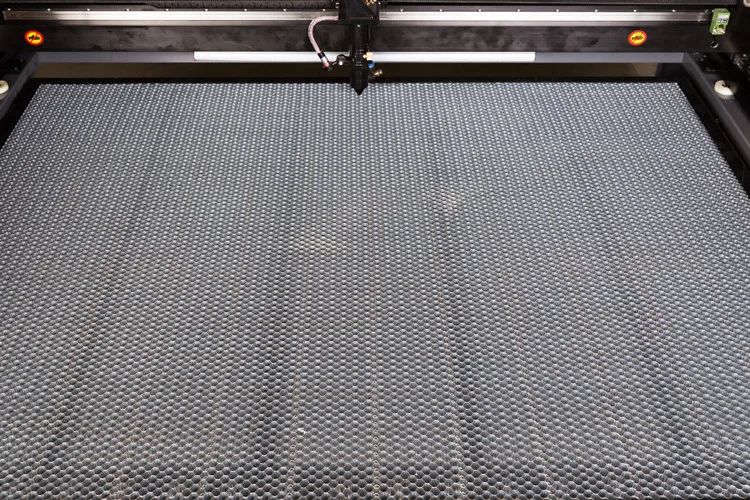

6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
15W Water Pump, flow can be 7.5L/H.
