Dual Lan fanless Embedded industrial mini itx motherBoard with Intel Atom D2550 processor and onboard 2GB RAM
- Category: >>>
- Supplier: Shenzhen Evr Tech Co. Ltd.
Share on (62149286557):
Product Overview
Description
Dual Lan fanless Embedded industrial mini itx motheroard with Intel Atom D2550 processor and onboard 2GB memory
Product Description
Features of Our motherboard
Intel® Atom D2550 processor + ICH8 chipset, Onboard Intel Atom D525 processor.
1*onboard 1333 DDR3 2GB memory
Support VGA+LVDS display,Support individual dual display
2*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,1xMini PCIe support Wifi or 3G module, 1xSIM slot,support NEMO Unicom,telecom card.
2x SATAII /8x USB2.0 /5x COM //1x Mini SATA(support SSD)1x LPT
DC-12V(+/-5%)orATX-20pin power input.(Can not use at the same time.)
Specification of our motherboard
Processor | CPU | Intel®Cedar Trail-D Atom D2550 dual-core(32nm,1.86GHz,1MB L2 cache) |
CPU package | BGA | |
Chipsets | Intel®Atom D2550+NM10 express chipset | |
BIOS | Award 8MB DIP Flash ROM | |
RAM | Technical architecture | Single channel 1066/1333/1600 MHZ |
Volume | Integrated Onboard DDR3 2GB RAM | |
Video | graphic controller | Integrated Intel GMA3650 Graphics Core(shared memory 128/224MB) |
Dual LVDS | Onboard 18/24bit Single Channel LVDS connector | |
VGA | Max support 1920*1080 | |
HDMI | No | |
Dual display | LVDS+VGA dual display | |

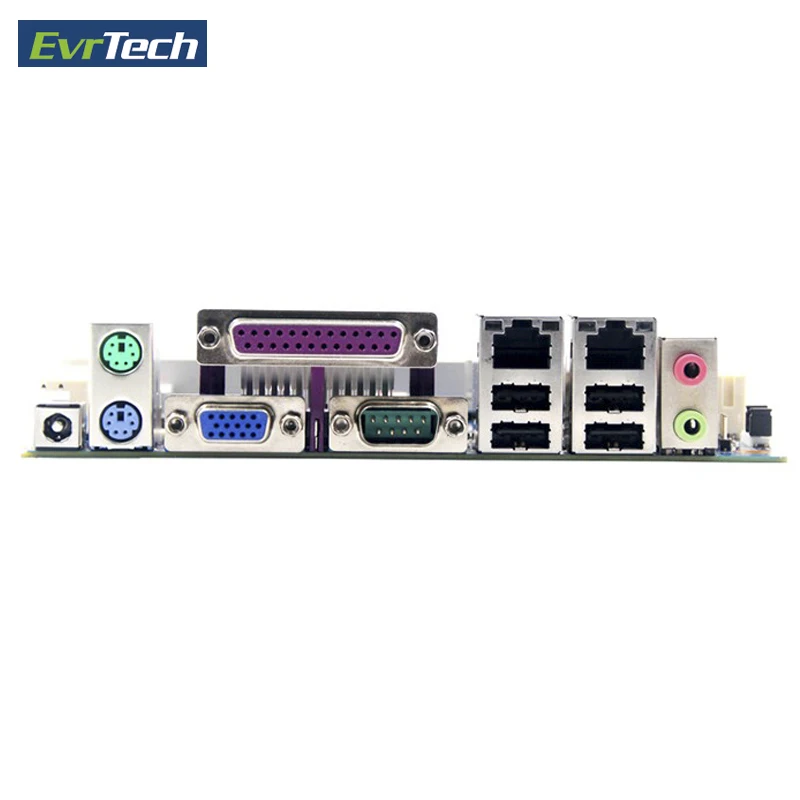

I/O | rear panel I/O | 1*VGA,2*RS232,1*LAN,2*USB,1*MIC-IN/LINE-OUT |
Network | controller | 2*RTL8111E-VL 10/100/1000Mbps Gigabit Ethernet LAN |
AUDIO | controller | Onboard HD ALC662 chipset,(Mic-in/Line-out). |
Super I/O | controller | W83627DHG |
hardware monitor | watchdog timers | Level 255 timer |
Cooler | Aluminum fan or fanless heater | |
input/output port | USB | 6*USB 2.0 |
COM | 5*COM expansion headers(support RS232/488/485) | |
PS/2 | 1*PS/2 interface(Mouse/Keyboard) | |
GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
Expansion Sockets | Mini-PCle | 1*MINI PCIE slot,support PCIE and USB equipment |
SMBUS | ||
storage | SATA | 2 standard Sata-II,max transmission speed 3GB/S |
M-SATA | 1*mini sata socket,Support SANDISK protocol,max transmission speed 3GB/S | |
Power Supply | Power type | Single-input DC Power supply DC 12V+/-5% |
Power Consumption | 17W | |
Temperature environment | Working Temperature | -20°C~70°C(-4°F~158°F) |
Storage Temperature | -20°C~80°C(-4°F~176°) | |
Operating Humidity | 10%~90%(non-condensing) | |
Storage Humidity | 10%~90%(non-condensing) | |
Weight | 0.5 KG |

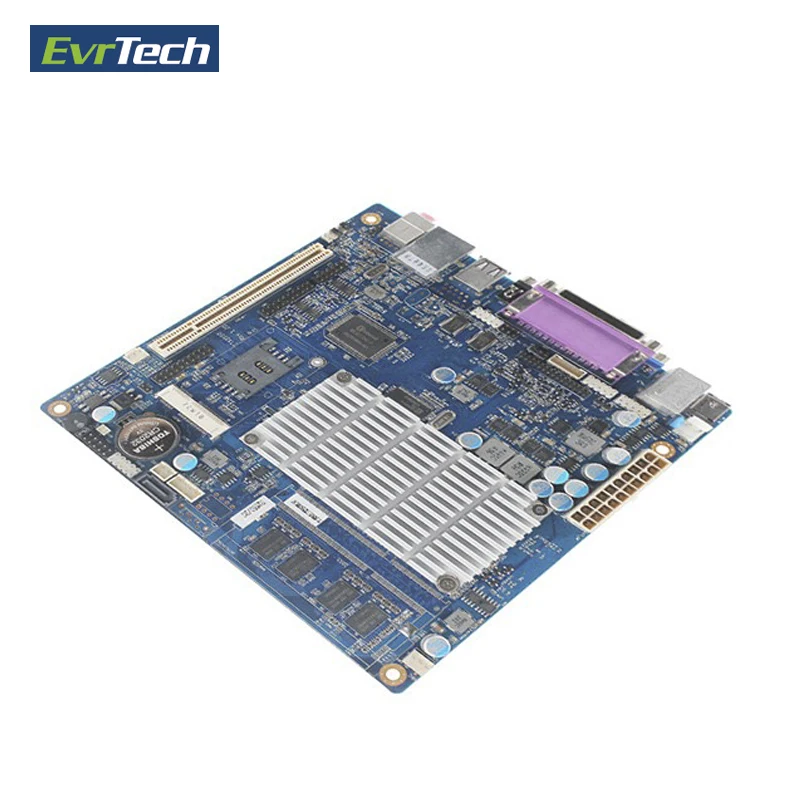

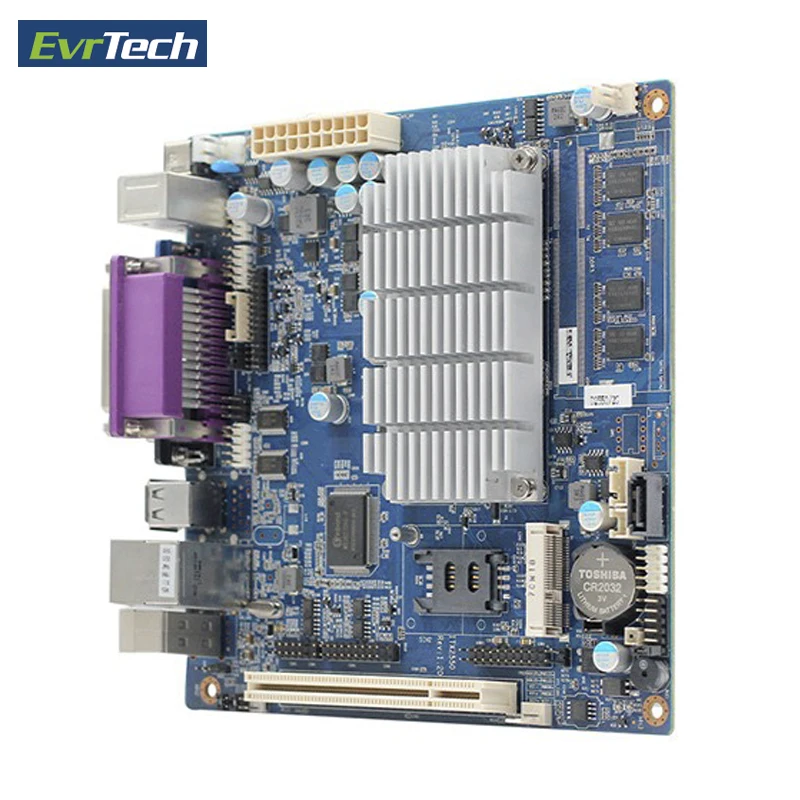

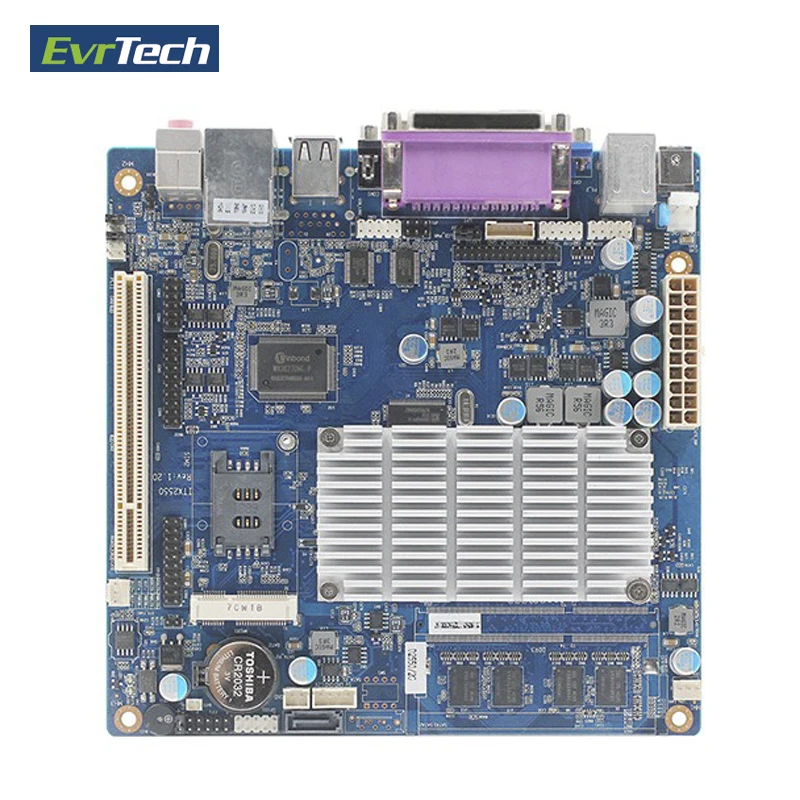

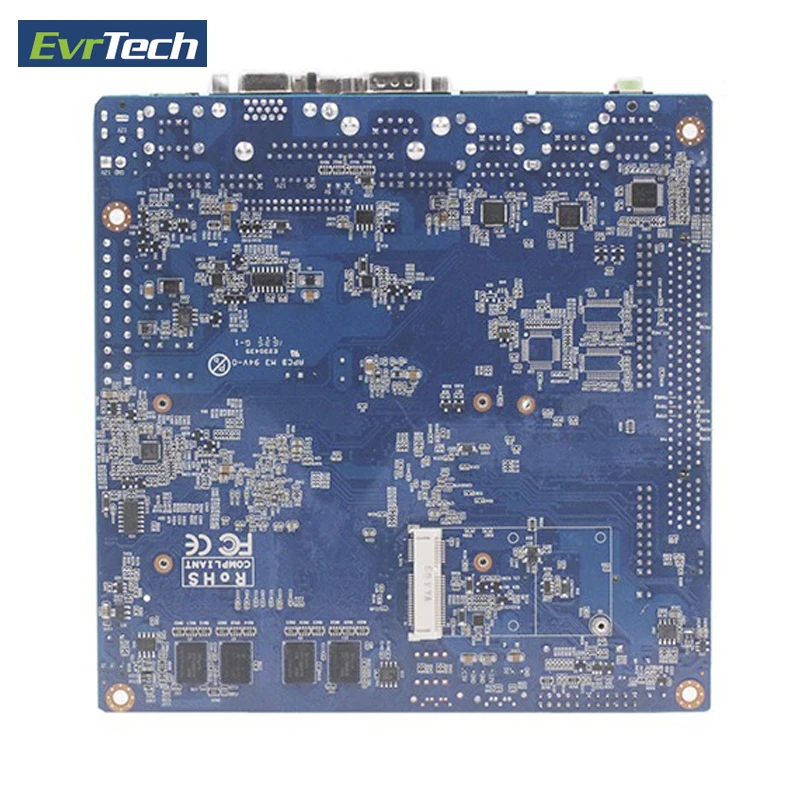

Detailed Images
Packaging & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box,
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Our Services
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it ,but we will charge for the parts that need to change.
Company Information
FAQ
Q1: Can you put Our brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about
our products. We will try our best to help you.
