C6256x3000 Metal horizontal lathe machine dro
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62149293911):
Product Overview
Description

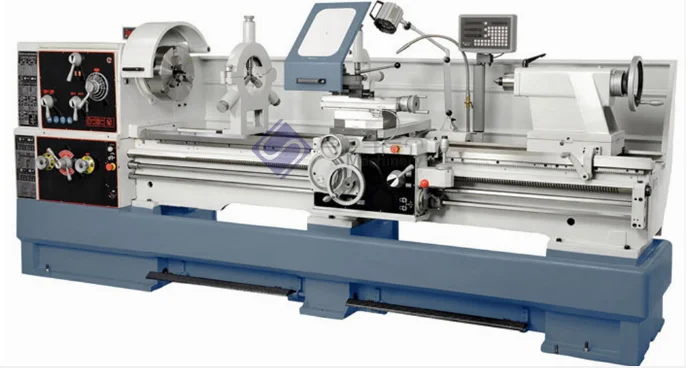

C6256x3000 Metal horizontal lathe machine dro
Product Description
Specification:
| SPECIFICATION | MODELS | |||
| C6251 x 1500/2000/3000 | C6256 x1500/2000/3000 | |||
| CAPACITY | ||||
| Swing over red | 510mm(20" ) | 560mm(22" ) | ||
| Swing in gap | 300mm(11-7/8" ) | 350mm(13-3/4" ) | ||
| Swing of gap | 738mm(29" ) | 788mm(31" ) | ||
| Length of gap | 200mm(8" ) | |||
| Distance between centers | 1500mm(60" ) | 2000mm(78" ) | 1500mm(60" ) | 2000mm(78" ) |
| Center height | 1135mm | 1160mm | ||
| Width of bed 350mm(13-3/4" ) | ||||
| HEADSTOCK | ||||
| Spindle nose | D1-8 | |||
| Spindle bore | 80mm(3-1/8" ) | |||
| Taper of spindle bore | No. 7Morse | |||
| Range of spindle speed | 12changes25-1600r/min | |||
| FEEDS AND THREADS | ||||
| Max. travel of compound rest | 130mm(5-1/8" ) | |||
| Max. travel of cross slide | 326mm(12-15/16" ) | |||
| Leadscrew pitch | 6mmOr4T. P. L | |||
| Max. section of tool | 25× 25mm(1× 1" ) | |||
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022" -0.0612" /rev) | |||
| Cross feeds range | 35kinds0.020-0.573mm(0.00048" -0.01354" ) | |||
| Metric threads range | 47kinds0.2-14mm | |||
| Inch threads range | 60kinds2-112T. P. L | |||
| Diametrical pitches range | 50kinds4-112D. P. | |||
| Module pitches range | 39kinds0.1-7M. P. | |||
| TALLSTOCK | ||||
| Dia of tailstock sieeve | 75mm(3" ) | |||
| Travel of tailstock sleeve | 180mm(7" ) | |||
| Morse taper of tailstock sleeve | No. 5Morse | |||
| Cross adjustment | ± 13mm(± 1/2" ) | |||
| MOTOR | ||||
| Power of main motor | 7.5kw(10HP)3PH | |||
| Power of coolant pump | 0.1kw(1/8HP), 3PH | |||
Features:
- Taper turning attachment fitted to saddle is optional for C6256x3000 Metal horizontal lathe machine dro.
- Triple bearings supporting headstock spindle
- Adjustable taper roller bearings providing spindle accuracy
- Precision 'V'-beds & headstock gears are all hardened & ground
- One piece cast iron base increases rigidity for C6256x3000 Metal horizontal lathe.
- Overload protection on drive motor and coolant system
- Universal enclosed gearbox incorporating metric & imperial thread capabilities
- Inching button incorporated on the control panel for convenient spindle speed selection
- Foot operated spindle brake with safety cut out switch
- 300mm wide induction hardened heavy duty cast iron bed
- Removable gap bed allowing work piece to swing up to 690mm
- Chuck guard fitted with safety micro switch
- Powered longitudinal and cross feeds
- C6256x3000 Metal horizontal lathe machine dro is adjustable 4 position length-stop mechanism for accurate repetitive operation
- Micro adjustable saddle stop
Standard accessories:
3-Jaw chuck, 4-Jaw chuck, steady rest, follower rest,
face plate, longitudinal automatic trip,
coolant system, brake system, dead center,
oil gun, change gears, operation manual, work lamp
Optional accessories:
SINO DRO 2-axis
Quick change tool post
Live center
Turning tools
Lead screw cover
Toolpost cover
Chuck cover
CE standard electric
Packaging & Shipping
Standard full closed plywood case suitable for shipment by sea.
Packing size: 3400*1190*1740mm
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
