Outdoor Lighting Photocell Motion Sensor ETL DLC Led Shoebox Area Light
- Category: >>>
- Supplier: Shenzhen Kili-Led Lighting Co. Ltd.
Share on (62149406710):
Product Overview
Description
Product Description

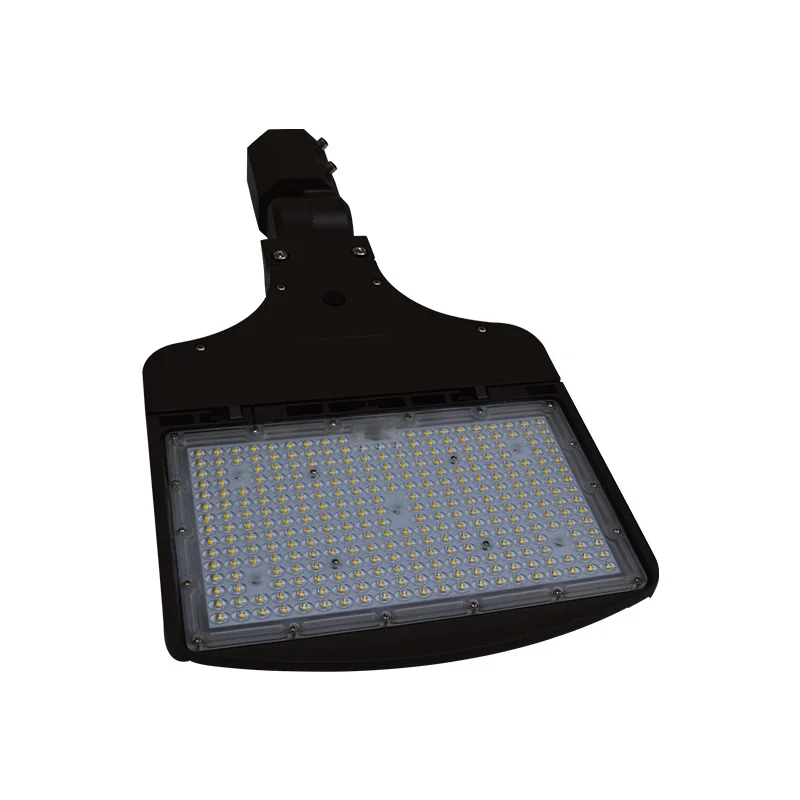

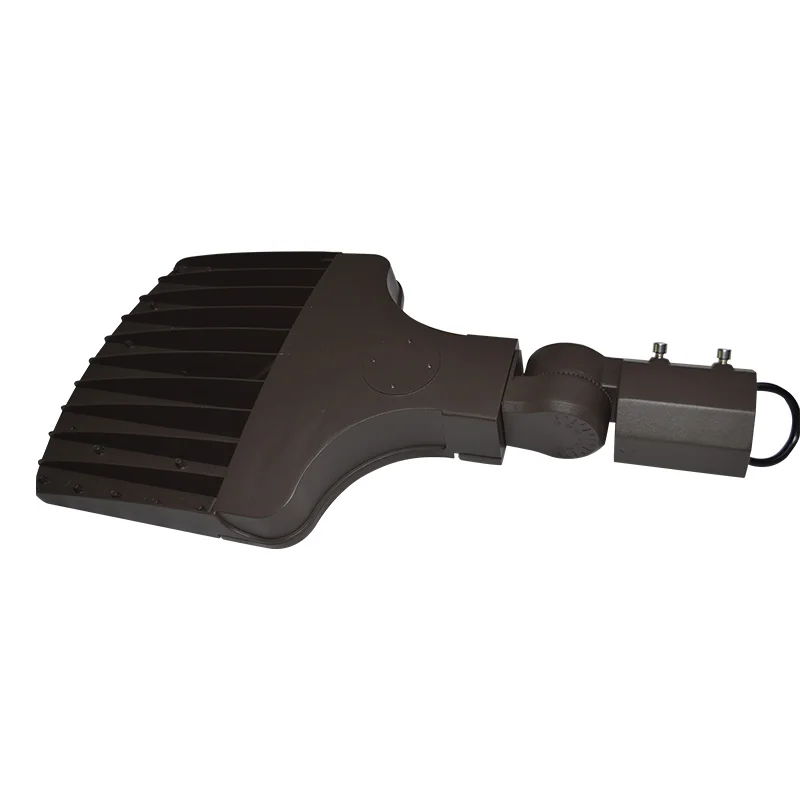

Best-selling LED shoebox light

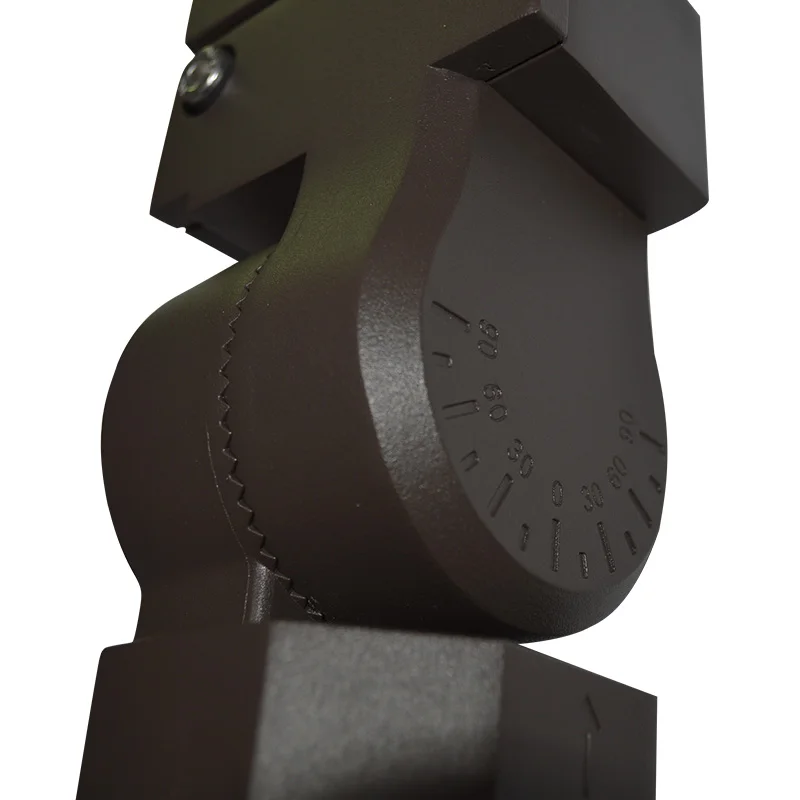

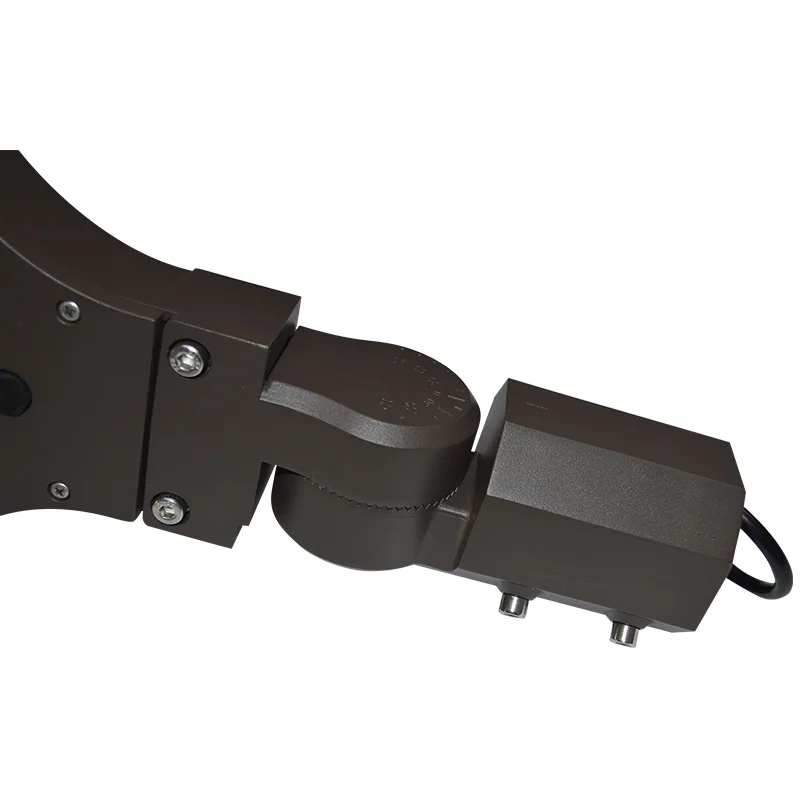

The SBAL LED area light is designed as a replacement for street light and vapor lamp. It has a lowpro-fifile design made of one piece die-cast aluminum housing with UV resistant polycarbonate opticallens.This LED area light delivers high lumens with efficacy up to 140 lumens per watt and long life for amore energy efficient and low maintenance lighting solution IP65/IK08 design for harsh environ-mentsfrom -22 up to 122 F. This LED area light is designed to slip-fifit, round pole, square pole and trun-nion(bracket)mount,the versatile mounting confifigurations offer simple installation. The type llI, IV, V lightdistribution make it ideal for general outdoor and commercial area lighting in parking lots, office complexes, campuses, walkways, stadiums, squares and billboards, etc.

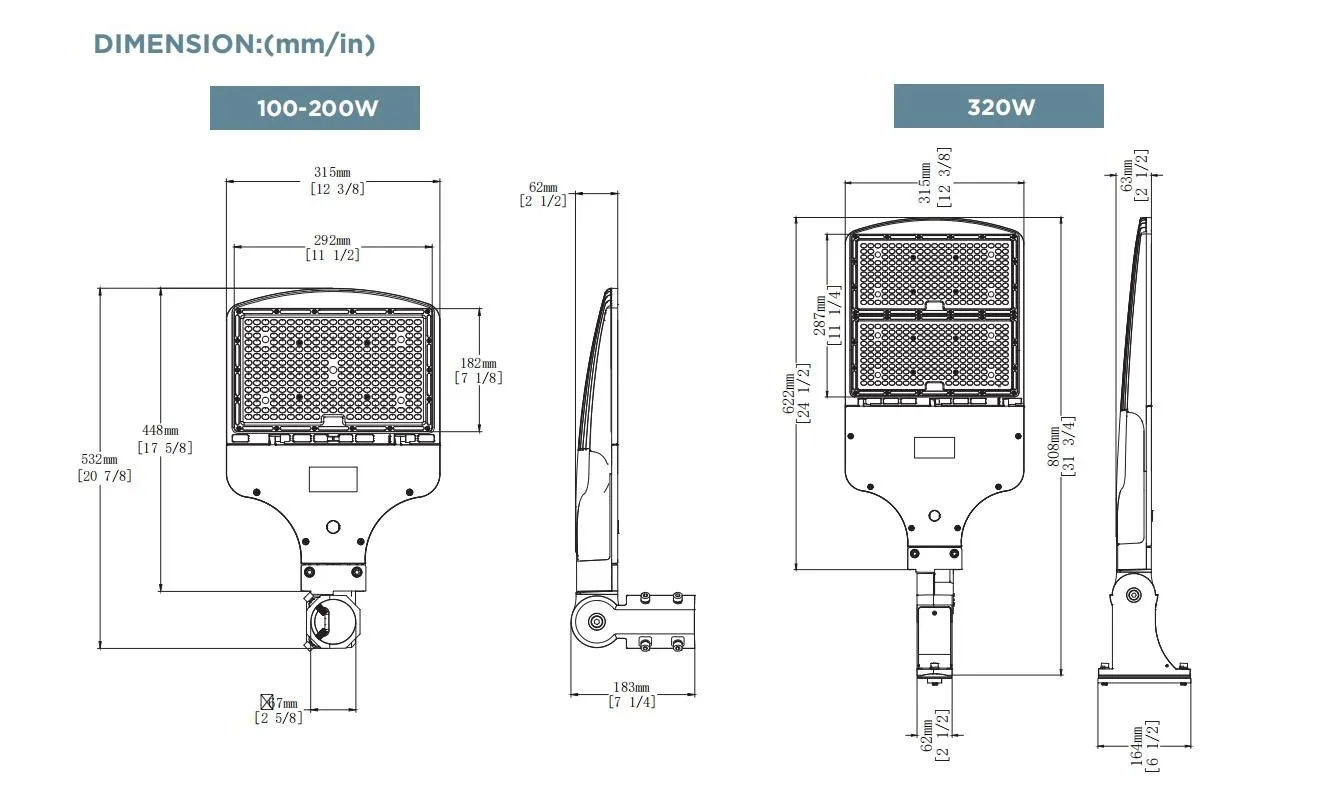

Product specifications
Produce Code | KLSBAL100 | KLSBAL150 | KLSBAL200 | KLSBAL320 | |||
XXXXXXXXXXX | XXXXXXXXXXX | XXXXXXXXXXX | XXXXXXXXXXX | ||||
Power Consumption(W) | 100 | 150 | 200 | 300 | |||
Lumens Delivered(lm) | 14000 | 21000 | 28000 | 42000 | |||
Efficacy(lm/W) | 140 | 140 | 140 | 140 | |||
CRI | >70 | >70 | >70 | >70 | |||
Input Voltage | 100-277VAC | 100-277VAC | 100-277VAC | 100-277VAC | |||
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | |||
working life | More than 50000 hours | Morethan | Morethan | Morethan | |||
50000hours | 50000hours | 50000hours | 50000hours | ||||
Housing | Die-cast aluminum body(Bronze/Black). PCdiffuse | Die-castaluminum | Die-castaluminum | Die-castaluminum | |||
body(Bronze/Black). | body(Bronze/Black). | body(Bronze/Black). | body(Bronze/Black). | ||||
PCdiffuse | PCdiffuse | PCdiffuse | PCdiffuse | ||||
Installation | SBAL-TA:Round Pole Mount,SBAL-TB:Square Pole Mount | ||||||
OperatingTemperature | -30°Cupto50°C(-22°Fupto122°F) | -30°Cupto50°C | -30°Cupto50°C | -30°Cupto50°C | |||
(-22°Fupto122°F) | (-22°Fupto122°F) | (-22°Fupto122°F) | (-22°Fupto122°F) | ||||
Certification | ETL/CETL | ||||||

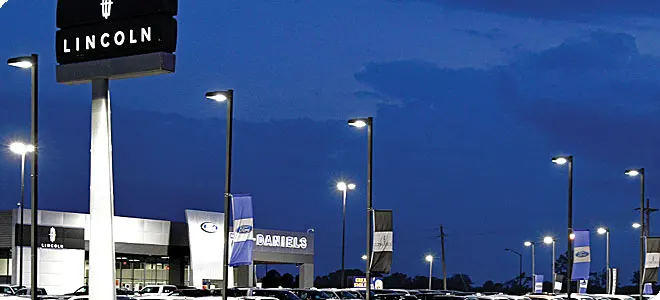

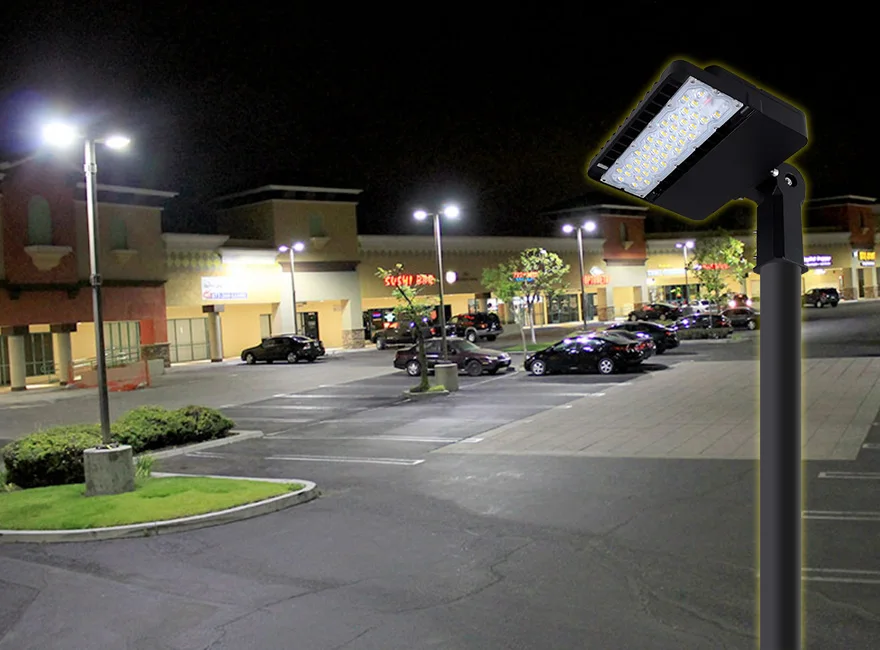

Application
Company introduction

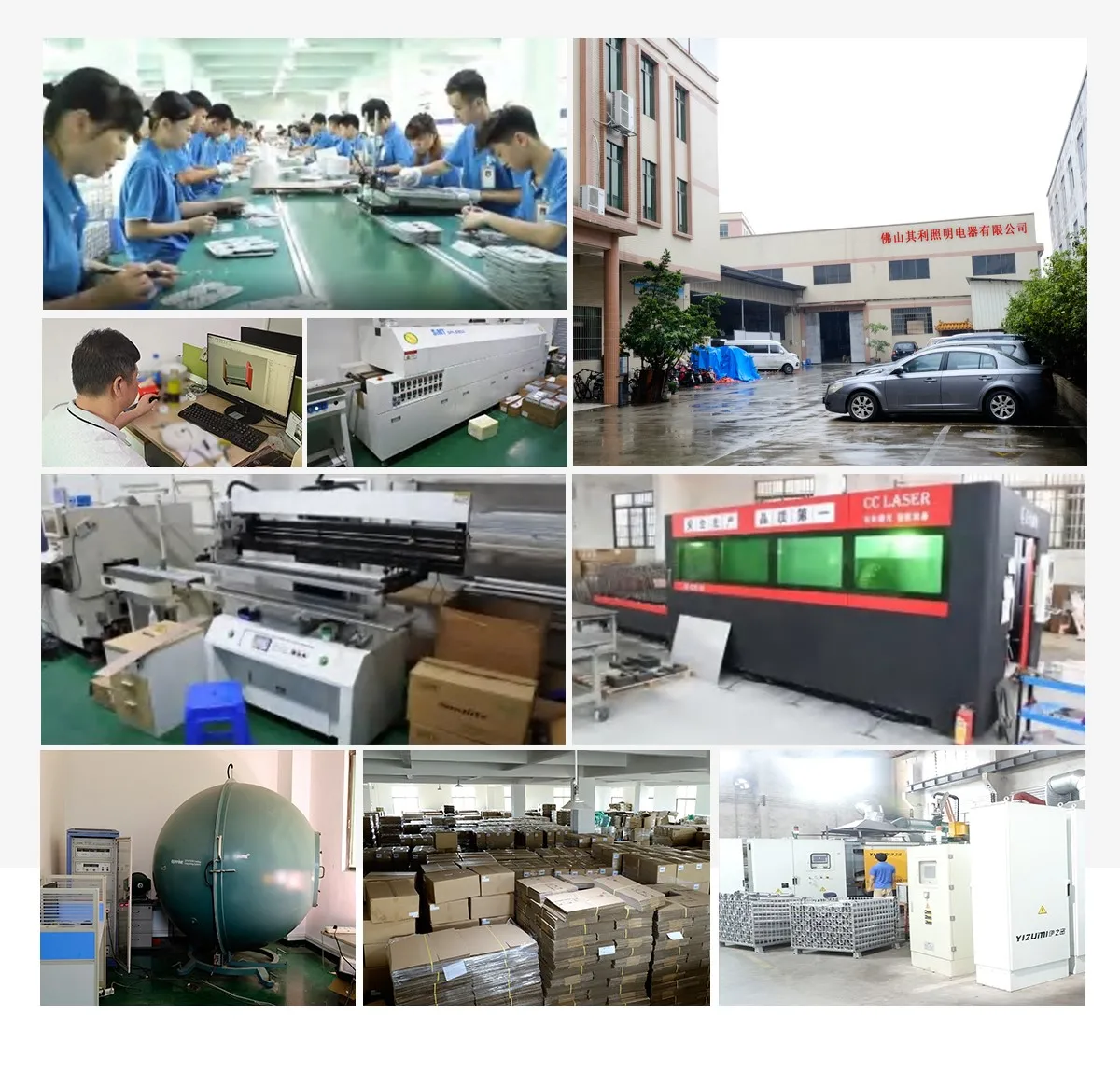

Kili-LED Lighting.founded in 2006, is a state-level high-tech enterprise and TüV ISO 9001:2008 certified and registered company. Currently there are over 100 employees, including more than 10 r&d personneland ，a fabrication area of more than 10,000 square meters. Our company has advanced LED luminaire manufacturing and test facilities such as auto soldering and SMT machines, programmable constant temperature and humidity testing machine,high temperature aging oven,ultraviolet weather-proof machine,salt mist spraying testing machine,lighting surge simulator,IP68 waterproof test machine, electrical testing device such as integrating spheres and distribution photometer, AOI tester,RoHS scanner, and an independent EMI laboratory as well. We also have a professional trained QC team to ensure the quality of all the products. And all the products are CE certified as well as RoHS compliant,and some of the products are DLC and Energy Start compliant.
Quality Management
PCB testing
Aging testing
Power testing
Wires,Connectors,Accessories checking
Appearance checking
Labels checking
Inner boxes packing
Cartons Packing
Warehouse
Certifications
FAQ
Q1: Does Kili Lighting accept the OEM /ODM order?
A:Welcome !OEM/ODM order is aviailable， we have more than 10 persons R&D Team，please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A:Welcome !OEM/ODM order is aviailable， we have more than 10 persons R&D Team，please contract us for further details.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. How to pay？
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
A:T/T；L/C；Western Union；Paypal；ETC.are acceptable.
Q4: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
